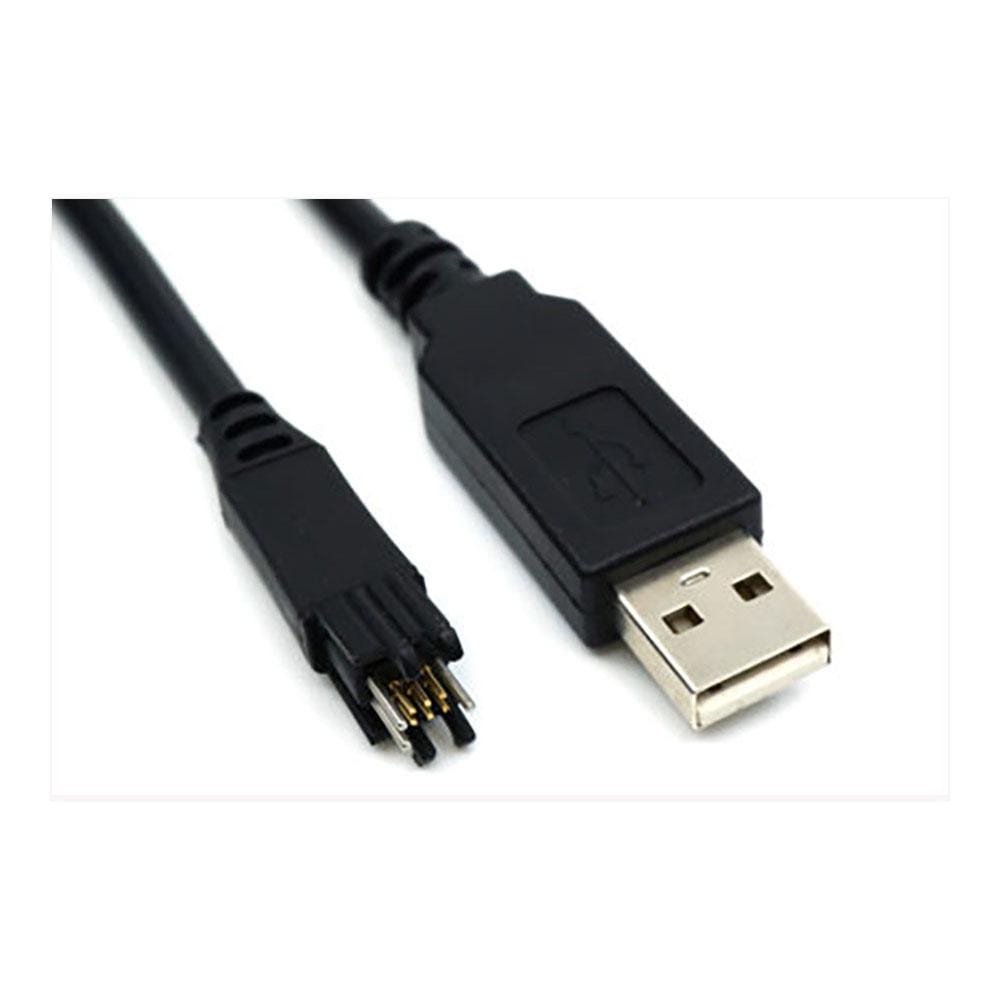

FTDI’s TTL to USB Serial Converter cable fitted with a TC2030 6-pin “Legged” Tag-Connector for 3.3V operation.
FAQs
Tag Connect TC2030-FTDI-TTL-232R-3V3 Cable
Frequently Asked Questions
Product Description
Product Description

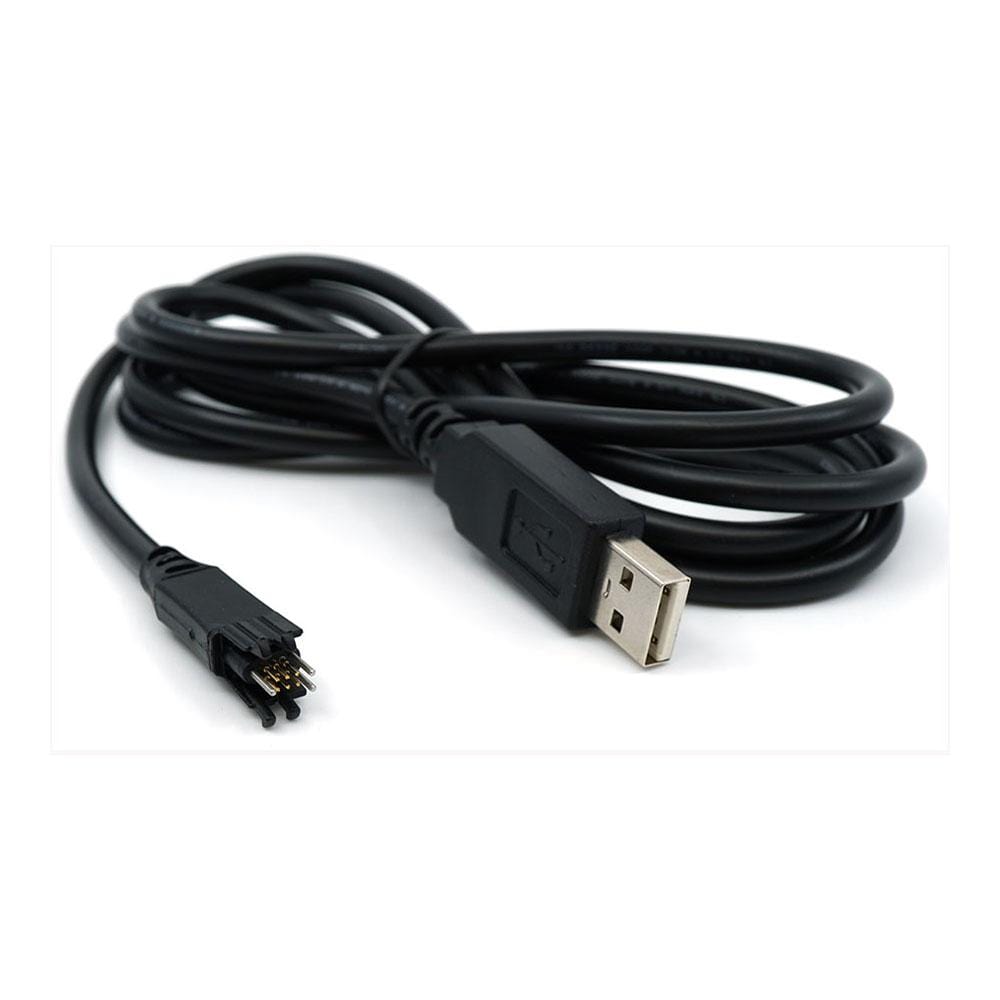

This product is FTDI’s TTL to USB Serial Converter cable fitted with a TC2030 “Legged” Tag-Connector.
Possible versions include TC2030 legged Tag-Connectors fitted to one of the following FTDI TTL-232R to Serial Converter Cables:
Nominal cable length: 5.9ft/1.8m.
Please specify the version you need when ordering.
See also the no-legs version TC2030-NL-FTDI-TTL-232R and the other interface types TC2030-FTDI-TTL-232RG, TC2030-FTDI-TTL-234X & TC2030-FTDI-TTL-C232HD.
TTL-232R-3V3 cables are normally in stock. Please allow a week for other versions to ship.
TC2030 Connections
| TC2030 pin | FTDI Signal |
|---|
| 1 | VCC / VCCIO (RED) |
| 2 | CTS / TMS (BROWN) |
| 3 | RXD / TDI (YELLOW) |
| 4 | TXD / TCLK (ORANGE) |
| 5 | GND (BLACK) |
| 6 | RTS / TDO (GREEN) |
