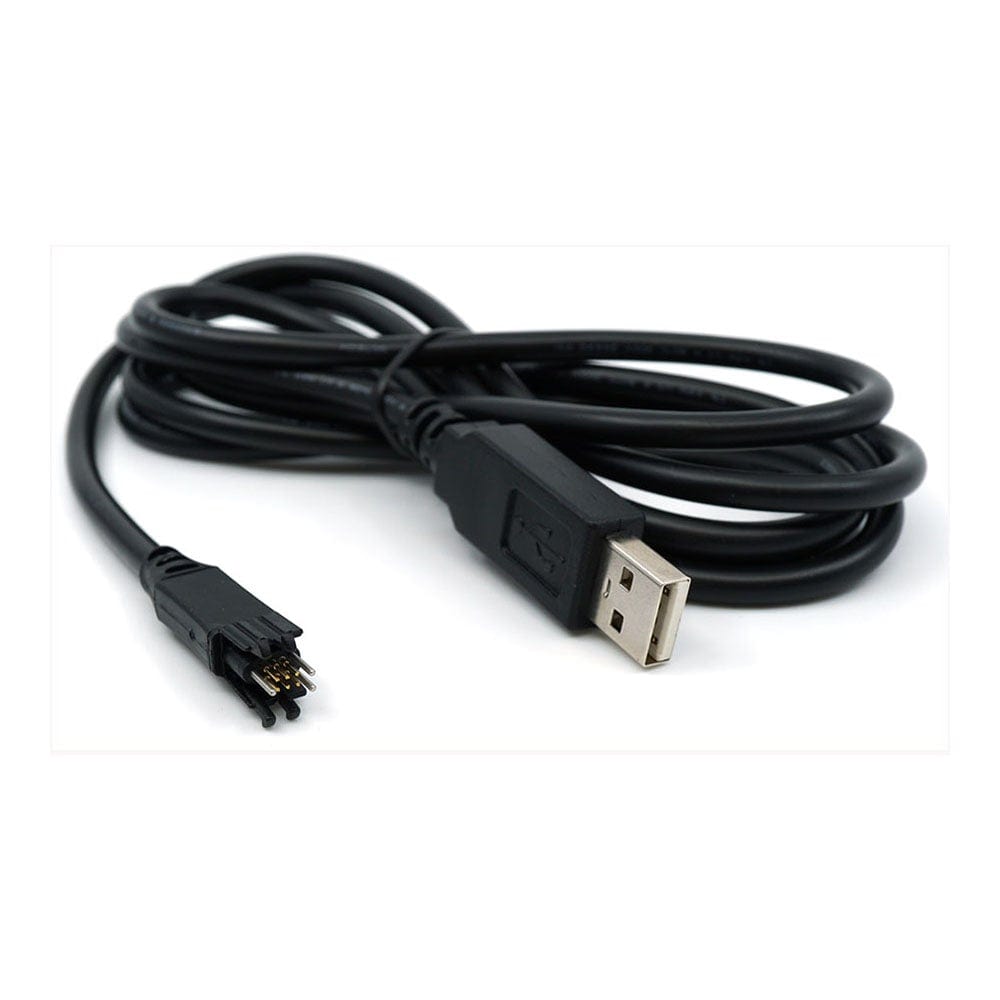

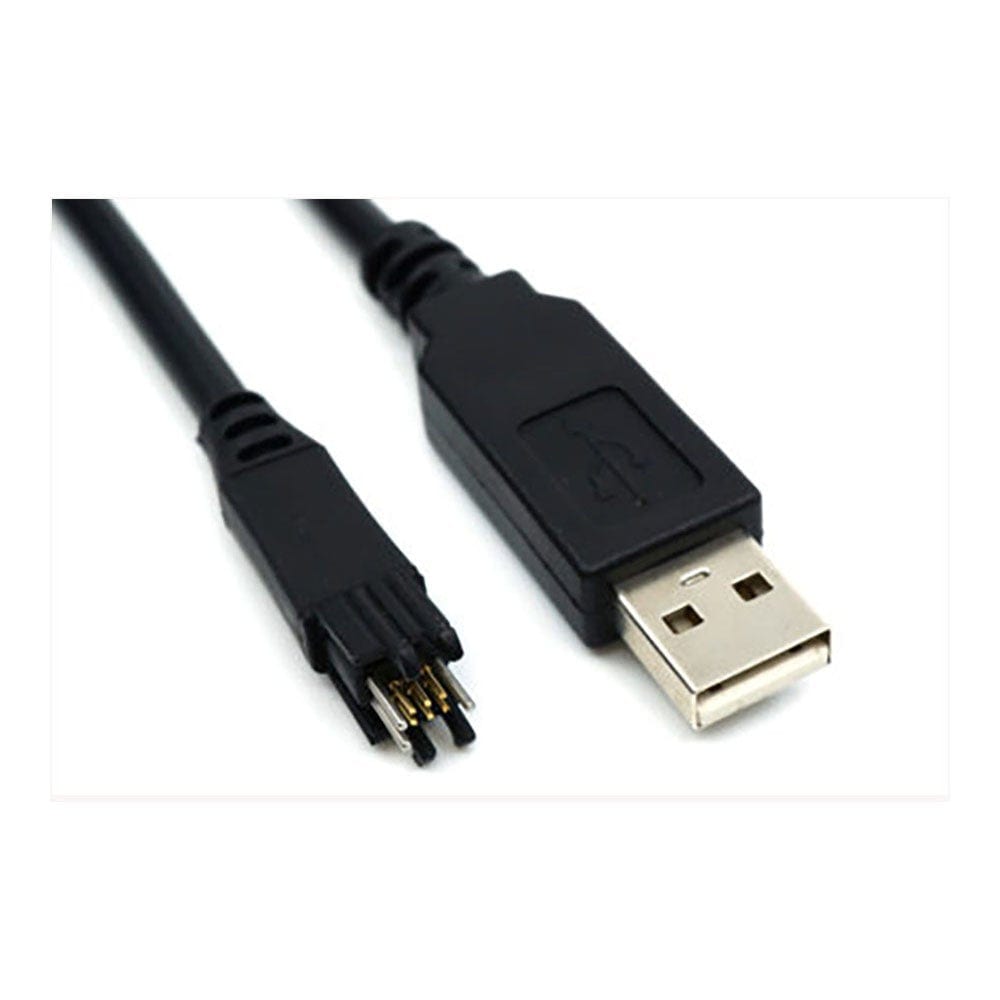

This product is FTDI's TTL to USB Serial Converter cable fitted with a TC2030 "Legged" Tag-Connector.
Possible versions include TC2030 legged Tag-Connectors fitted to one of the following FTDI TTL-232R to Serial Converter Cables:
- TTL-232R-3V3
- TTL-232R-5V
Nominal cable length: 5.9ft/1.8m.
Please specify the version you need when ordering.
See also the no-legs version TC2030-NL-FTDI-TTL-232R and the other interface types TC2030-FTDI-TTL-232RG, TC2030-FTDI-TTL-234X & TC2030-FTDI-TTL-C232HD.
TTL-232R-3V3 cables are normally in stock. Please allow a week for other versions to ship.
TC2030 Connections
TC2030 pin | FTDI Signal |
---|---|
1 | VCC / VCCIO (RED) |
2 | CTS / TMS (BROWN) |
3 | RXD / TDI (YELLOW) |
4 | TXD / TCLK (ORANGE) |
5 | GND (BLACK) |
6 | RTS / TDO (GREEN) |
Tag Connect TC2030-FTDI-TTL-232R-5V Cable
