Dediprog QSPI-SOP016300mil-001E Quad SPI Adapter
Dediprog QSPI-SOP016300mil-001E Quad SPI Adapter
SKU: QSPI-SOP016300mil-001E
Couldn't load pickup availability
Key Features
Overview

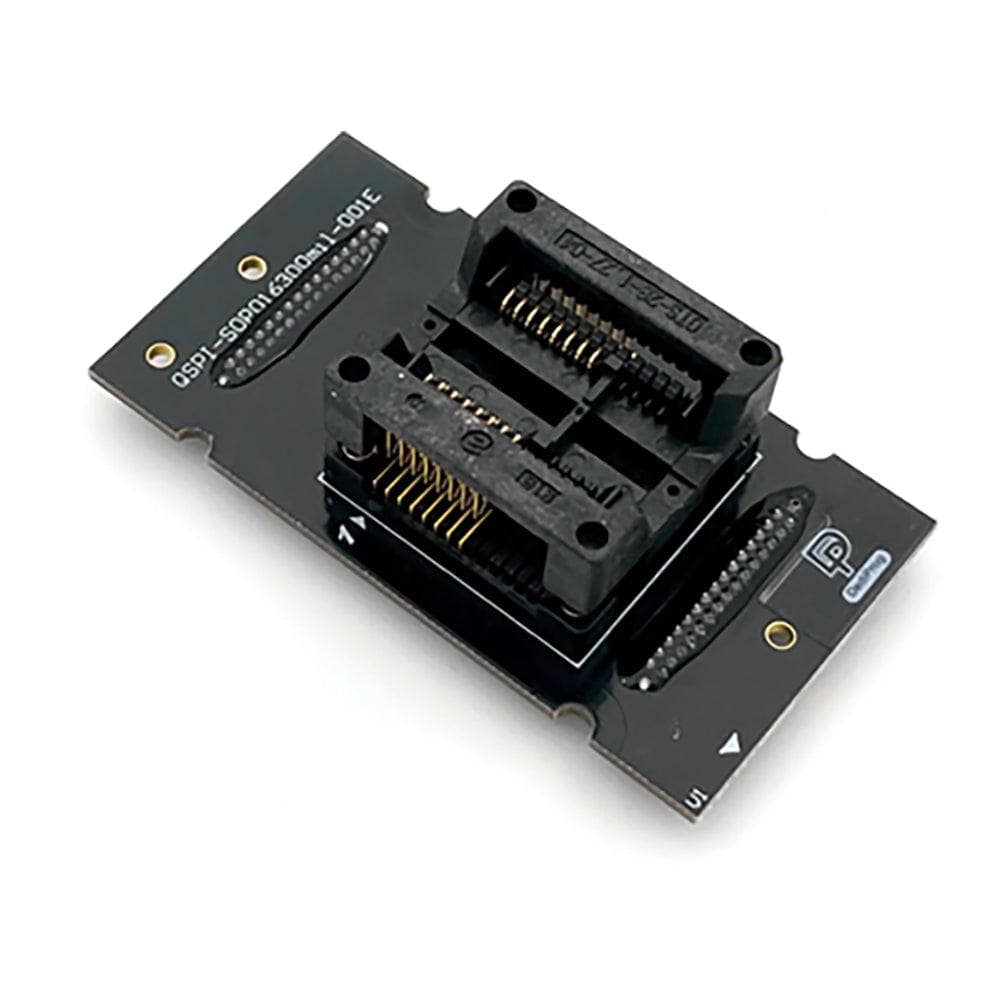

The Dediprog QSPI-SOP016300mil-001E is a precision-engineered socket adapter designed exclusively for programming SOP16 300mil package Quad SPI flash devices. This professional-grade adapter features optimised circuitry that significantly improves programming performance across Quad I/O, Dual I/O, and Single I/O modes, making it an essential tool for electronics engineers working with modern flash memory technologies.
Enhanced Programming Performance
This adapter forms part of Dediprog's comprehensive socket adapter series, complementing the SOP8 207mil variants available for smaller package sizes. The unit accommodates SOP16 packages measuring 7.52 mm length, 10.30 mm width, and 2.65 mm height with standard 1.27 mm pitch, ensuring precise electrical connection for reliable programming operations.
Universal Compatibility
Compatible with the complete range of Dediprog programmers including K110, ProgMaster-U4, ProgMaster-U8, SF100, SF600, SF600Plus, SF700, and StarProg-U series, this adapter provides engineers with the versatility needed for both development and production environments. The enhanced circuit design ensures optimal programming yields whilst supporting advanced features like controller reset modes and multiple CS pin configurations.
Professional Applications
For production environments requiring socket programming capabilities, this adapter offers reliable performance for programming SPI flash devices before PCB assembly, whilst development teams benefit from its compatibility with engineering sockets for rapid prototyping workflows. Engineers working with related adapter solutions should also consider the SOP8N programming adapters and TSSOP8 programming adapters for comprehensive flash programming coverage across different package types.
Downloads
Why Engineers Choose The Dediprog QSPI-SOP016300mil-001E Quad SPI Adapter
High-Performance Programming
Universal Compatibility
Production Efficiency
| Package Type | Number of Pin | Type | PCB Dimension | IC Size(mm) | |||||
|---|---|---|---|---|---|---|---|---|---|
| Length(D1) | Width(E1) | Height(A) | Pitch(e) | L Pins(D) | W Pins(E) | ||||
| SOP | 16 | Opentop | 64*34 | 7.52 | 10.30 | 2.65 | 1.27 | 10.4 | |
| General Information | |
|---|---|
Part Number (SKU) |
QSPI-SOP016300mil-001E
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.5 kg
|
| Other | |
EAN |
5055383621316
|
Questions and Answers
-
How Does the Optimised Circuitry Improve Programming Performance?
Dediprog states the circuit is optimised to improve programming yield in Quad I/O, Dual I/O and Single I/O modes.
-
Can I Use This Adapter for In-Circuit Programming Applications?
No, this socket adapter is for offline programming. For in-circuit programming, use the Dediprog ISP cables, which connect directly to PCB-mounted flash devices.
-
What Safety Precautions Should I Observe When Using This Adapter?
- Insert flash devices the right way round, using the pin 1 markers. The triangle alignment markers help prevent incorrect insertion that could damage devices.
- Check that the programmer voltage settings match the flash device specification.
-
Are Engineering Sockets Available for Development Applications?
Yes, Dediprog supplies engineering sockets with the same footprint as production flash devices, so devices can be swapped during development.
-
How Does This Adapter Compare to Generic SOP16 Adapters?
Generic SOP16-to-DIP adapters only convert the pinout. This adapter has a circuit that Dediprog has optimised to improve programming yield in Quad, Dual and Single I/O modes, and it is listed for specific Dediprog programmers.
-
Which Dediprog Programmers Are Compatible with the QSPI-SOP016300mil-001E Adapter?
Dediprog lists this adapter for the ProgMaster-U4, ProgMaster-U8, SF100, SF600Plus-G2 and SF700. The ProgMaster-U4, ProgMaster-U8 and SF700 are discontinued. To confirm compatibility for your device, check the Dediprog device search page or contact Debug Store.
-
What Package Dimensions Does the SOP16 300mil Socket Accommodate?
It fits 300 mil SOP16 packages with a body of 7.52 × 10.30 × 2.65 mm (Dediprog's table lists 7.52 mm as length and 10.30 mm as width) and 1.27 mm pin pitch.
-
Can This Adapter Program Both Quad SPI and Standard SPI Flash Devices?
Yes. Dediprog lists Quad I/O, Dual I/O and Single I/O modes; the modes available also depend on the programmer (Dediprog's SF600/SF600Plus specification states socket mode supports Single and Dual I/O only; the SF600 is discontinued).
-
What Types of Flash Memory Manufacturers Are Supported by This Adapter?
It supports flash devices from Intel, SST, Microchip, AMIC, XTX and many other manufacturers.
-
Is This Adapter Suitable for Production Environments?
Yes. Dediprog lists it for the ProgMaster gang programmers used in production. Standalone operation depends on the programmer (for example the SF600Plus-G2); Dediprog does not state automated handler integration.
