Dediprog Technology Co Ltd
SKU: SF600Plus-G2
Payment methods
Couldn't load pickup availability

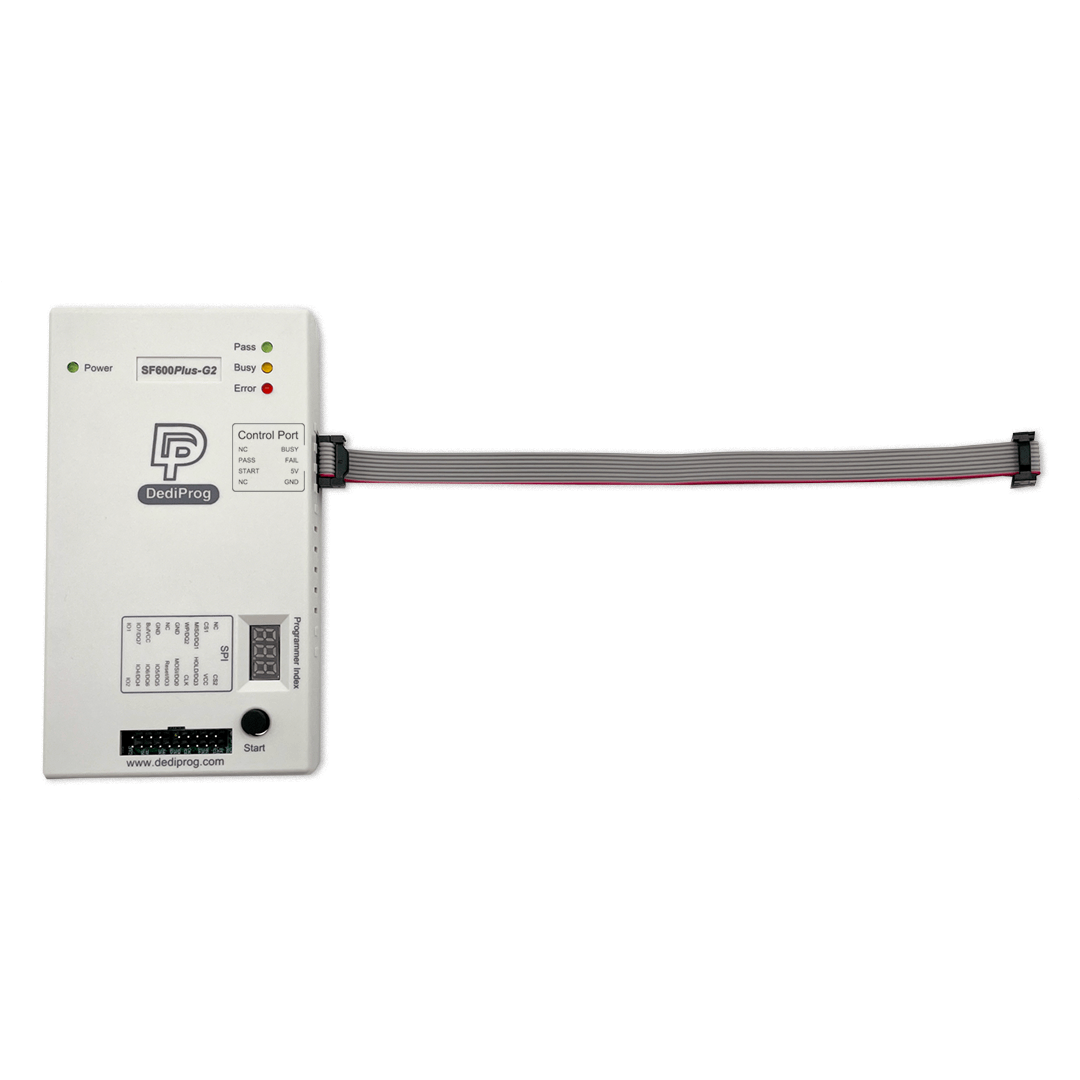

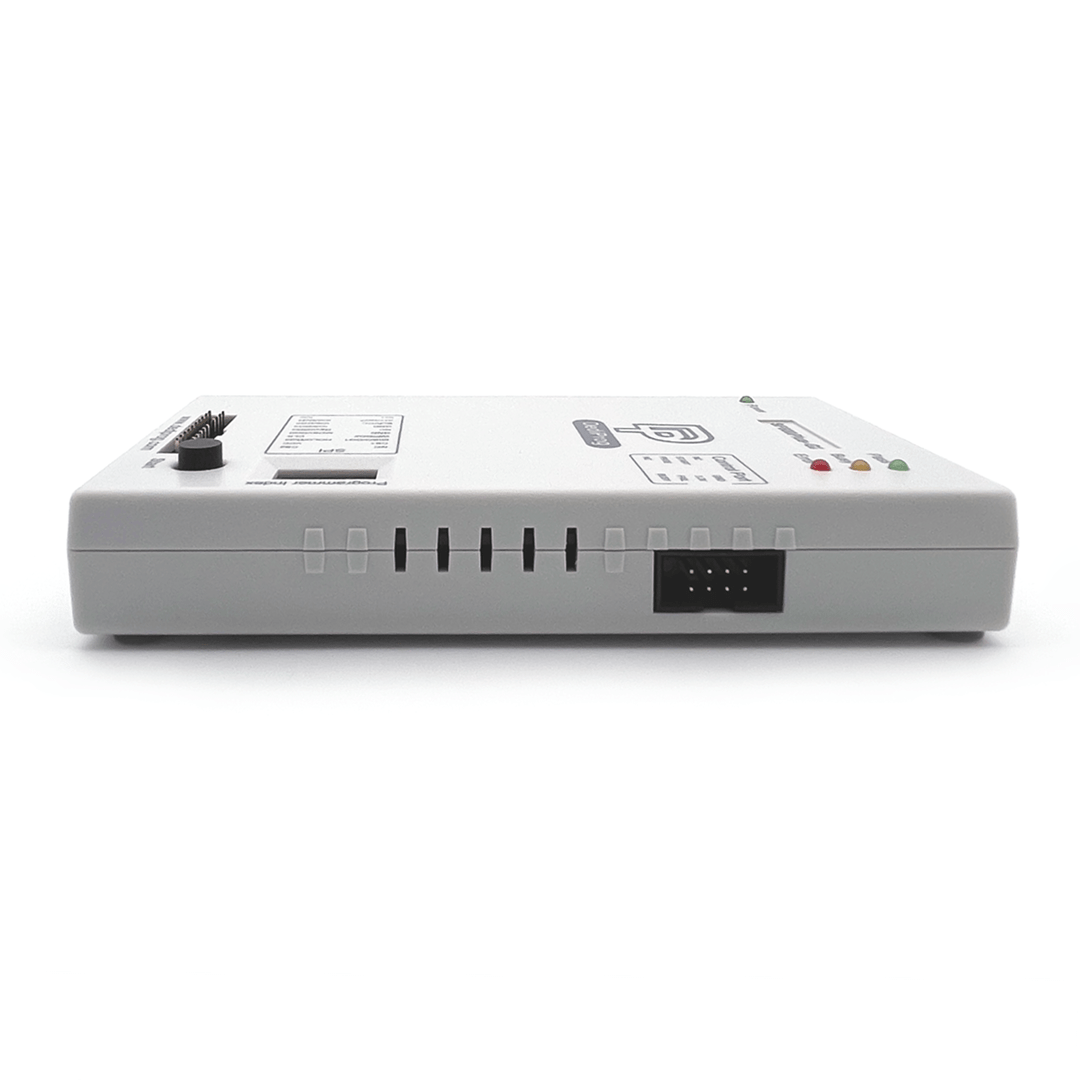

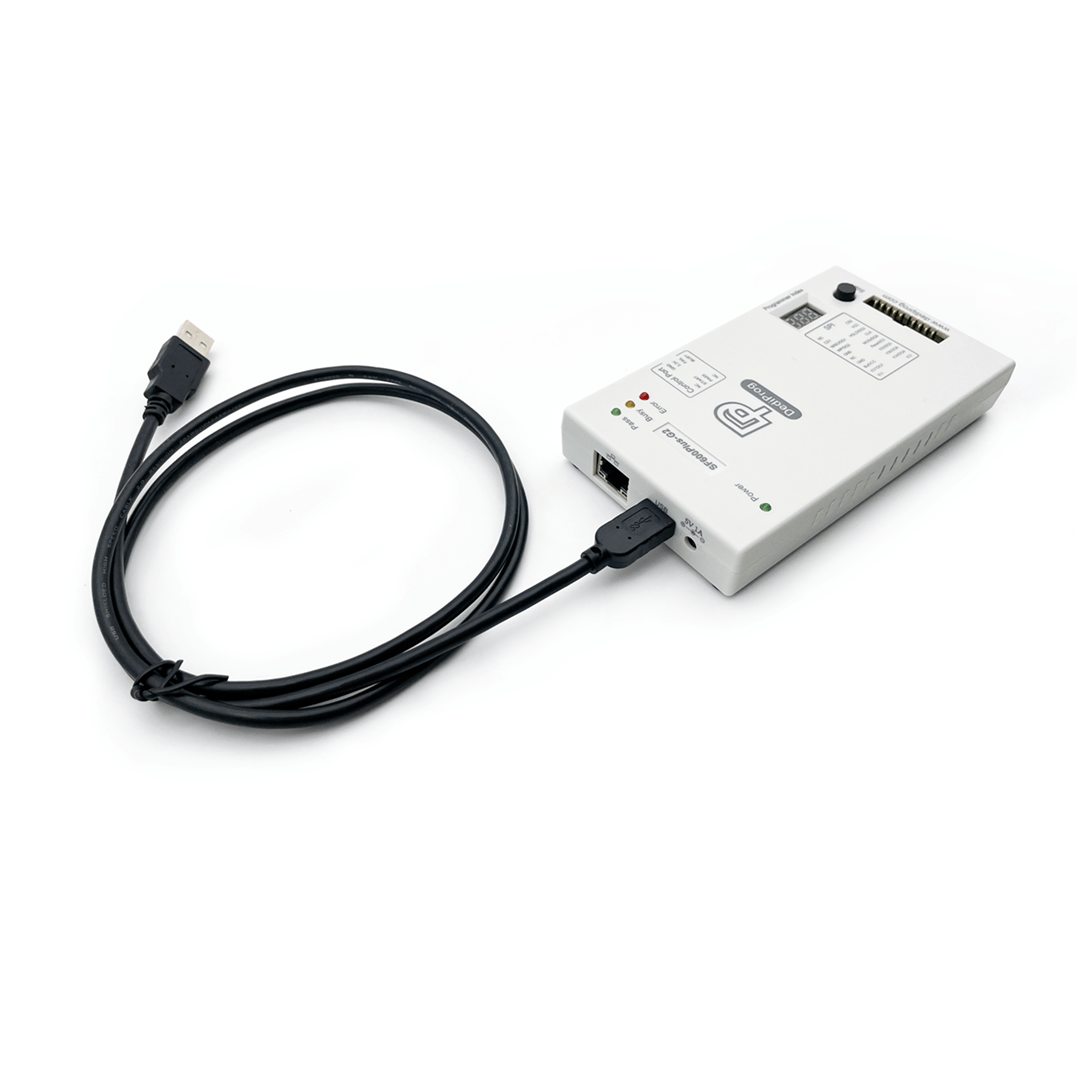

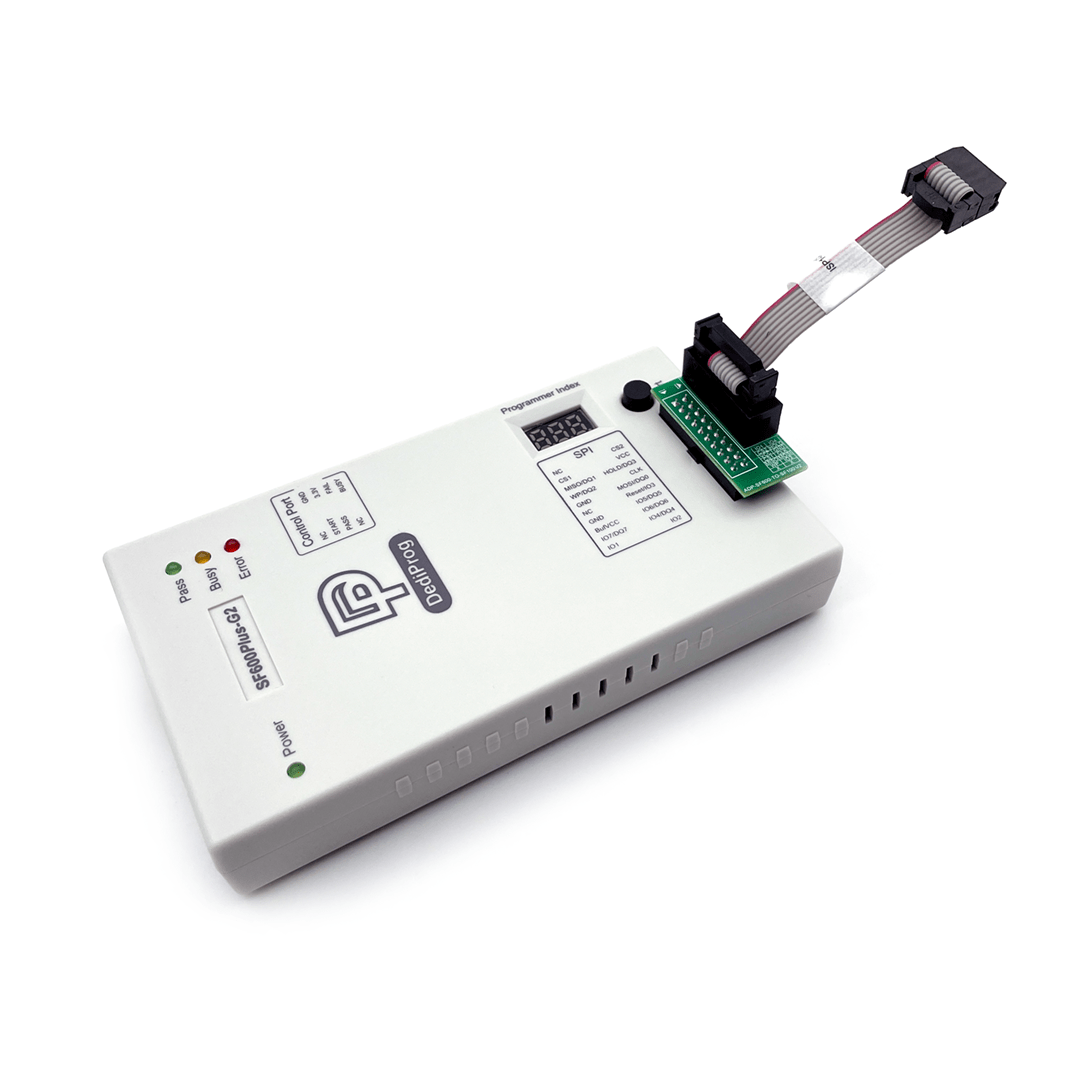

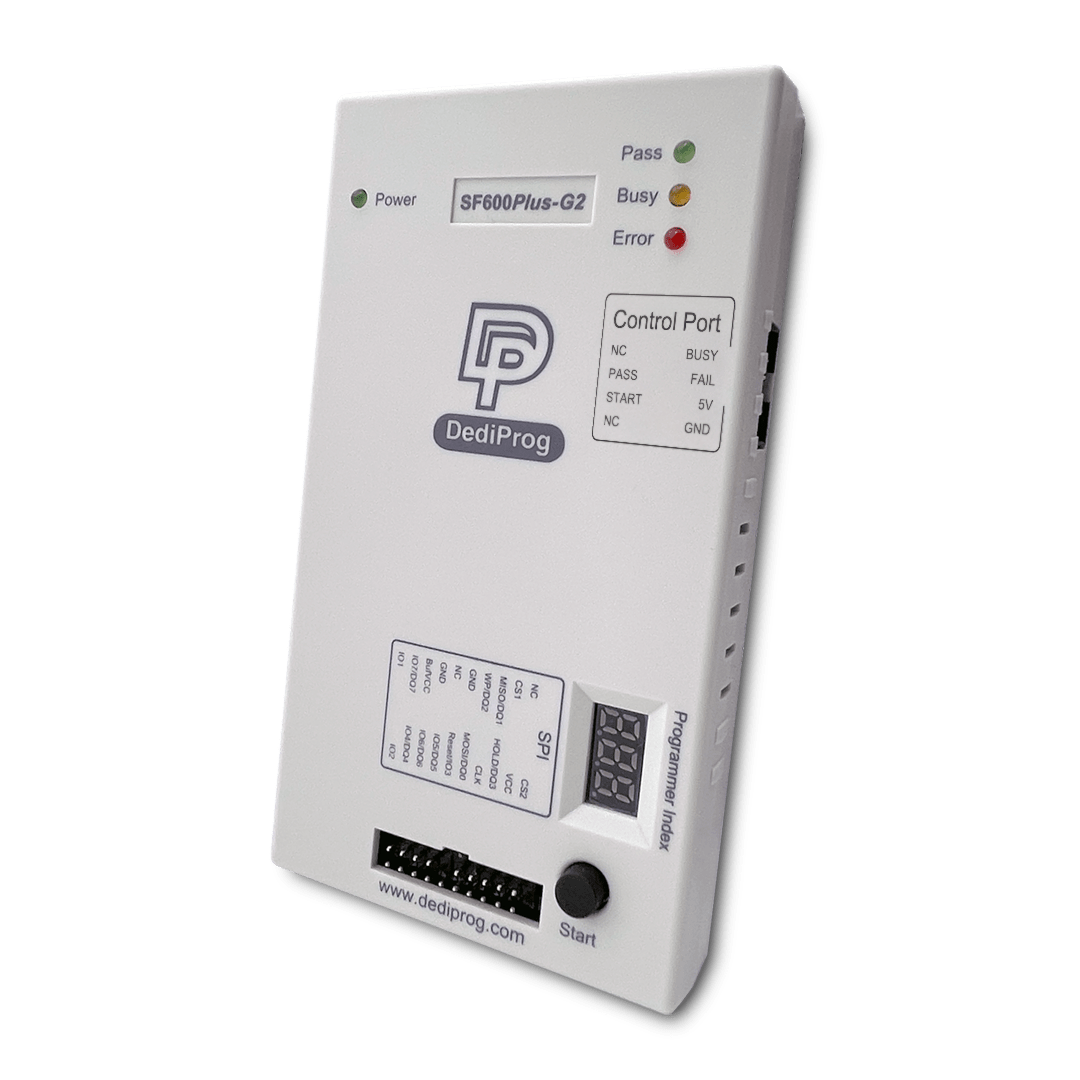

The Dediprog SF600Plus-G2 represents the latest evolution in professional flash programming technology, delivering exceptional performance through its advanced SOC FPGA architecture. This high-speed programmer supports both SPI NOR and SPI NAND flash memories, making it an essential tool for electronic design engineers working with embedded systems.
Engineered for versatility, the SF600Plus-G2 operates in both In-Circuit Programming (ICP) and standalone modes. Programme flash memory soldered directly onto PCBs or use socket adaptors for offline programming. The integrated 4GB memory enables autonomous operation without PC connectivity, ideal for production environments.
Featuring up to 50% faster quad read performance compared to previous SF600/SF600Plus models, the G2 variant significantly reduces programming time. Support for 1.2V low voltage ICs and multiple IO modes (Single/Dual/Quad/Octal) ensures compatibility with modern flash memory devices. The programmable interface supports voltages from 1.2V to 5.5V with comprehensive signal conflict protection.
Part of Dediprog's comprehensive flash programming ecosystem, the SF600Plus-G2 integrates seamlessly with other Debug Store development tools and can be upgraded to the SF600Plus-G2U for enhanced production capabilities.
Video notes
Videos are hosted on YouTube and load only when you press play.
Introducing the SF600Plus-G2 Serial NOR/NAND Flash Programmer, a high-speed and versatile programming solution for developers and engineers. With both In-Circuit Programming and Standalone programming modes, the SF600Plus-G2 can update the SPI Flash soldered on board or the SPI Flash in the socket adaptor, making it an ideal solution for various programming needs.
The SF600Plus-G2 is the upgraded version of the popular SF600 and SF600Plus models. It boasts improved programming efficiency thanks to its SOC architecture of FPGA. This upgrade means the SF600Plus-G2 has enhanced features and capabilities compared to its predecessors.
One of the standout features of the SF600Plus-G2 is its ability to support SPI NAND. This feature provides convenience for developers when programming and sets it apart from other Flash programmers on the market.
The SF600Plus-G2 supports high-speed USB and high SPI performance. It also supports any volume of the SPI Flash on the market, making it a flexible and future-proof solution.
The SF600Plus-G2 has several features and capabilities that make it a powerful and user-friendly programmer. These include:
The SF600Plus-G2 also has an upgrade option to SF600Plus-G2U, which includes additional features such as support for Universal Flash Storage (UFS), a new standard for high-capacity, high-performance flash memory.
| Ordering information | |
|---|---|
| Part number (SKU) | SF600Plus-G2 |
| Manufacturer | Dediprog Technology Co Ltd |
| EAN | 5055383690046 |
| Warranty | 12 months |
| Shipping weight | 1.0 kg |
The NuProgPlus socket bottom board does not work with sockets made for the earlier ProgMaster board.
The SF600Plus-G2U is a production version with an added ATE interface, Ethernet connectivity and ISP features for manufacturing integration.
Yes. It has built-in memory for project files downloaded from the PC software. You start programming with the Start button and read the result on the status LEDs.
Dediprog's standard package includes:
Dediprog changed the type of socket bottom board supplied in 2026; ask us which one ships if you use existing socket adapters.
Yes. Its high speed, standalone operation, multi-programmer support and signal conflict protection suit both development and production use.
Debug Store provides technical support for all Dediprog products, including setup help, application guidance and troubleshooting, backed by Dediprog's documentation and application notes.
The SF600Plus-G2 supports SPI NOR and SPI NAND flash; Dediprog publishes test data from 8Mb to 1Gb. It handles Single, Dual, Quad and Octal IO modes, and supports low-voltage 1.2V devices as well as 1.8V, 2.5V and 3.3V parts.

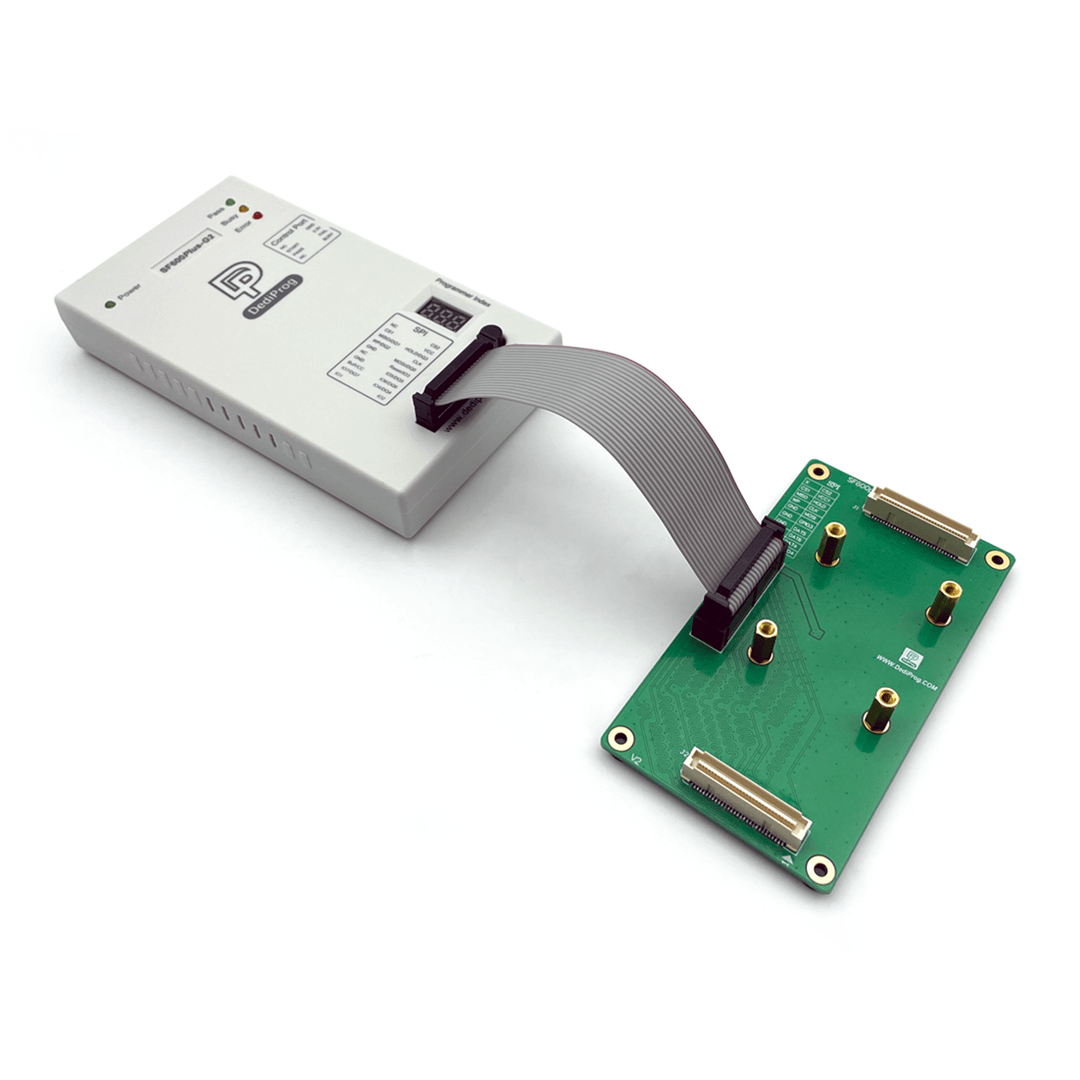

Yes. In-Circuit Programming (ICP) mode lets you program SPI flash devices soldered onto PCBs through the ISP header, for example for firmware updates and production programming.
Dediprog's published comparison shows up to 50% faster Quad IO read performance than the SF600 and SF600Plus. Dediprog also publishes program and verify times for 8Mb to 1Gb devices.
It comes with Dediprog SF Software, which has:
It runs on Windows 8/8.1/10/11.
Yes. You can connect multiple programmers via USB for parallel programming. Each unit shows a programmer index so you can identify it in multi-programmer setups.
