Dediprog 8-pin SOP8N SPI/EEPROM Adapter
Dediprog 8-pin SOP8N SPI/EEPROM Adapter
For Use With The SF600, StarProg and ProgMaster Programmers
SKU: SPI-127-SOP008-150mil-01DE
Regular price
£97.91
inc VAT
£81.71
exc VAT
Regular price
Sale price
Unit price
per
£97.91
inc VAT
£81.71
exc VAT
Shipping calculated at checkout.
If no stock shown above, Order NOW to ship within 10 working days
Couldn't load pickup availability

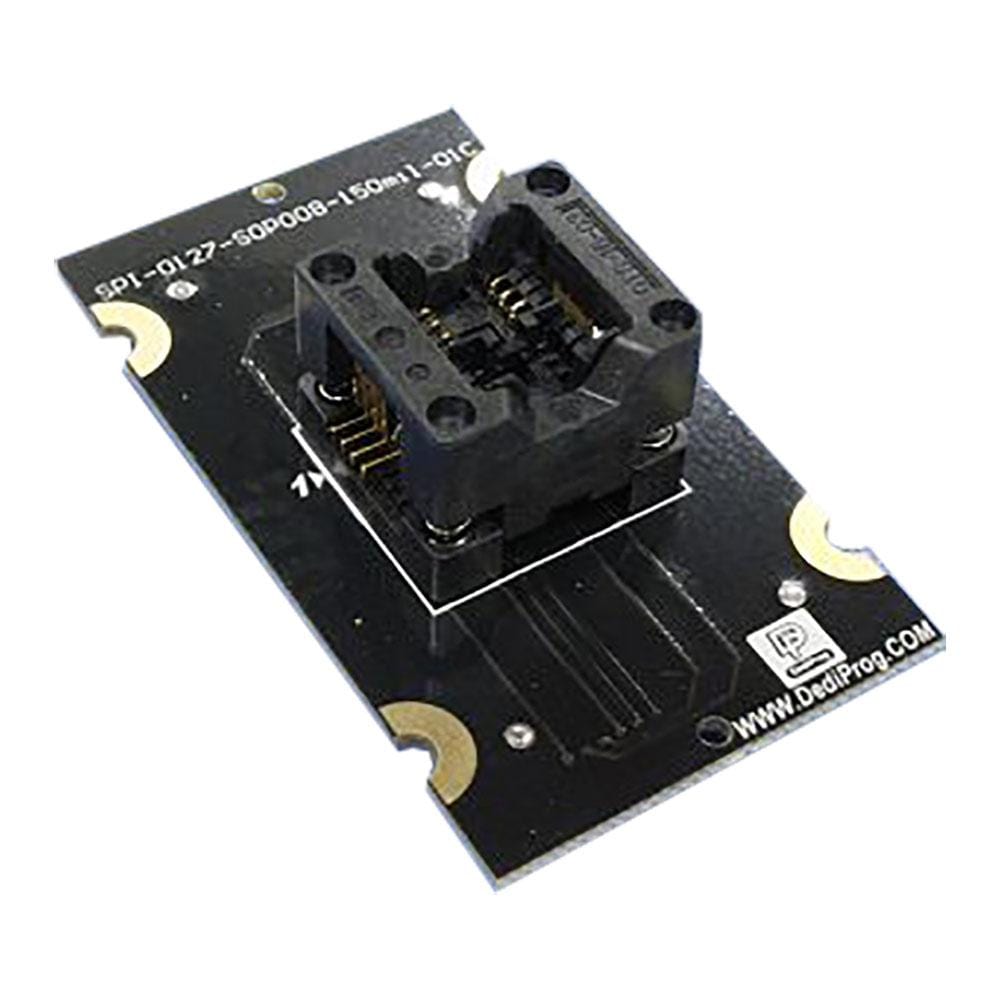

SOP8N 8-Pin programming adapter for SPI and EEPROM devices.
Adaptor Instructions
| Package Type | Number of Pin | Type | PCB Dimension | IC Size(mm) | |||||
| Length(D1) | Width(E1) | Height(A) | Pitch(e) | L Pins(D) | W Pins(E) | ||||
| SOP | 8N | Opentop | 64*34 | 3.9 | 4.9 | 1.45 | 1.27 | 6 | |
- Make sure the triangle mark on the bottom left PCB board aims at the triangle mark on the DediProg devices. For more detailed insertion direction, please download the document. Caution: Incorrectly installed the socket adaptor may cause device and socket damage.
- Align the Pin 1 mark on the socket with the Pin 1 of the IC. Press down the top of the socket to insert the IC. Visually check the connection between the socket and the device, if it is connected properly, then the device is ready to program.
- We recommended using a pick up tool for handling the socket. Do not touch the PCB board directly, because dirt and statics may cause errors during device programming.
- Please remove the adaptor from the device after finish the work.
Note: There are different sizes of the socket adaptors for ProgMaster programmers.
Standard type (64x34mm) is compatible with ProgMaster-U4/U8
Special type (64*54mm) only compatible with ProgMaster-U4
