Dediprog Technology Co Ltd

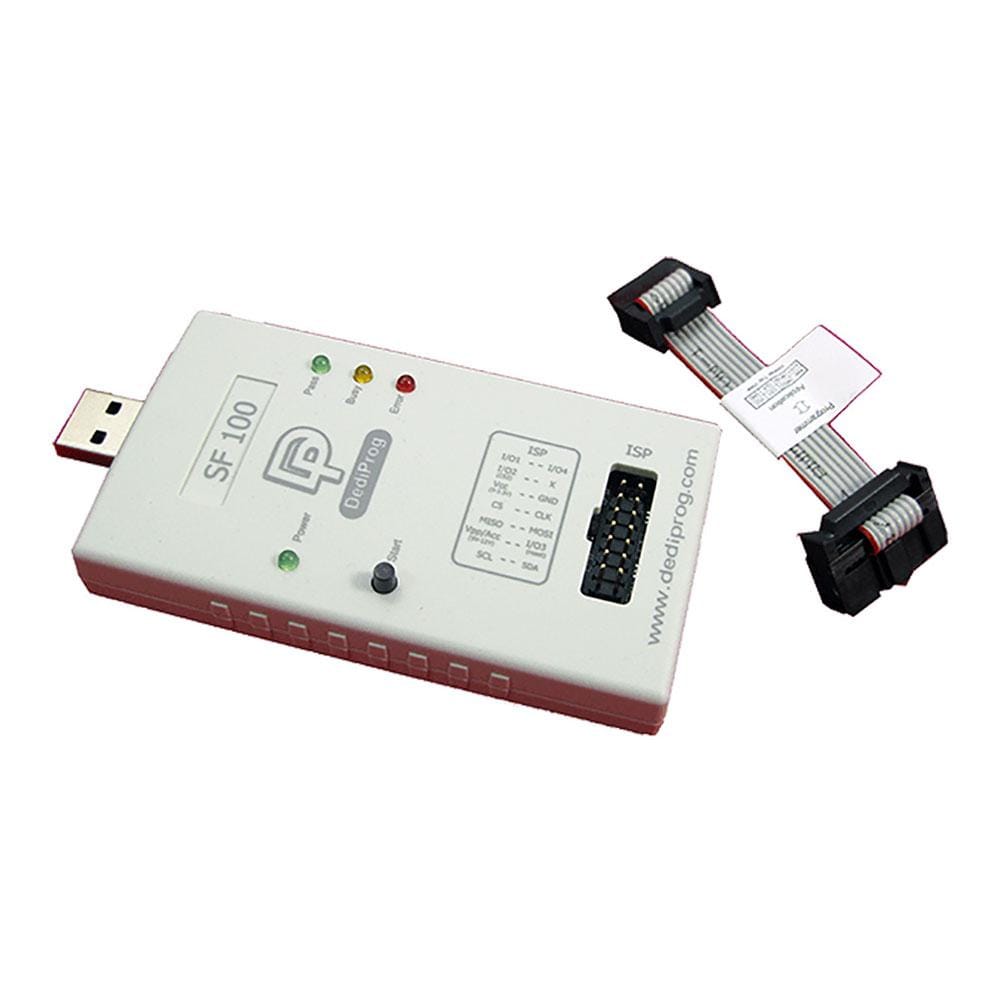

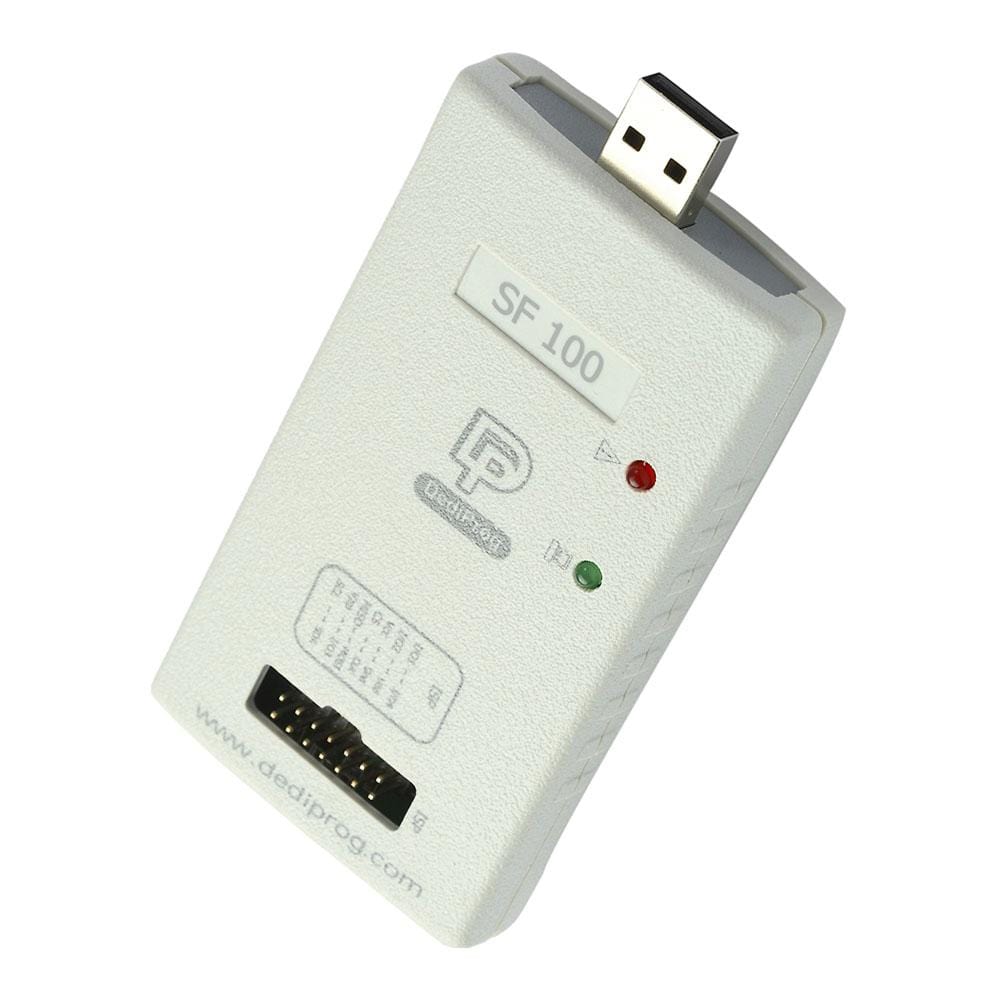

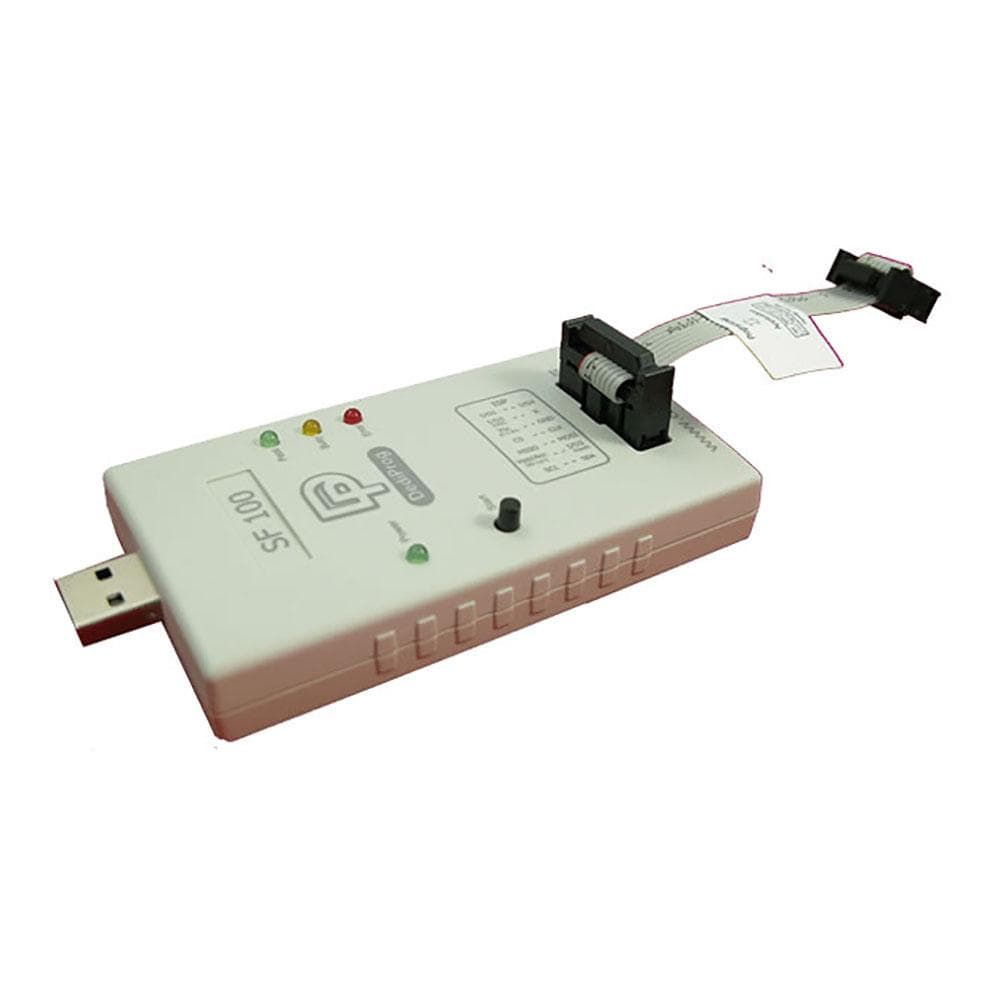

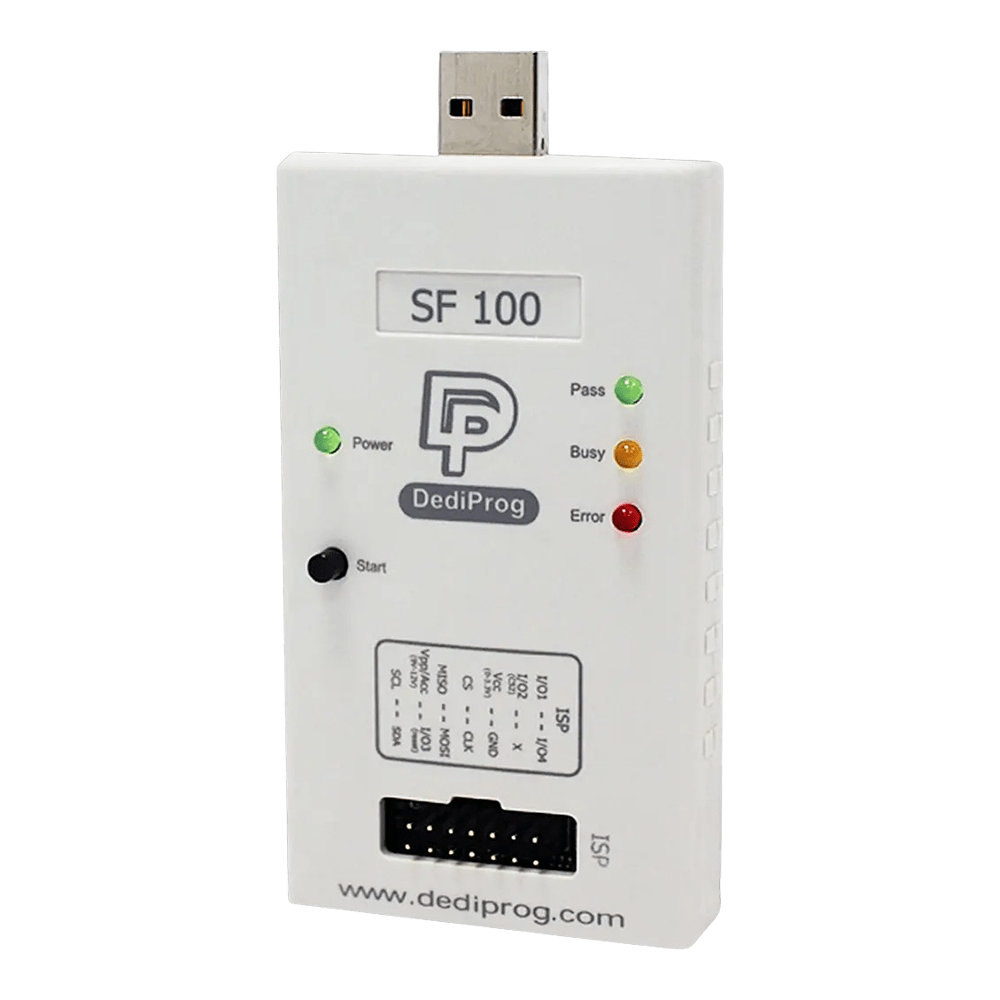

Dediprog SF100 SPI NOR Flash Programmer

for NOR Flash devices

SKU: SF100

Product variants

£306.00 inc VAT

£255.00 exc VAT

£306.00 inc VAT

£255.00 exc VAT

Sale Sold out

Shipping calculated at checkout.

If no stock shown above, Order NOW to ship within 5 working days

Order Quantity

Key Features

Affordable and essential for all engineers
Powered by Its USB Interface to a Host PC
Includes Windows PC Software

The Dediprog SF100 SPI NOR Flash Programmer is the perfect programming tool that can be easily controlled through the USB port using Dediprog software. The SF100 is so affordable that you should have one in your toolkit.

The Dediprog SF100 is a high-speed in-system programmer (ISP) for programming serial flash memory devices. It is a USB-based programmer that supports a wide range of serial flash devices, including SPI NOR flash, SPI NAND flash, and eMMC devices.

To use the SF100 programmer, you will need to install the SF100 software on your computer. This software provides a user-friendly interface for configuring the programmer and programming your serial flash devices. You can find more information and download the software from the Dediprog website.

Once the software is installed, you can connect the SF100 programmer to your computer using the USB cable provided. Then, you can use the software to select your serial flash device, configure the programming options, and start the programming process. The SF100 programmer is capable of programming at high speeds, making it suitable for use in high-volume production environments.

View full details

Does the job perfectly

Great product, easy to use and the service from Debug store was first class

Thank you for your 5 star review Philip,

It was a pleasure doing business with you.

Excellent company to deal with

Arrived a week earlier than expected, superb service and great prices. Will buy from The Debug Store again.

DediProg FS-100

Overall, a good device. Wide database of chips, simple UI, good user manual, good product support.
But it's too damn expensive for a hobbyist. And I wouldn't use it in industrial environment because doesnt seems to be compliant to a harsh industrial production line environment. It's a semi-production stuff. Strong chinese remainings in the UI.

The SF100 is designed for use by companies. In this field, it offers excellent value for money. I accept that it may be too expensive for hobbyists. There are many low-cost, low quality programmers which may suit the hobbyist's budget better.

Dediprog also manufacturers production programmers and has a good reputation in this field. A harsh industrial environment is not really suitable for the production and testing of sensitive electronic devices. The SF100 is frequently used at part of PCB test rigs in a manually-operated production environment.

The Debug Store also supplies SEGGER programmers, which are also used in a production environment. These are designed in Germany but are significantly more expensive that Dediprog equivalents.

1	I/O1	I/O4	2
3	I/O2 or CS2	NC	4
5	Vcc	GND	6
7	CS	CLK	8
9	MISO	MOSI	10
11	Vpp/Acc	I/O3	12
13	SCL	SDA	14

1	Vcc	GND	2
3	CS	CLK	4
5	MISO	MOSI	6
7	Vpp/Acc	I/O3	8
