Dediprog SPI-127-SOP016-300mil-01FE SOP16 300mil Programming Adapter
Dediprog SPI-127-SOP016-300mil-01FE SOP16 300mil Programming Adapter
SKU: SPI-127-SOP016-300mil-01FE
Couldn't load pickup availability
Key Features
Overview
High-Precision SOP16 300mil Programming Solution

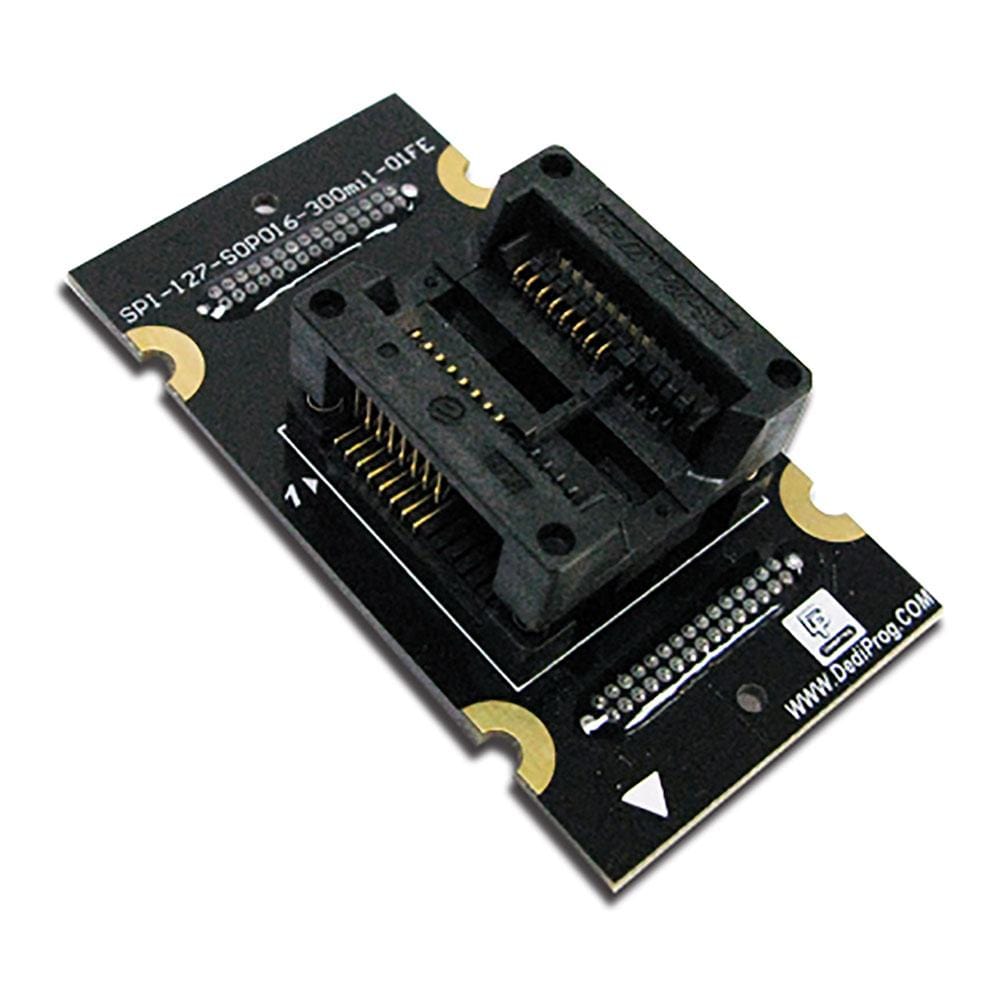

The Dediprog SPI-127-SOP016-300mil-01FE is a specialised programming socket adapter designed for SOP16 300mil (7.62mm) packages, enabling efficient programming of SPI flash and EEPROM devices. This professional-grade adapter provides reliable socket-based programming for development and production environments.
Universal Dediprog Programmer Compatibility
Compatible with multiple Dediprog programmer series including ProgMaster-U4/U8, StarProg-U, StarProg-F, NuProgPlus, and NuProg-E2 systems. The adapter features a standard 64x34mm PCB dimension optimised for reliable signal integrity and programming performance across various programmer models.
Important: This model is now superseded by the enhanced QSPI-SOP016300mil-001E Quad SPI adapter, which offers improved Quad I/O, Dual I/O, and Single I/O programming capabilities. Engineers seeking the latest programming technology should consider this upgrade for enhanced programming yield and performance.
Professional Programming Benefits
The adapter eliminates the need for in-circuit programming during development phases, allowing engineers to program devices offline before board assembly. This approach reduces programming time, minimises potential board damage, and enables efficient batch programming workflows essential for prototyping and low-volume production.
Downloads
Why Engineers Choose The Dediprog SPI-127-SOP016-300mil-01FE SOP16 300mil Programming Adapter
Development Flexibility
Production Efficiency
Professional Reliability
1. Make sure the triangle mark on the bottom left PCB board aims at the triangle mark on the DediProg devices.
For more detailed insertion direction, please download the document HERE
Caution: Incorrectly installed the socket adaptor may cause device and socket damage.
2. Align the Pin 1 mark on the socket with the Pin 1 of the IC. Press down the top of the socket to insert the IC.
Visually check the connection between the socket and the device, if it is connected properly, then the device is ready to program.
3. We recommended using a pick up tool for handling the socket. Do not touch the PCB board directly, because dirt and statics may cause errors during device programming.
4. Please remove the adaptor from the device after finish the work.
Note: There are different sizes of the socket adaptors for ProgMaster programmers.
Standard type (64x34mm) is compatible with ProgMaster-U4/U8
Special type (64*54mm) only compatible with ProgMaster-U4
| General Information | |
|---|---|
Part Number (SKU) |
SPI-127-SOP016-300mil-01FE
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.5 kg
|
| Other | |
EAN |
5055383690381
|
Questions and Answers
-
What Precautions Should I Take When Handling the Adapter?
Use a pick-up tool to handle devices. Don't touch the PCB directly, as dirt and static can cause programming errors. Make sure the device is seated properly with pin 1 aligned before you start programming.
-
Does This Adapter Work with SF-Series Programmers Like SF600 or SF600Plus?
Dediprog no longer lists this adapter, so it publishes no current programmer list for it. Dediprog's socket adaptor guide shows its socket adapters fitting the SF600 and SF600Plus, and the current QSPI-SOP016300mil-001E is listed for the ProgMaster-U4, ProgMaster-U8, SF100, SF600Plus-G2 and SF700. Ask us to confirm the fit for your programmer.
-
What Is the Maximum IC Height This Adapter Can Accommodate?
Dediprog's current SOP16 300mil adapters take devices up to 2.65mm high (package dimension A) in an open-top socket.
-
How Do I Verify Successful Device Programming?
Use your Dediprog software's Verify function after programming to compare the device with your source file, and check visually that the device is seated with all pins in contact.
-
What Maintenance Does the Socket Adapter Require?
To look after the adapter:
- Keep contacts clean and free from oxidation or debris; Dediprog sells a nylon socket cleaning brush.
- Store it in anti-static packaging when not in use.
- Avoid excessive insertion force, which can damage socket contacts.
The contacts have a finite life, so monitor contact quality and replace the adapter when programming reliability drops.
-
What Package Types Does the SPI-127-SOP016-300mil-01FE Support?
It takes 16-pin SOP devices with a 300mil (nominal) body width and 1.27mm pin pitch. Dediprog's current SOP16 300mil SPI adapter lists SPI NOR flash from manufacturers including Intel, Microchip, SST, AMIC, EON, Atmel and GigaDevice.
-
Which Dediprog Programmers Are Compatible with This Adapter?
Dediprog no longer publishes a programmer list for this adapter. Its socket adaptor guide shows Dediprog socket adapters fitting the ProgMaster, StarProg-F and StarProg-U programmers. The NuProgPlus-U8 and NuProg-E2 use the larger 82x34mm ND- adapters instead.
-
How Do I Correctly Orient the Adapter on My Dediprog Programmer?
Line up the white triangle marker on the bottom left of the adapter PCB with the triangle marker or pin 1 indicator on your programmer's socket connector. Incorrect insertion can damage the device and the socket, so check alignment before pressing the adapter into place.
-
What Is the Difference Between This Adapter and the QSPI-SOP016300mil-001E?
The QSPI-SOP016300mil-001E is Dediprog's current SOP16 300mil SPI adapter, with circuitry optimised for Quad IO, Dual IO and Single IO programming yield. Dediprog no longer lists the SPI-127-SOP016-300mil-01FE.
-
Can I Use This Adapter for In-Circuit Programming?
No. This socket adapter is only for offline programming, with devices inserted in its socket. For devices already soldered to boards, you need ISP (In-System Programming) cables and headers. You can't use socket and ISP programming at the same time.
