Overview
The Tag-Connect TC2070-IDC-2MM links a programmer with a 14-pin 2 mm male header, such as the Xilinx Platform Cable USB II, to fourteen pads on your PCB. Spring pins contact the pads, so the board carries no JTAG header.
Choose Legged or No Legs in the options above.
The Legged version clips into the footprint and stays in place without a fixture. The No Legs version (TC2070-IDC-NL-2MM) needs a smaller footprint and is held by hand or built into a test fixture with a TC-MOUNT-14 bracket. For a 0.1 in 14-pin tool, see the TC2070-IDC.
Downloads
14-Pin Plug-of-Nails Cable with a 2 mm IDC Connector
The 14-pin 2 mm IDC socket carries whatever your tool puts on its 14-pin 2 mm header, typically JTAG on a Xilinx (AMD) Platform Cable. Pad numbers are shown on the footprint drawings in the datasheets under Downloads.
Options
| Option | Choice | Detail |
|---|---|---|
| Head | Legged | Four legs latch into holes in the PCB, so the cable holds itself in place (TC2070-IDC-2MM) |
| Head | No Legs | No leg holes, so a smaller footprint; hold by hand, with a GRIP-14 retainer for short holds, or build into a test fixture with a TC-MOUNT-14 bracket (TC2070-IDC-NL-2MM) |

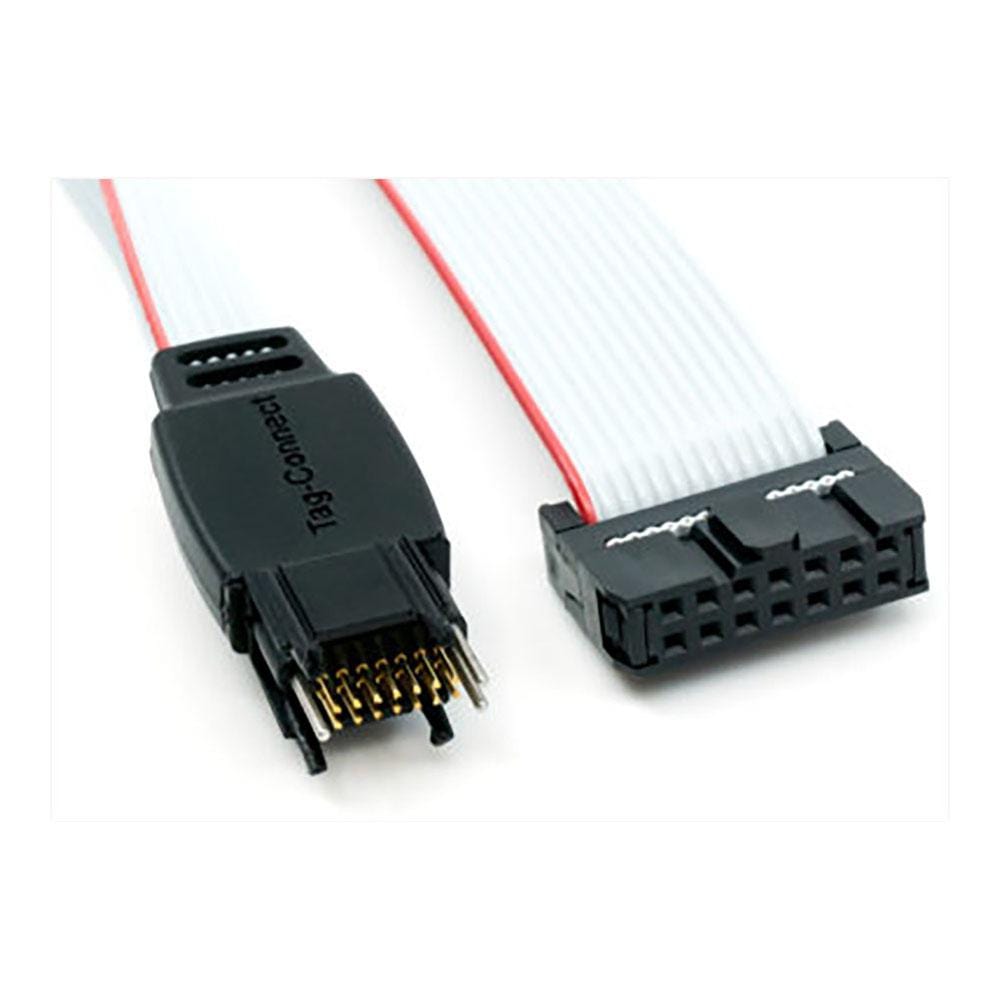

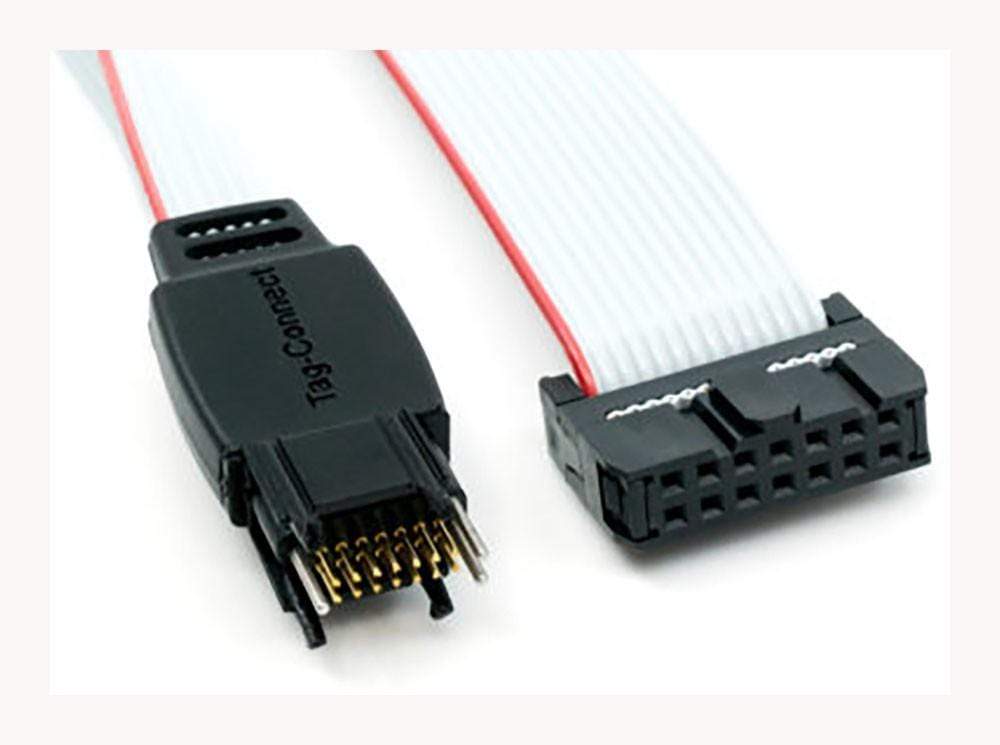

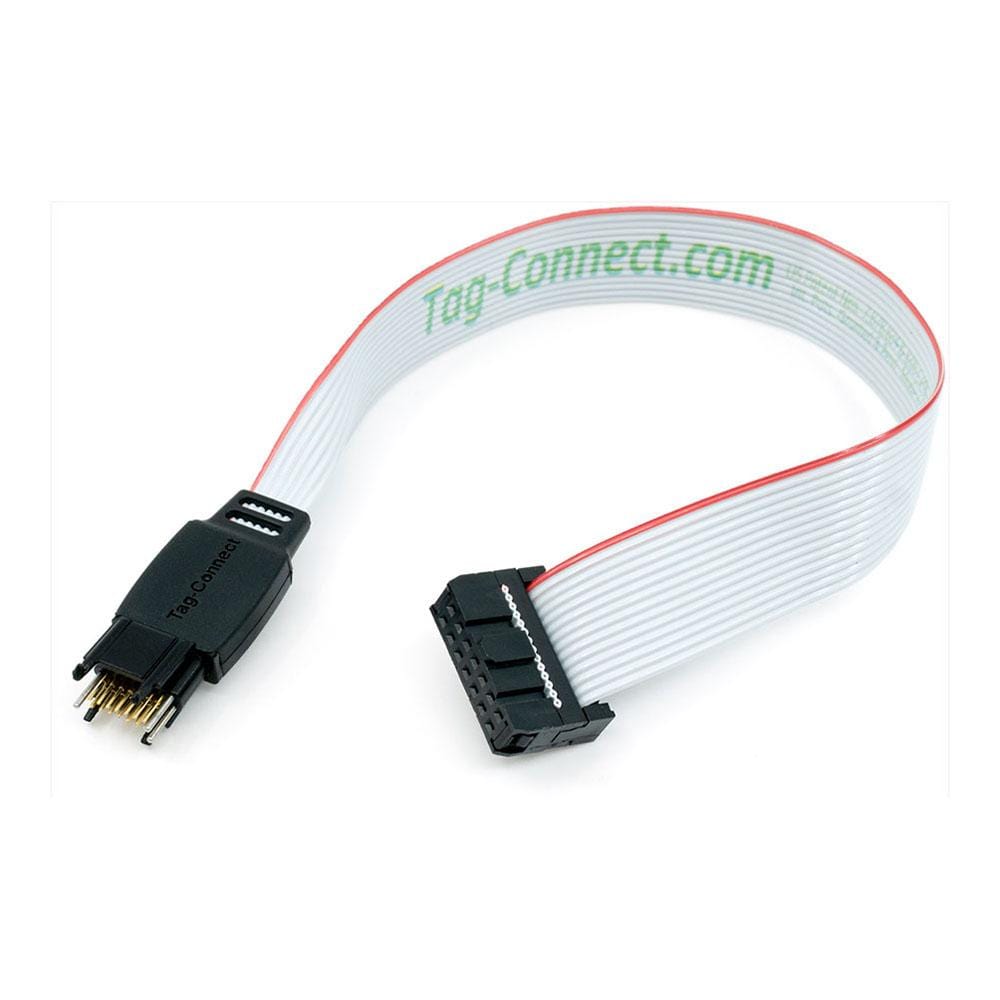

Photos show the 0.1 in socket. The cable supplied has the 2 mm socket.
Both versions end in a 2x7 2 mm pitch female IDC socket, with 100 mm of ribbon between the connectors. For drawings, Tag-Connect's 2 mm product pages refer to the 0.1 in TC2070-IDC and TC2070-IDC-NL datasheets, which it says are similar apart from the 2 mm connector and cable.
PCB footprint: the same TC2070 footprint as the 0.1 in cables. Fourteen contact pads at 0.05 in pitch in two rows of seven, with three alignment holes; the Legged footprint adds four leg latch holes. No solder paste on the contact pads, no tracks or vias in the keep-out area, and no components taller than 1.0 mm under the connector. Name the footprint TC2070-FP (or TC2070-NL-FP) and mark it Do Not Install in your BOM. See the datasheets under Downloads.
Spring-Pin Contacts
In Tag-Connect's cycle testing, its spring pins last for well over 100,000 operations.
Who It's For
Engineers whose programmer or debugger has a 14-pin 2 mm male header (pins, not a socket), and who want pads on the PCB instead of a fitted header. Tools with a female 14-pin 2 mm connector, such as the Digilent JTAG-HS2 and JTAG-HS3, do not plug into this cable.
| Device Family | Debugger or Programmer | Connection |
|---|---|---|
| Xilinx (AMD) FPGAs and CPLDs, JTAG | Xilinx Platform Cable USB II | Plugs onto the pod's 14-pin 2 mm header |
To use a smaller 10-pin footprint with a Platform Cable, see the TC2050-XILINX adapter with a TC2050-IDC cable.
When to Choose a Different Cable
For a tool with a 14-pin 0.1 in connector, such as a TI MSP-FET for MSP430, use the TC2070-IDC. For a tool with a 14-pin 0.05 in connector, such as ST's STLINK-V3SET, use the TC2070-IDC-050.
Compare the Versions
| Part Number | Head | Connector | Best For |
|---|---|---|---|
| TC2070-IDC-2MM | Legged | 2 mm female | Development and debugging: clips in and stays connected hands-free |
| TC2070-IDC-NL-2MM | No Legs | 2 mm female | Production programming by hand or in a test fixture; smaller footprint |
Both versions use the same fourteen-pad contact pattern; only the head differs.
Which cable fits your debugger? See our Tag-Connect cable guide.
| Technical | |
|---|---|
| Tool connector | 2x7, 2 mm pitch female IDC socket |
| Target contacts | 14 spring pins at 0.05 in (1.27 mm) pitch, two rows of seven |
| Ribbon length | 100 mm |
| Contact pads | 0.031 in (0.787 mm) diameter |
| Alignment holes | 3 x 0.039 in (0.99 mm) |
| Leg latch holes (Legged) | 4 x 0.0935 in (2.375 mm) diameter |
| Maximum component height under connector | 1.0 mm |
| Footprint name | TC2070-FP (Legged), TC2070-NL-FP (No Legs) |
| Spring-pin life | Well over 100,000 operations in Tag-Connect's cycle testing |
| Ordering information | |
| Part number (SKU) | TC2070-IDC-2MM |
| Manufacturer | Tag-Connect, LLC |
| EAN | 5055383665518 |
| Warranty | 6 months |
| Shipping weight | 0.1 kg |
- 1 ×Tag-Connect TC2070-IDC-2MM (Legged) or TC2070-IDC-NL-2MM (No Legs) cable, as selected, with a 14-pin 2 mm female IDC socket
Cable only. No debugger, adapter, retainer or fixture bracket is included. For No Legs versions, GRIP-14 retainers and the TC-MOUNT-14 fixture bracket are sold separately.
Questions and Answers
-
Does the TC2070-IDC-2MM Fit the Xilinx Platform Cable USB II?
Yes. Tag-Connect lists this cable for Xilinx Platform Cable II programmers. Its 14-pin 2 mm female socket plugs onto the 14-pin 2 mm male header on the Platform Cable USB II pod.
-
Will It Work with a Digilent JTAG-HS2 or JTAG-HS3?
Not directly. Those tools have a female 14-pin 2 mm connector, and this cable also ends in a female socket. Tag-Connect points HS2 and HS3 users to its male adapters instead: the TC2050-XILINX-M with a 10-pin TC2050 cable, or the TC-XILINX6-M with a 6-pin TC2030 cable.
-
Which Datasheet Applies to the 2 mm Cables?
The TC2070-IDC (Legged) and TC2070-IDC-NL (No Legs) datasheets under Downloads. Tag-Connect's 2 mm product pages refer to these 0.1 in datasheets and say the 2 mm cables are similar apart from the 2 mm connector and cable. Use them for the PCB footprint; the socket and ribbon they show are those of the 0.1 in cable.
-
How Do I Hold the No Legs Cable in Place?
By hand for a quick programming job, or build it into a test fixture with a TC-MOUNT-14 bracket. A GRIP-14 retainer presses onto the three alignment pins from under the board, but Tag-Connect warns that the force of the fourteen spring pins often pops the cable off, and that the GRIP-14 is not made for frequent fitting and removal. For hands-free debugging, choose the Legged version.
-
How Long Is the Cable?
100 mm of ribbon between the Plug-of-Nails head and the 2 mm IDC socket.
-
Does It Use the Same PCB Footprint as the 0.1 in TC2070-IDC?
Yes. Tag-Connect refers the 2 mm cables to the TC2070-IDC and TC2070-IDC-NL datasheets, so the board footprint is the same: fourteen pads at 0.05 in (1.27 mm) pitch in two rows of seven, with three alignment holes. The Legged version adds four leg latch holes. Only the tool-end socket and ribbon differ.
