Overview
The TC2050-XILINX is an adapter for a 2mm 14‐pin Header found on Xilinx’s Platform Cable II and compatible programmers. Primarily intended for use with our patented TC2050‐IDC Plug-of-Nails™ cable.
Downloads
Datasheets

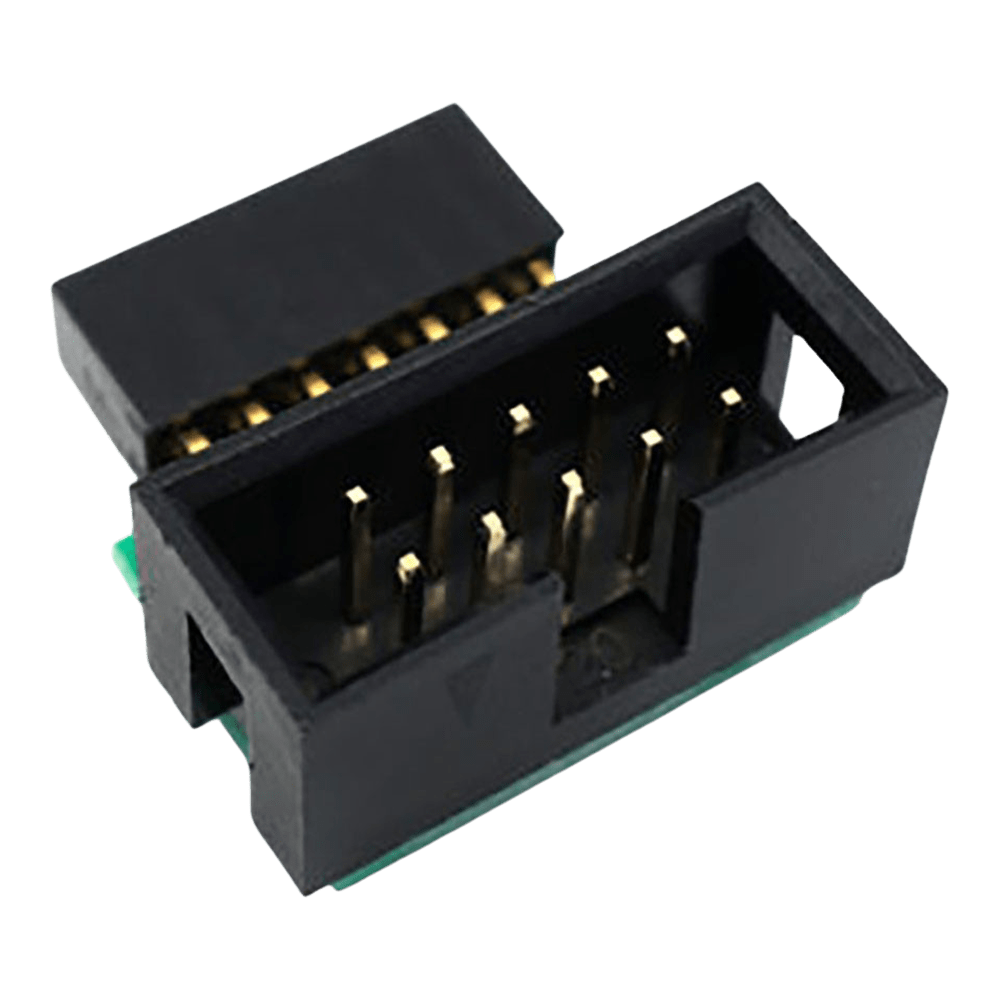

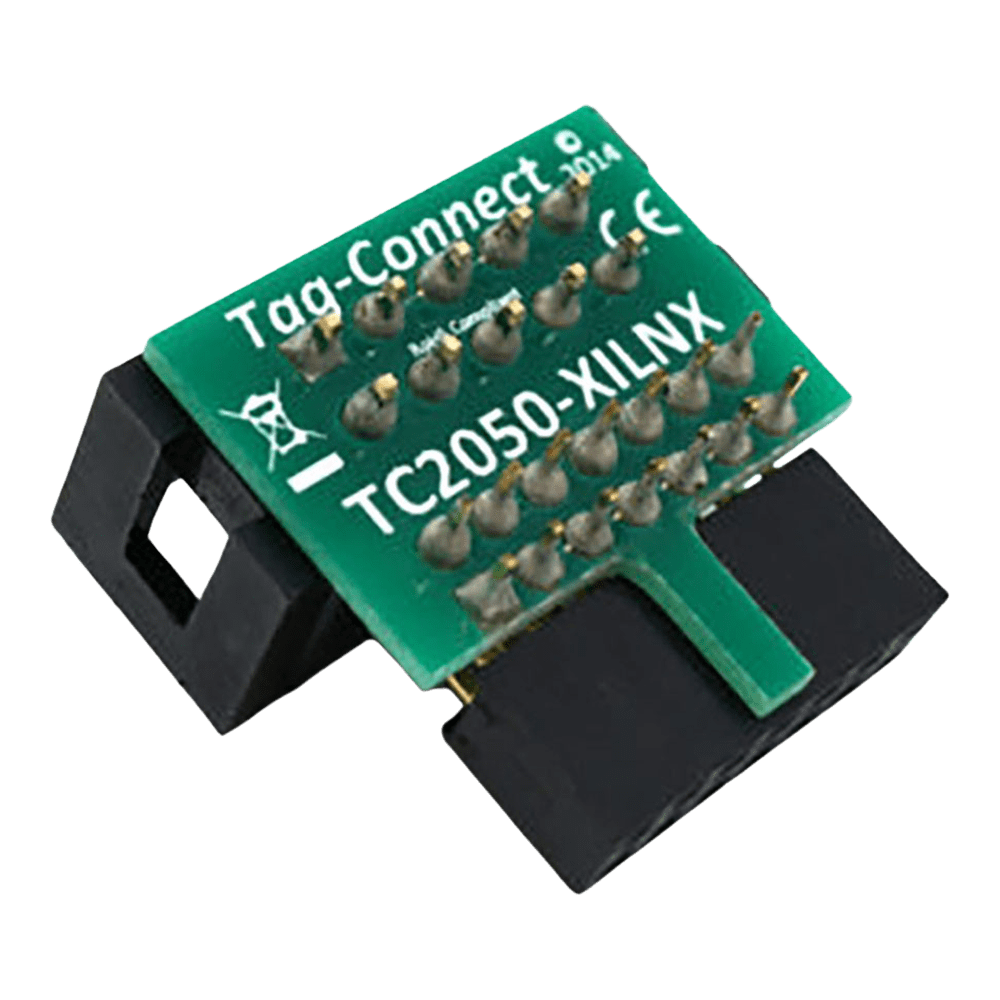

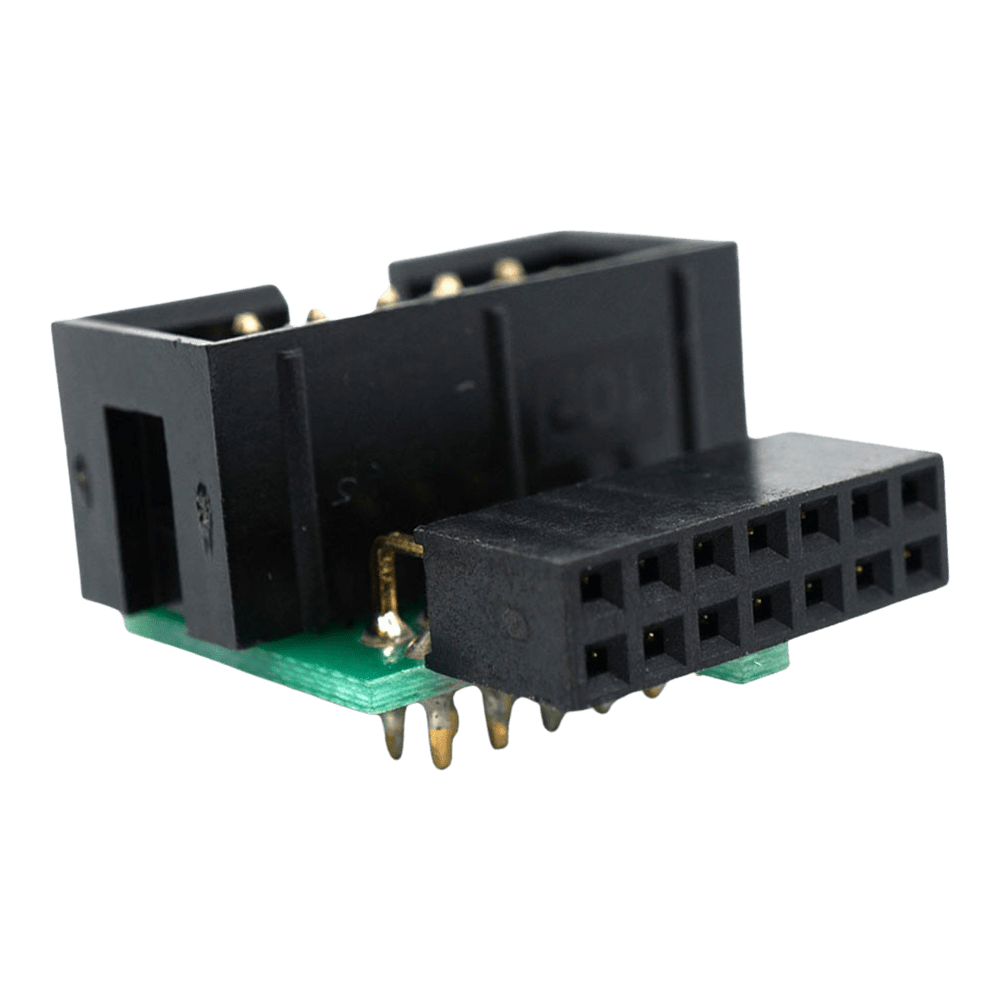

The TC2050‐XILINX is an adapter designed to be plugged into the 2mm 14‐pin Header found on Xilinx's Platform Cable II and compatible programmers. Although primarily intended for use with our patented TC2050‐IDC Plug‐of‐Nails™ Cables, this adapter may be useful to people wishing to use a 10‐pin 0.1" ribbon header on their PCB.

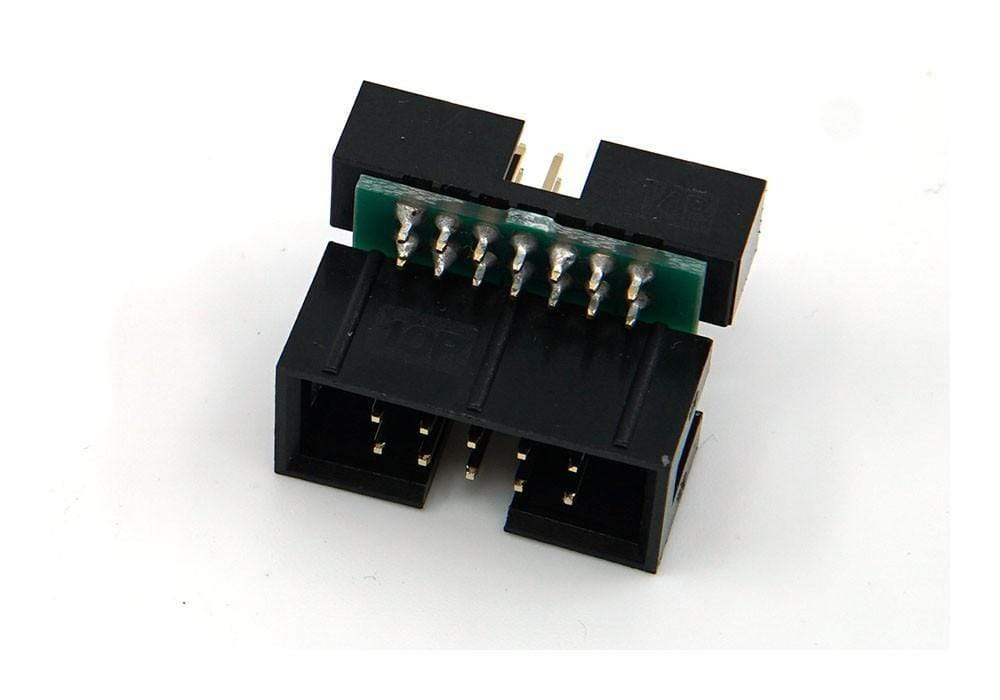

If you use a Digilent JTAG-HS2 or JTAG-HS3 cable with female 14-pin 2mm connector, see TC2050-XILINX-M.
See also the newer TC-XILINX6 adapter for use with 6-pin TC2030-IDC cables.
Which cable fits your debugger? See our Tag-Connect cable guide.
| Ordering information | |
|---|---|
| Part number (SKU) | TC2050-XILINX |
| Manufacturer | Tag-Connect, LLC |
| EAN | 5055383698844 |
| Warranty | 6 months |
| Shipping weight | 0.1 kg |
-
1 ×
Tag-Connect TC2050-XILINX Adapter(Female (TC2050-XILINX))
Contact us to confirm the full contents of the box.
