SEGGER Microcontroller GmbH

SEGGER SWD Isolator Adapter

SEGGER SWD Isolator Adapter

Protect your tools with SWD Isolator: Guard against spikes and ensure seamless electrical isolation. Get yours now!

SKU: 8.07.01

Regular price
£240.00 exc VAT
£288.00 inc VAT
Regular price Sale price
£240.00 exc VAT
£288.00 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 5 working days.

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Key Features

Basic isolation (1 kV DC)
Supports 3.3 V and 5 V target operation
Powered from emulator and target
Standard 20-pin 0.1" male (target side) and female (emulator side) connector supporting SWCLK, SWDIO, SWO, RESET signals
SWD frequency: Up to 4 MHz

Overview

The SWD Isolator sits between a J-Link or Flasher and the target, giving 1kV DC basic isolation on SWD, including SWO, at up to 4 MHz for target interface voltages from 1.2V to 5V. Both sides use 20-pin 0.1" male SWD connectors, and it draws less than 25µA on the target side. Use it where the debug or production tools do not share a ground with the application.

Downloads

User Manuals

  • SEGGER SWD Isolator Adapter PDF225 KB · Aug 2025
    Details

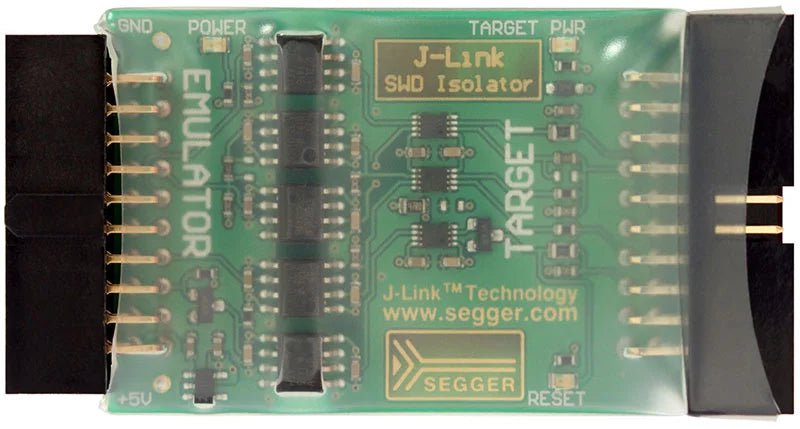

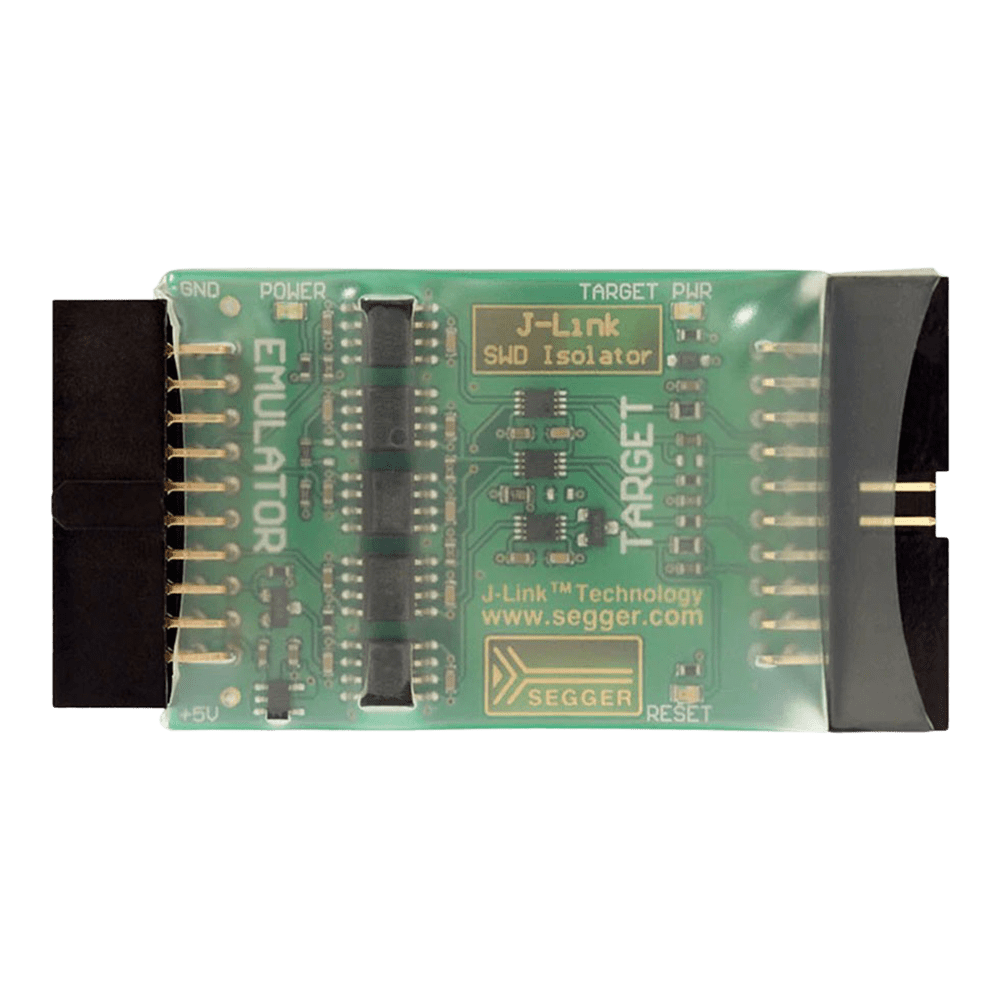

The SEGGER SWD Isolator (part number 8.07.01) is an isolator box that sits between a J-Link or Flasher and the target, giving 1kV DC basic isolation on SWD, including SWO, at up to 4 MHz for target interface voltages from 1.2V to 5V. Both sides use 20-pin 0.1" male SWD connectors; the isolator is powered from the probe side and draws less than 25µA on the target side. Use it where the debug or production tools do not share a ground with the application.

SWD Isolation for Motor Control, Sensor and Analogue Designs

SEGGER describes isolation as essential when the development or production tools are not connected to the same ground as the application. Motor control applications tend to introduce electrical spikes, and the isolator keeps them away from the probe; in sensor and analogue designs it keeps the debug system from disturbing the measurement. The isolator uses high-speed digital isolators for low propagation delay and passes SWCLK, SWDIO, SWO and RESET.

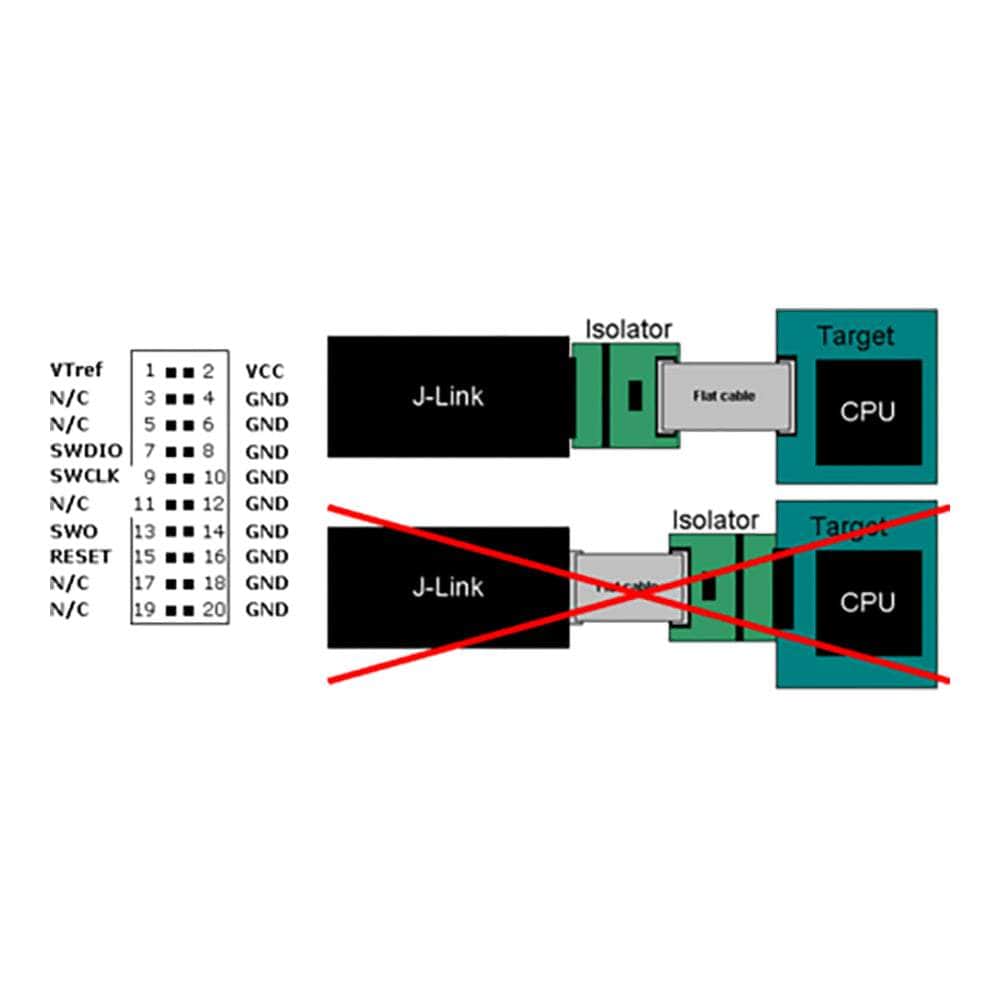

The probe side powers the isolator through pin 19, and the target side draws its power through VTref on pin 1; pin 19 is not connected on the target side. Pins 4, 6, 8, 10, 12, 14, 16, 18 and 20 are GND. Protection covers overvoltage and overcurrent on the probe side, overvoltage on the target VTref pin, and ESD. Four LEDs show probe or programmer power, probe or programmer overload, target power and target RESET. See our SEGGER J-Link 20-pin connector pinout guide for the probe side.

What's Included

  • SWD Isolator Box
  • 0.1" 20-pin ribbon cable

Specifications

Isolation 1kV DC, basic isolation
Target interface SWD with SWO
Target signals SWCLK, SWDIO, SWO, RESET
Max. target interface speed 4 MHz
Target interface voltage 1.2V to 5V
Probe-side connector 20-pin 0.1" male SWD
Target-side connector 20-pin 0.1" male SWD
Power supply From the probe side via pin 19; target side via VTref (pin 1)
Target-side power consumption <25µA
Dimensions (L x W x H) 73mm x 46mm x 19mm
Weight 38g
Operating temperature +5°C to +60°C
Storage temperature -20°C to +65°C
Relative humidity <90% rH, non-condensing
Compatible J-Link models PRO PoE, PRO, Ultra, WiFi, PLUS, BASE
Compatible Flasher models PRO, PRO XL, Compact, Portable PLUS

Limitations

  • No JTAG, because there is no TDI connection. Use the JTAG Isolator for JTAG targets.
  • cJTAG works only if the probe uses the J-Link configuration, with TMSC on pin 7.
  • Target interface speed is limited to 4 MHz.
  • Basic isolation only. Do not use it with hazardous voltages without a further protection measure such as double or reinforced isolation.
  • Third-party probes with the same pinout must supply 5V on pin 19; SEGGER states their use is at your own risk.

SWD Isolator Compared with Other SEGGER Isolators

Isolator Isolated link Isolation Max. speed Price ex VAT
SWD Isolator (this product) Probe to target, SWD and SWO, 20-pin 0.1" 1kV DC, basic 4 MHz £240
JTAG Isolator Probe to target, JTAG, 20-pin 0.1" 1kV DC, basic 4 MHz £226
USB Isolator Host PC to probe, USB 3kV DC for 1s, basic USB Full-Speed, 12 Mbit/s £185
J-Trace Isolator J-Trace to target, JTAG, SWD, SWO and ETM trace, 19-pin 0.05" 1kV DC, basic 4 MHz debug, 75 MHz trace clock £320

Order the SWD Isolator for £240 ex VAT. Confirm that your target debugs over SWD at 4 MHz or below, or ask us for a formal quotation. See the full range in our SEGGER debug probes collection.

Last reviewed 16/11/2026.

Sources (4 manufacturer pages)
General
Isolation1kV DC, basic isolation
Host and Target Interface
Target interfaceSWD with SWO
Target signalsSWCLK, SWDIO, SWO, RESET
Target interface voltage1.2V to 5V
Probe-side connector20-pin 0.1" male SWD
Target-side connector20-pin 0.1" male SWD
Performance
Max. target interface speed4 MHz
Power
Power supplyFrom the probe side via pin 19; target side via VTref (pin 1)
Target-side power consumption<25µA
Software and Compatibility
Compatible J-Link modelsPRO PoE, PRO, Ultra, WiFi, PLUS, BASE
Compatible Flasher modelsPRO, PRO XL, Compact, Portable PLUS
Physical
Dimensions (L x W x H)73mm x 46mm x 19mm
Weight38g
Environmental
Operating temperature+5°C to +60°C
Storage temperature-20°C to +65°C
Relative humidity<90% rH, non-condensing
Ordering information
Part number (SKU)8.07.01
ManufacturerSEGGER Microcontroller GmbH
EAN5055383619955
Warranty12 months
Shipping weight0.05 kg
  • 1 ×SWD Isolator Box
  • 1 ×0.1" 20-pin ribbon cable
Engineer Q&A

Questions and Answers

3 questions
  • Does the SWD Isolator Pass SWO?

    Yes. SEGGER lists SWCLK, SWDIO, SWO and RESET as the isolated target signals, at up to 4 MHz.

    Answered by John LeggUpdated 16 Nov 2026
  • Can I Use It for JTAG?

    No. There is no TDI connection, so JTAG is not supported. SEGGER offers the JTAG Isolator for JTAG targets.

    Answered by John LeggUpdated 16 Nov 2026
  • Is It Rated for Hazardous Voltages?

    Not on its own. It provides 1kV DC basic isolation only, and SEGGER states that hazardous voltages need a further protection measure, such as double or reinforced isolation.

    Answered by John LeggUpdated 16 Nov 2026
