OMICRON Lab B-RMK-10 Rack Mount Kit

OMICRON Lab B-RMK-10 Rack Mount Kit

Stainless-steel rack mount kit that fits a Bode 100 vector network analyser into a 1U slot of a 19-inch rack, 0.42 kg, TX10 fitting.

SKU: P0001108

Regular price
£215.00 exc VAT
£258.00 inc VAT
Regular price Sale price
£215.00 exc VAT
£258.00 inc VAT
Sale Sold out
Shipping calculated at checkout.
Check Availability before Ordering

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Key Features

Fits 19" Rack
1U High

Overview

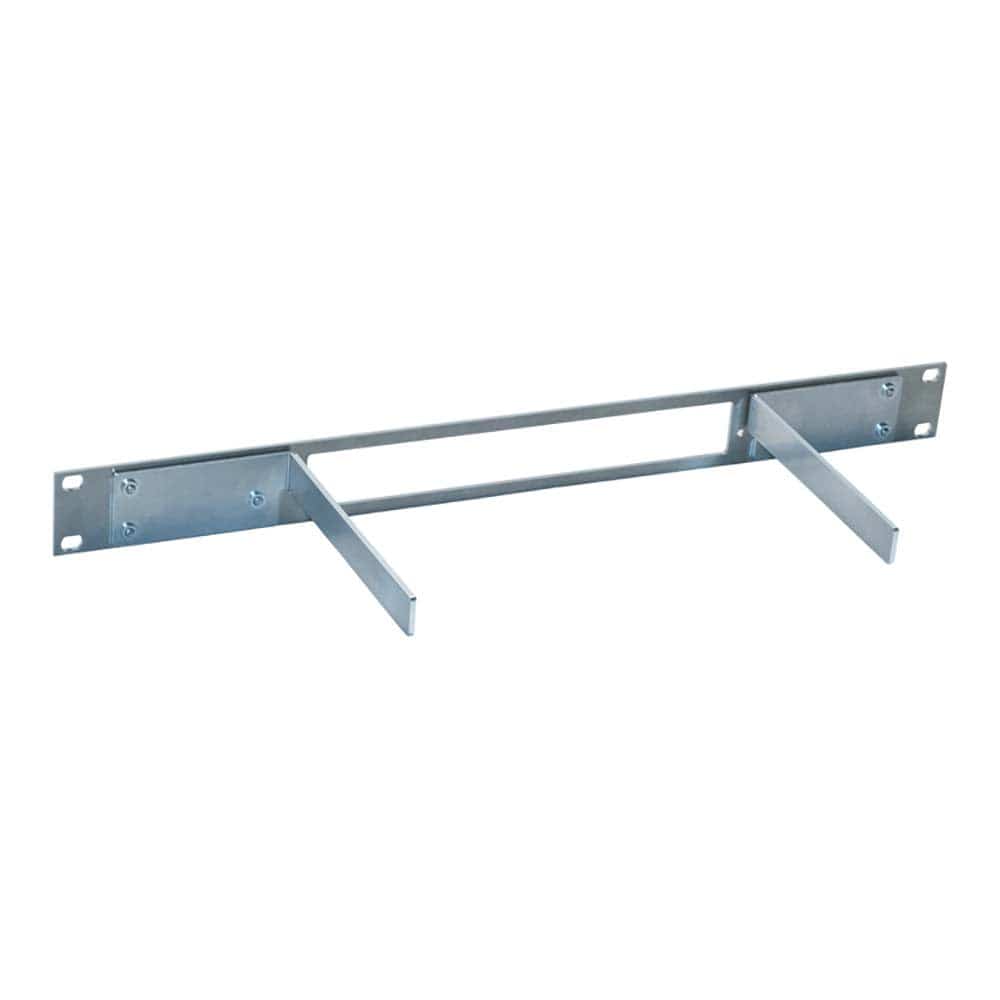

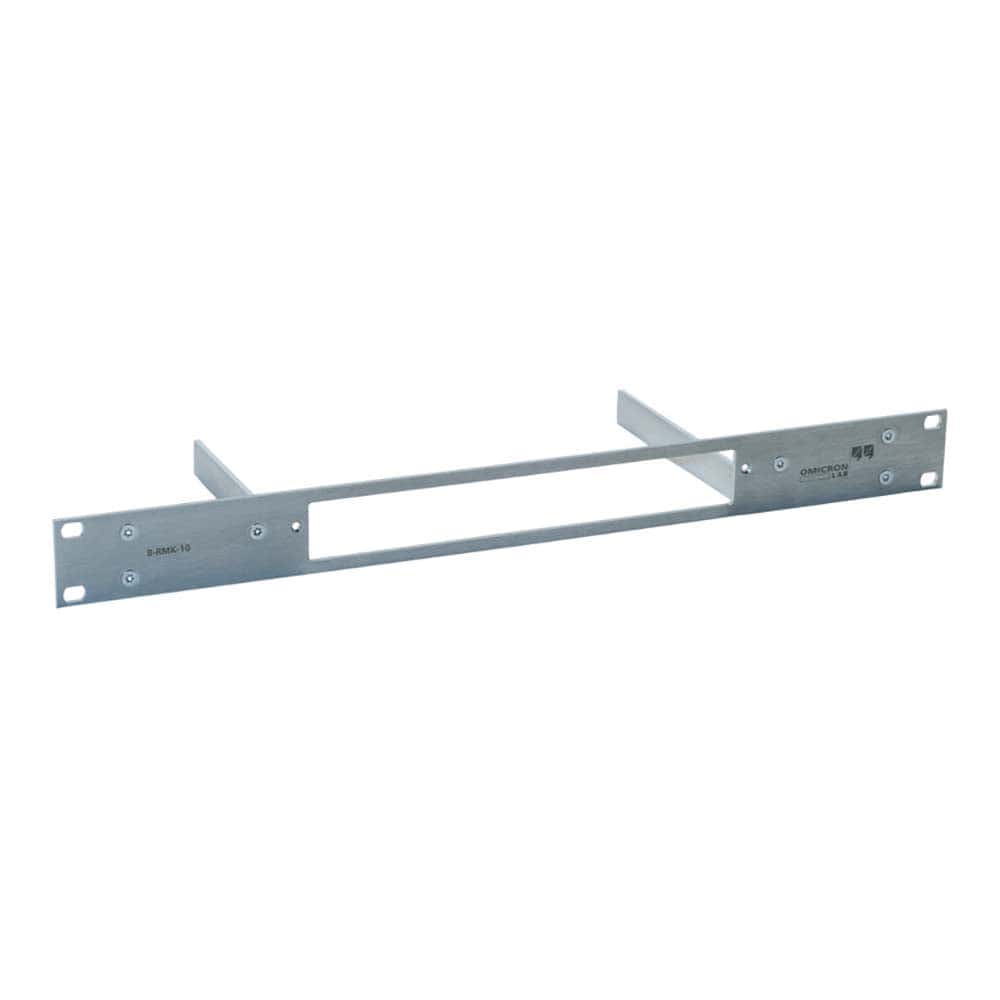

The OMICRON Lab B-RMK-10 Rack Mount Kit mounts a Bode 100 in a 1U slot of a 19-inch rack. The stainless-steel kit comprises a front panel, left and right rails, six M4 and two M3 countersunk screws, measures 48.2 x 15.2 x 4.4 cm and weighs 0.42 kg without the instrument. The manual specifies a TX10 screwdriver for the Bode 100 front-panel screws and rubber feet. The Bode 100 is not included. For transport, OMICRON Lab offers the carrying case.

Downloads

User Manuals

  • OMICRON Lab B-RMK-10 Rack Mount Kit PDF487 KB · May 2021
    Details

The OMICRON Lab B-RMK-10 Rack Mount Kit is a stainless-steel kit that mounts a Bode 100 vector network analyser in a 1U slot of a 19-inch rack. It consists of a front panel, left and right rails, six M4 and two M3 screws, weighs 0.42 kg without the instrument and the manual specifies a TX10 screwdriver for the Bode 100 front-panel screws. Test engineers use it to build the Bode 100 into automated test racks and production test stations.

1U 19-Inch Rack Mounting for the Bode 100

OMICRON Lab specifies the B-RMK-10 as a stainless-steel mount kit that holds a Bode 100 in a single 1U slot of a 19-inch rack. The kit measures 48.2 x 15.2 x 4.4 cm (19 x 5.96 x 1.72 in) and weighs 0.42 kg without the instrument. Once fitted, the Bode 100 can share a rack with the power supplies, loads and switching units of a test system.

Installation with a TX10 Screwdriver

The user manual sets out five steps. Unplug all cables and connections from the Bode 100 first. With a TX10 screwdriver, loosen the two screws on the left and right of the front panel and remove the plastic frame. Fix the left and right rails to the B-RMK-10 front panel with the six short M4 countersunk screws. Attach the assembled kit to the instrument with the two M3 countersunk screws. Where rack height is tight, remove the four rubber feet from the bottom of the Bode 100, again with the TX10.

Built for Test Racks and Production Stations

A rack-mounted Bode 100 suits fixed setups where the analyser stays wired to fixtures, injection transformers and switching hardware between runs. Typical companions on the bench or in the rack include the B-WIT 100 for loop gain and the B-AMP 12 amplifier. For an analyser that moves between labs, the carrying case is the alternative.

Specifications

Fits Bode 100
Rack standard 19-inch rack, 1U slot
Material Stainless steel
Dimensions 48.2 x 15.2 x 4.4 cm (19 x 5.96 x 1.72 in)
Weight (kit without device) 0.42 kg (0.94 lb)
Fixings 6 x M4 countersunk screws, 2 x M3 countersunk screws
Tool required TX10 screwdriver

Limitations

  • The Bode 100 is not included. OMICRON Lab states the kit is delivered without the instrument.
  • OMICRON Lab documents the B-RMK-10 for the Bode 100 only. It does not list the Bode 500, so ask us before ordering for a Bode 500.
  • No rack slides or rear supports are listed in the kit contents.
  • Removing the rubber feet is only needed where height is limited. Keep them if the Bode 100 will go back on the bench.

Bode 100 Housing Options Comparison

Feature B-RMK-10 Rack Mount Kit Carrying Case for Bode 100 and Bode 500
Use Fixed 1U mounting in a 19-inch rack Transport and storage, custom cut-out foam interior
Fits Bode 100 Bode 100 or Bode 500, with cables, power supply and up to 4 accessories
Dimensions 48.2 x 15.2 x 4.4 cm 44.5 x 36.5 x 13.7 cm
Weight 0.42 kg (without analyser) 1.5 kg (empty)
Price £215 £135

Typical Applications

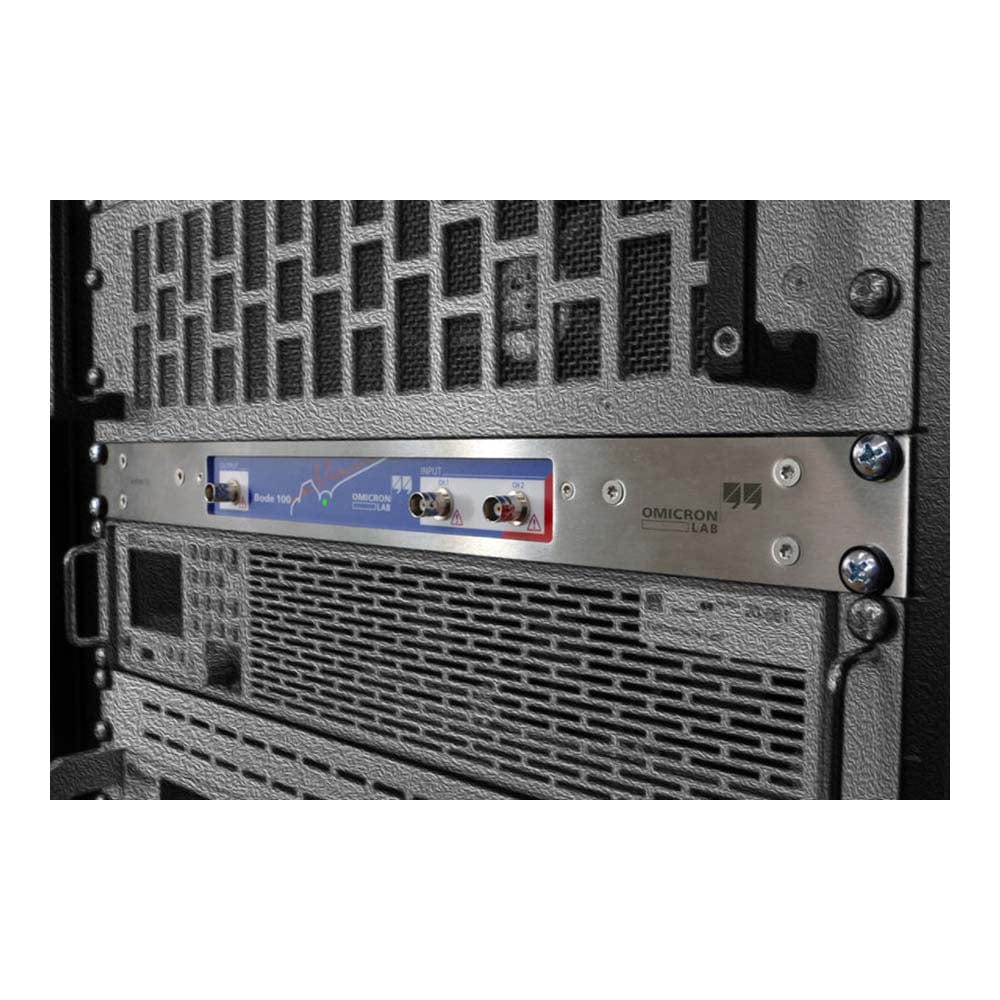

Integrating a Bode 100 into a 19-inch automated test rack for end-of-line loop gain or impedance checks on power supplies. Mounting the analyser in a shared lab rack so bench space stays clear. Building a fixed RFID or component test station around the Bode 100 and its fixtures.

The B-RMK-10 suits test engineers who run the Bode 100 in one place and want it secured in standard rack hardware.

What's Included

  • Front panel (1 pc.)
  • Left rail (1 pc.)
  • Right rail (1 pc.)
  • M4 screws (6 pcs.)
  • M3 screws (2 pcs.)

The OMICRON Lab B-RMK-10 Rack Mount Kit is £215 ex VAT. Contact us for a formal quotation if you are building a complete Bode 100 test rack. See all vector network analyser accessories in our range.

Frequently Asked Questions

Does the B-RMK-10 Fit the Bode 500?

OMICRON Lab documents the B-RMK-10 for the Bode 100 only and does not list the Bode 500. Contact us before ordering if your analyser is a Bode 500.

Answered by John Legg, Director, Debug Store

What Tools Do I Need to Fit It?

The manual names a TX10 screwdriver. It removes the front panel screws and plastic frame of the Bode 100 and, where needed, the four rubber feet. The rails, front panel and screws come in the kit.

Answered by John Legg, Director, Debug Store

How Much Rack Space Does It Take?

One 1U slot in a 19-inch rack. Remove the rubber feet from the Bode 100 if height is limited.

Answered by John Legg, Director, Debug Store

Last reviewed: 18 November 2026
