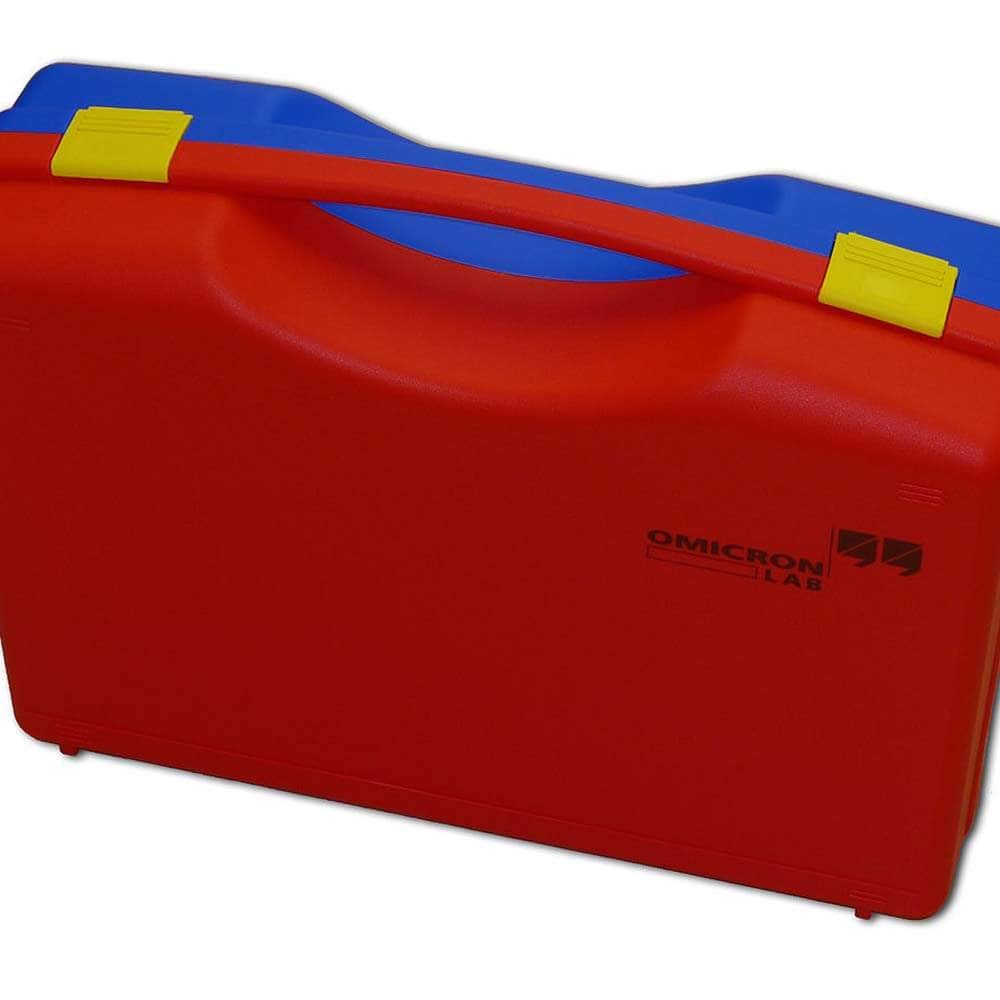

The OMICRON Lab Carrying Case is a protective carry case with a custom cut-out foam interior for a Bode 100 or Bode 500, with room for the analyser's cables, power supply and up to four accessories such as the B-WIT 100, B-SMC and B-WIC. It measures 44.5 x 36.5 x 13.7 cm and weighs 1.5 kg empty. The case is delivered empty, without analyser or accessories.
Downloads
Why Engineers Choose the OMICRON Lab Carrying Case for Bode 100 and Bode 500
Equipment Investment Protection
Complete System Portability
Professional Laboratory Standards
The OMICRON Lab Carrying Case (E1399000) is a protective carry case for the Bode 100 or Bode 500 vector network analyser, with a custom cut-out foam interior that holds the analyser, its cables, the power supply and up to four accessories. It measures 44.5 x 36.5 x 13.7 cm and weighs 1.5 kg empty. Engineers who move one Bode analyser between the development lab, a production test area and customer sites use it to keep the whole measurement kit together.

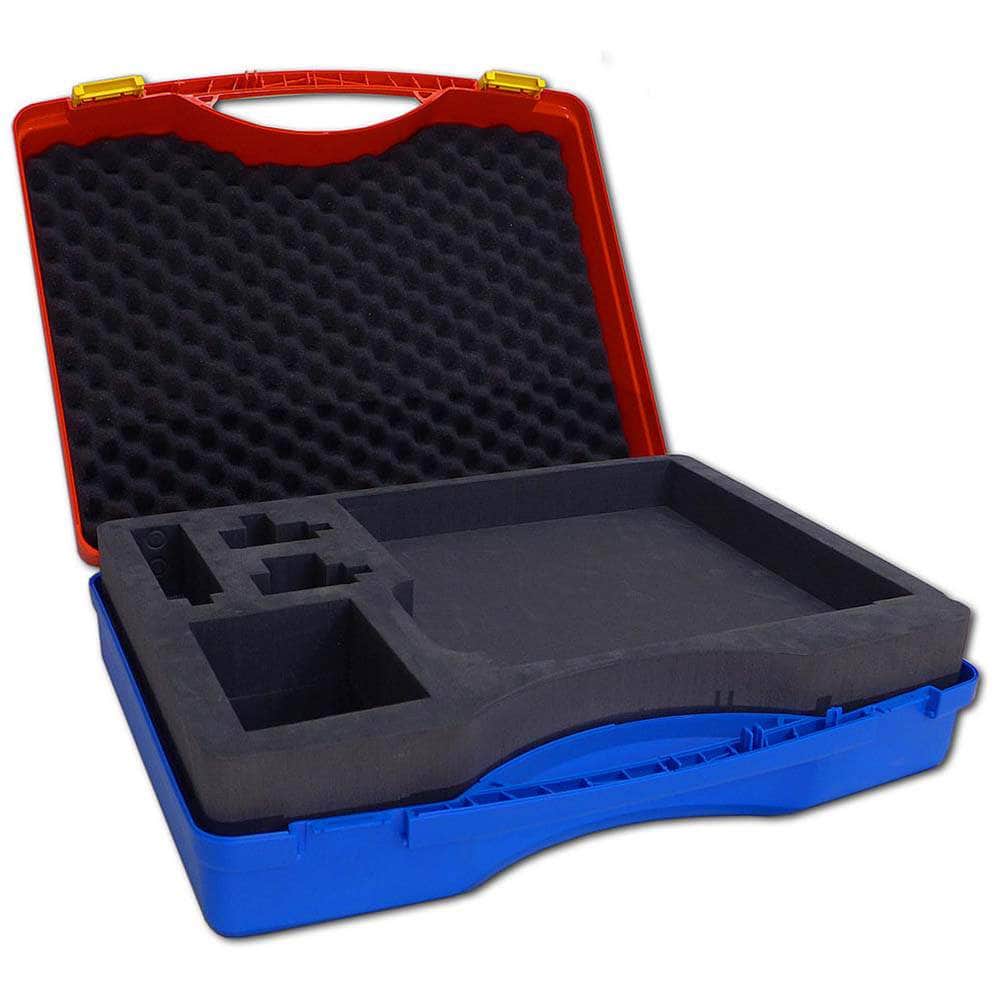

Cut-Out Foam for the Bode 100 or Bode 500
OMICRON Lab sells one carry case for both analysers, the Bode 100 and the Bode 500. The foam is cut out to locate the analyser and the parts that travel with it, so nothing loose rattles around in transit. OMICRON Lab does not publish a shell material, an ingress rating or a drop rating, so treat it as a transport and storage case rather than a rated flight case.
Room for Cables, Power Supply and Four Accessories
Alongside the analyser there are spaces for its measurement cables, its power supply and up to four accessories. OMICRON Lab's own example layout carries a Bode 100 with a B-WIT 100 injection transformer, a B-SMC test fixture for surface-mount components and a B-WIC test fixture for wired components. That puts a loop gain setup and an impedance measurement setup in one case, with one slot to spare.
Bode Analyser Carry Case Dimensions and Weight
External dimensions are 44.5 x 36.5 x 13.7 cm (W x H x D), which is 17.5 x 14.4 x 5.4 in. The empty case weighs 1.5 kg (3.3 lb), so most of what you carry is the instrument and its accessories.
Specifications
| Order number | E1399000 |
|---|---|
| Compatible analysers | Bode 100, Bode 500 |
| Interior | Custom cut-out foam |
| Capacity | Bode analyser, cables, power supply and up to 4 accessories |
| Dimensions (W x H x D) | 44.5 x 36.5 x 13.7 cm (17.5 x 14.4 x 5.4 in) |
| Weight (empty) | 1.5 kg (3.3 lb) |
| Delivered as | Empty case, without the devices shown in product photographs |
Limitations
- The case ships empty. The analyser, power supply, cables and accessories in OMICRON Lab's photographs are not included.
- Capacity is the analyser plus up to four accessories. A larger accessory set needs separate storage.
- No shell material, ingress rating or drop rating is published.
- For a fixed bench or test-rack installation, the B-RMK-10 Rack Mount Kit mounts a Bode 100 in a 1U 19-inch rack slot. OMICRON Lab names only the Bode 100 for that kit.
Carry Case and Rack Mount Comparison
| Feature | Carrying Case E1399000 | B-RMK-10 Rack Mount Kit |
|---|---|---|
| Purpose | Transport and storage | Mounting in a 1U 19-inch rack slot |
| Analysers named by OMICRON Lab | Bode 100, Bode 500 | Bode 100 |
| Dimensions | 44.5 x 36.5 x 13.7 cm | 48.2 x 15.2 x 4.4 cm |
| Weight | 1.5 kg (empty) | 0.42 kg (without analyser) |
| Analyser included | No | No |
| Price | £135 | £215 |
Typical Applications
Taking a Bode 100, B-WIT 100 and voltage probes to a customer site to measure gain and phase margin on a DC/DC converter in its real operating environment. Moving a Bode 500 with its cables and power supply between an R&D lab and a production test area. Keeping a shared analyser, its fixtures and power supply together on a multi-user lab shelf so the kit stays complete between jobs.
The case suits power electronics and test engineers who share one Bode analyser across several benches, teams or sites.
What's Included
OMICRON Lab publishes no separate box list. It states that the case is delivered without the devices shown, so the delivery is the case alone.
- Carrying case with custom cut-out foam interior
The OMICRON Lab Carrying Case is £135 ex VAT. If you are ordering an analyser at the same time, contact us for a formal quotation covering the Bode 100 or Bode 500, the case and the accessories you want to carry in it. See all vector network analyser accessories in our range.
Frequently Asked Questions
Is the Bode Analyser Included with the Case?
No. The case is delivered empty. The Bode 100 or Bode 500, its power supply, cables and any accessories are ordered separately.
Answered by John Legg, Director, Debug Store
Which Accessories Did OMICRON Lab Lay Out in the Case?
A B-WIT 100 injection transformer, a B-SMC and a B-WIC impedance test fixture, alongside a Bode 100, its cables and power supply. The foam takes up to four accessories in total.
Answered by John Legg, Director, Debug Store
Last reviewed: 18 November 2026
Sources (3 manufacturer pages)
| Ordering information | |
|---|---|
| Part number (SKU) | E1399000 |
| Manufacturer | OMICRON-Lab |
| EAN | 5055383623228 |
| Warranty | 12 months |
| Shipping weight | 1.5 kg |
-
1 ×
OMICRON Lab Carrying Case for Bode 100 and Bode 500
Contact us to confirm the full contents of the box.
Questions and Answers
-
Does the Carry Case Provide Adequate Protection for Precision Measurement Equipment?
Yes. The custom cut-out foam holds the equipment securely.
-
Can This Case Be Used for Air Travel with Measurement Equipment?
Yes, its compact size and light weight make it suitable for professional travel. Check airline regulations on electronic test equipment, and consider extra protection for valuable instruments.
-
How Does This Compare to Generic Instrument Cases?
Unlike generic cases, it has precision-cut foam compartments designed for Bode analysers and their accessories. This keeps equipment protected and organised and stops it moving during transport.
-
What Level of Environmental Protection Does the Case Provide?
OMICRON Lab does not publish an environmental rating for the case.
-
Can Additional Accessories Be Accommodated Beyond the Standard Configuration?
Not as standard. The case is designed for the Bode analyser, power supply, cables and up to four accessories. Extra items may need separate storage or custom foam modifications.
-
What Accessories Can Be Stored Alongside the Bode Analyser in This Case?
The case holds the Bode analyser, power supply, measurement cables and up to four accessories.
-
What Are the External Dimensions and Weight of the Carry Case?
The case measures 44.5cm wide x 36.5cm high x 13.7cm deep (17.5" x 14.4" x 5.4") and weighs 1.5kg (3.3 lbs) empty.
