Micsig TO3004 Tablet Oscilloscope
Video notes

The Micsig TO-Series is a battery-powered 8-bit tablet oscilloscope in four models: TO1004 (100MHz, 4 channels), TO2002 (200MHz, 2 channels, 1GSa/s, 110Mpts), TO2004 (200MHz, 4 channels) and TO3004 (300MHz, 4 channels), the last two sampling at 2GSa/s into 220Mpts at up to 300,000 wfms/s. All share a 10.1-inch 1280x800 capacitive touchscreen, a 7500mAh Li-Ion battery rated by Micsig for over five hours, bus decoding for UART, CAN, CAN FD, LIN, SPI and I²C, and Wi-Fi, USB 3.0, USB Type-C and HDMI connections.
Video notes
Videos are hosted on YouTube and load only when you press play.

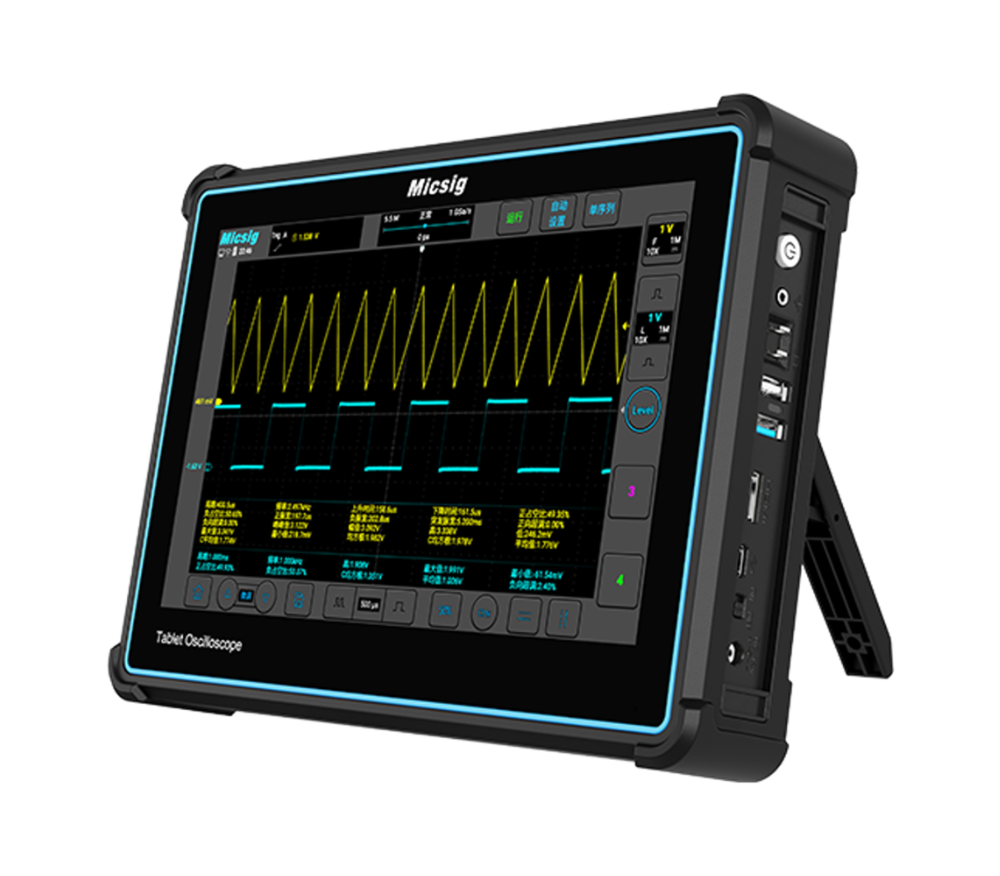

The Micsig TO-Series tablet oscilloscope is a battery-powered 8-bit oscilloscope family covering 100MHz to 300MHz bandwidth with 2 or 4 analogue channels on a 10.1-inch, 1280x800 capacitive touchscreen. The 4-channel TO3004 and TO2004 sample at 2GSa/s into 220Mpts of memory at up to 300,000 wfms/s, and the 7.4V, 7500mAh Li-Ion battery runs the instrument for over five hours away from mains. It is built for power electronics debug, embedded bus analysis and field service work where a bench scope cannot follow the fault.
The series shares one 265 x 192 x 50mm, 1.9kg chassis (with battery) and the same tablet interface. Choose by the fastest edge and the number of signals you need at once.
| Model | Bandwidth | Rise Time | Channels | Sample Rate | Memory | Capture Rate |
|---|---|---|---|---|---|---|
| TO3004 | 300MHz | ≤1.16ns | 4 | 2GSa/s | 220Mpts | 300,000 wfms/s |
| TO2004 | 200MHz | ≤1.75ns | 4 | 2GSa/s | 220Mpts | 300,000 wfms/s |
| TO2002 | 200MHz | ≤1.75ns | 2 | 1GSa/s | 110Mpts | 78,000 wfms/s |
| TO1004 | 100MHz | ≤3.5ns | 4 | 1GSa/s | 110Mpts | 78,000 wfms/s |
The TO3004 and TO2004 accept 1MΩ or 50Ω input impedance, run a 1ns/div to 1ks/div timebase and support segmented storage of up to 10,000 waveform events. The TO2002 and TO1004 are 1MΩ only, with a 2ns/div to 1ks/div timebase and no segmented storage. Every model is offered with no case, a soft case or a hard case.
At 220Mpts the 4-channel models hold long records at full sample rate, so a slow power-up sequence and the fast switching edges inside it sit in one capture. A capture rate of up to 300,000 wfms/s shortens the time to catch a rare runt or glitch, and the Runt, Nth Edge, Time Out and Slope triggers isolate it. Hardware high-pass and low-pass filters, adjustable down to 30Hz on the TO3004 and TO2004, plus a 20MHz bandwidth limit, clean up noisy measurements before they reach the display.
Micsig's datasheet lists decoding for RS-232/422/485/UART, CAN, CAN FD, LIN, SPI and I²C as standard, alongside Edge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out and Video triggers, plus serial bus triggers. Maths functions and FFT run on the instrument. 32GB of internal storage holds screenshots, screen recordings and waveform data.
Interfaces are Wi-Fi, USB 3.0/2.0 host, USB Type-C, HDMI, trigger out and a grounding terminal. The tablet oscilloscope can be controlled remotely over SCPI, from Micsig's Android and iOS apps or from its PC software, for automated test benches as well as field work.
The standard BNC inputs take Micsig's optional probes listed for the series: the DP series high-voltage differential probes, the SigOFIT optical-fibre isolated probes, and Micsig's CP and RCP current probes. See the full range in our tablet oscilloscopes collection.
| Vertical resolution | 8-bit |
|---|---|
| Bandwidth | 100MHz (TO1004), 200MHz (TO2002, TO2004), 300MHz (TO3004) |
| Analogue channels | 2 (TO2002) or 4 (TO1004, TO2004, TO3004) |
| Input sensitivity | 1mV/div to 10V/div (1MΩ); TO3004 and TO2004 also 1mV/div to 1V/div (50Ω) |
| Bandwidth filter | 20MHz limit; high pass / low pass to 30Hz (TO3004, TO2004), to 30kHz (TO2002, TO1004) |
| Trigger types | Edge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, Video, plus serial bus triggers |
| Bus decoding | RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C |
| Display | 10.1-inch LCD capacitive touch display, 1280 x 800, 11 x 10 grids |
| Internal storage | 32GB |
| Interfaces | Wi-Fi, USB 3.0/2.0 host, USB Type-C, grounding, HDMI, trigger out |
| Remote control | SCPI, Android and iOS apps, PC software |
| Battery | 7.4V, 7500mAh Li-Ion, over five hours |
| Dimensions and weight | 265 x 192 x 50mm, 1.9kg with battery |
Micsig's datasheet lists the standard accessories as the oscilloscope, passive probes (two with the TO2002, four with the TO1004, TO2004 and TO3004), a power adapter and mains cord, the battery, a calibration certificate and a user guide. The Soft Case option adds Micsig's black nylon handbag; the Hard Case option adds the PP hard-shell suitcase with EVA foam. No current or differential probes are included.
| Series | Vertical resolution | Bandwidth | Price |
|---|---|---|---|
| Micsig TO-Series (this product) | 8-bit | 100MHz to 300MHz | from £520 |
| Micsig ETO series | 8-bit | 350MHz or 500MHz | from £1,596 |
| Micsig MHO3 series | 12-bit | 250MHz to 500MHz | from £1,932 |
Gate-drive and switch-node timing on a DC/DC converter, using the 4 channels of a TO2004 or TO3004 to see both gate signals, the switch node and the output together. Decoding CAN FD or LIN frames at the vehicle or machine, running on battery. Tracking down an intermittent I²C or SPI fault on an embedded board with segmented capture on a TO3004 or TO2004.
The TO-Series suits hardware and test engineers who split their time between the lab bench and installed equipment.
Order the Micsig TO-Series tablet oscilloscope from £520 ex VAT. Select the model and case in the options above, or request a formal quotation if you are buying several units.
Choose by bandwidth and channel count. The TO3004 gives 300MHz on 4 channels; the TO2004 gives 200MHz on 4 channels; both sample at 2GSa/s into 220Mpts with 50Ω input and segmented storage. The TO2002 gives 200MHz on 2 channels and the TO1004 100MHz on 4 channels, both at 1GSa/s into 110Mpts.
Answered by John Legg, Director, Debug Store
Over five hours, according to Micsig, from the built-in 7.4V, 7500mAh Li-Ion battery. The battery is fitted inside the tablet, so no external pack is needed for field use.
Answered by John Legg, Director, Debug Store
Yes. Micsig's datasheet lists CAN FD with CAN, LIN, SPI, I²C and RS-232/422/485/UART under standard protocol decoding on every TO-Series model.
Answered by John Legg, Director, Debug Store
Yes. The TO-Series supports SCPI remote control and Micsig's PC software, plus Android and iOS apps. It also has Wi-Fi, USB 3.0/2.0 host, USB Type-C and HDMI ports.
Answered by John Legg, Director, Debug Store
Last reviewed: 30 October 2026
| Acquisition | |
|---|---|
| Bandwidth | 200 MHz (TO2002 and TO2004) |
| Analogue channels | 2 (TO2002); 4 (TO2004) |
| Vertical resolution | 8 bits |
| Display | |
| Display | 10.1 inch LCD capacitive touch, 1280 x 800 |
| Interfaces | |
| Interfaces | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger Out |
| Physical | |
| Dimensions | 265 x 192 x 50 mm (with battery) |
| Ordering information | |
| Part number (SKU) | TO2002 |
| Manufacturer | Micsig |
| EAN | 5055383607006 |
| Warranty | 12 months |
| Shipping weight | 5.0 kg |
Contact us to confirm the full contents of the box.
