Total Phase I2C Development Kit
Total Phase I2C Development Kit
SKU: TP120112
Couldn't load pickup availability
Overview
Discover the Total Phase I2C Development Kit, an essential bundle that empowers engineers and developers in their I2C journey. Perfect for those seeking a comprehensive toolset, this kit is meticulously crafted to streamline the development and debugging processes of embedded systems.
Unleash the true potential of your projects with this kit that encapsulates Total Phase's top I2C development tools and accessories. Whether you're delving into intricate projects or fine-tuning existing systems, this kit is your ultimate companion.
- Enhance Development Efficiency: With a rich set of tools at your disposal, fast-track your I2C development process and achieve superior results in record time.
- Streamlined Debugging Capabilities: Uncover hidden issues, squash bugs, and ensure seamless operation with the advanced debugging features of this kit.
Engineered for excellence, the Total Phase I2C Development Kit is a must-have for those who demand precision, reliability, and innovation in their development endeavours. Elevate your projects to new heights with this all-encompassing kit that stands as a testament to Total Phase's commitment to cutting-edge technology.
Downloads
Datasheets

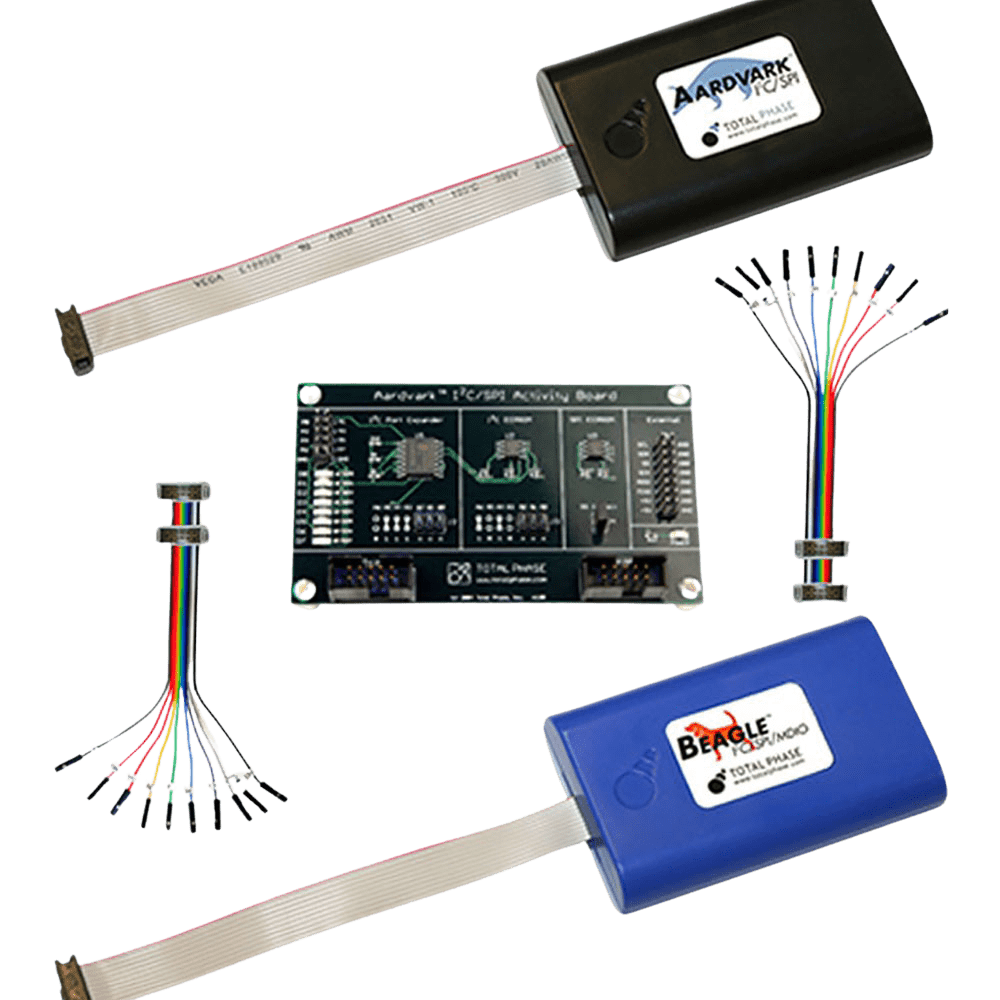

This set comes complete with an Aardvark™ I2C/SPI Host Adapter, Beagle™ I2C/SPI Protocol Analyzer, 10-pin Split Cables, I2C/SPI Activity Board and 6 USB foot A-to-B cable. It helps developers with various applications that include exercising target devices on an I2C bus as a master device, simulating an I2C master or slave device, programming and verifying I2C-based memory devices and passive monitoring of an I2C bus in real-time with 20 ns bit-level timing.
Aardvark™ I2C/SPI Host Adapter
The Aardvark™ I2C/SPI Host Adapter is a powerful, high-speed device that works as an I2C bus and SPI bus host adapter with the help of a USB interface. It gives the developer the freedom to interface any computer, running on Windows, MAC OS, or Linux, to a downstream embedded system and transfer serial messages with the help of I2C and SPI protocols.
Beagle™ I2C/SPI Protocol Analyser
The Beagle™ I2C/SPI analyser is a protocol analyser is the perfect tool for developing an I2C, SPI, or MDIO based product. This small and portable analyser delivers high performance bus monitoring solution of bus signals and is an ideal companion for engineers working in the field or in the lab. This analyser is compatible with all leading operating systems and non-intrusively monitors I2C up to 4 MHz, SPI up to 24 MHz and MDIO up to 2.5 MHz.
10-Pin Split Cables
The 10-Pin Split Cable is a useful tool that allows you to use the 10-pin ribbon cable without any adapter boards. This universal cable is compatible with a lot of applications and comes with a 10-pin box header that connects to the ribbon cable. This cable uses a standard 5x2 0.100" (2.54mm) pitch IDC type keyed box connector at one end and all the individual leads are terminated with a single pin crimp connector with the same 0.100" (2.54mm) pitch at the other end. To ease identifications, all the leads are have different colours and are labelled with the pin name.
I2C/SPI Activity Board
The I2C/SPI Activity Board is the ideal tool for any novice or advanced system developer. This board works as a way for a developer to check the system or debug it against working slave devices to distinguish between software and hardware bugs. Also, it helps in establishing a baseline for using the software. Moreover, the target devices provided on the activity board serve as a great way of learning mechanics of I2C and SPI bus protocols for amateur developers.
| Ordering information | |
|---|---|
| Part number (SKU) | TP120112 |
| Manufacturer | Total Phase, Inc |
| EAN | 5055383693788 |
| Warranty | 2 years |
| Shipping weight | 1.0 kg |
-
1 ×
Total Phase I2C Development Kit
Contact us to confirm the full contents of the box.
Total Phase I2C Development Kit compared with Total Phase SPI Development Kit on 7 specifications.
| Specification | This product
Total Phase I2C Development KitTP120112Available to order |
Total Phase SPI Development KitTP120212Available to order |
|---|---|---|
| Host adapter included | Aardvark I2C/SPI Host Adapter | Cheetah SPI Host Adapter |
| Protocol analyser included | Beagle I2C/SPI Protocol Analyser | Beagle I2C/SPI Protocol Analyser |
| Target board included | I2C/SPI Activity Board | High-Speed SPI Flash Demo Board |
| I2C master | 1 kHz - 800 kHz | Not listed |
| SPI master | 125 kHz - 8 MHz | 0.1 MHz - 40+ MHz |
| Analyser capture | Up to 4 MHz / Up to 24 MHz | Up to 4 MHz / Up to 24 MHz |
| Cables included | 2 x USB-A to B, 1.8 m (6 ft); 2 x 10-pin split cables | 2 x USB-A to B, 1.8 m (6 ft); 2 x 10-pin split cables |
| Price | £860 | £935 |
