Total Phase TP240810 DVI DDC Breakout Cable

Total Phase TP240810 DVI DDC Breakout Cable

SKU: TP240810
Regular price
£92.40 inc VAT
£77.00 exc VAT
Regular price Sale price
£92.40 inc VAT
£77.00 exc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll ship within 5 working days.
View full details

Overview

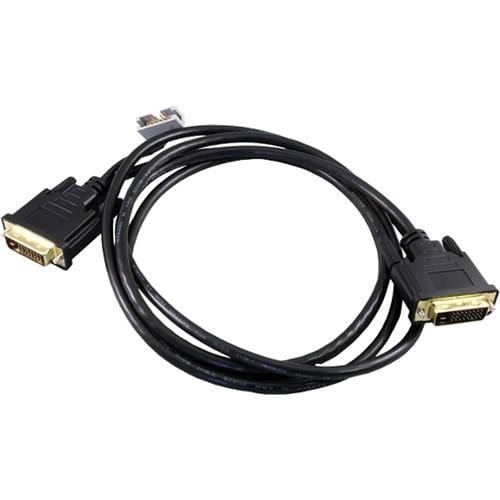

The Total Phase TP240810 is a 2m DVI cable with a DDC breakout header. It has been designed to assist in debugging the DVI video control interface.

The DVI DDC Breakout Cable is a standard 2 metre DVI-D single link cable (DVI-male to DVI-male) with an additional 5x2 0.100" pitch keyed box connector to provide a convenient way to access the Display Data Channel (DDC) lines with a Beagle™ I2C/SPI Protocol Analyser or an Aardvark™ I2C/SPI Host Adapter



Name DVI Pin 10-pin Header Pin
DDC SCL Pin 6 Pin 1
DDC SDA Pin 7 Pin 3
DDC GND Pin 15 Pin 2

 .
