SKU: TP825010Advanced Cable Tester Module Bundle - USB-C
Advanced Cable Tester Module Bundle - USB-C
Regular price
$2,050.00 USD
excluding tax
Regular price
Sale price
Unit price
per
$2,050.00 USD
excluding tax
Shipping calculated at checkout.
Check Availability before Pre-Ordering
Couldn't load pickup availability

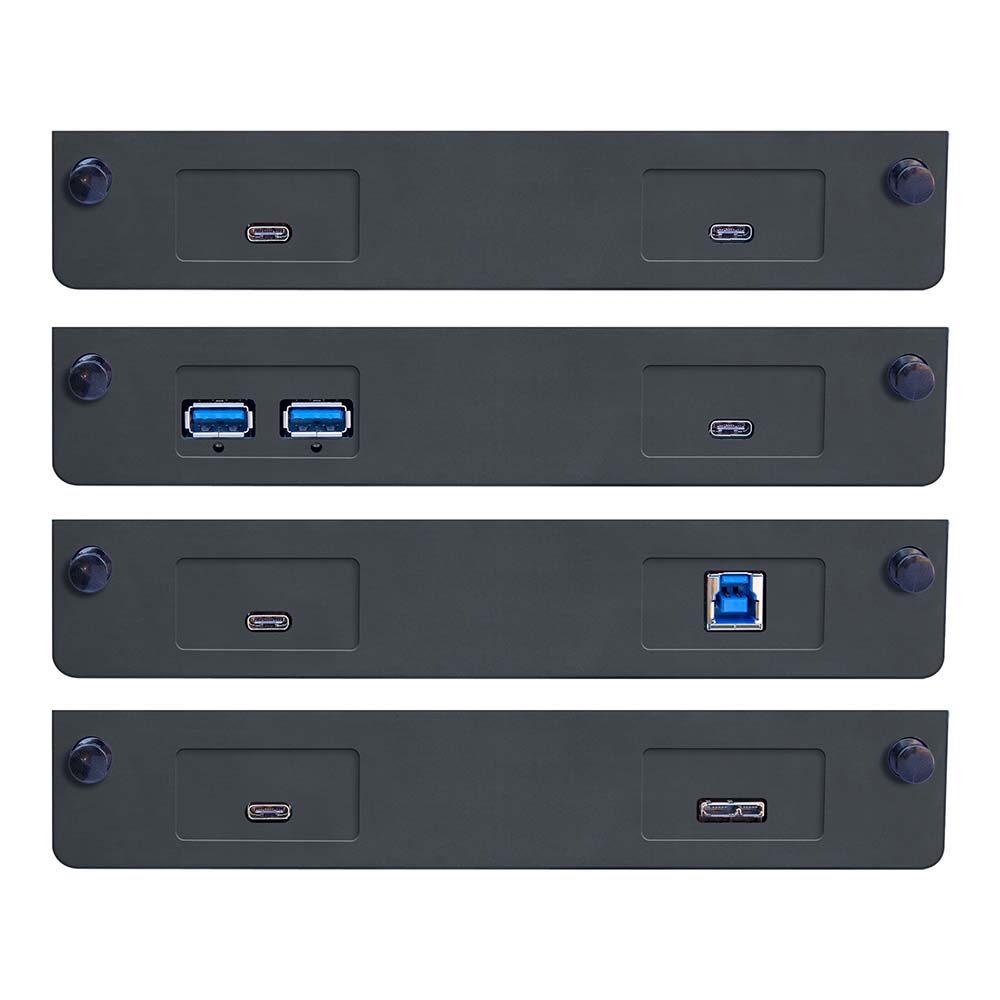

The ACT USB-C Bundle includes the following Modules:
- Advanced Cable Tester v2 USB Type-C to USB Type-C module
- Advanced Cable Tester v2 USB Type-C to USB Standard-A module
- Advanced Cable Tester v2 USB Type-C to USB Micro-B module
- Advanced Cable Tester v2 USB Type-C to USB Standard-B module
- Individually measure the DC resistance of VBUS and GND wires
- Individually measure the DC resistance of VBUS and GND pins in the USB Type-C connector
- Verify wiring is correct with no shorted or disconnected wires
- Testing of USB 2.0 pairs is supported at about 518 Mbps, and any present SuperSpeed pairs tested at 5 Gbps or 10 Gbps.
- This is all you will need for testing USB Type-C cables, whether USB 2.0, USB 3.1 Gen1, USB 3.1 Gen2, or USB 3.2
Test Compatibility/Coverage
- USB 3.2/3.1/3.0/2.0
- PD 2.0, PD 3.0
- Short testing - Dynamic visualization of test results
- Open testing - Dynamic visualization of test results
- Continuity testing - Dynamic visualization of test results
- DC resistance measurement for most wires, with milliohm precision on ground and power wires, ohm resolution on most other wires, continuity check only on high-speed data lines
- Signal integrity testing of data lines to 12.8 Gbps per channel
- E-Marker verification
Advanced Cable Tester Module Bundle - USB-C
Frequently Asked Questions
Have a Question?
Be the first to ask a question about this.
What's Included
Advanced Cable Tester Module Bundle - USB-C
- Advanced Cable Tester v2 USB Type-C to USB Type-C module
- Advanced Cable Tester v2 USB Type-C to USB Standard-A module
- Advanced Cable Tester v2 USB Type-C to USB Micro-B module
- Advanced Cable Tester v2 USB Type-C to USB Standard-B module
