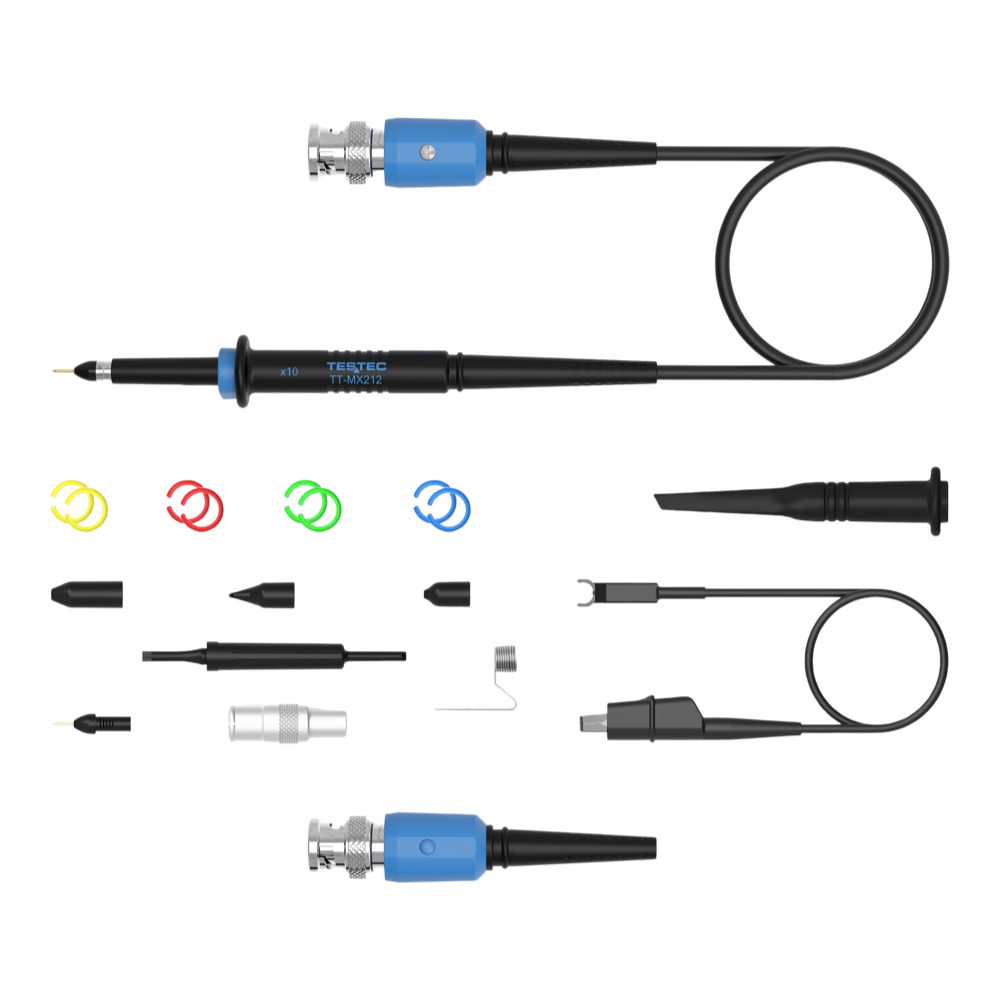

TESTEC TT-MX-212 250MHz x10 Passive Oscilloscope Probe
TESTEC TT-MX-212 250MHz x10 Passive Oscilloscope Probe
Couldn't load pickup availability
Key Features
- Switchable 10:1 attenuation for flexible signal scaling (250MHz bandwidth in x10 mode).
- 400V CAT II safety rating with 1500V transient overvoltage protection.
- Low circuit loading: 10MΩ input impedance and 13pF input capacitance.
- 5mm sharp-tip design for secure connections to miniature test points.
- 1.2m shielded cable with Pollution Degree 2 compliance for stable performance.
- Wide compensation range (8–25pF) for compatibility with most oscilloscopes.
- Complies with IEC 61010-031 and EN 61326 safety standards.
Overview
The Testec TT-MX 212 is a professional-grade passive oscilloscope probe engineered for mid-to-high-frequency signal analysis in demanding electronic testing environments. Part of the TT-MX series, this probe offers switchable 10:1 attenuation, delivering a bandwidth of 250MHz (20MHz in 1:1 mode) to ensure accurate waveform capture across diverse applications, including circuit debugging, power electronics, and embedded system development.
Designed for safety and reliability, the TT-MX 212 supports Measurement Category II (CAT II) ratings up to 400Vrms, with transient overvoltage protection up to 1500V. Its 10MΩ input impedance minimises circuit loading, while the 5mm sharp-tip design ensures stable contact with miniature components. The probe features a 1.2m shielded cable and a compensation range of 8–25pF, ensuring compatibility with most oscilloscopes. For users requiring 1:1 attenuation, the TT-MX 312 variant provides a dedicated 10MHz bandwidth mode.
Ideal for engineers prioritising safety and precision, the TT-MX 212 complies with IEC 61010-031 and EN 61326 standards, making it suitable for industrial and laboratory environments. Its robust construction, ergonomic grip, and Pollution Degree 2 rating ensure reliable performance in non-conductive, dry conditions with occasional condensation.
