10-pin Tag-Connect Plug-of-Nails™ “No Legs” Connector to a USB 2.0 cable with type A connector and a 6-pin (2×3) 0.1″ female IDC.
FAQs
Tag Connect TC2050-PGUSB-NL Cable
Frequently Asked Questions
Product Description
Product Description

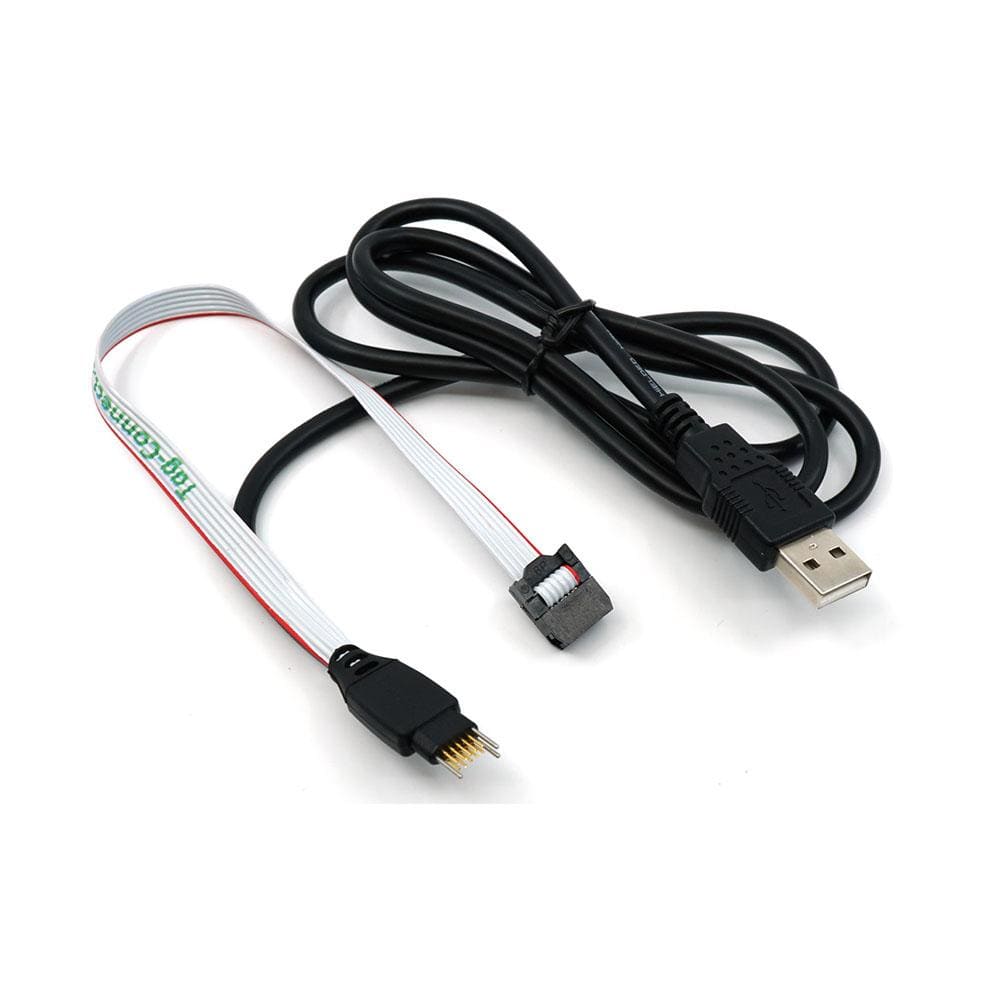

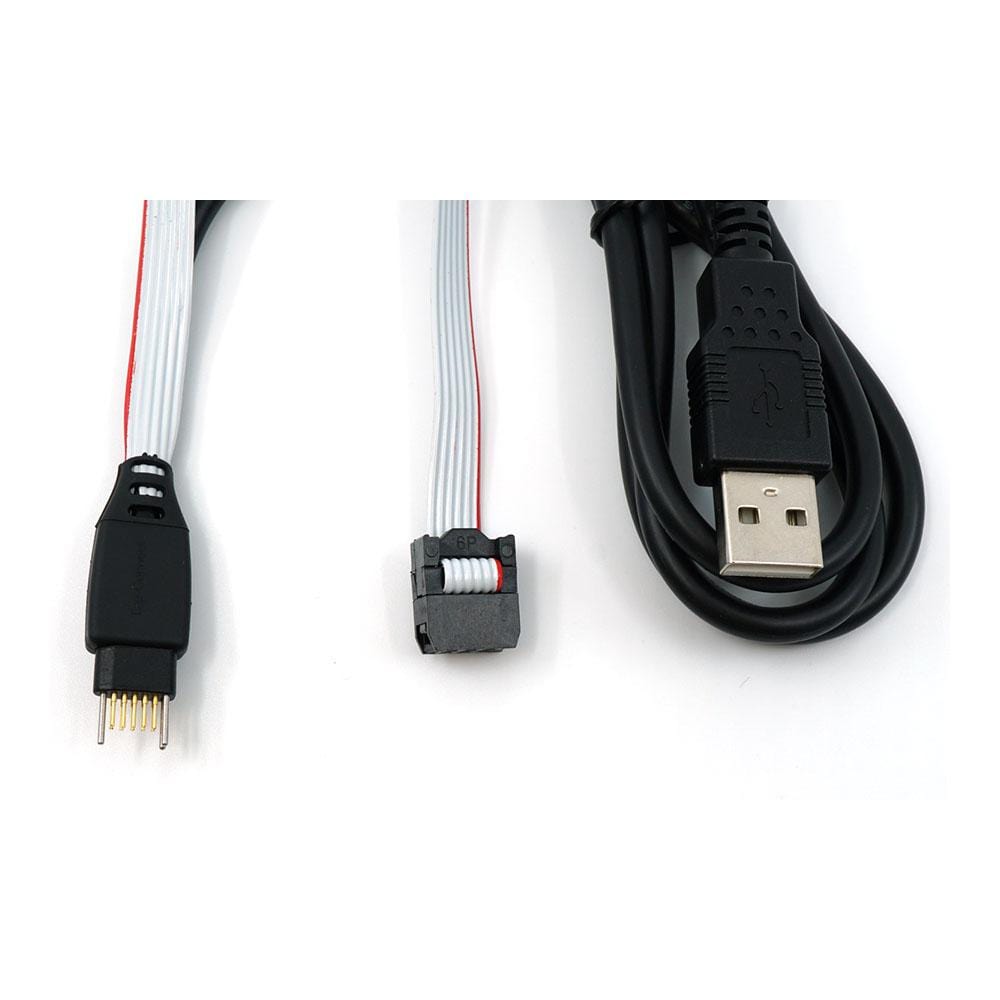

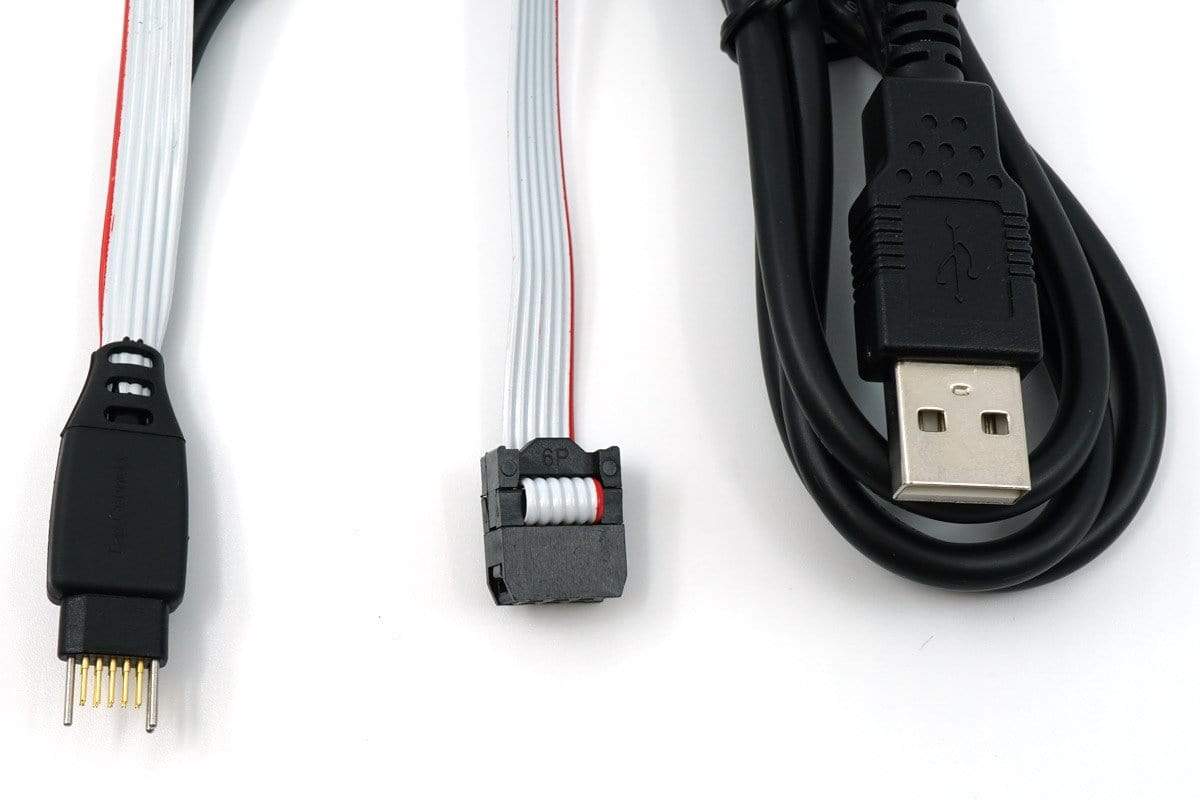

The TC2050-PGUSB cable has a 10-pin Tag-Connect Plug-of-Nails “No Legs” Connector on one end and connects to a USB 2.0 cable with type A connector as well as having a 6-pin (2×3) 0.1″ female IDC connector.
TC2050-PGUSB-NL Cable Connections
| TC2050 Footprint | 6-pin Ribbon with (2×3) 0.1″ Female IDC Connector |
|---|
| 1 | 1 |
| 2 | 2 |
| 3 | 3 |
| 4 | 4 |
| 5 | 5 |
| 6 | 6 |
| USB 2.0 Type A Cable |
| 7 | GND |
| 8 | D- |
| 9 | D+ |
| 10 | VUSB |
