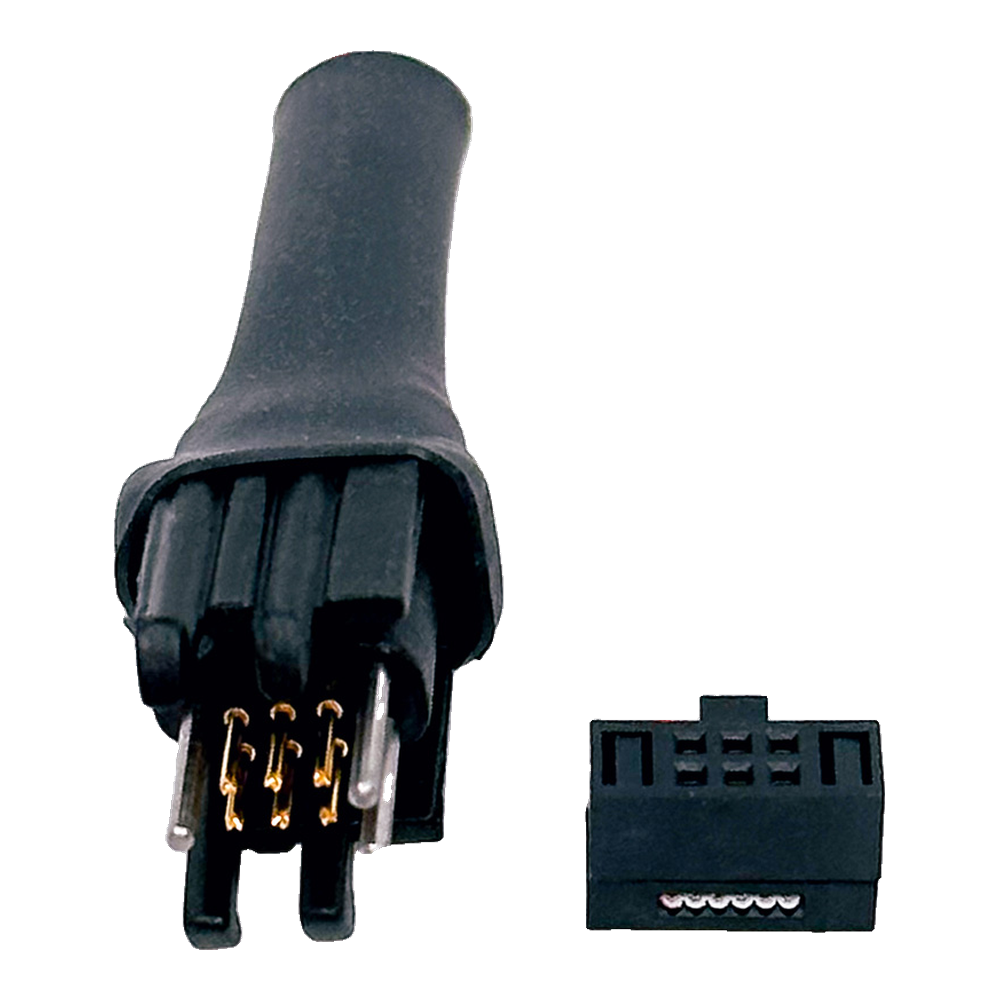

• Tag-Connect TC2030-IDC-050 6-Pin Cable to 0.05-Inch IDC

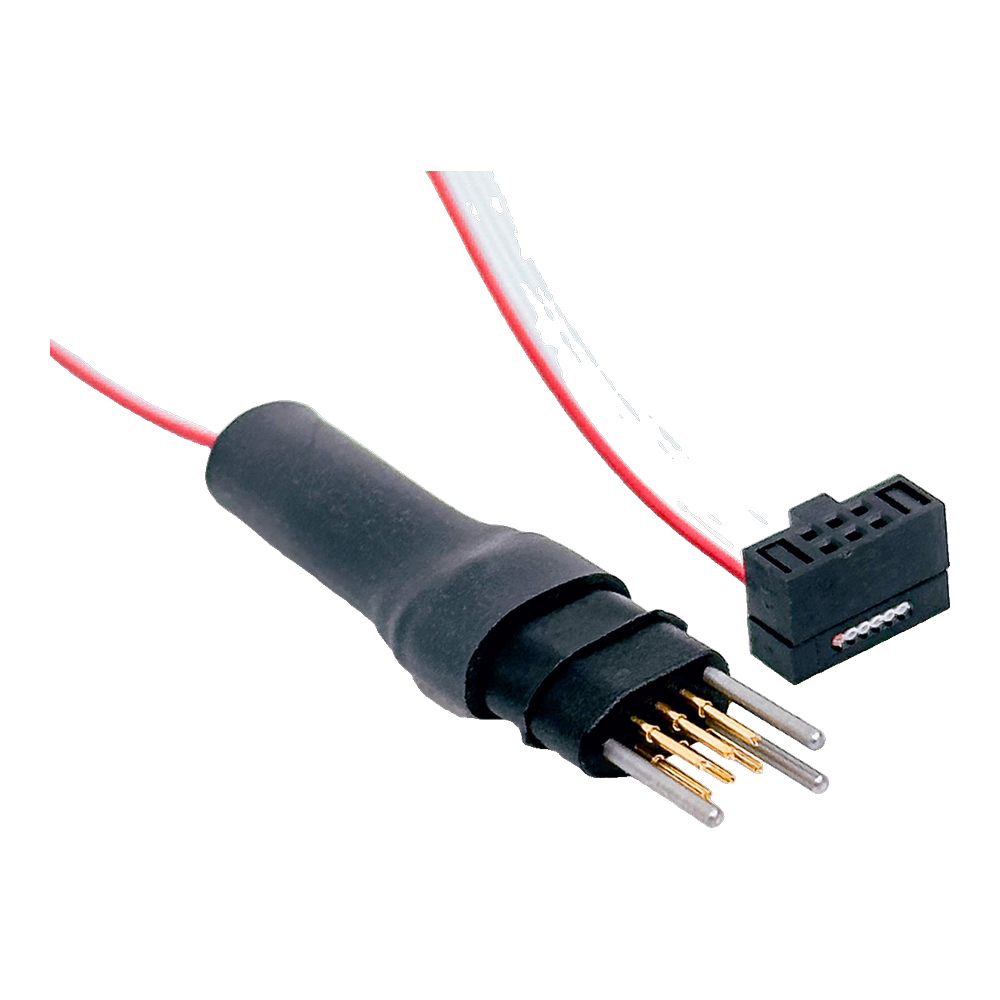

  • Tag-Connect TC2030-IDC-050 6-Pin Cable to 0.05-Inch IDC, view 2
1 1

Tag-Connect, LLC

Tag-Connect TC2030-IDC-050 6-Pin Plug-of-Nails Cable to 6-Pin 0.05-Inch IDC

Tag-Connect TC2030-IDC-050 6-Pin Plug-of-Nails Cable to 6-Pin 0.05-Inch IDC
6-pin Plug-of-Nails spring-pin cable to a 6-pin 0.05-inch (1.27 mm) IDC connector

SKU: TC2030-IDC-050

Legs
£67.50 inc VAT
£56.30 exc VAT
£67.50 inc VAT
£56.30 exc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 10 working days.
View full details
  • Tag-Connect TC2030-IDC-050 6-Pin Cable to 0.05-Inch IDC
  • Tag-Connect TC2030-IDC-050 6-Pin Cable to 0.05-Inch IDC, view 2

Key Features

0.05-inch IDC tool end
TC2030 target end
No header on the PCB
Legged version
No-legs version
Fine-pitch tools
Footprint data included

Overview

The TC2030-IDC-050 is a 6-pin Tag-Connect Plug-of-Nails spring-pin cable terminated in a 6-pin 0.05-inch (1.27 mm) pitch ribbon connector. It is the fine-pitch version of the TC2030-IDC, for programmers, debuggers and test jigs with a 6-pin 0.05-inch header instead of the usual 0.1-inch one.

The Tag-Connector plugs straight onto the TC2030 footprint on the target board: pads and locating holes, with no connector fitted. Choose the legged TC2030-IDC-050, which clips into the board for hands-free use, or the no-legs TC2030-IDC-NL-050, which needs a smaller footprint.

Downloads

Why Engineers Choose the Tag-Connect TC2030-IDC-050 6-Pin Plug-of-Nails Cable to 6-Pin 0.05-Inch IDC

Fits 0.05-Inch Tools

Direct to a 6-pin 1.27 mm header.

Zero-Cost Footprint

No connector on every board.

Your Choice of Hold

Legged or no-legs.

Specifications

Parameter Value
Target end TC2030 6-pin Plug-of-Nails spring-pin connector
Tool end 6-pin 0.05-inch (1.27 mm) pitch ribbon connector
Versions TC2030-IDC-050 (legged), TC2030-IDC-NL-050 (no legs)
PCB footprint TC2030 (legged) or TC2030-NL (no legs); see the datasheets below

Which Plug-of-Nails IDC Cable?

Cable Board footprint Tool end Best for
TC2030-IDC-050 (this cable) TC2030 6-pin, legged: clips in hands-free 6-pin 0.05-inch (1.27 mm) IDC Development work that needs a secure connection
TC2030-IDC-NL-050 (no-legs version of this cable) TC2030-NL 6-pin, no legs: held by hand or a TC2030-CLIP 6-pin 0.05-inch (1.27 mm) IDC Short production operations where board space matters most
TC2030-IDC TC2030 6-pin, legged (no-legs TC2030-IDC-NL also made) 6-pin 0.1-inch IDC Tools with a 6-pin 0.1-inch header
TC2050-IDC-050 TC2050 10-pin, legged 10-pin 0.05-inch IDC; pins 5 and 9 not connected ULINK2 and similar debuggers with a Samtec FTSH-105 style header

Which cable fits your debugger? See our Tag-Connect cable guide.

  • TC2030-IDC-050 Cable (Version as Ordered)
