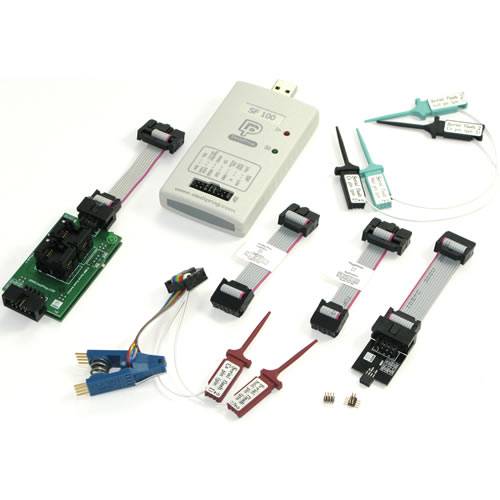

Dediprog Backup Boot Flash Kit (Include BBF-D8W and SF100 Programmer)

Dediprog Backup Boot Flash Kit (Include BBF-D8W and SF100 Programmer)

SKU: SBK05

Regular price
£455.00 exc VAT
£546.00 inc VAT
Regular price Sale price
£455.00 exc VAT
£546.00 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 10 working days.

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

The Dediprog SBK05 Backup Boot Flash Kit (Dual SO8W) is used as a Serial Flash Emulator for easy code development to reduce your time to market.

Our Backup Boot Flash tool (included) can be connected to the application by 3 different methods: - On the Two Main Serial flash packages soldered on board by using our Dedicated BBF Test Clip (included). - On our Two SMT 1.27mm Pin Headers (included) soldered in place of the Two Main Serial flash footprints for a better stability by using the appropriate 2.54mm to 1.27mm cable adaptor-dual header (included) - On your application 2.54mm (2X5) BBF connector (if application designed with) by using the appropriate BBF cable (included). Your application will work automatically on the Two Backup Serial Flash inserted in our tool.

Ordering information
Part number (SKU)SBK05
ManufacturerDediprog Technology Co Ltd
EAN5055383604890
Warranty12 months
Shipping weight0.5 kg
  • 1 ×SF100 programmer (SF100)
  • 1 ×USB cable
  • 1 ×SF100 ISP cable (ISP1-CB)
  • 1 ×Universal adaptor (ISP-UADP-127)
  • 1 ×BBF cable (BBF-CB), supplied with universal adaptor
  • 1 ×1.27mm 2x4 cable with female header (CB-24-127), supplied with universal adaptor
  • 1 ×CD-ROM with software, specifications and user manual
  • 1 ×Backup boot flash module, dual SO8W sockets (BBF-D8W)
  • 1 ×BBF cable with 2.54mm pitch 2x5 female header (BBF-CB)
  • 1 ×SO8 connection adaptor for BBF (BBF-CON-8)
  • 2 ×1.27mm 2x4 SMT male header (10.3mm)
  • 2 ×1.27mm 2x4 SMT male header (6.0mm)
  • 2 ×BBF grabber cables for dual SPI (BBF-Grabber-Cable)
  • 1 ×1.27mm 2x4 cable with female header (CB-24-127)
  • 1 ×BBF test clip, dual SO8 flash (BBF-2TC-8)
