Riverdi Display 4.3" UXB
Riverdi Display 4.3" UXB
Couldn't load pickup availability
Overview

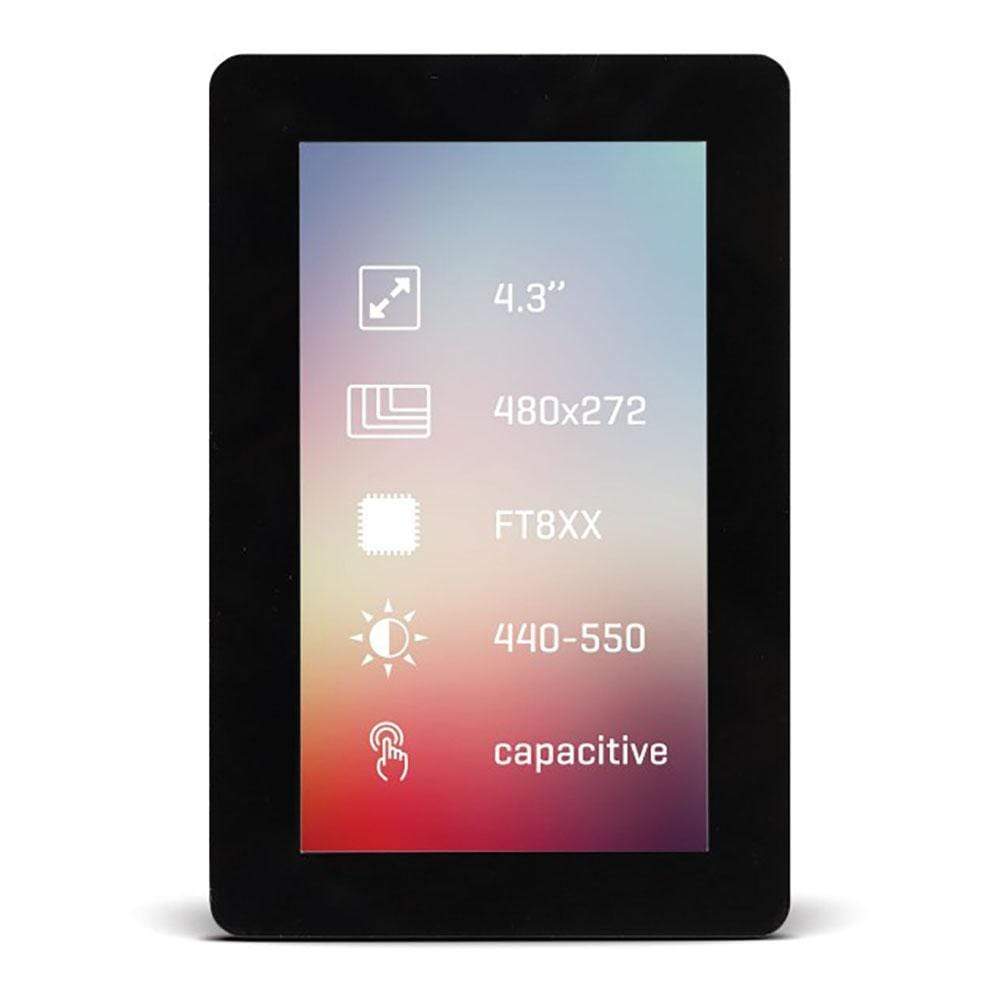

The Riverdi Display UXB is a high-quality cost-effective 4.3" TFT display with a projected capacitive touch screen and decorative cover glass (black bezel). Well integrated with MikroElektronika tools.
| General Information | |
|---|---|
Part Number (SKU) |
MIKROE-2168
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.145 kg
|
| Other | |
Warranty |
|
HS Code Customs Tariff code
|
|
EAN |
8606015079820
|

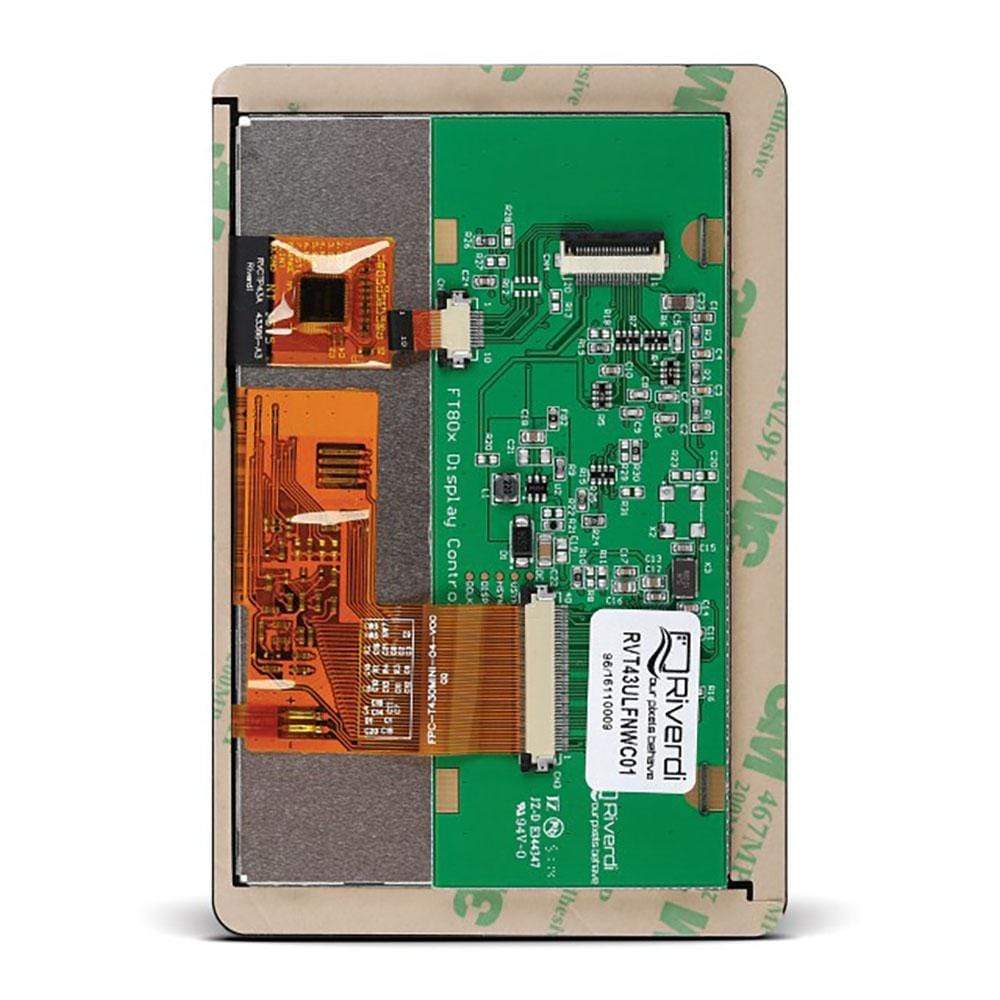

The Riverdi 480x272px screen is driven by an FT801 graphics controller which is supported in Visual TFT, the GUI design tool for rapid development of user interfaces.
The FT801 controller supports multi-touch gestures with up to five touches as well as gesture detection for the capacitive touchscreen.
The connector uses an I2C/SPI interface. To use it with various MikroElektronika hardware, a Riverdi Click Board™ adapter board is available (interface between the connector on the display and a mikroBUS socket).
