Picotest PDN Cables, SMA-Mini SMP
Picotest PDN Cables, SMA-Mini SMP
Couldn't load pickup availability

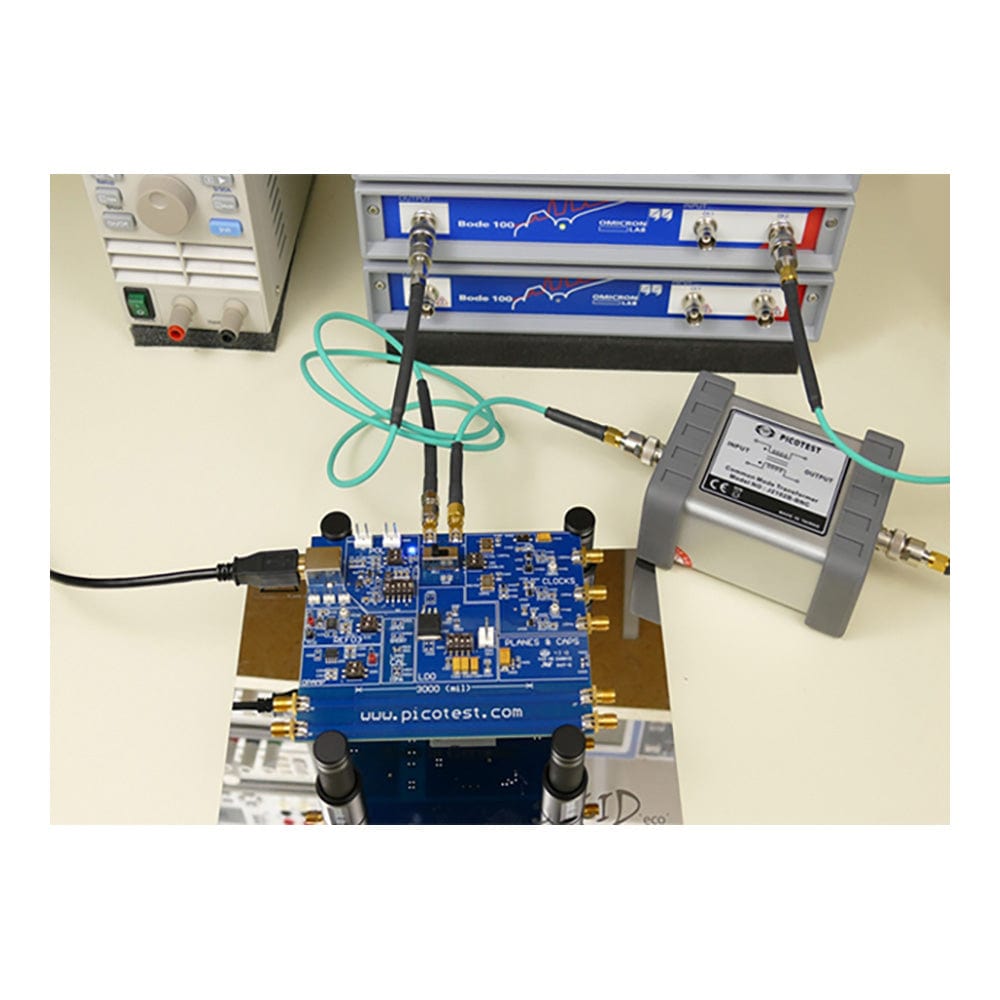

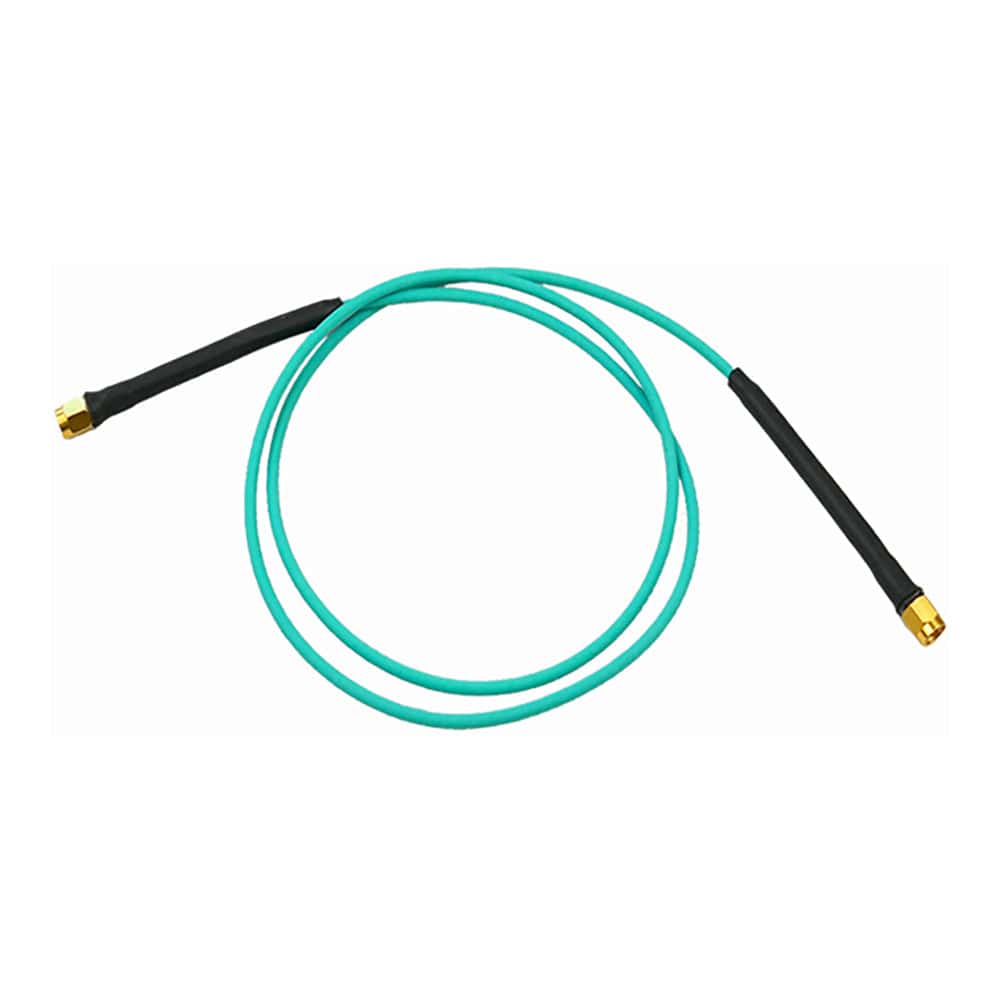

Picotest SMAJ/SMPMK PDN Cables offer an unmatched combination of low loss, flexibility, and low shield resistance. They are ideally suited for ultra-low impedance measurement and maintain flexibility while providing outstanding shielding and 18GHz performance.
The largest source of error in ultra-low impedance measurement is the cable shield resistance, followed by the ground isolator (J2102B). Picotest has optimized both, allowing more accurate measurements well below 100uOhms. The PDN Cable is optimized for PDN measurements but is also highly suited for SI measurements as well.
Key Features
-
Very thin - Ultra-flexible cable optimized for PDN and SI testing
-
Reduced shield resistance for more accurate PDN impedance measurements
-
Brass soldered connectors for reduced shield resistance
-
Santoprene jacket for +125C for temperature chamber measurements
-
Triple shielded for added noise suppression
-
Custom made assemblies are 100% TDR tested for defects
-
Available in bulk form or cable assemblies
