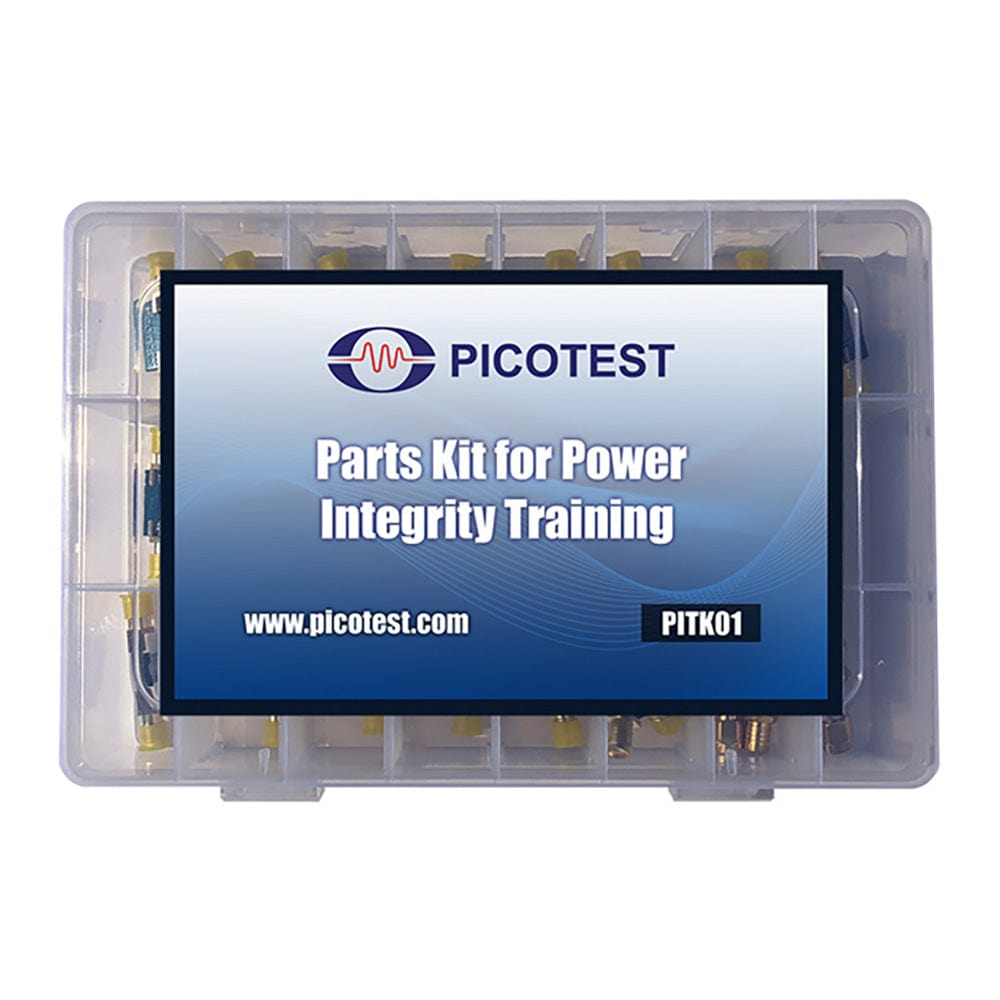

Picotest PITK01 Parts Kit for Power Integrity Training - High-Quality Components for Accurate Measurements

Overview

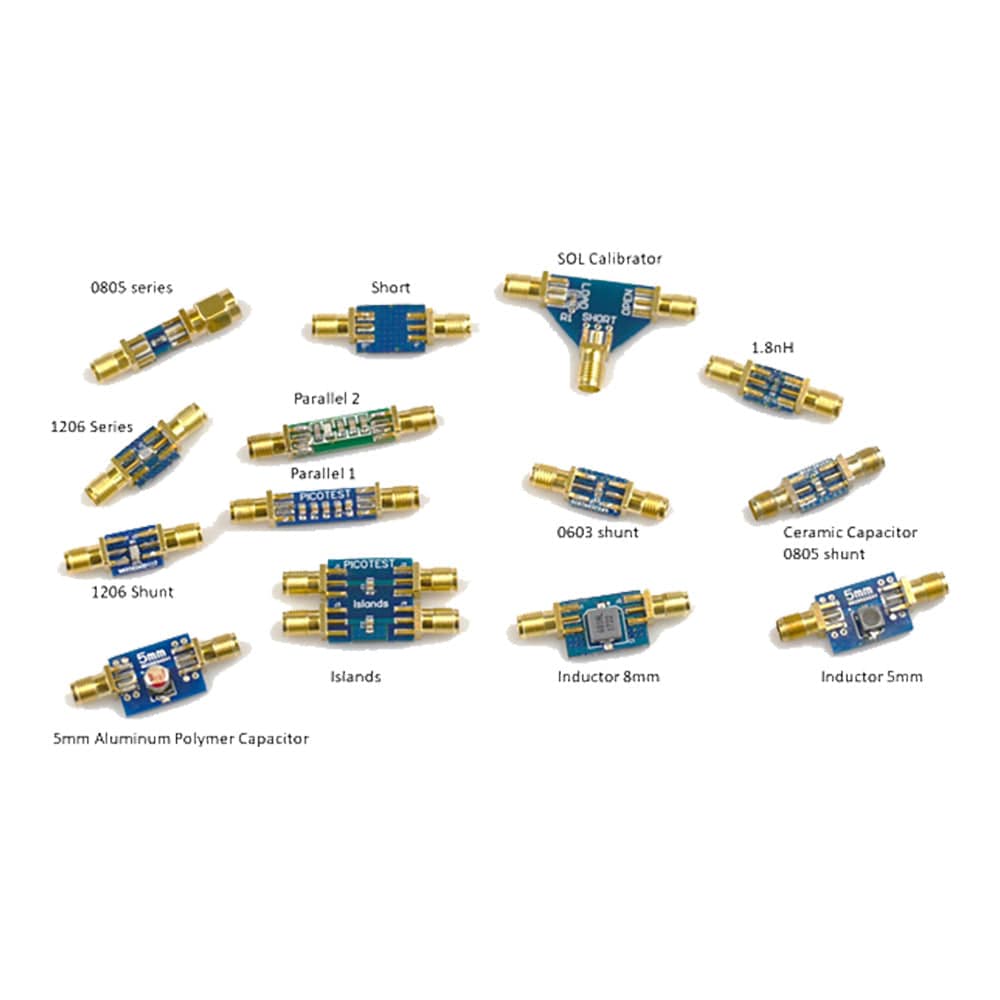

The Picotest PITK01 Parts Kit for Power Integrity Training is an essential tool for professional design engineers seeking to master power supply and power integrity testing. This comprehensive kit includes a wide variety of precision-mounted components specifically selected for power integrity test training exercises. It comes complete with detailed training guides covering numerous measurement types, allowing engineers to easily confirm measurement setups with known component values.

The kit features a high-quality SOL (Short-Open-Load) calibrator with precise parameters: Open (1.466pF, 56ps delay, 3% tolerance), Short (3.422nH, 64ps delay, 3% tolerance), and Load (50 Ohms, 56ps delay, 2% tolerance). These components enable accurate calibration for various power integrity measurements.

Designed to complement Picotest's "Master the Fundamentals of Power Integrity and Power Supply Testing" course, the PITK01 kit supports hands-on learning of critical measurements such as stability, PSRR, impedance, step load, EMI, ripple, and noise. It's an invaluable resource for engineers looking to enhance their skills in designing for flat impedance power distribution networks and troubleshooting common power integrity issues.
