RK-System PenScopeDAQ 20MHz, 100MSa/s USB Oscilloscope
RK-System PenScopeDAQ 20MHz, 100MSa/s USB Oscilloscope
SKU: PENSCOPEDAQ
Regular price
£27.50
exc VAT
£33.00
inc VAT
Regular price
£145.00 GBP
Sale price
Unit price
per
£27.50
exc VAT
£33.00
inc VAT
Shipping calculated at checkout.
Once stock is sold, this product will no longer be available
Payment methods
Couldn't load pickup availability
Overview
The RK-System Digital scope PenScopeDAQ is a single-channel instrument with a maximum frequency of sampling 100MHz and resolution of 8 bits.
Downloads

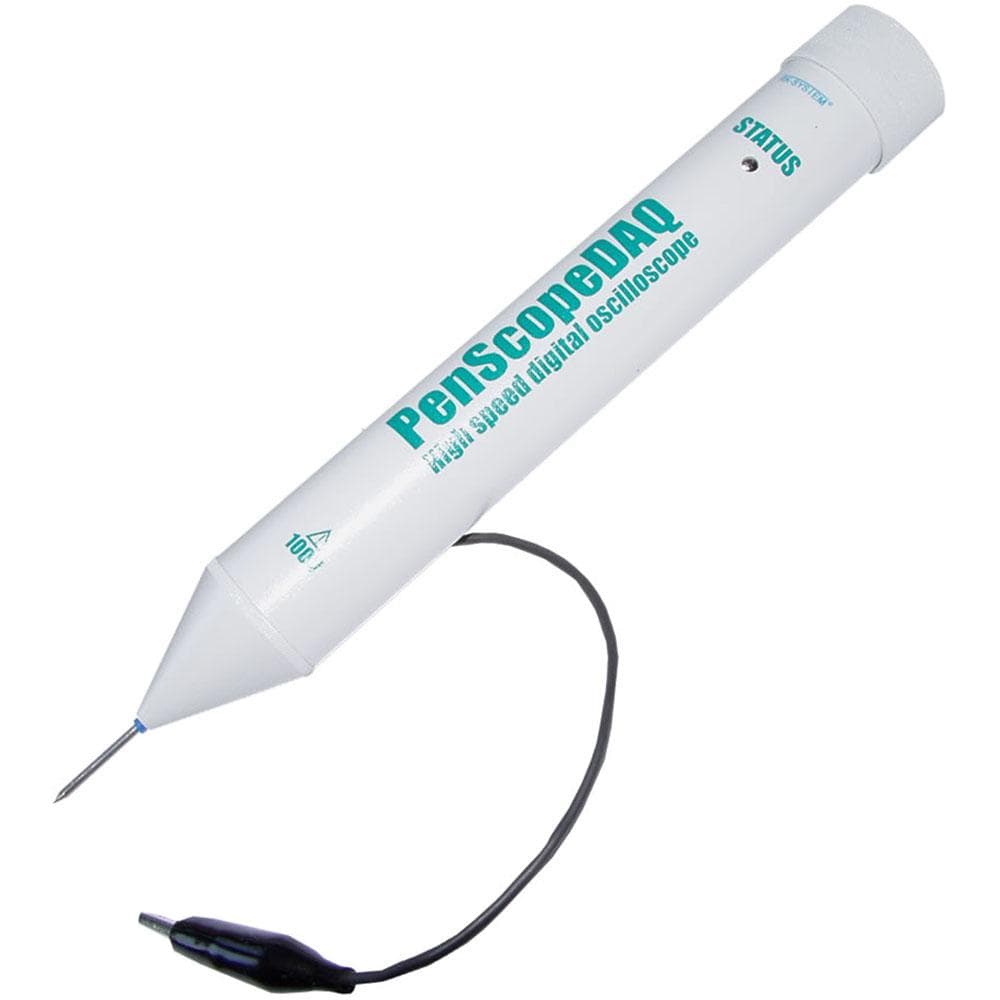

The PenScopeDAQ is housed in pen-type case, making it very convenient to use. Connected to the USB cable PenScopeDAQ doesnt require an external power supply - it enables the user to use this tool in any design, service or automotive measuring task.
| Acquisition | |
|---|---|
| Bandwidth | 20 MHz |
| Analogue channels | 1 |
| Sample rate | 100 MSa/s |
| Memory depth | 131072 pts (max, adjustable from 256) |
| Vertical resolution | 8 bits |
| Inputs | |
| Input impedance | 1 MΩ || 15 pF |
| Interfaces | |
| Interfaces | USB |
| Power source | USB bus-powered |
| Software | |
| Software | Windows application |
| Physical | |
| Dimensions | 28 mm diameter x 200 mm long (pen shape) |
| Ordering information | |
| Part number (SKU) | PENSCOPEDAQ |
| Manufacturer | RK-System |
| EAN | 5055383600724 |
| Warranty | 12 months |
| Shipping weight | 0.5 kg |
-
1 ×
RK-System PenScopeDAQ 20MHz, 100MSa/s USB Oscilloscope
Contact us to confirm the full contents of the box.
