Negal EFSyn EMC Filter Synthesis Application
Negal EFSyn EMC Filter Synthesis Application
Regular price
£653.30
inc VAT
£544.50
exc VAT
Regular price
Sale price
Unit price
per
£653.30
inc VAT
£544.50
exc VAT
Shipping calculated at checkout.
If no stock shown above, check availability
Couldn't load pickup availability
Overview

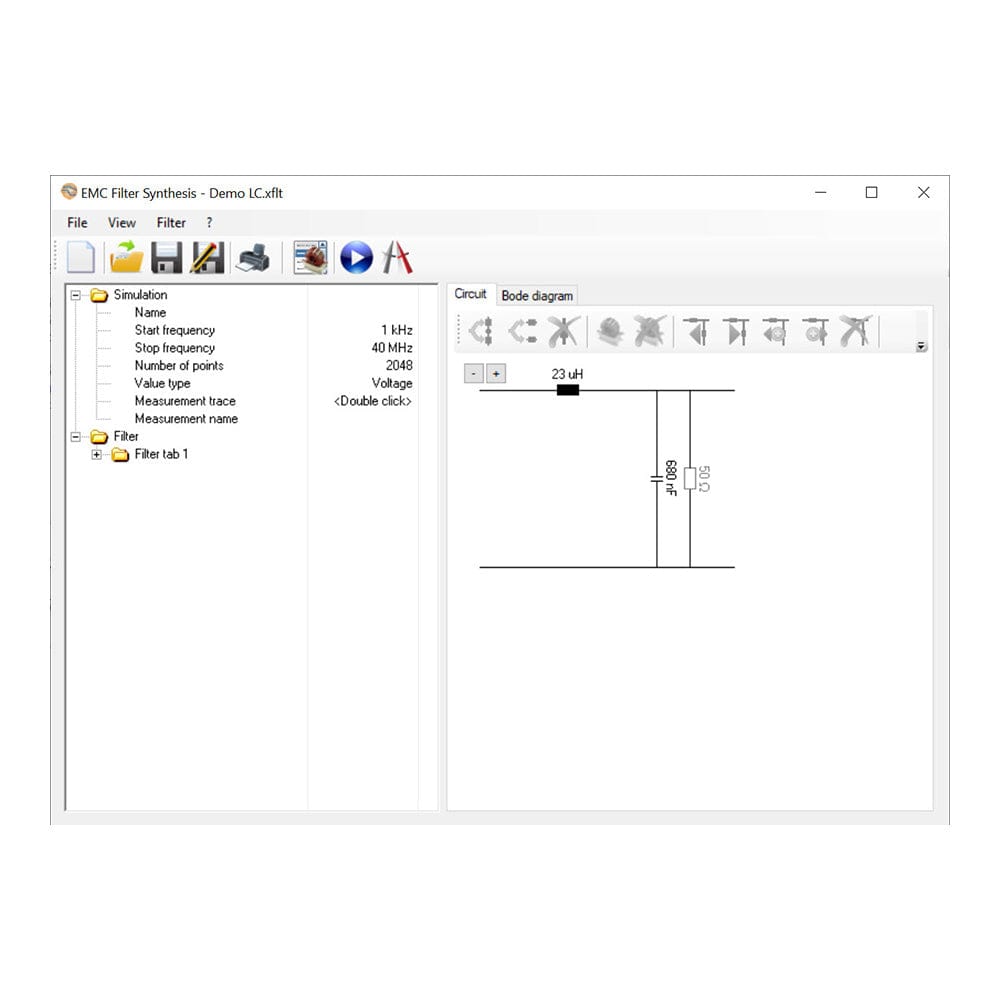

The Negal EFSyn EMC Filter Synthesis is a tool for the simulation and design of passive EMC filters. Synthesis and simulation of the filters are based on the measured values of the individual components. This approach also considers the parasitic effects of the components. This means that equivalent circuit diagrams of the circuit components used need not be available.
EFSyn Benefits
- Real-live EMC and filter calculation
- Optimization of EMC filters

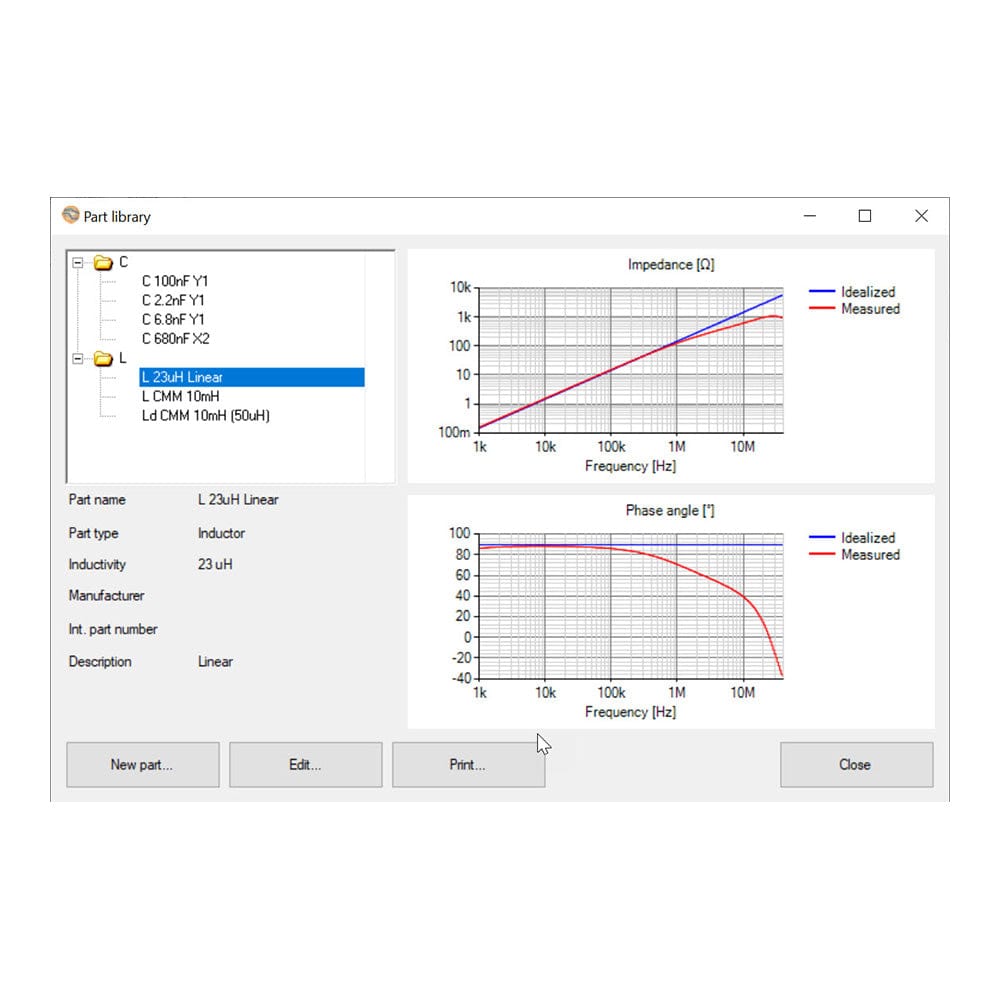

- Part library based on your filter components
- Automatic measurements using the Bode 100
- Includes circuit diagram modeler for arbitrary filter structures

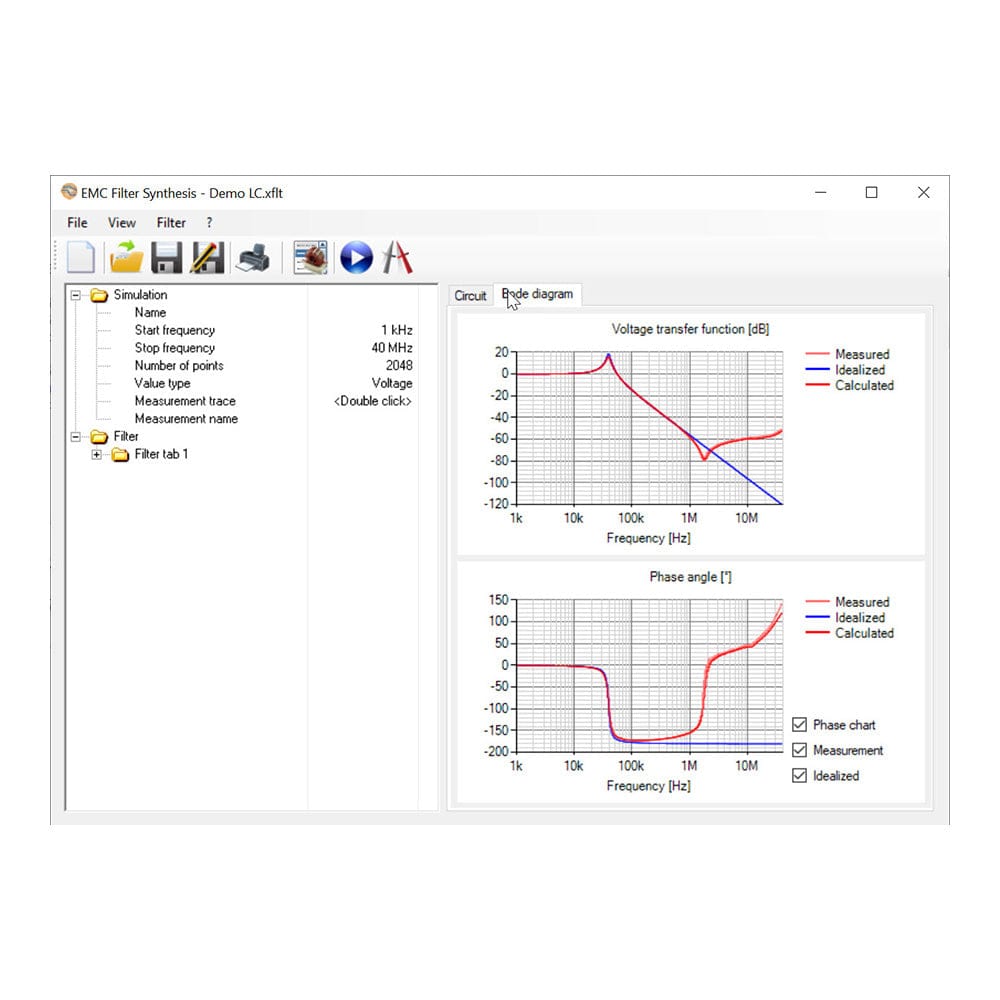

- Calculates the filter gain / transfer function based on theoretical and real components
