Mikroelektronika d.o.o.
mikroMedia WorkStation v7
mikroMedia WorkStation v7
SKU: MIKROE-1189
Couldn't load pickup availability
Overview

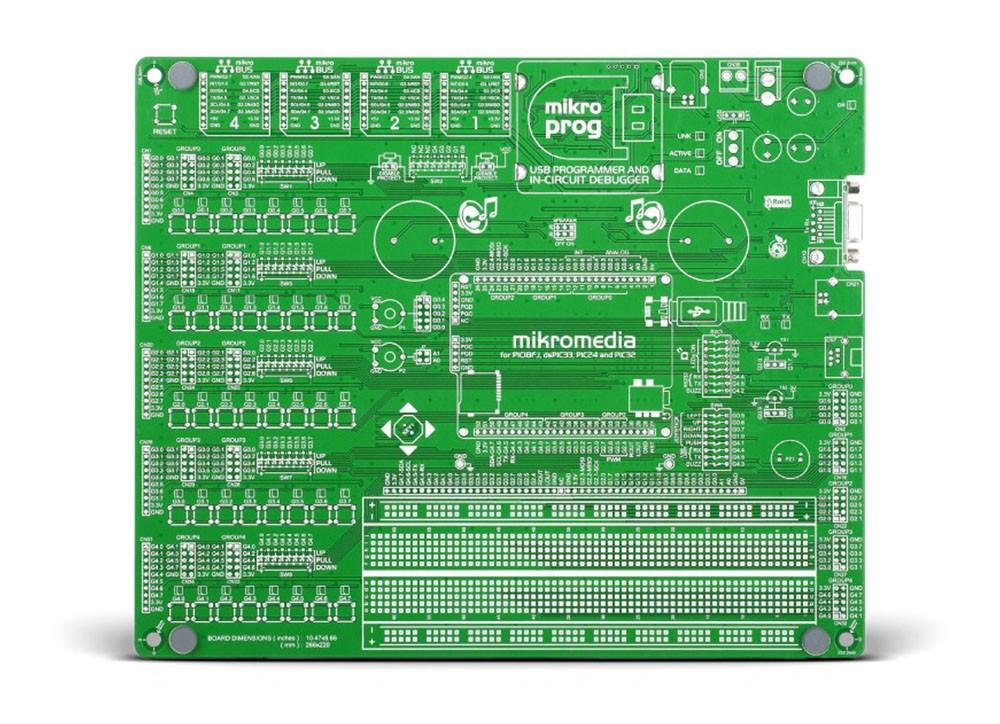

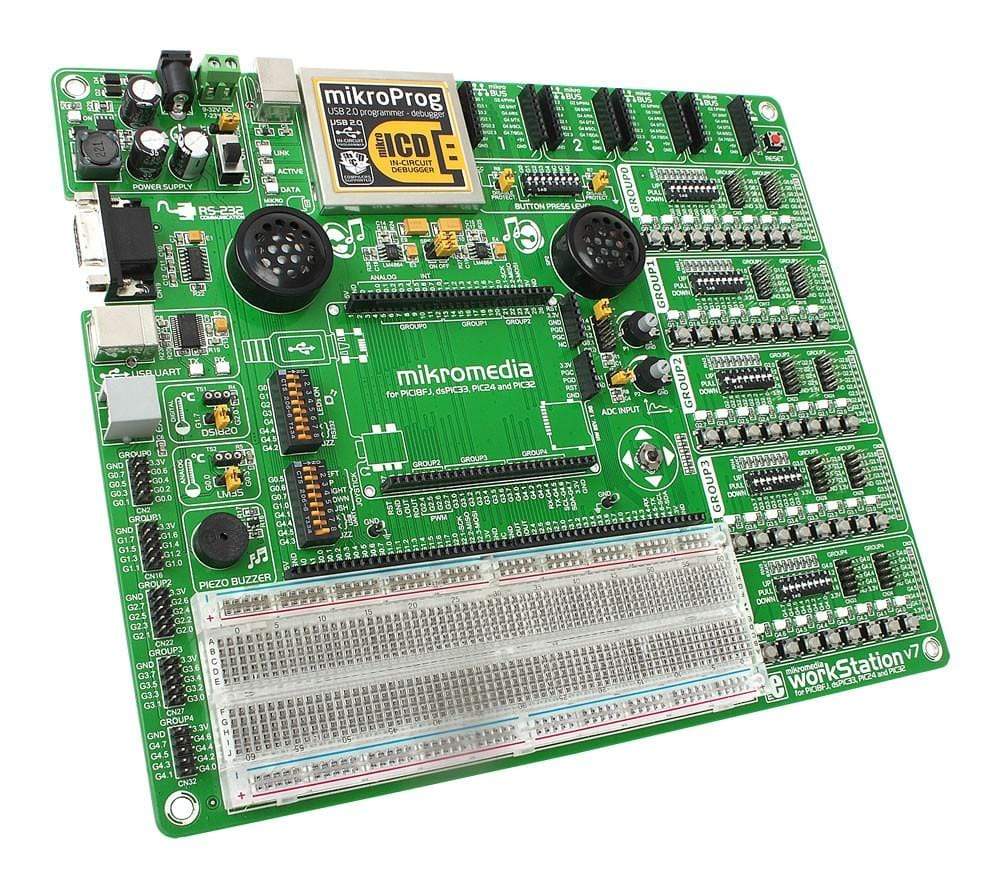

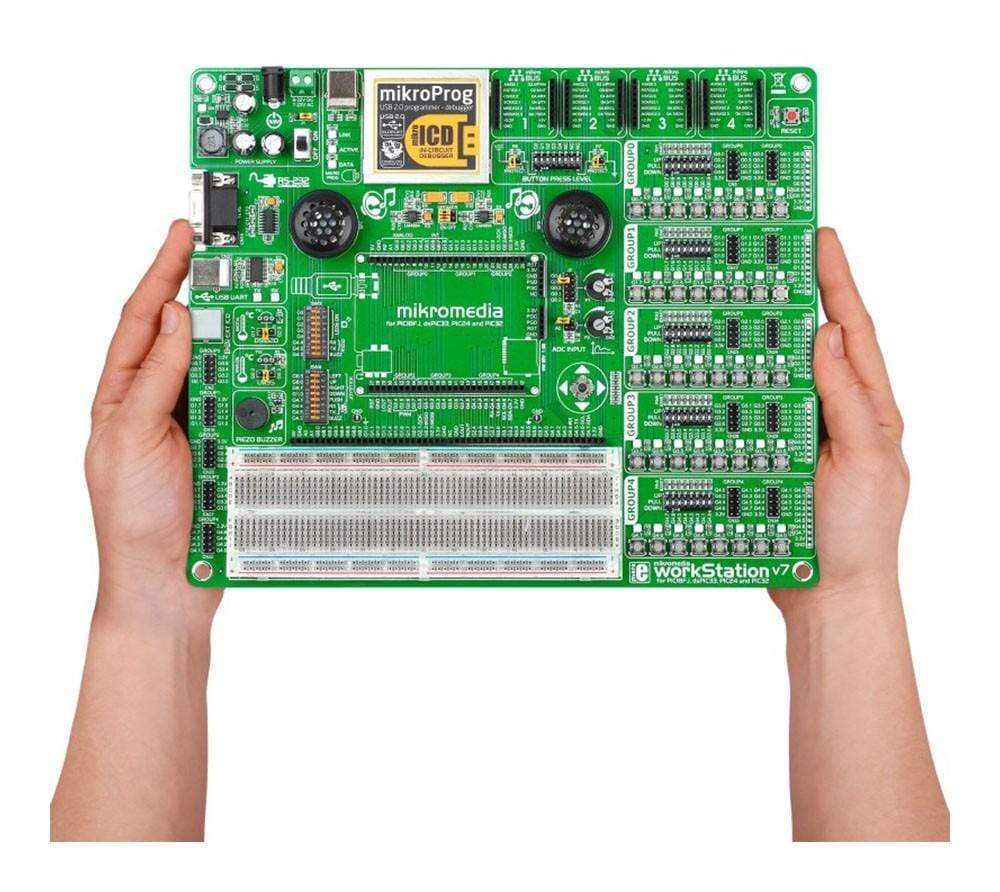

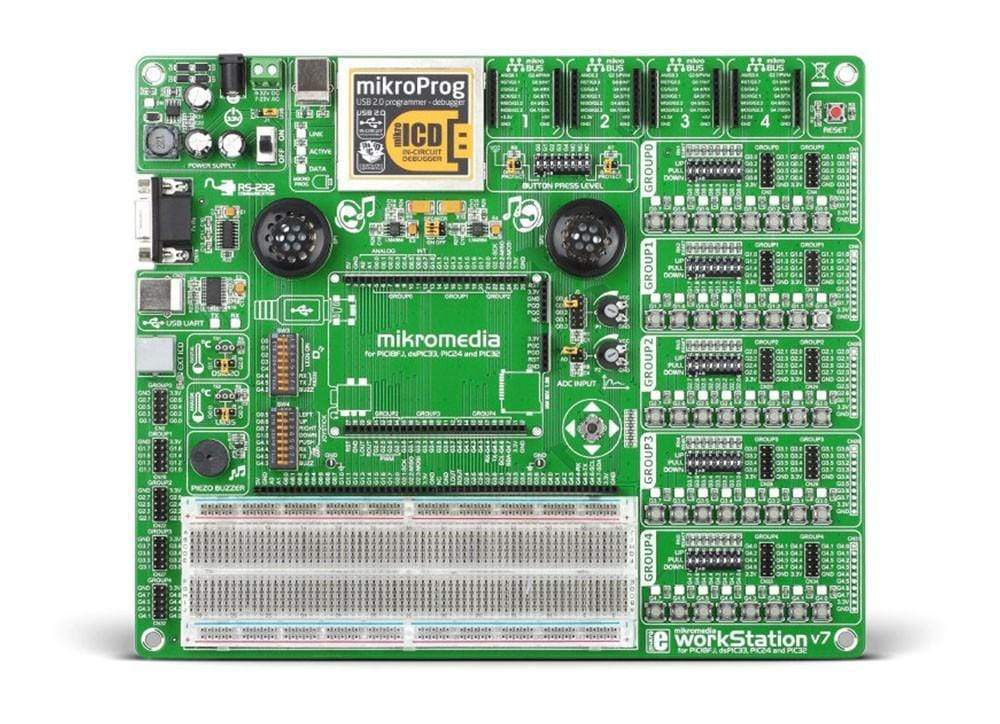

mikroMedia™ workStation v7 provides full development environment for mikroMedia™ boards. It features on-board debugger, multimedia modules, four mikroBUS host sockets and a large breadboard area.
mikroMedia™ workStation v7
mikroMedia™ workStation v7 provides full development environment for mikroMedia™ boards ver. 1.05 and above. It features on-board debugger, multimedia modules, four mikroBUS host sockets and a large breadboard area. Abstract pin names irrelevant of target mikroMedia™ will bring you enormous flexibility and portability of your code for to supported architecture.
PICFlash with mikroICD
mikroProg is a fast USB 2.0 programmer with mikroICD hardware In-Circuit Debugger. Smart engineering allows mikroProg to support all mikroMedia™ boards with Microchip microcontrollers. Outstanding performance and easy operation are among its top features.
The mikroICD debugger enables you to execute your program on the host microcontroller and view variable values, Special Function Registers (SFR), RAM, CODE and EEPROM memory along with the code execution on hardware. Whether you are a beginner, or a professional, this powerful tool with convenient set of commands will enable you to track down bugs quickly. mikroICD is one of the fastest, and most reliable debugging tools on the market.
| Overview | |
|---|---|
| Applications | Developing and testing firmware, creating prototypes, learning embedded programming |
| Architecture | Multiple |
| Key components | |
| On-board modules | Sockets for LM35 and DS1820 temperature sensors, ADC inputs, joystick, large breadboard |
| Features | |
| Integration | Mounting holes |
| Expandability | 4 x mikroBUS™ sockets, 3 x IDC10 headers for each PORT |
| Sound and audio | Audio amplifier with two speakers, Piezo buzzer |
| Interfaces | |
| Interface | USB-UART, RS-232 |
| Programming | On-board mikroProg for PIC, dsPIC and PIC32. ICD2/ICD3 connector available for connecting external programmer |
| Electrical | |
| Power supply | 5V (via USB) or 9-32V AC, 7-23V DC (via adapter) |
| Display | |
| Display size | 2.8" |
| Resolution | 320x240px |
| Touch screen | Resistive |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1189 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015073880 |
| Warranty | 12 months |
| Shipping weight | 1.27 kg |
-
1 ×
mikroMedia WorkStation v7
Contact us to confirm the full contents of the box.
