DIGI IN 2 Click Board

Eight, 8V-24V Sink/Source Inputs for Industrial Control

Product variants

£32.40 inc VAT

£27.00 exc VAT

£32.40 inc VAT

£27.00 exc VAT

Sale Sold out

Shipping calculated at checkout.

Order NOW to ship within 10 working days

Quantity

Key Features

Eight inputs individually configurable as sink or source, SPI serial interface, compliance with the IEC 61131-2 standard, programmable glitch/debounce filter, optional 16-bit down-counter on every channel, extensive diagnosis, addressable or daisy-chain SPI, low power dissipation, LED matrix indication, CRC error detection, on-chip regulator output, and more
Based on the MAX22196 - octal industrial sink/source digital input from Analog Devices
Ideal for Programmable Logic Controllers (PLC), factory automation, and process control systems

The Digi IN 2 Click Board is a game-changer when it comes to converting high-voltage industrial signals into logic-level outputs. This compact add-on board is designed to enhance industrial control systems, making it a must-have for anyone in the field.

Equipped with the powerful MAX22196, a high-performance octal industrial sink/source digital input IC from Analog Devices, this Click board™ stands out from the crowd. It allows you to interface eight industrial inputs ranging from 8V to 24V via SPI, with the flexibility of configuring either sinking or sourcing options. Plus, it comes with built-in current limiters, ensuring compliance with IEC 61131-2 standards.

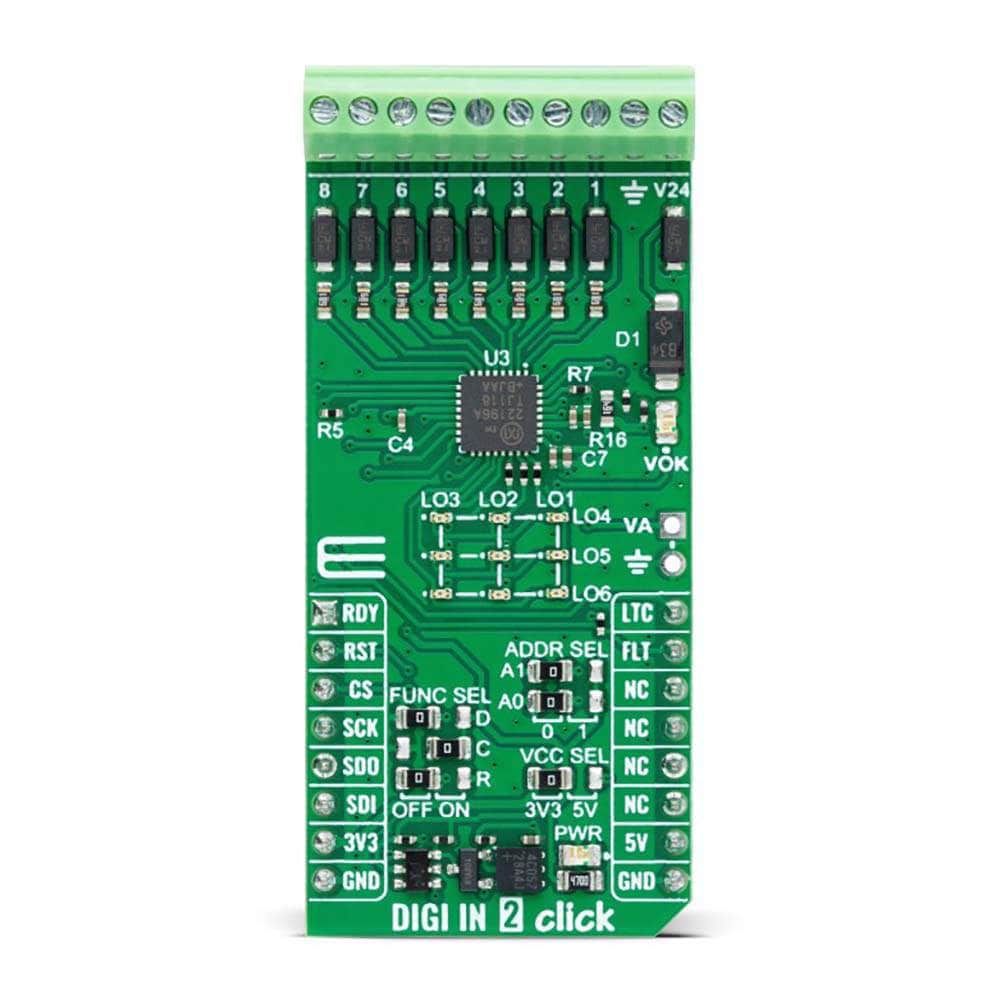

One of the notable features of the Digi IN 2 Click Board is its on-chip 5V linear regulator, capable of providing up to 20mA of load current. This means you can power it using a field supply ranging from 8V to 24V without any hassle. Additionally, the board supports serial communication up to 12MHz and features a 3x3 yellow LED matrix, giving you real-time status updates of digital inputs.

Improved Control: With the Digi IN 2 Click Board, you gain full control over your industrial systems, ensuring seamless operation and enhanced efficiency.
Easy Compatibility: This Click board™ is fully compatible with the mikroBUS™ socket, making it effortless to integrate into any host system that supports the mikroBUS™ standard.

Perfect for applications such as Programmable Logic Controllers (PLC), factory automation, and process control systems, the Digi IN 2 Click Board proves to be an ideal choice for industrial environments. It provides unparalleled flexibility for evaluation and customization with the mikroSDK open-source libraries, allowing you to tailor it to your specific needs.

What sets this Click board™ apart is the groundbreaking ClickID feature. Your host system can automatically detect and identify this add-on board, providing a seamless experience without any manual configuration required.

Upgrade your industrial control systems and elevate your efficiency with the Digi IN 2 Click Board. Order yours today and experience the difference it brings to your operations.
