Circular NFC R35 Antenna
Circular NFC R35 Antenna
Key Features
- Operating Frequency: 13.56 MHz
- Coil Diameter: 35mm
- Antenna Size: 36mm x 42mm
- Coil Turns: 7

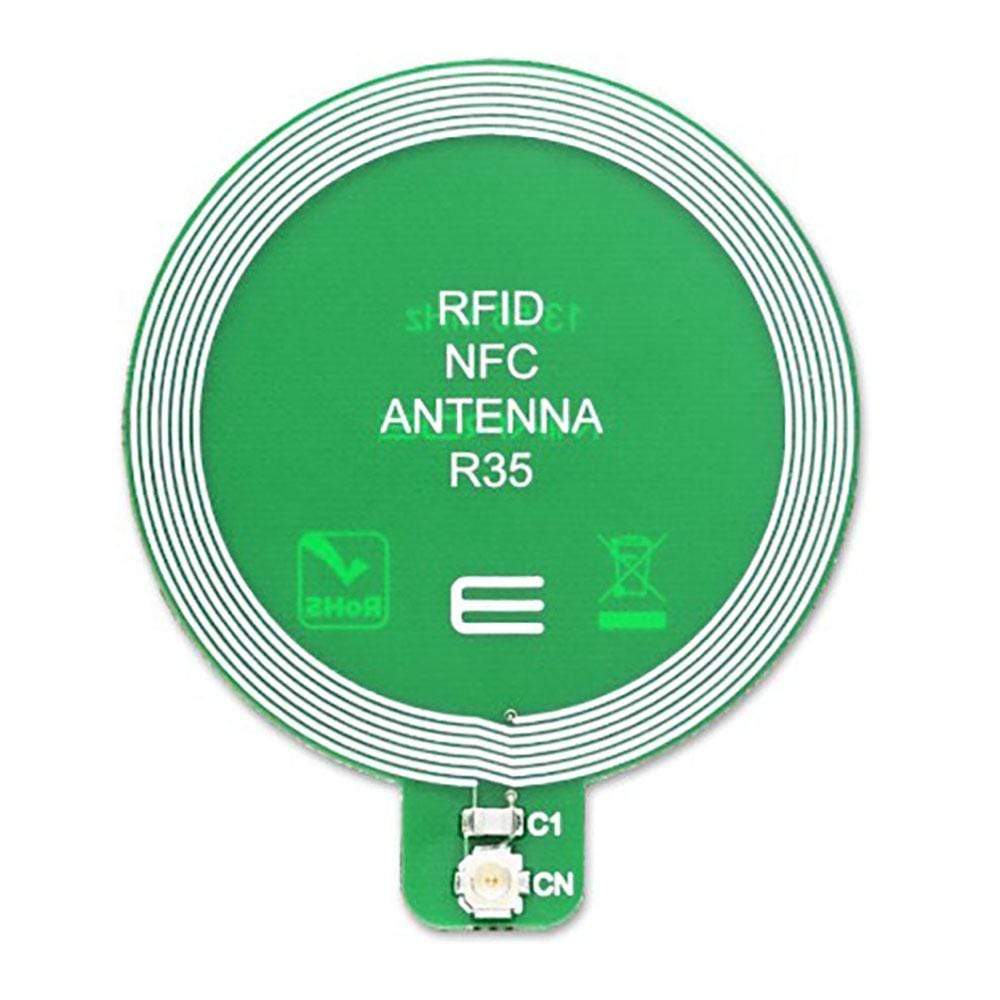

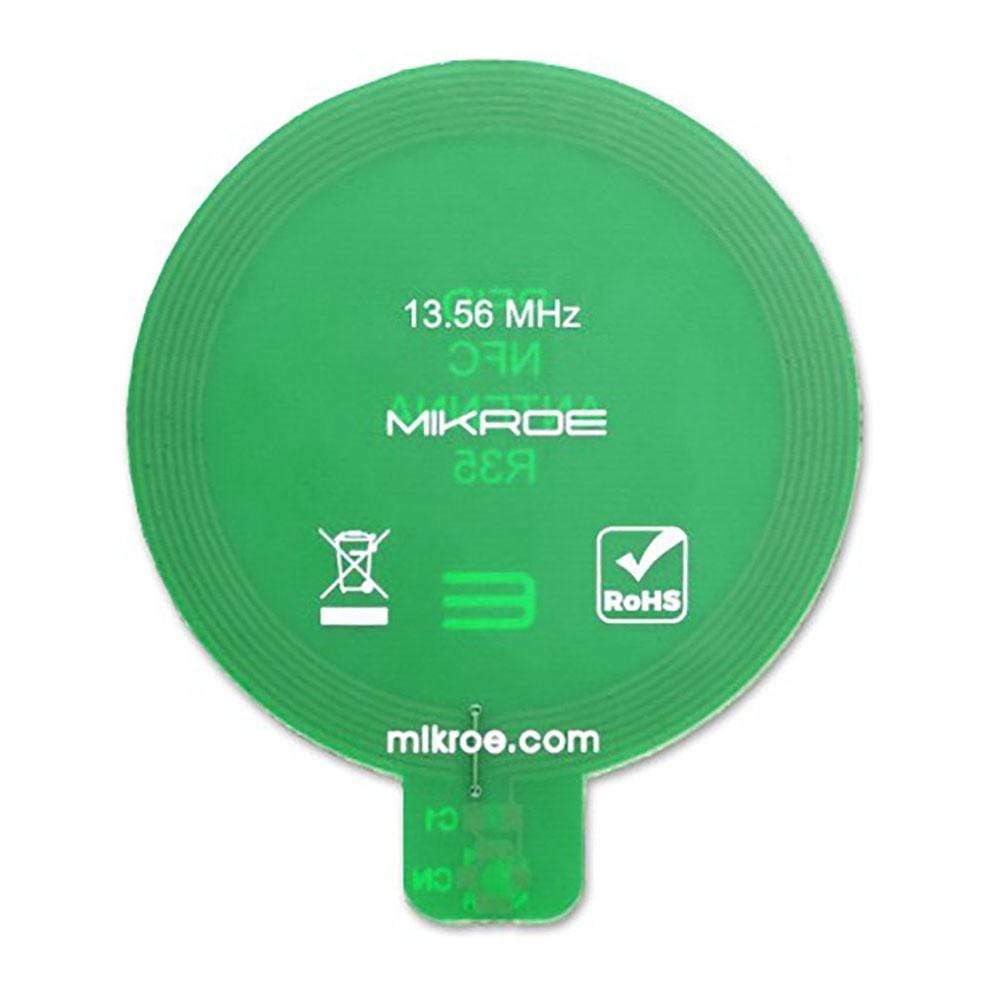

The Circular NFC R35 Antenna is a PCB antenna designed with the intention to be used as an extension of development boards and placed remotely on the desired place such as plastic casing, existing products, or even under displays. The antenna is designed in a circular shape with a diameter of 35mm. It's important to mention that this antenna can be used for NFC and RFID applications that works on 13.56 MHz frequency.
The Circular NFC R35 Antenna design is an essential part of NFC / RFID readers implementation. Having the right antenna for your application is crucial to get optimum read range and reliability with NFC / RFID in your products. A good antenna design from the start also helps you to reduce time-to-market. Therefore, we are offering different shape and size antennas that can be selected for your specific use case.

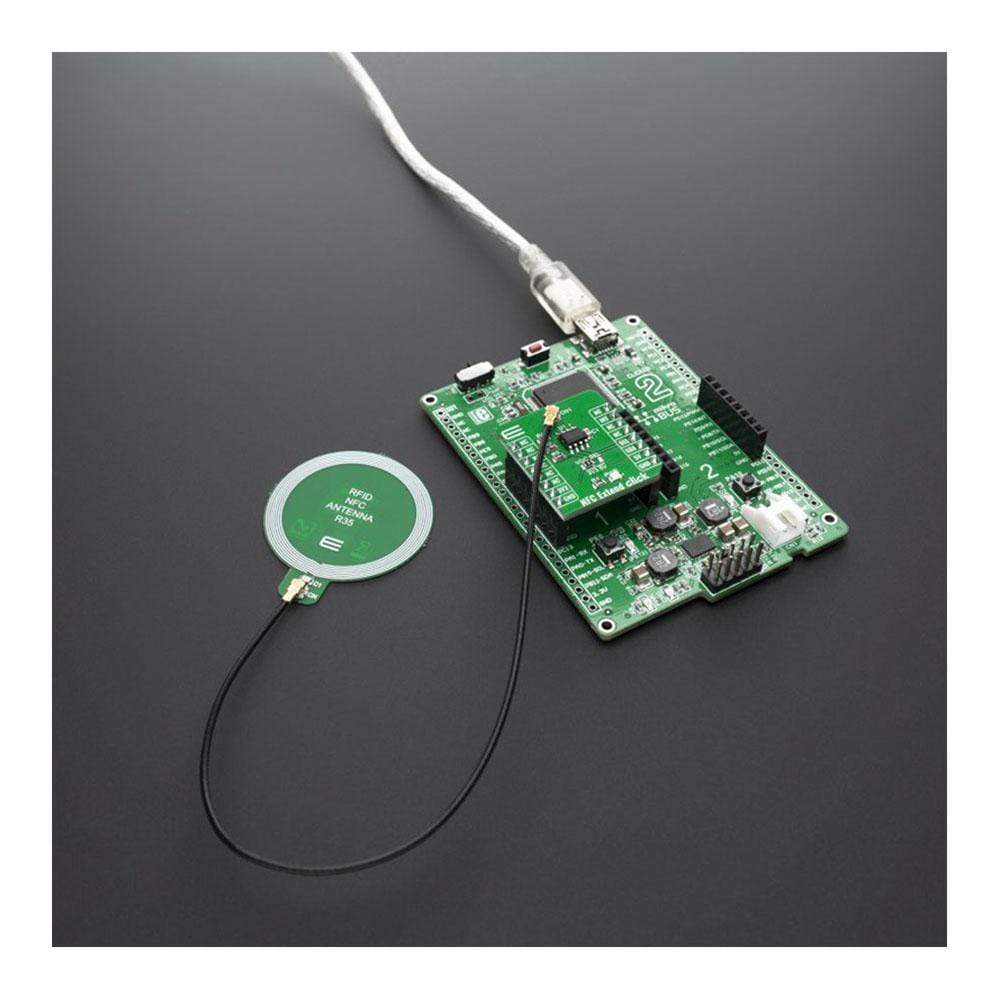

This antenna can be connected to existing NFC Extend Click board or any device with the male U.FL connector. Mikroe offers antenna without extension cable therefore you may order one UMCC female-to-female cable adapter.
- Frequency range: 13.56 MHz
- Shape: Circular
- Coil diameter: 35mm
- Antenna width: 36mm
- Antenna length: 42mm
- Coil turns: 7
Circular NFC R35 Antenna
