Mikroelektronika d.o.o.

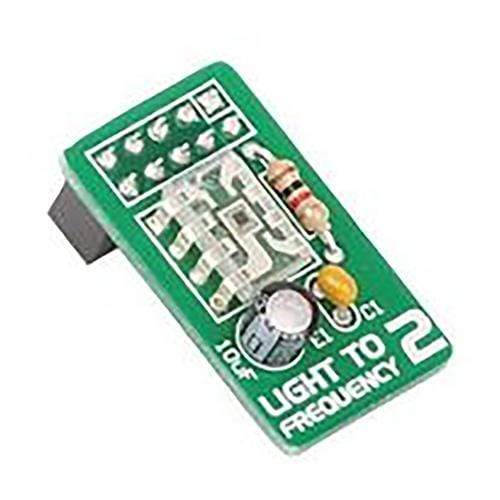

Light To Frequency 2 Board
Light To Frequency 2 Board
SKU: MIKROE-390
Regular price
£152.15
inc VAT
£126.95
exc VAT
Regular price
£164.35 GBP
Sale price
Unit price
per
£152.15
inc VAT
£126.95
exc VAT
Shipping calculated at checkout.
If no stock shown above, check availability
Couldn't load pickup availability
Overview
The Light To Frequency 2 Board is based on the TSL230BR programmable light-to-frequency converter combines a configurable silicon photodiode and a current-to-frequency converter on single monolithic CMOS integrated circuits. The output can be either a pulse train or a square wave (50% duty cycle) with frequency directly proportional to light intensity. Device sensitivity is selectable in three ranges, providing two decades of adjustment. The full-scale output frequency can be scaled by one of four preset values.All inputs and the output are TTL compatible, allowing direct two-way communication with a microcontroller for programming and output interface. An output enable (OE) is provided that places the output in the high-impedance state for multiple-unit sharing of a microcontroller input line.
| Ordering information | |
|---|---|
| Part number (SKU) | MIKROE-390 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 5055383600212 |
| Warranty | 12 months |
| Shipping weight | 0.02 kg |
-
1 ×
Light To Frequency 2 Board
Contact us to confirm the full contents of the box.
