Mikroelektronika d.o.o.

SKU: MIKROE-3764

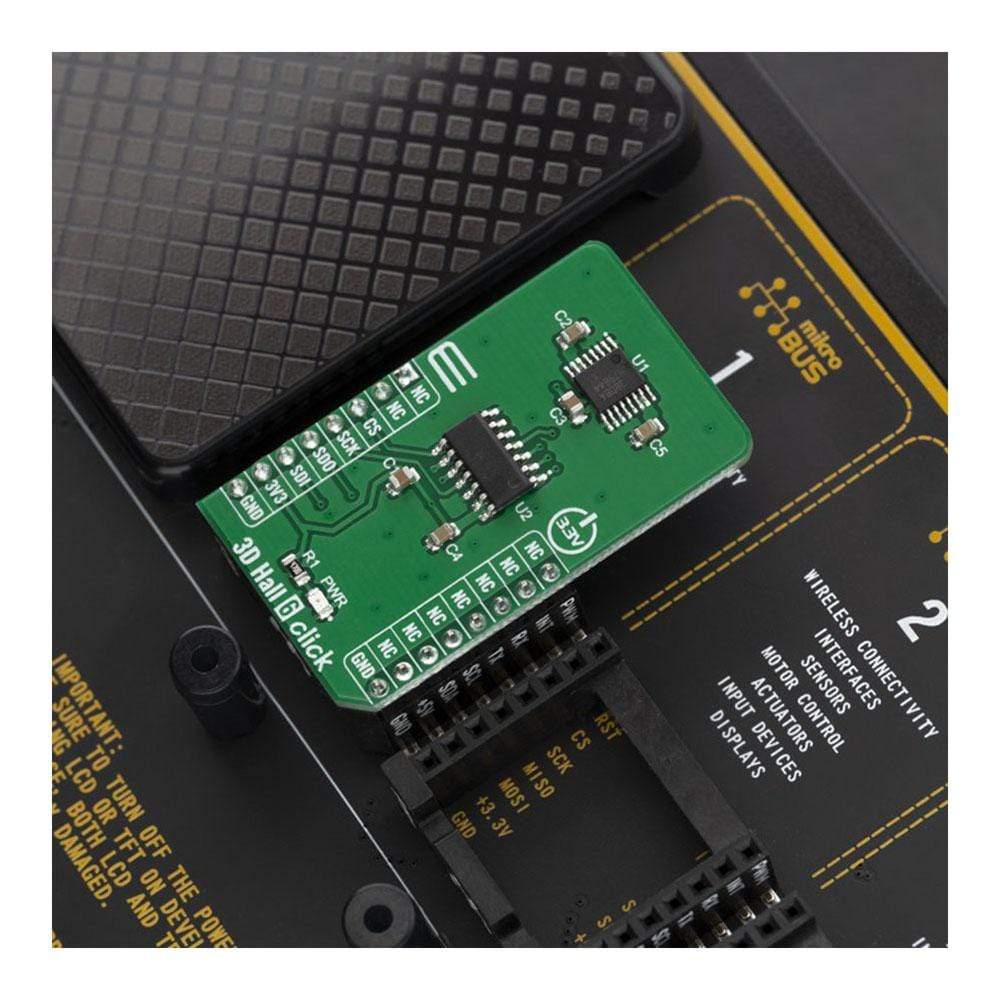

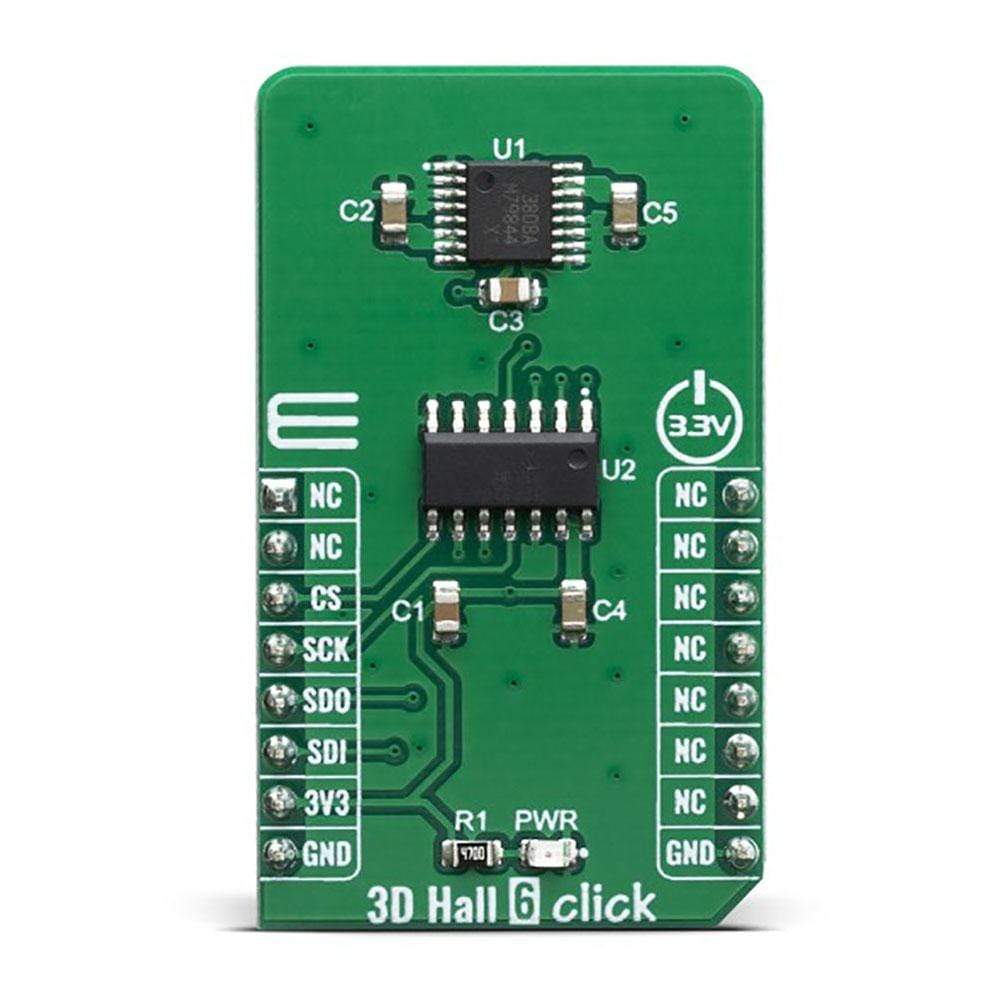

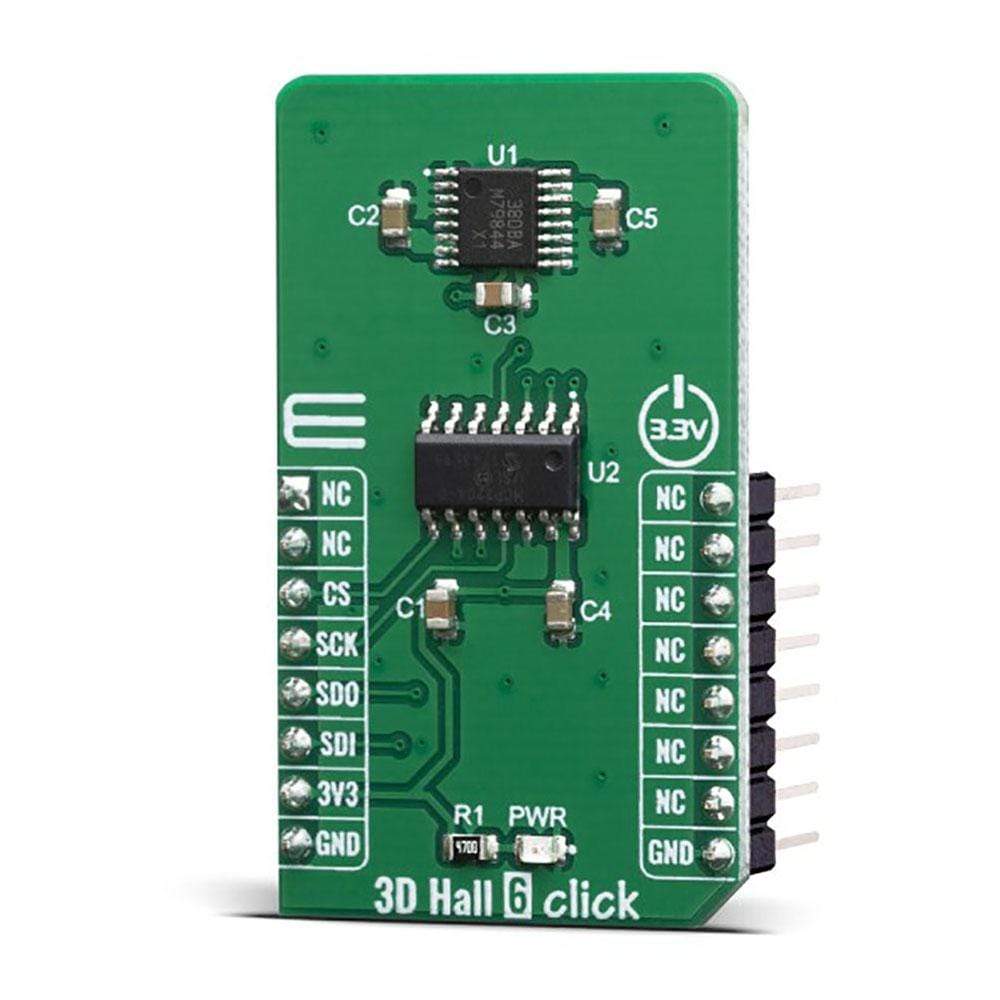

3D Hall 6 Click Board

3D Hall 6 Click Board

For Very Accurate Magnetic Field Sensing
Regular price
£40.80 inc VAT
£34.00 exc VAT
Regular price Sale price
£40.80 inc VAT
£34.00 exc VAT
Sale Sold out
Shipping calculated at checkout.
When pre-ordered, this item normally ships within 10 working days

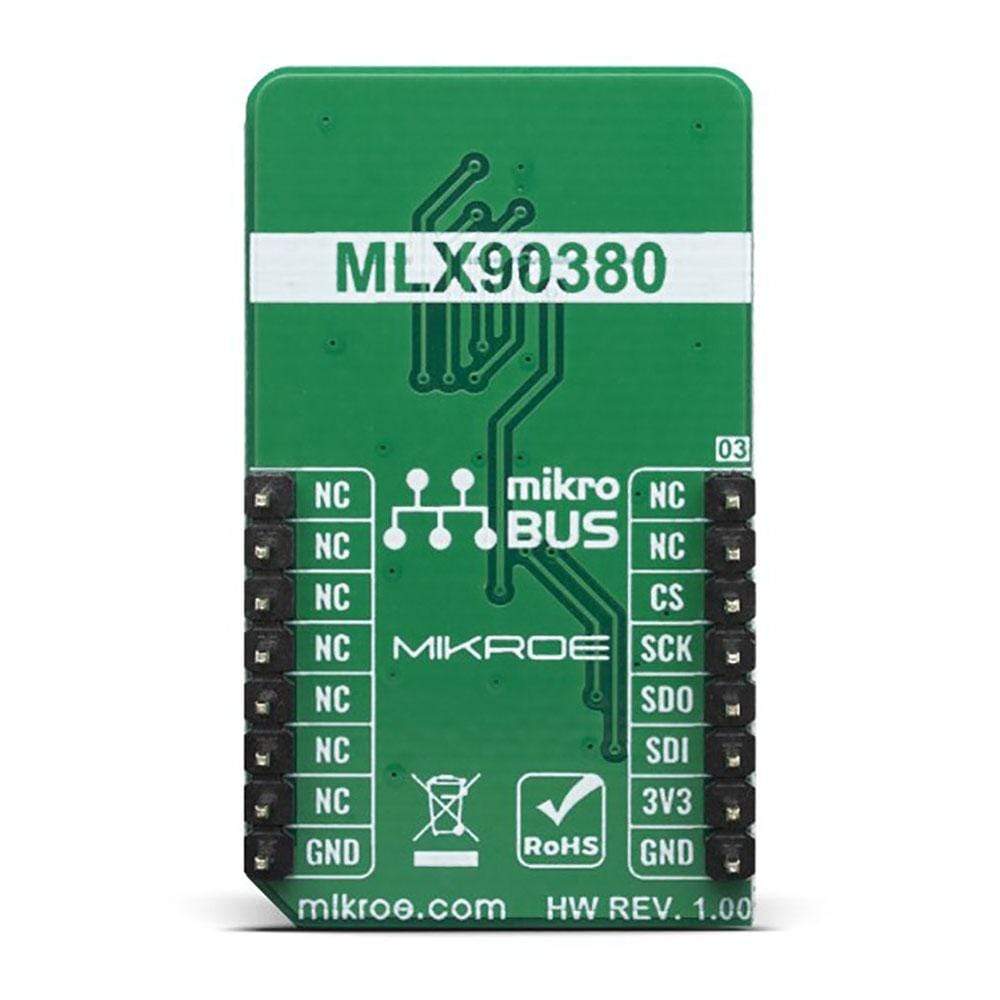

The 3D Hall 6 Click Board™ is a very accurate, magnetic field sensing Click Board™, used to measure the intensity of the magnetic field across three perpendicular axes. It is equipped with the MLX90380, a monolithic contactless sensor IC sensitive to the flux density applied orthogonally and parallel to the IC surface, from Melexis. This IC has a separate Hall sensing element on each axis, which allows a very accurate and reliable measurement of the magnetic field intensity in a 3D space, offering a basis for accurate positional calculations. The 3D Hall 6 click supports the industry-standard SPI communication protocol for communicating with the main MCU.

The 3D Hall 6 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click Board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
