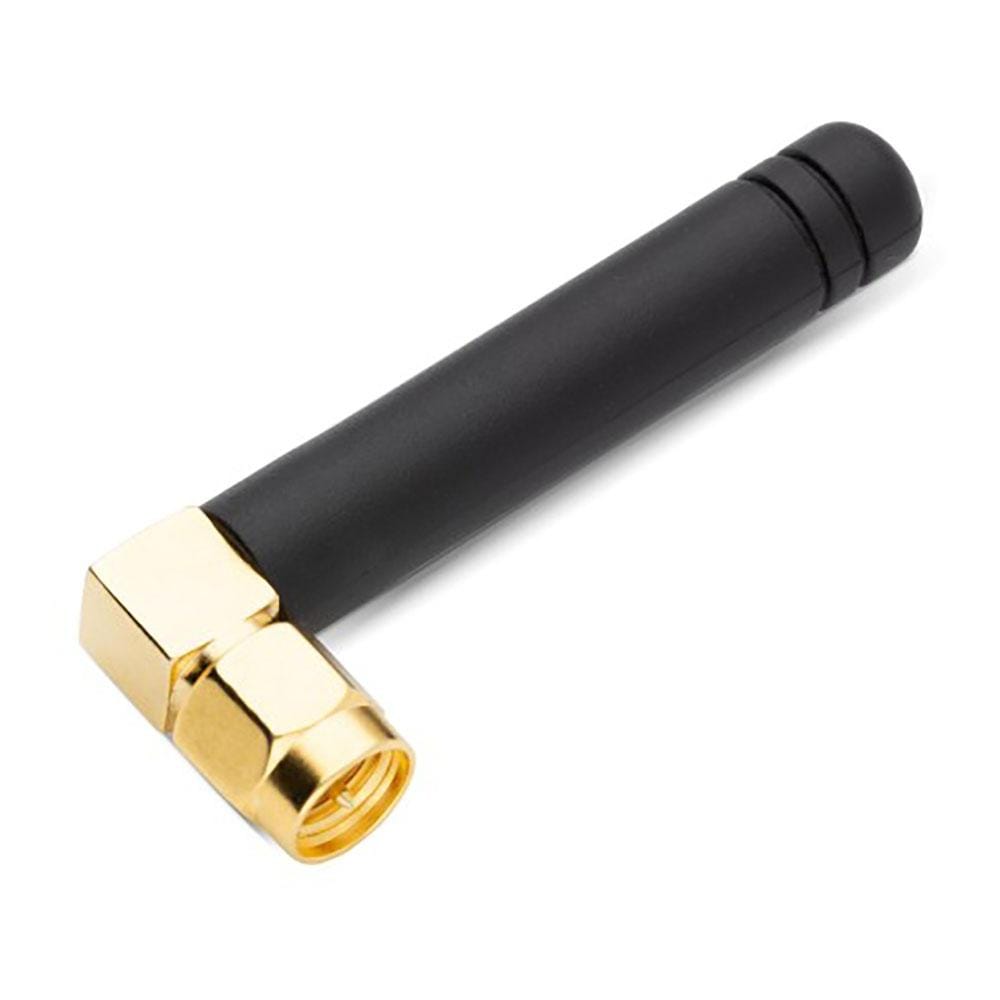

WIFI Rubber Antenna 2.4GHz right angle SMA
WIFI Rubber Antenna 2.4GHz right angle SMA
Regular price
£6.80
inc VAT
£5.80
exc VAT
Regular price
£8.28 GBP
Sale price
Unit price
per
£6.80
inc VAT
£5.80
exc VAT
Shipping calculated at checkout.
If no stock shown above, check availability
Couldn't load pickup availability
Overview
This WiFi Rubber Antenna is an excellent choice for any Click Board™ that features a WiFi module. The antenna has an right angle SMA male connector on its end, which allows it to be mounted directly on the Click Board™ or the female SMA module connector.
| General Information | |
|---|---|
Part Number (SKU) |
MIKROE-3610
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.006 kg
|
| Other | |
EAN |
3500000226228
|
This WiFi Rubber Antenna is an excellent choice for any Click Board™ that features a WiFi module. The antenna has an right angle SMA male connector on its end, which allows it to be mounted directly on the Click Board™ or the female SMA module connector.
Specifications
- Frequency range: 2400-2500MHz
- Impedance: 50ohm
- Gain: 2DB
- Bandwith: 100Mhz
- Polarization: Vertical
- Max Input Power: 50W
- Antena Length: 50mm
- Connector Type: SMA male
- Storage Temperature: -30⁰C to +75⁰C
