USB UART 2 Click Board
- Mikroelektronika d.o.o.
- Regular price
£49.14 inc. VAT£40.95 exc. VAT
- Sale price
- Regular price
- Unit price
Adding product to your cart

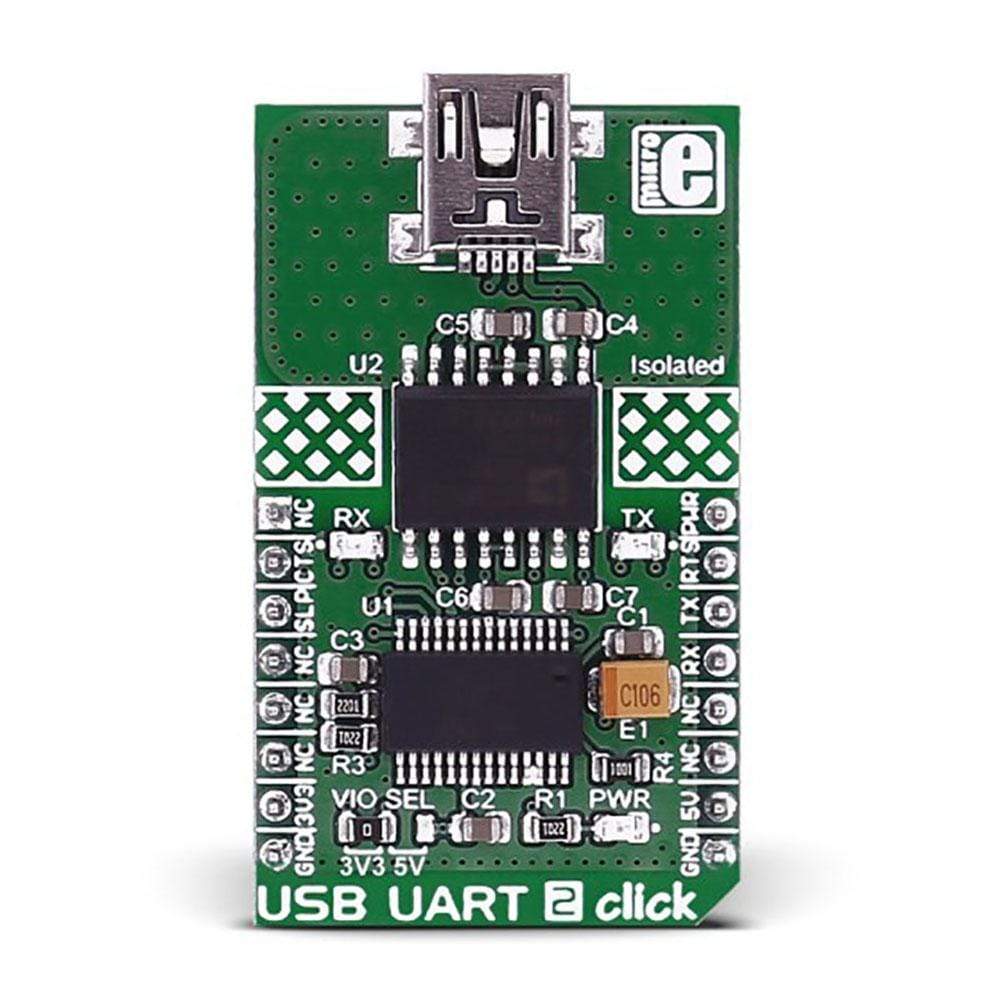

The USB UART 2 Click Board™ provides USB isolation and carries the ADUM4160BRWZ USB port isolator. It used the FT232RL USB to UART Interface from FDTI.
The USB UART 2 Click Board™ is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over the UART interface, with additional functionality provided the following pins on the MikroBUS line: RST, CS, PWM, INT.
The USB UART 2 Click Board™ provides USB isolation and carries the ADUM4160 USB port isolator, from Analog Devices. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target microcontroller over UART interface, with additional functionality provided the following pins on the mikroBUS™ line: RST, CS, PWM, INT.
Use the USB UART 2 Click Board™ for isolating USB communication, and preventing voltage spikes from destroying sensitive equipment.
ADUM4160BRWZ is a USB port isolator, based on Analog Devices, Inc., iCoupler® technology. Combining high-speed CMOS and monolithic air core transformer technology, these isolation components provide outstanding performance characteristics and are easily integrated with low and full speed USB-compatible peripheral devices.
The ADUM4160BRWZ uses the edge detection based iCoupler technology in conjunction with internal logic to implement a transparent, easily configured, upstream facing port isolator. Isolating an upstream facing port provides several advantages in simplicity, power management, and robust operation.

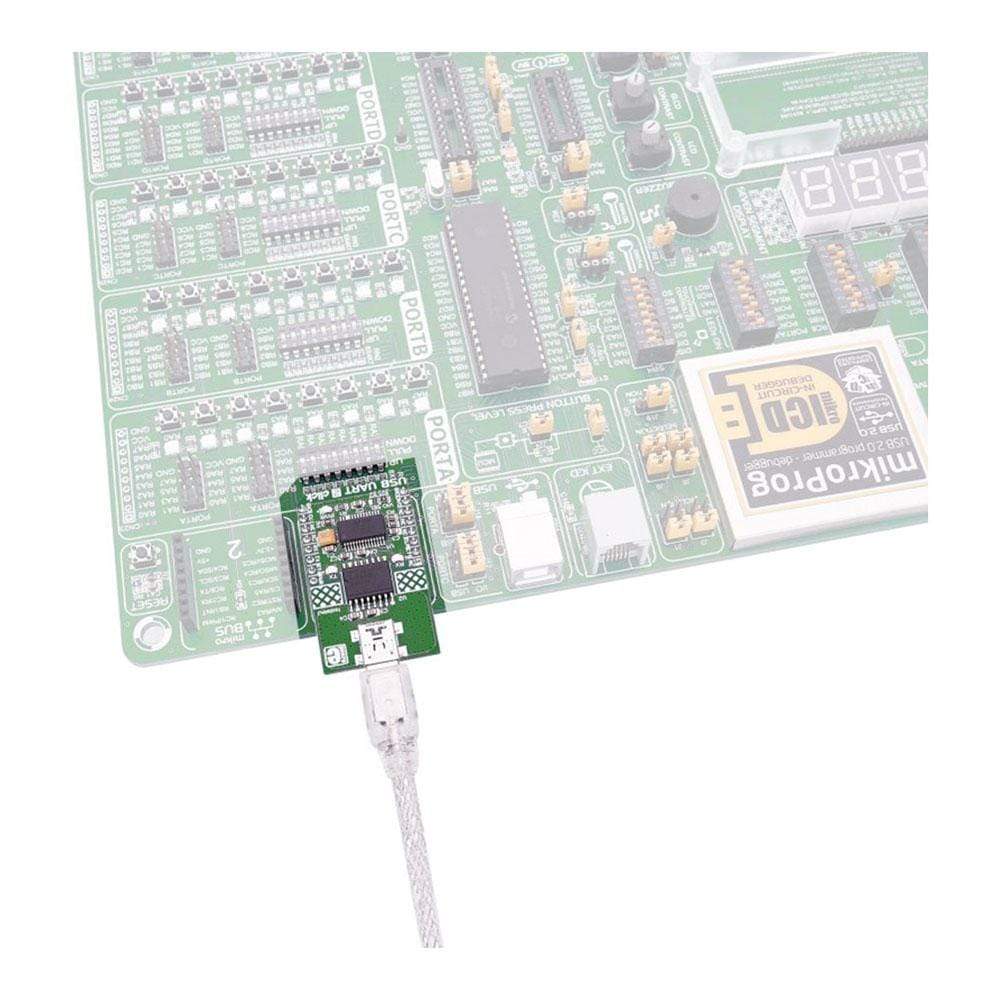

How Does The USB UART 2 Click Board™ Work?
The USB UART 2 Click Board™ takes power both from the development system and from the USB, so both sides of the isolator can function.
The FT232RL chip on board to act as a USB-UART converter.
|Applications||USB peripheral isolation, isolated USB hub, etc.|
|On-board modules||ADUM4160BRWZ USB port isolator, FT232 IC|
|Key Features||iCoupler technology in conjunction with internal logic to implement a transparent, easily configured, upstream facing port isolator|
|Click board size||M (42.9 x 25.4 mm)|
|Input Voltage||3.3V or 5V|

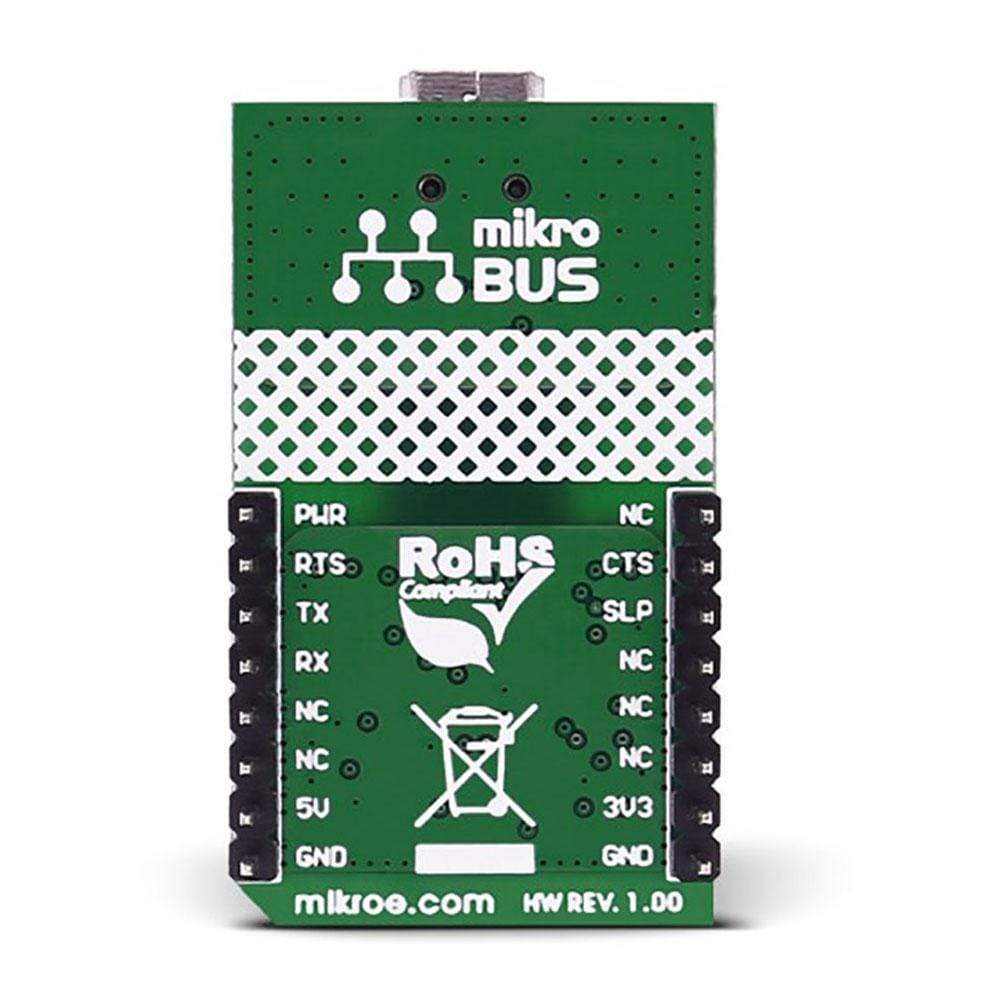

This table shows how the pinout on the USB UART 2 Click Board™ corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
|NC||1||AN||PWM||16||CBUS3||Factory PWR EN|
|Clear to send||CTS||2||RST||INT||15||RTS||Request to send|
|Factory Sleep||CBUS4||3||CS||TX||14||TXD||UART transmit data|
|NC||4||SCK||RX||13||RXD||UART receive data|
|Power supply||+3.3V||7||3.3V||5V||10||+5V||Power supply|
JUMPERS AND SETTINGS
|Designator||Name||Default Position||Default Option||Description|
|JP1||PWR.SEL.||Left||3V3||Power Supply Voltage Selection 3V3/5V, left position 3V3, right position 5V|
LEDS AND BUTTONS
|TX||LED||Shows UART TX activity|
|RX||LED||Shows UART RX activity|
