Product Description

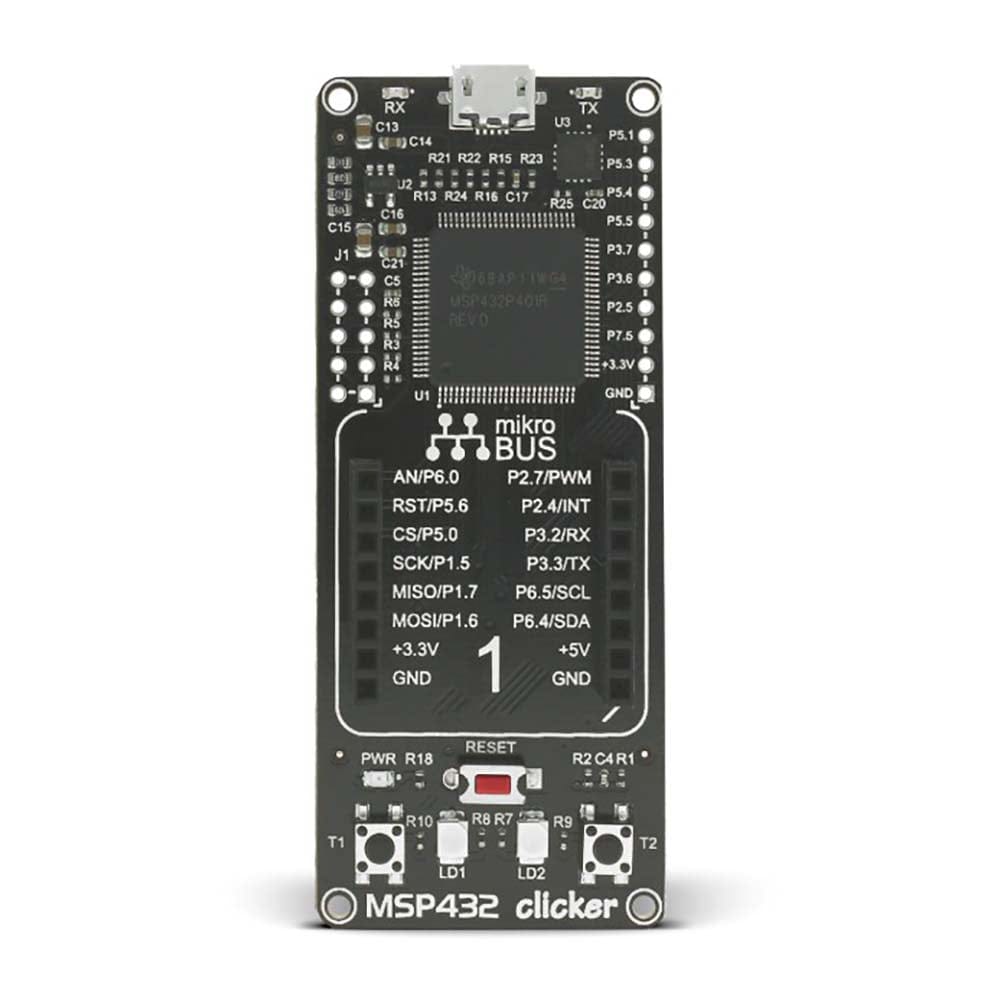

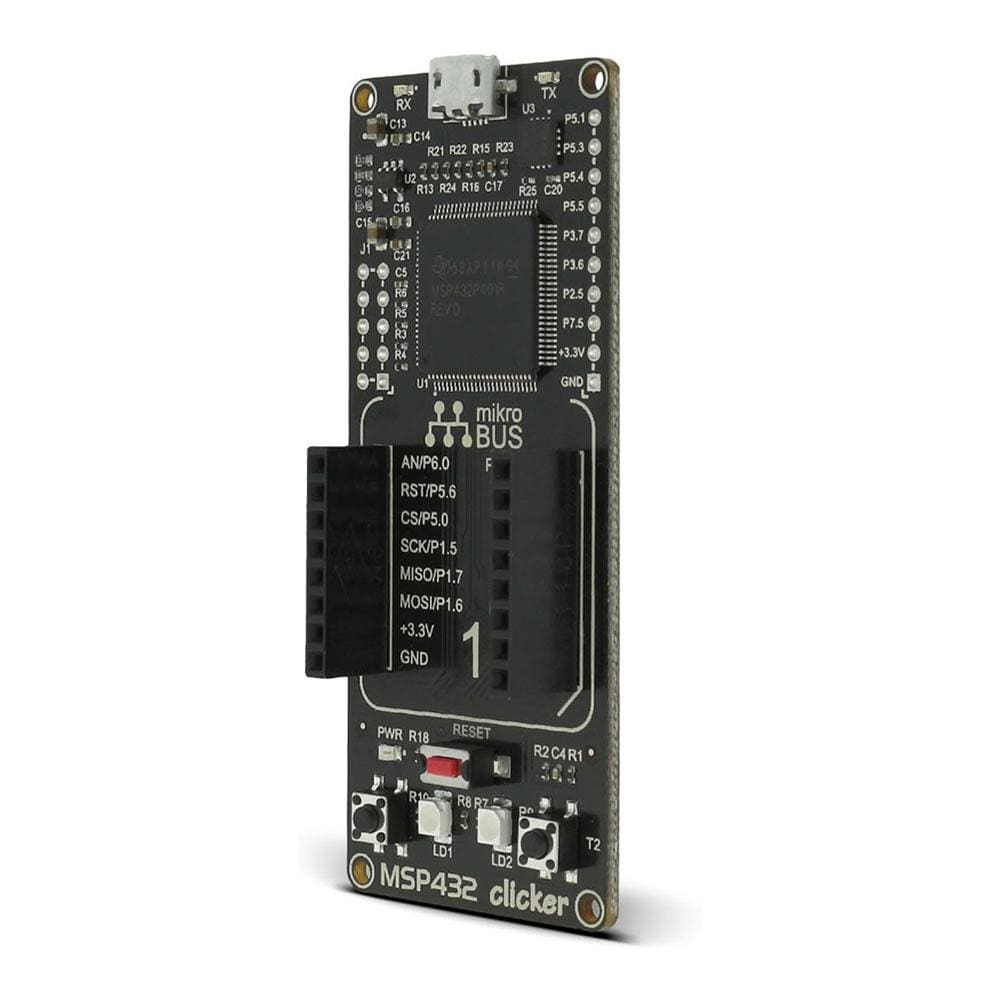

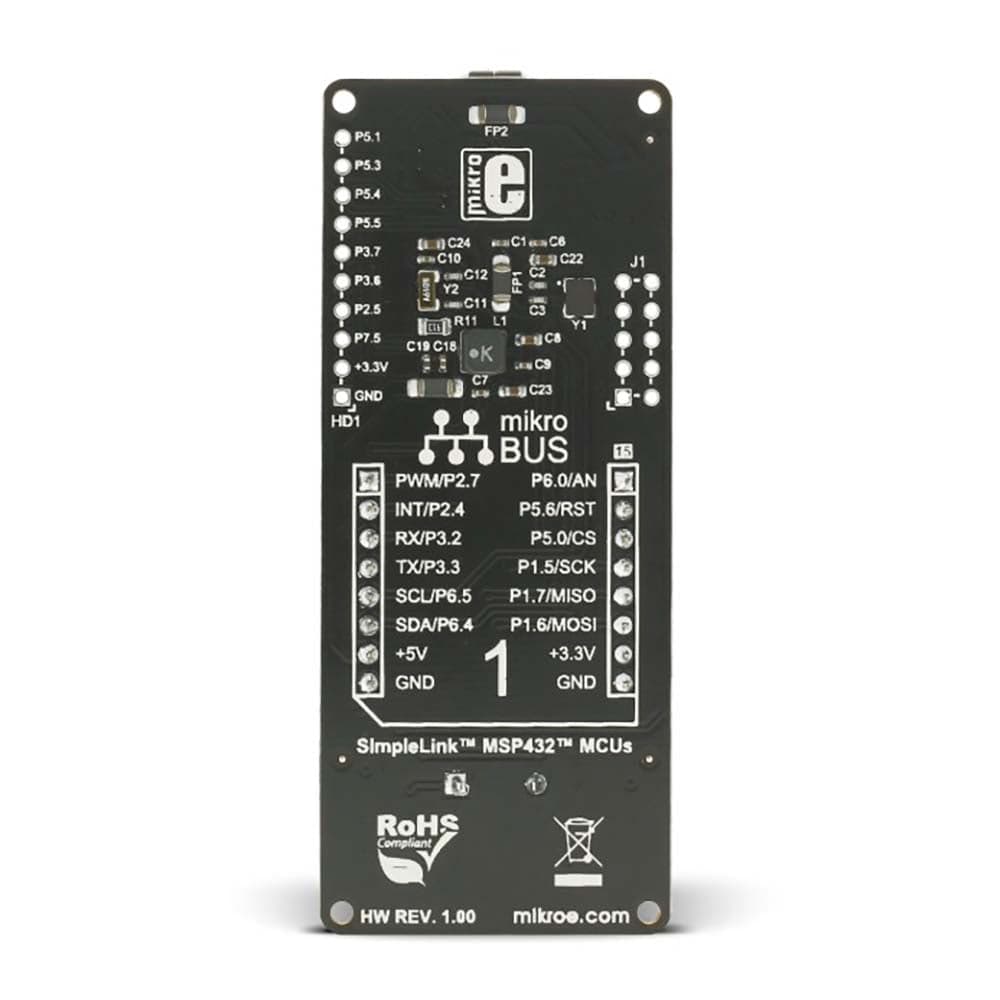

The MSP432 Clicker Board™ is a compact development board with a mikroBUS™ socket for click board connectivity. It carries the SimpleLink™ MSP432™ - ARM® 32-Bit Cortex®-M4F CPU with integrated 1Msps 14-bit SAR-based ADC from Texas Instruments.
Hundreds of Possibilities with Click Boards™

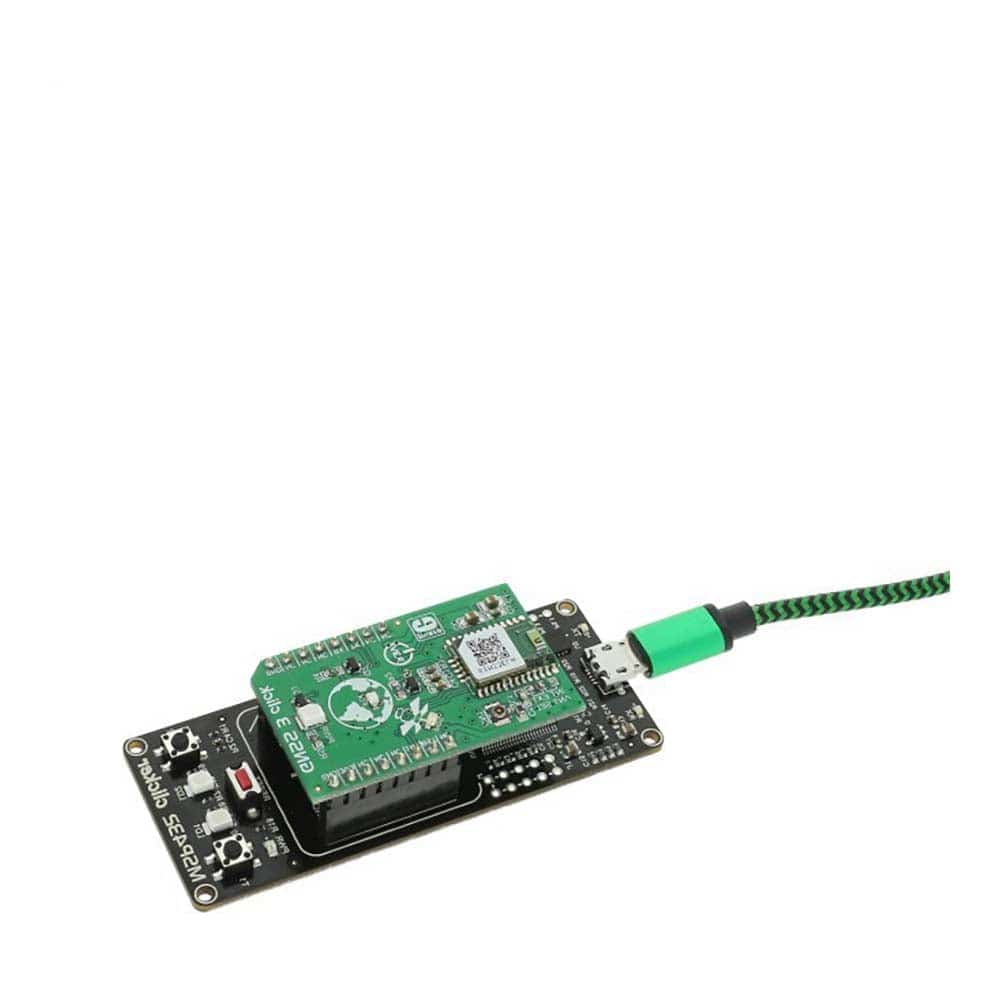

Take advantage of the constantly expanding range of over 31200 click boards™ - the onboard mikroBUS™ socket allows you to add new functionality to your project. Each click boards™ comes with a set of working example code.
Programming
To make your prototyping experience as convenient as possible, MSP432 clicker is preprogrammed with a UART bootloader. Just download our mikroBootloader application and you’re ready to upload your firmware. On-board mikroProg for MSP432 connector enables programming through external programmer/debugger.
Technical Specifications
Applications
This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas.
Key Features
- Everything you need to get started.The board features everything you need to get started: a 32-bit MSP432™ microcontroller, micro USB connector, two LEDs and push buttons, reset button and headers for interfacing with external electronics.
- SimpleLink™ MSP432™ microcontroller.The SimpleLink™ MSP432™ microcontroller is ultra-low-power microcontrollers with high-performance processing capabilities and high-precision analog integration optimized for as host MCU for wireless connectivity, sensing and measurement.
mikroBUS™ is specially designed pinout standard with SPI, I2C, Analog, UART, Interrupt, PWM, Reset and Power supply pins. See Standard Specification.
Key Benefits
- The SimpleLink™ MSP432™ MCUs feature the ARM Cortex-M4 processor in a wide configuration of device options including a rich set of high-precision analog, timing, and communication peripherals, thereby catering to a large number of application scenarios where both efficient data processing and enhanced low-power operation are paramount.
- The MCU has 256KB of Flash Main Memory (Organized Into Two Banks Enabling Simultaneous Read/Execute During Erase). 16KB of Flash Information Memory (Used for BSL, TLV, and Flash Mailbox). Up to 64KB of SRAM (Including 6KB of Backup Memory). 32KB of ROM With MSP432™ Peripheral Driver Libraries.
| Type |
Clicker |
| Architecture |
ARM (32-bit) |
| Programming |
Bootloader, External |
| Silicon Vendor |
Texas Instruments |
| mikroBUS No. |
1 |
| Supply Voltage |
USB |
| Category |
Clicker |
