Mikroelektronika d.o.o.

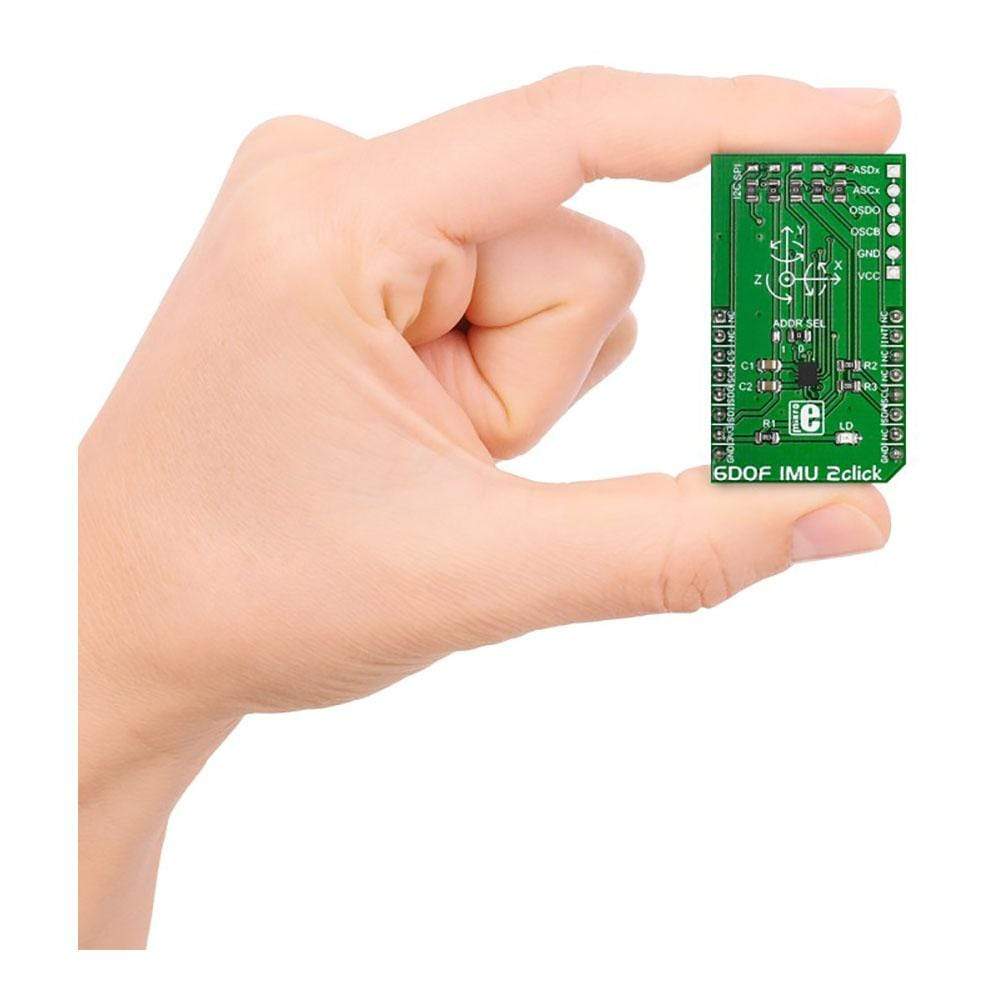

6DOF IMU 2 Click Board™

6DOF IMU 2 Click Board™

SKU: MIKROE-2337
£24.30 inc VAT
£20.30 exc VAT
£29.00 GBP
£24.30 inc VAT
£20.30 exc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability
View full details
  • Mikroelektronika d.o.o. MIKROE-2337 6DOF IMU 2 Click Board - The Debug Store UK
  • Mikroelektronika d.o.o. MIKROE-2337 6DOF IMU 2 Click Board - The Debug Store UK
  • Mikroelektronika d.o.o. MIKROE-2337 6DOF IMU 2 Click Board - The Debug Store UK
  • Mikroelektronika d.o.o. MIKROE-2337 6DOF IMU 2 Click Board - The Debug Store UK

Overview

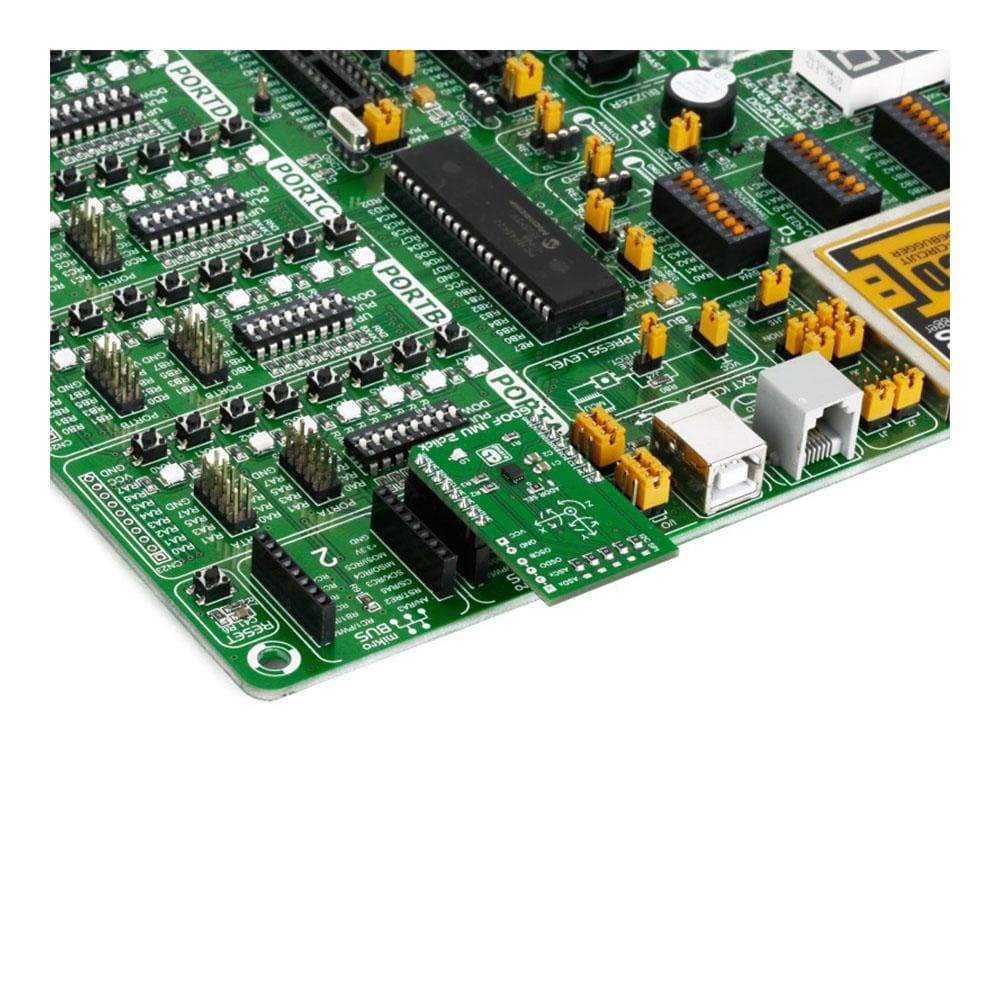

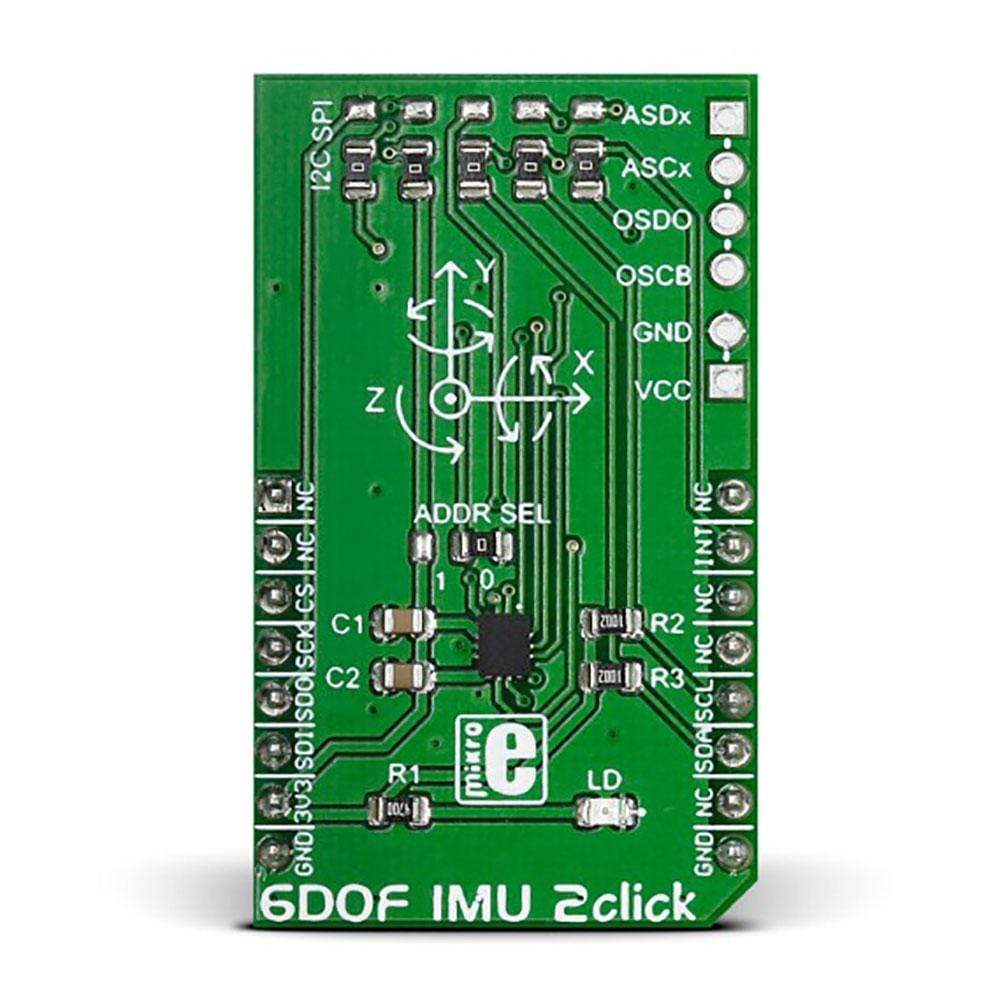

The 6DOF IMU 2 Click Board™ is a MikroBUSadd-on board with Bosch's BMI160 low power inertial measurement unit (IMU).

The BMI160 is capable of precise acceleration and angular rate (gyroscopic) measurement.

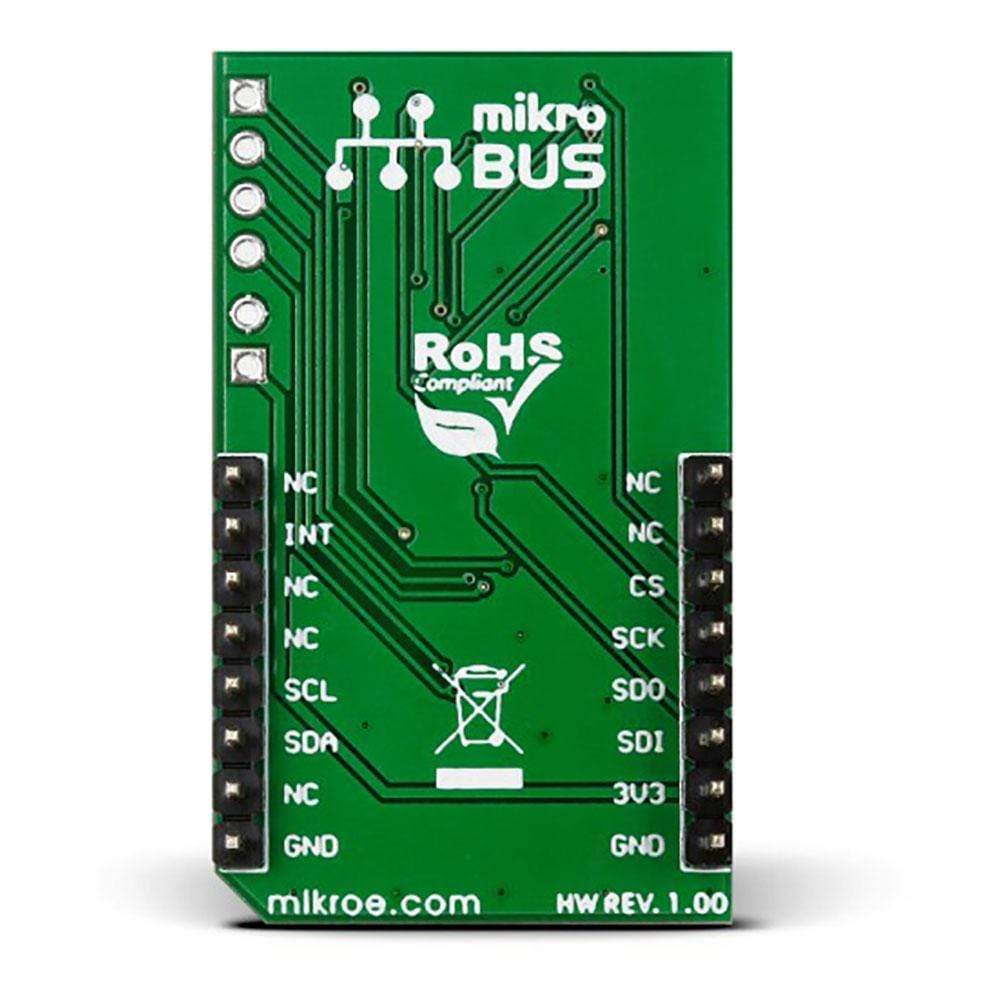

The 6DOF IMU Click Board™ consists of a state-of-the-art 3-axis, low-g accelerometer, and a low-power 3-axis gyroscope, designed for 6-axis and 9-axis applications. The BMI160 also includes built-in power management unit (PMU) for advanced power management and power-saving modes, as well as allocated FIFO buffer of 1024 bytes for handling external sensor data. The 6DOF IMU 2 Click Board™ communicates with the target MCU through the I2C or SPI bus (user-selectable), with additional functionality provided by the INT pin (for enhanced autonomous motion detection).

The board is designed to use a 3.3 power supply only .
