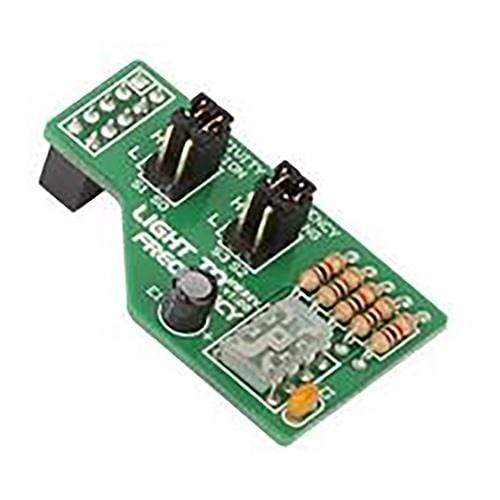

Light To Frequency Board
Light To Frequency Board
Regular price
£4.23
inc VAT
£3.63
exc VAT
Regular price
£6.05 GBP
Sale price
Unit price
per
£4.23
inc VAT
£3.63
exc VAT
Shipping calculated at checkout.
Check Availability before Ordering
Couldn't load pickup availability
The Light To Frequency Board is based on the TSL230BR, a programmable light-to-frequency converter which combines a configurable silicon photodiode and a current-to-frequency converter on single monolithic CMOS integrated circuits. The output can be either a pulse train or a square wave (50% duty cycle) with frequency directly proportional to light intensity. Device sensitivity is selectable in three ranges, providing two decades of adjustment. The full-scale output frequency can be scaled by one of four preset values.
All inputs and the output are TTL compatible, allowing direct two-way communication with a microcontroller for programming and output interface. An output enable (OE) is provided that places the output in the high-impedance state for multiple-unit sharing of a microcontroller input line.
View full details
All inputs and the output are TTL compatible, allowing direct two-way communication with a microcontroller for programming and output interface. An output enable (OE) is provided that places the output in the high-impedance state for multiple-unit sharing of a microcontroller input line.
The Light to Frequency Board features a programmable light-to-frequency converter TSL230BR that combines a configurable silicon photodiode and a current-to-frequency converter on single monolithic CMOS integrated circuits. The output can be either a pulse train or a square wave (50% duty cycle) with frequency directly proportional to light intensity. Device sensitivity is selectable in three ranges, providing two decades of adjustment. The full-scale output frequency can be scaled by one out of four preset values.
