DC Motor 2 Click Example
Video notes
DC Motor 2 Click uses a TB6593FNG driver to run a brushed DC motor, with PWM speed control, direction, stop and brake. MikroE shows the board running its example code.
Mikroelektronika d.o.o.
DC Motor 2 Click Board™
DC Motor 2 Click Board™
SKU: MIKROE-1911
Regular price
£20.40
inc VAT
£17.00
exc VAT
Regular price
Sale price
Unit price
per
£20.40
inc VAT
£17.00
exc VAT
Shipping calculated at checkout.
If no stock shown above, check availability
Couldn't load pickup availability
Overview

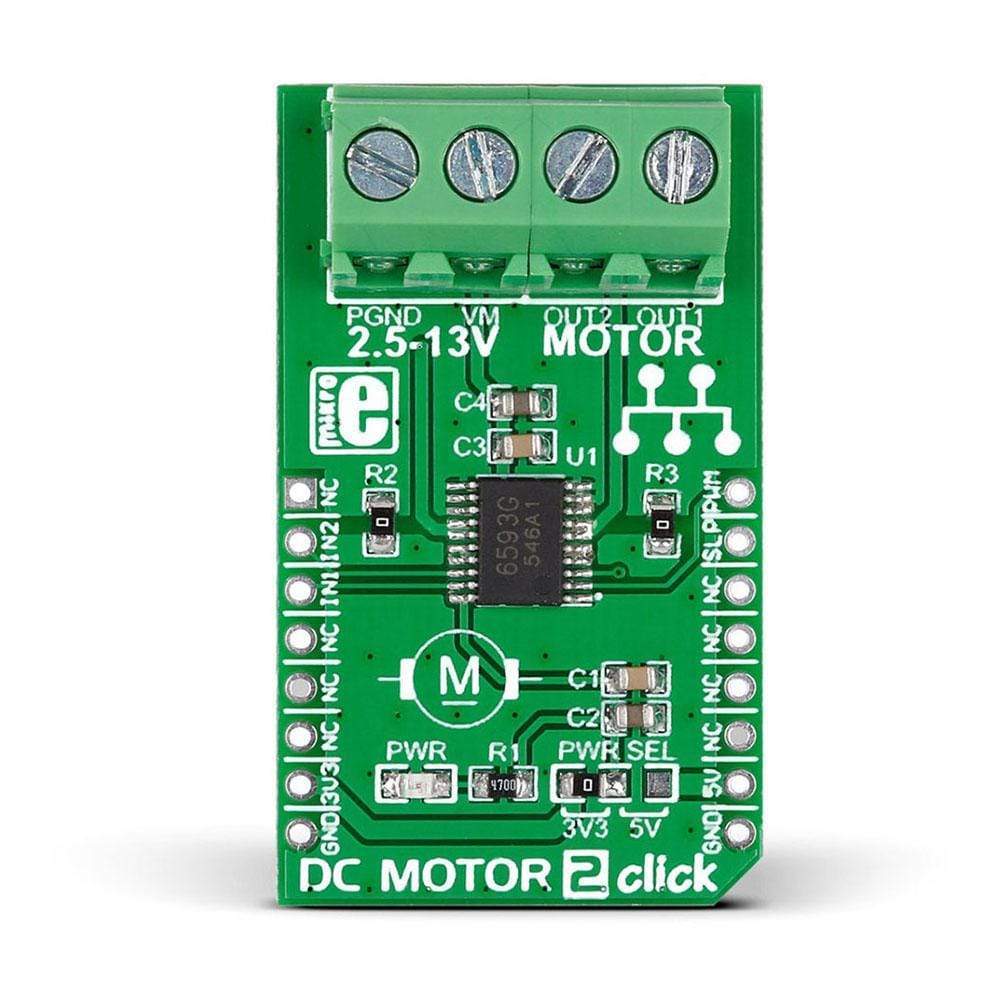

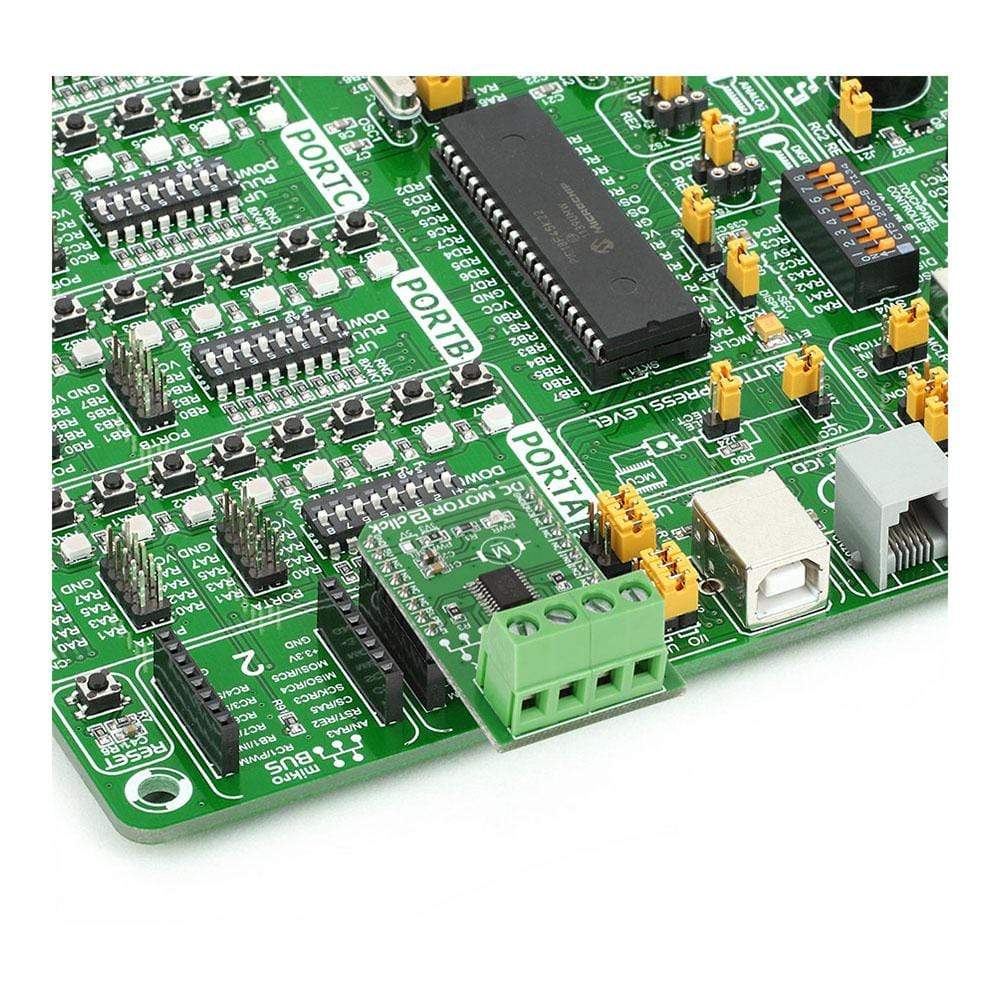

The DC Motor 2 Click Board™ is based on the TB6593FNG driver IC for direct current motors. With two pairs of screw terminals (power supply and outputs), the Click Board™ can drive motors with voltages from 2.5 to 13V.
Videos
Videos are hosted on YouTube and load only when you press play.

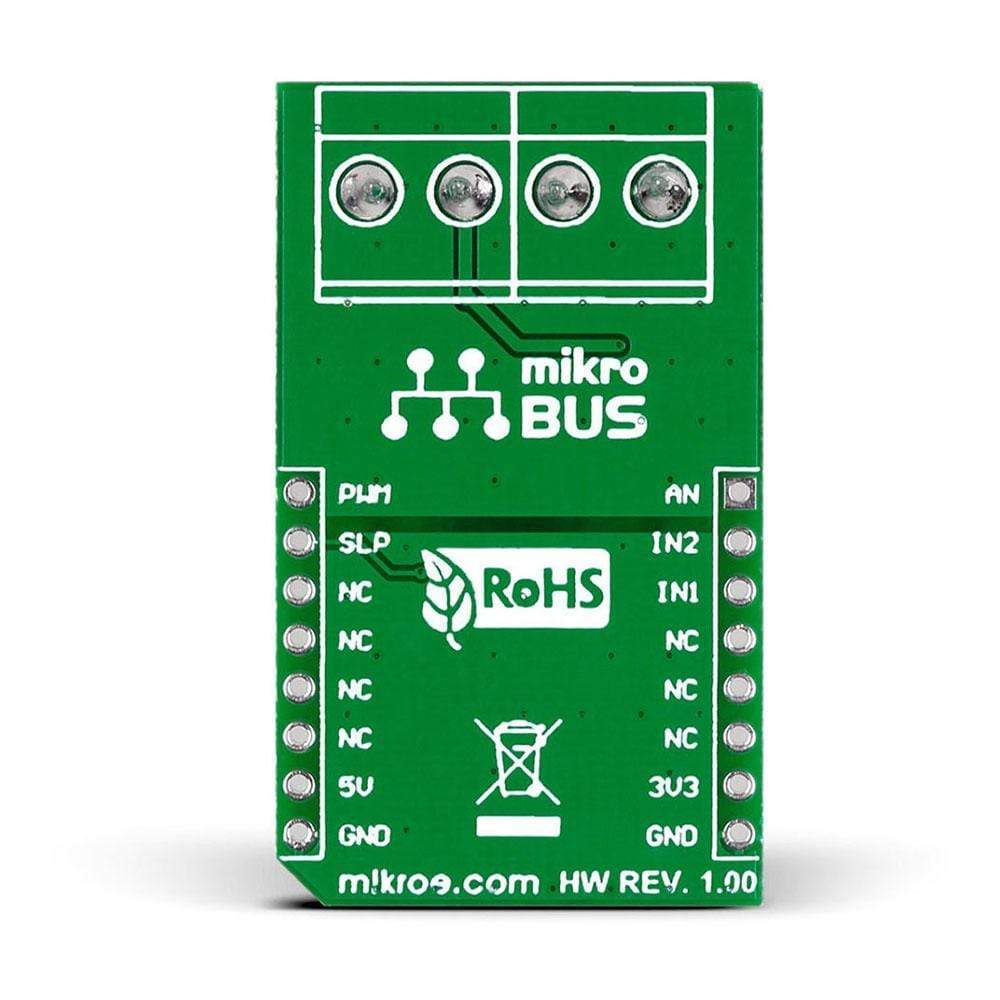

The DC MOTOR 2 Click Board™ carries the TB6593FNG driver IC for direct current motors, from Toshiba. With two pairs of screw terminals (power supply and outputs), the click board can drive motors with voltages from 2.5 to 13V (output current of up to 1 amps with peaks up to 3.2 amps) . The PWM signal drives the motor while the IN1 and IN2 pins provide binary direction signals that set the direction of the motor (clockwise or counter clockwise), or apply stop or short brake functions. Stop mode cuts off the power supply so the motor continues spinning until it runs out of momentum. Short break brings it to an abrupt stop.

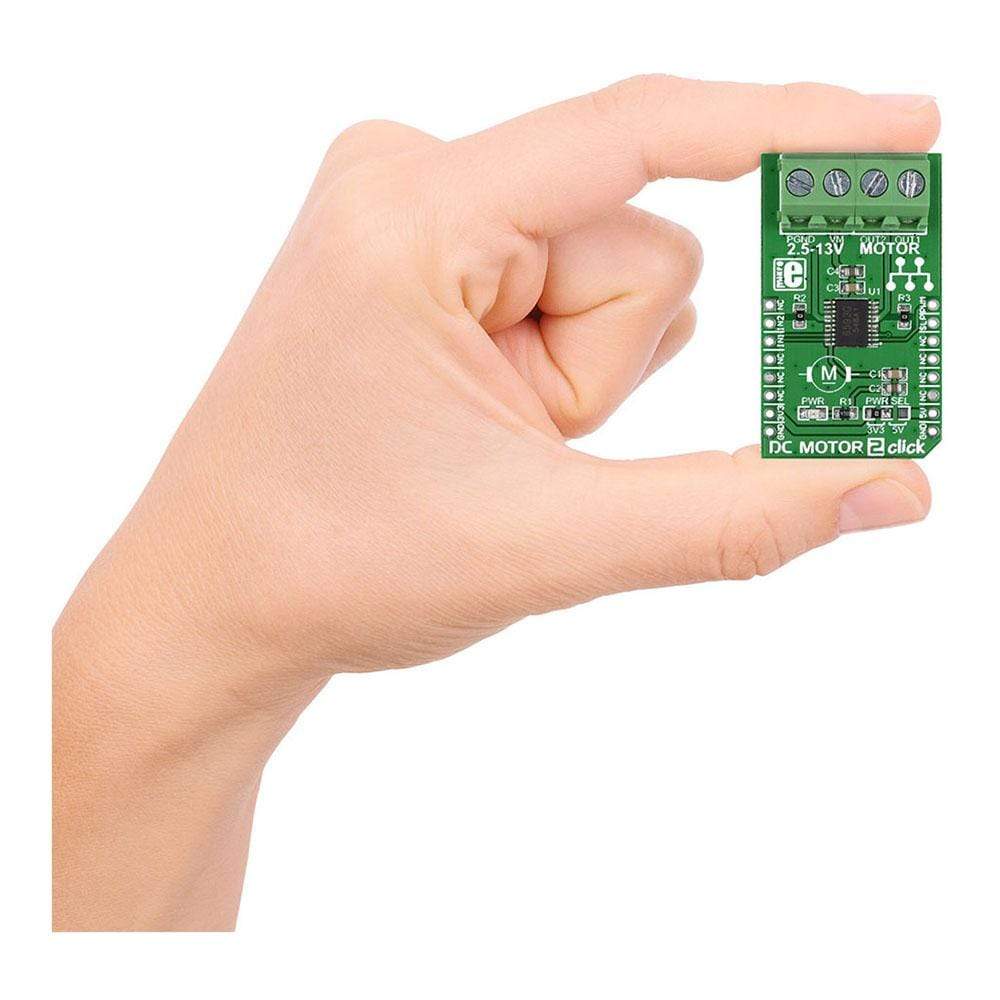

| Overview | |
|---|---|
| Category | Brushed |
| Applications | Full H-bridge driver for DC Motors with relatively higher voltage requirements |
| Key components | |
| On-board modules | TB6593FNG driver IC for direct current motors |
| Features | |
| Key features | Drives motors from 2.5 to 13V |
| Interfaces | |
| Interface | PWM, GPIO |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V or 5V |
| Physical | |
| Click board size | M (42.9 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1911 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015076652 |
| Warranty | 12 months |
| Shipping weight | 0.034 kg |
-
1 ×
DC Motor 2 Click Board™
Contact us to confirm the full contents of the box.
