6LoWPAN Clicker Board
6LoWPAN Clicker Board
Couldn't load pickup availability
Overview

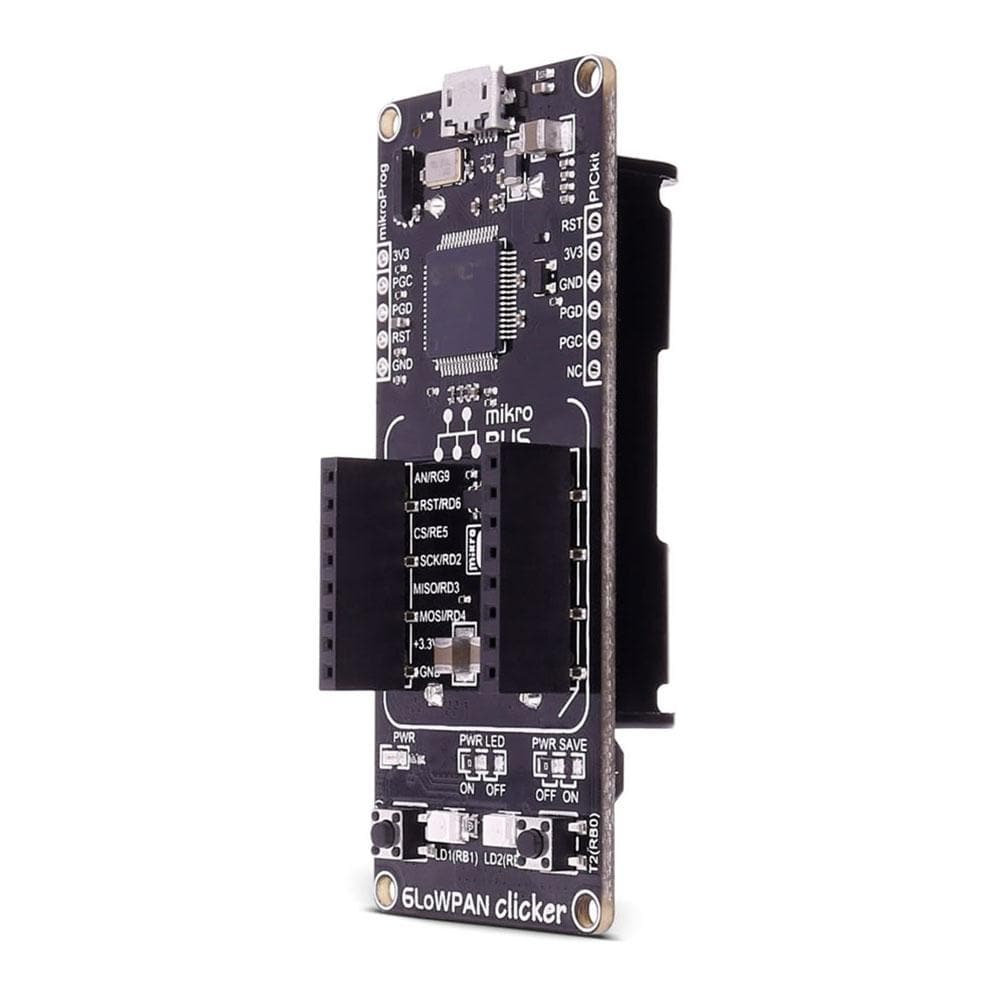

The 6LoWPAN Clicker Board™ is a compact development board with a MikroBUS socket for Click Board™ connectivity. It carries Microchip's PIC32MX470F512H - 120 MHz/150 DMIPS, MIPS32 M4K core microcontroller. And CA-8210 2.4GHz ISM band transceiver.
The 6LoWPAN Clicker Board™ is a compact development board with a mikroBUS socket for Click Board™ connectivity. It carries Microchip's PIC32MX470F512H - 120 MHz/150 DMIPS, MIPS32' M4K' core microcontroller. And CA-8210 2.4GHz ISM band transceiver, which allows you to add wireless communication to your project.
Everything you Need to Get Started
This compact development board brings the flexibility of Click Board™s to your favourite microcontroller, making it a perfect starter kit for implementing your ideas.

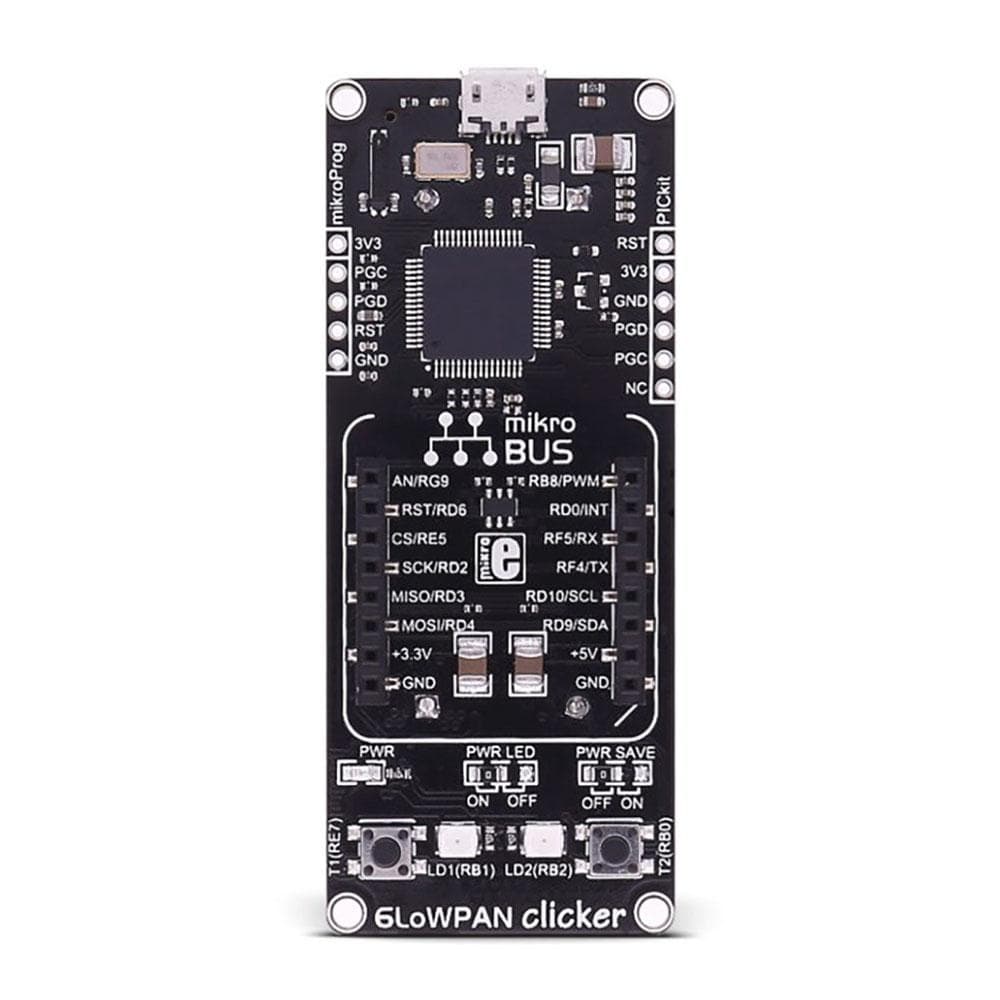

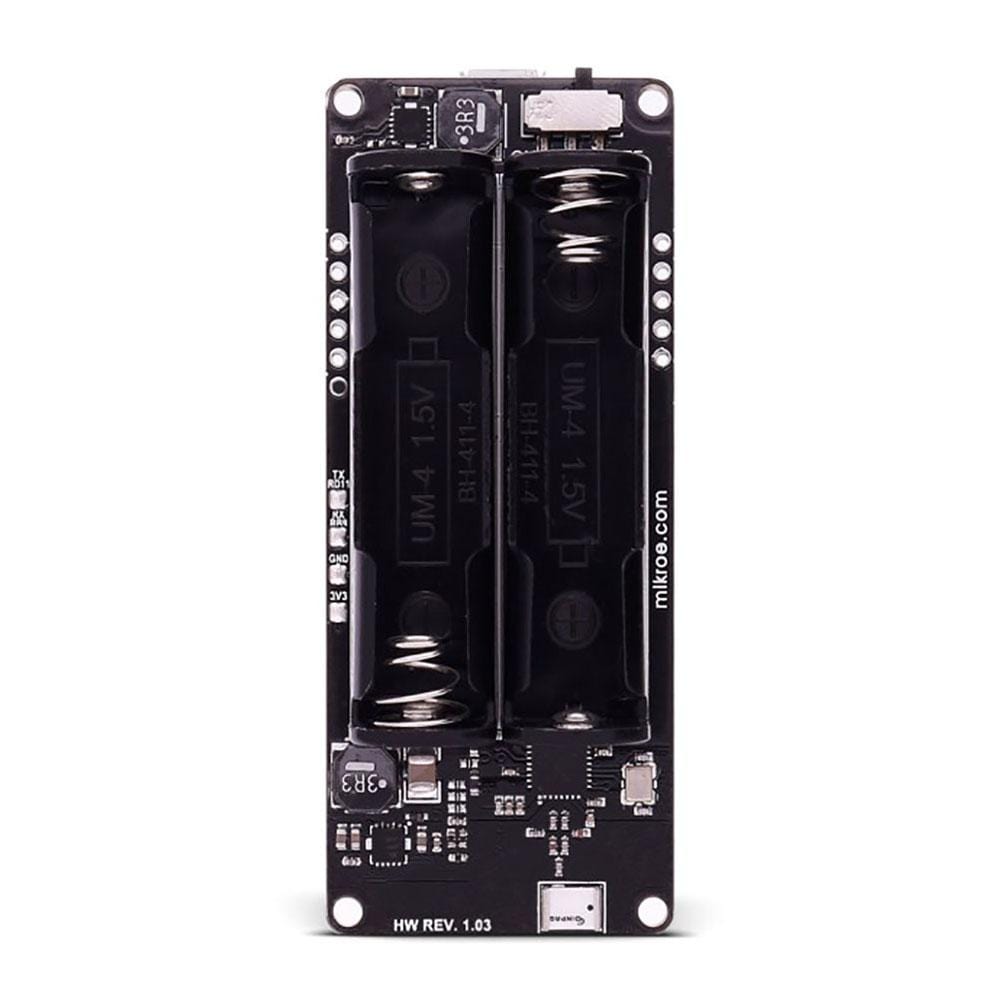

The board features everything you need to get started: a 32-bit PIC32MX microcontroller, CA-8210 2.4GHz transceiver, micro USB connector, two LEDs and push buttons, ON/OFF switch, and headers for interfacing with external electronics. Note: Batteries are not included.
CA-8210 Transceiver Features
The CA-8210 is a fully featured transceiver modem solution for IEEE 802.15.4 communications in the 2.4GHz ISM band. The device is based on a revolutionary radio architecture, which delivers improved receive performance for no penalty in power consumption.
PIC32MX470F512H Microcontroller Features
The 6LowPAN Click Board™ comes with the PIC32MX470F512H microcontroller. This 32-bit MIPS M4K core high-performance microcontroller is rich with on-chip peripherals and features 512 KB of Flash memory and 128 KB of RAM.
Hundreds of possibilities with Click Board™s'

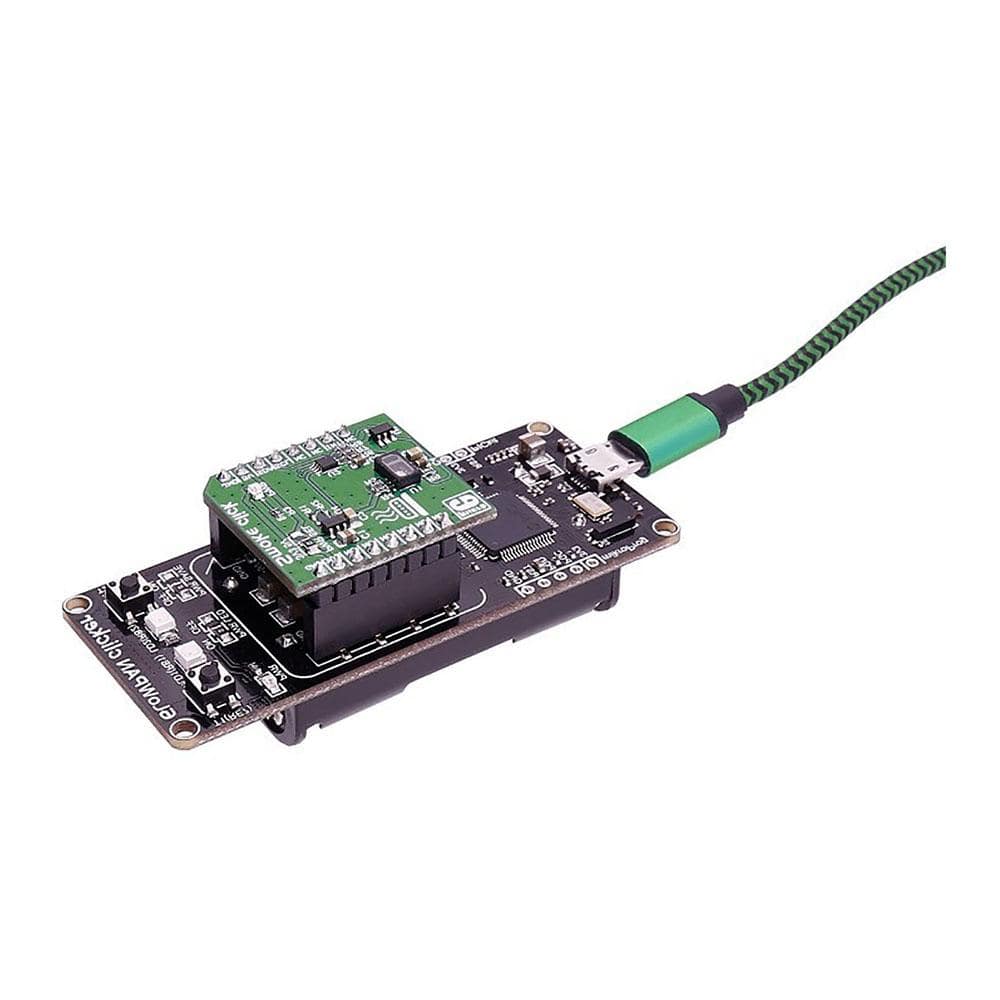

Take advantage of the constantly expanding range of over 900 Click Board™s - the on-board mikroBUS socket allows you to add new functionality to your project. Each Click Board™' comes with a set of working example code.
Programming
To make your prototyping experience as convenient as possible, 6LoWPAN Clicker Board™ is preprogrammed with a USB-HID bootloader. Just download our mikroBootloader application and you're ready to upload your firmware. The on-board mikroProg connector enables programming through external programmer/debugger. The 6LoWPAN Clicker Board™ has a PICkit' connector on the right side of the board, for Microchip's Debugger/Programmer.
Technical Specifications
Applications
This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas.
Key Features
- CA-8210 transceiver features The CA-8210 is a fully featured transceiver modem solution for IEEE 802.15.4 communications in the 2.4GHz ISM band.
- The device is based on a revolutionary radio architecture, which delivers improved receive performance for no penalty in power consumption.
- PIC32MX470F512H microcontroller featuresThe 6LowPAN click comes with the PIC32MX470F512H microcontroller.
- This 32-bit MIPS M4K core high-performance microcontroller is rich with on-chip peripherals and features 512 KB of Flash memory and 128 KB of RAM.
- Everything you need to get started.This compact development board brings the flexibility of click boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas.
mikroBUS™ is specially designed pinout standard with SPI, I2C, Analog, UART, Interrupt, PWM, Reset and Power supply pins. See Standard Specification.
| Type | Clicker |
| Architecture | PIC32 (32-bit) |
| Programming | Bootloader, External |
| Silicon Vendor | Microchip |
| mikroBUS No. | 1 |
| Supply Voltage | USB |
| Category | Clicker |
