IrThermo 2 Click Example
Video notes
IrThermo 2 Click measures temperature without contact using the TMP007 infrared thermopile sensor. MikroE shows the board running its example code.
Mikroelektronika d.o.o.

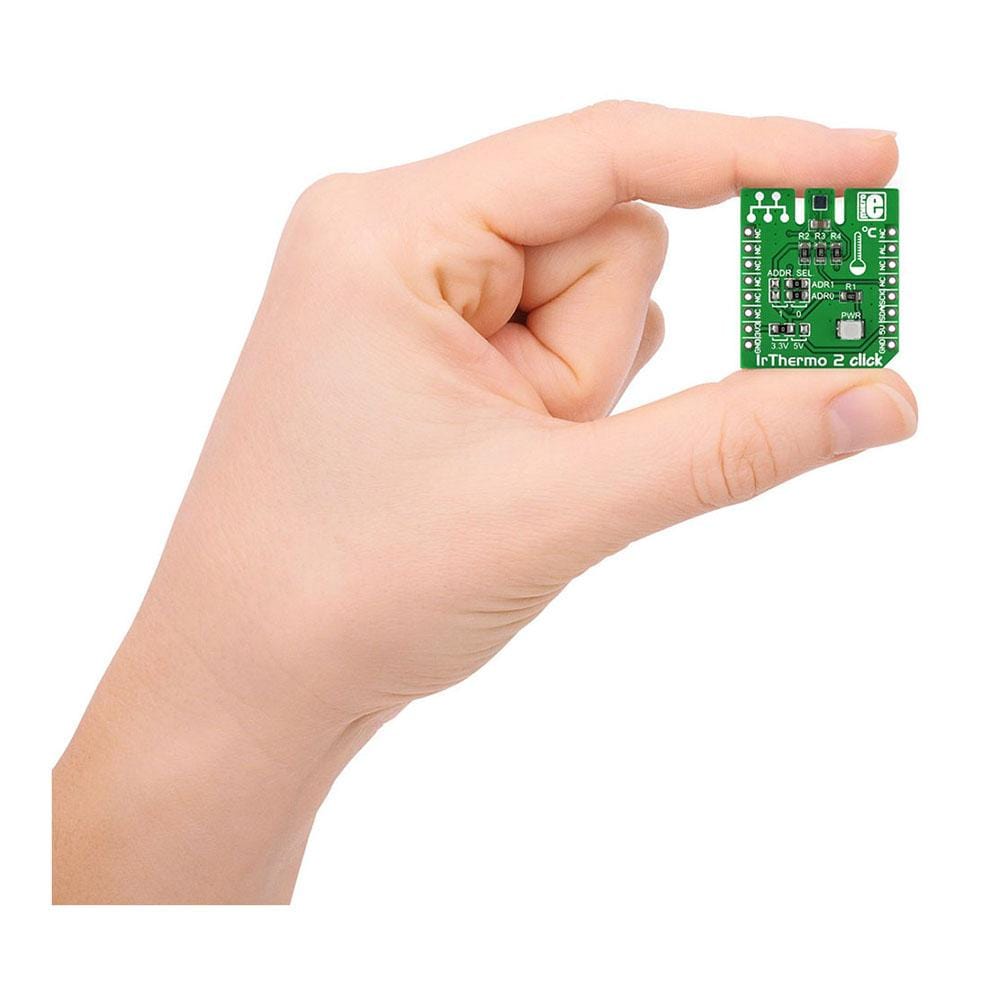

IrThermo 2 Click Board™
IrThermo 2 Click Board™
SKU: MIKROE-1888
Regular price
£28.80
inc VAT
£24.00
exc VAT
Regular price
Sale price
Unit price
per
£28.80
inc VAT
£24.00
exc VAT
Shipping calculated at checkout.
If no stock shown above, check availability
Couldn't load pickup availability
Overview
The IrThermo 2 Click Board™ is a non-contact temperature measurement solution. The Click Board™ carries the TMP007 infrared thermopile sensor with an integrated math engine.
Videos
Videos are hosted on YouTube and load only when you press play.

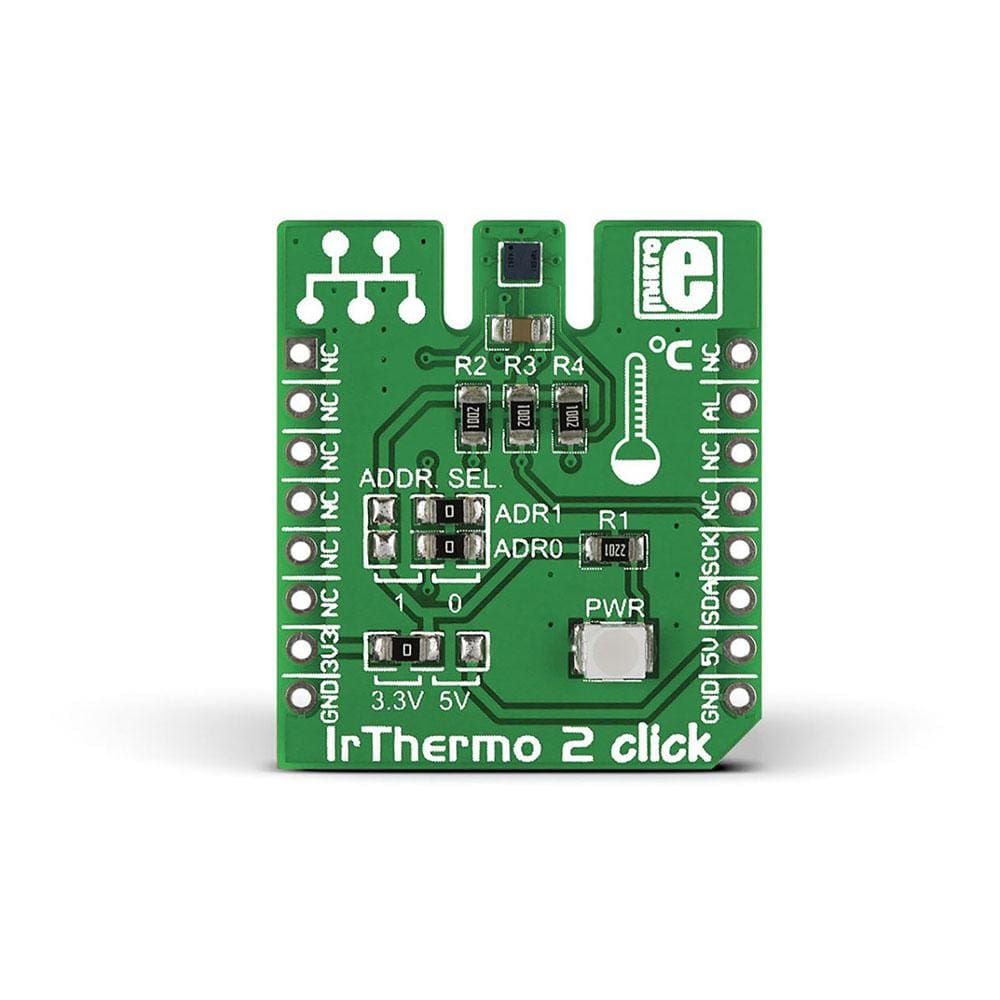

The IrThermo 2 Click Board™ is a non-contact temperature measurement solution. The Click Board™ carries the TMP007 infrared thermopile sensor with an integrated math engine. The sensor absorbs the infrared radiation emitted by the target object (withing the sensors field of view) and the integrated math engine calculates its temperature by comparing it with the temperature of the silicon die. The measurement range of the sensor is between 40°C to 125°C (with a 14-bit resolution).
Power Supply
The board is designed to use either a 3.3V or a 5V power supply.
| Overview | |
|---|---|
| Category | Temperature & humidity |
| Applications | As a contactless measurement solution, IrThermo 2 click is ideal for monitoring hard to reach object, whether because they are inconveniently placed (batteries, heatskinks inside a casing), hazardous (high voltage or toxic). |
| Key components | |
| On-board modules | TMP007 infrared thermopile sensor |
| Features | |
| Key features | -40°C to 125°C, 14-bit resolution. Interrupt pin for setting off alerts |
| Interfaces | |

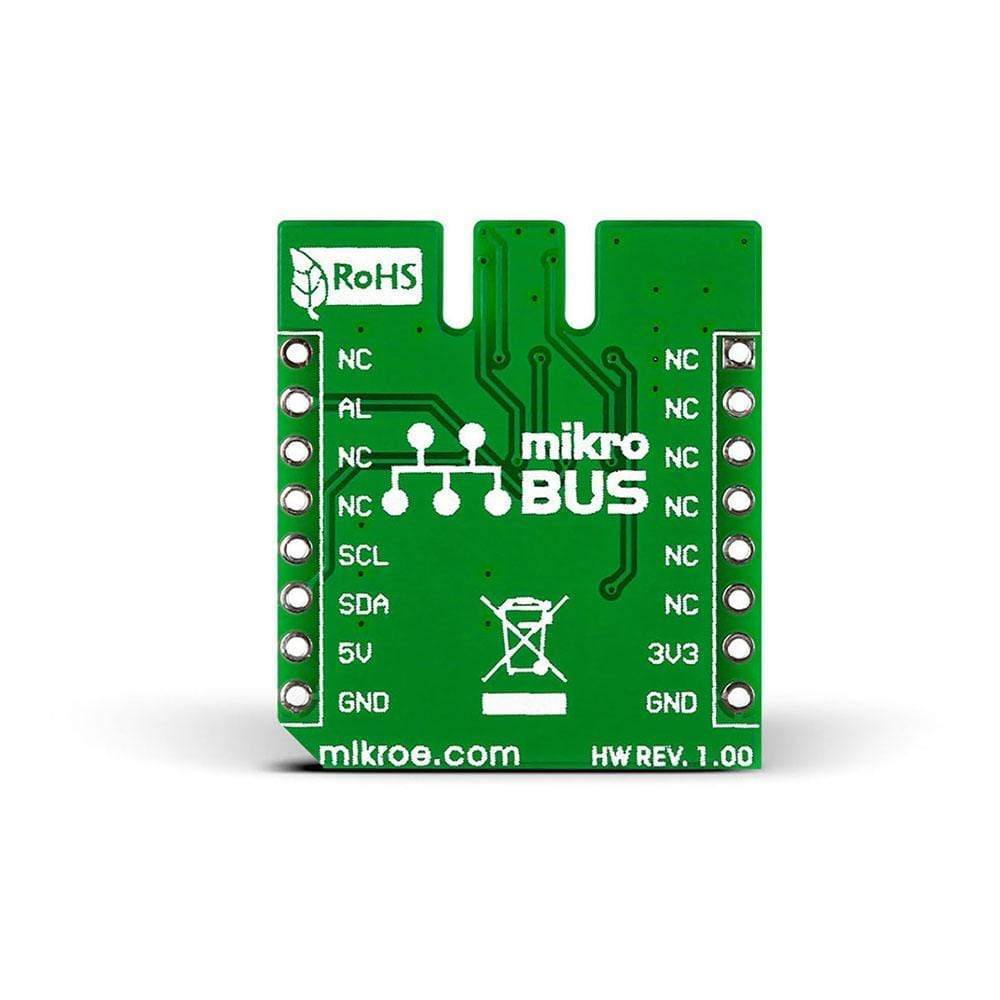

| Interface | I2C, GPIO |

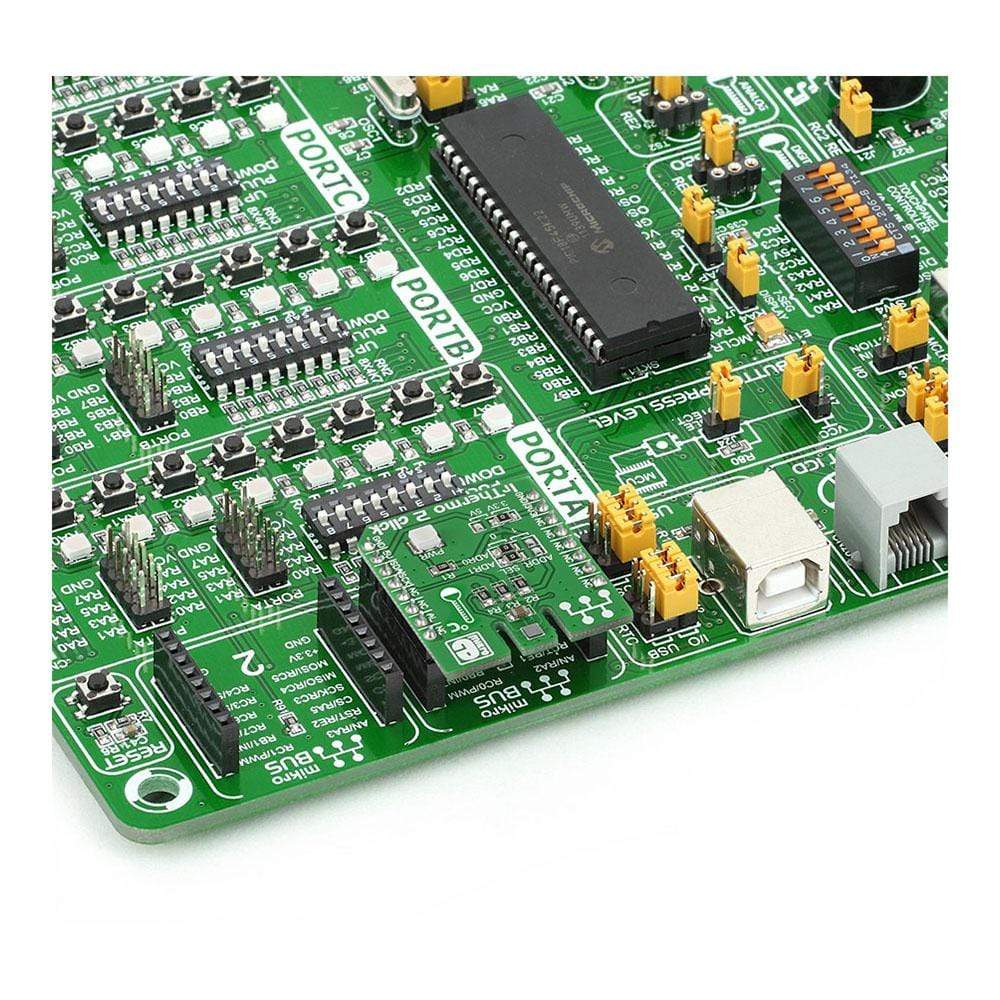

| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V or 5V |
| Physical | |
| Click board size | S (28.6 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1888 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015077659 |
| Warranty | 12 months |
| Shipping weight | 0.024 kg |
-
1 ×
IrThermo 2 Click Board™
Contact us to confirm the full contents of the box.
