PIC Clicker Board
PIC Clicker Board
SKU: MIKROE-1487
Couldn't load pickup availability
Overview

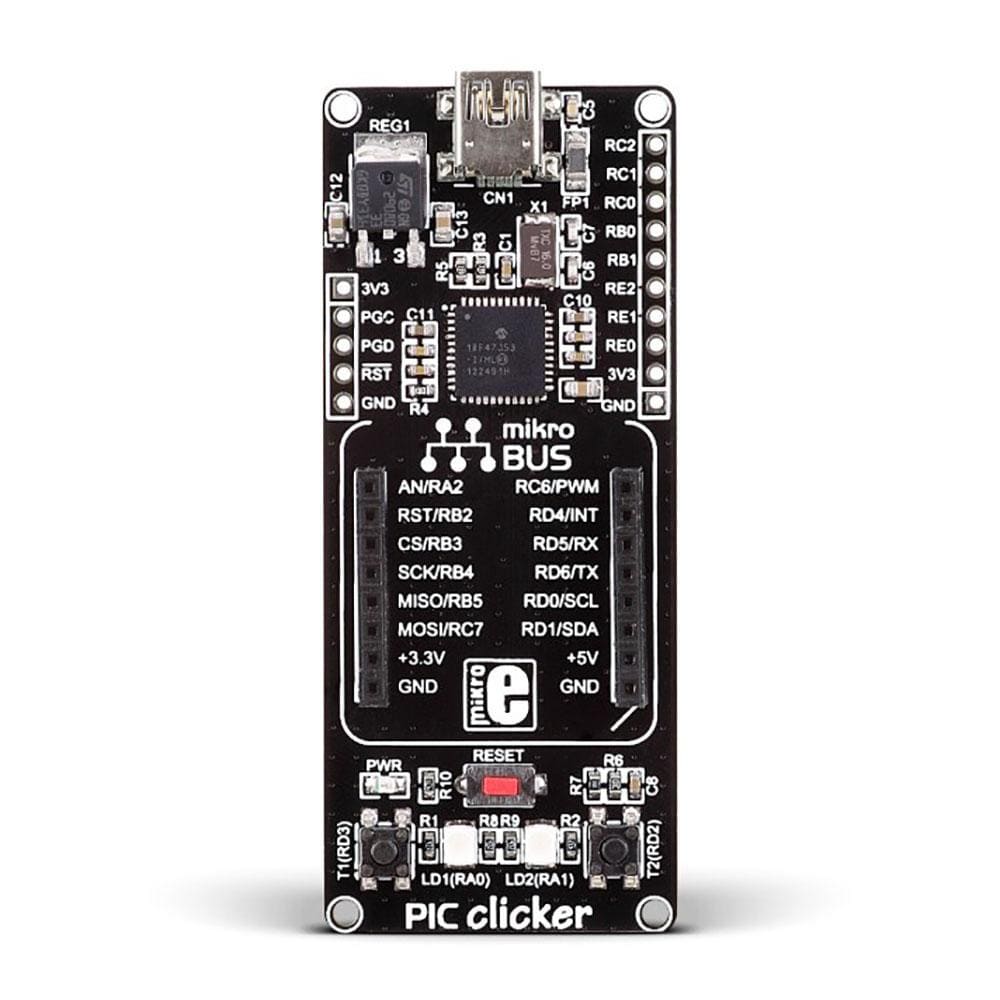

The PIC Clicker Board™ is an amazingly compact starter development kit that brings an innovative mikroBUS host socket to your favorite microcontroller. The board features all you need to get started: PIC18F47J53 microcontroller, USB connector, two LEDs and push buttons, reset button, mikroProg connector and headers for interfacing with external electronics.
This compact board brings the flexibility of Click Board™ add-on boards to your favourite microcontroller, making it a perfect starter kit for implementing your ideas.
Technical Specifications
Applications
The PIC Clicker Board™ brings flexibility of click add-on Click boards™ to your favorite microcontroller, making it a perfect starter kit for implementing your ideas.
Key features
- PIC18F47J53 device, delivering 12 MIPS of processing power, 128KB of Flash, 3,800bytes of RAM.
- USB MINI-B connector.
- Two LEDs, two push buttons, and a reset button.
- mikroProg connector and headers for interfacing with external electronics.
mikroBUS™ is specially designed pinout standard with SPI, I2C, Analog, UART, Interrupt, PWM, Reset and Power supply pins. See Standard Specification.
Key Benefits
- Single mikroBUS™ socket for adding Click additional boards.
- Small, affordable, yet powerful starter development kit.
- Mounting holes simplify integration.
- Compact design with clear and depictive silk screen markings.
| Type | Clicker |
| Architecture | PIC (8-bit) |
| Programming | Bootloader, External |
| Silicon Vendor | Microchip |
| mikroBUS No. | 1 |
| Supply Voltage | USB |
| Category | Clicker |
| Overview | |
|---|---|
| Applications | This compact board brings flexibility of click add-on boards to your favorite microcontroller, making it a perfect starter kit for implementing your ideas |
| Architecture | PIC (8-bit) |
| Key components | |
| MCU | PIC18F47J53 |
| MCU speed | 12MIPS, 48MHz |
| MCU memory | 128KB of Flash, 3,800 bytes of RAM |
| On-board modules | 1 x USB MINI-B connector, 2 x LEDs, 2 x push buttons, 1 x reset button |
| Features | |
| Expandability | mikroBUS™ socket |
| Interfaces | |
| Programming | Preprogrammed with USB HID bootloader. Also features mikroProg for PIC, dsPIC and PIC32 connector |
| Electrical | |
| Power supply | 5V (via USB) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1487 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015074870 |
| Warranty | 12 months |
| Shipping weight | 0.23 kg |
-
1 ×
PIC Clicker Board
Contact us to confirm the full contents of the box.
