DALI Click Board™
DALI Click Board™
SKU: MIKROE-1297
Couldn't load pickup availability
Key Features
Overview

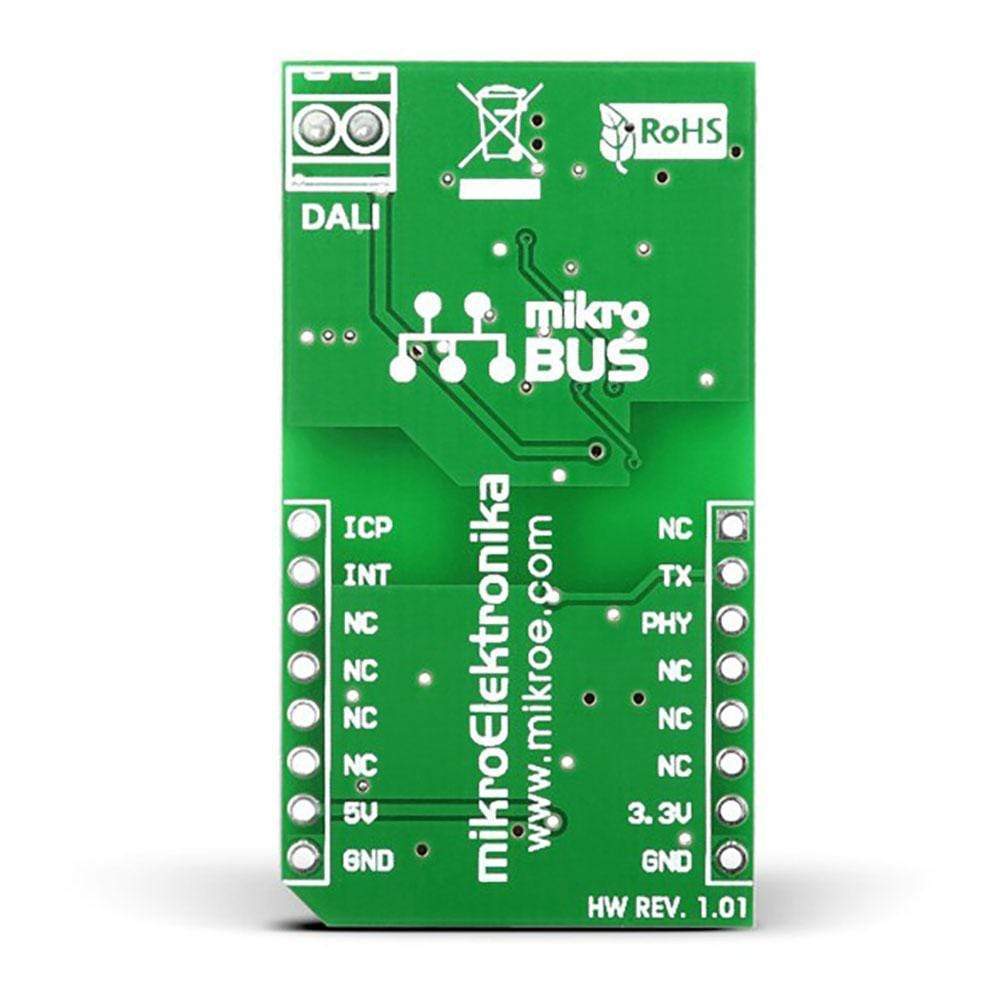

The DALI Click Board™ is a compact board that provides a Digital Addressable Lighting Interface (DALI) to your design. The board features two optocouplers, push-button and screw terminals.

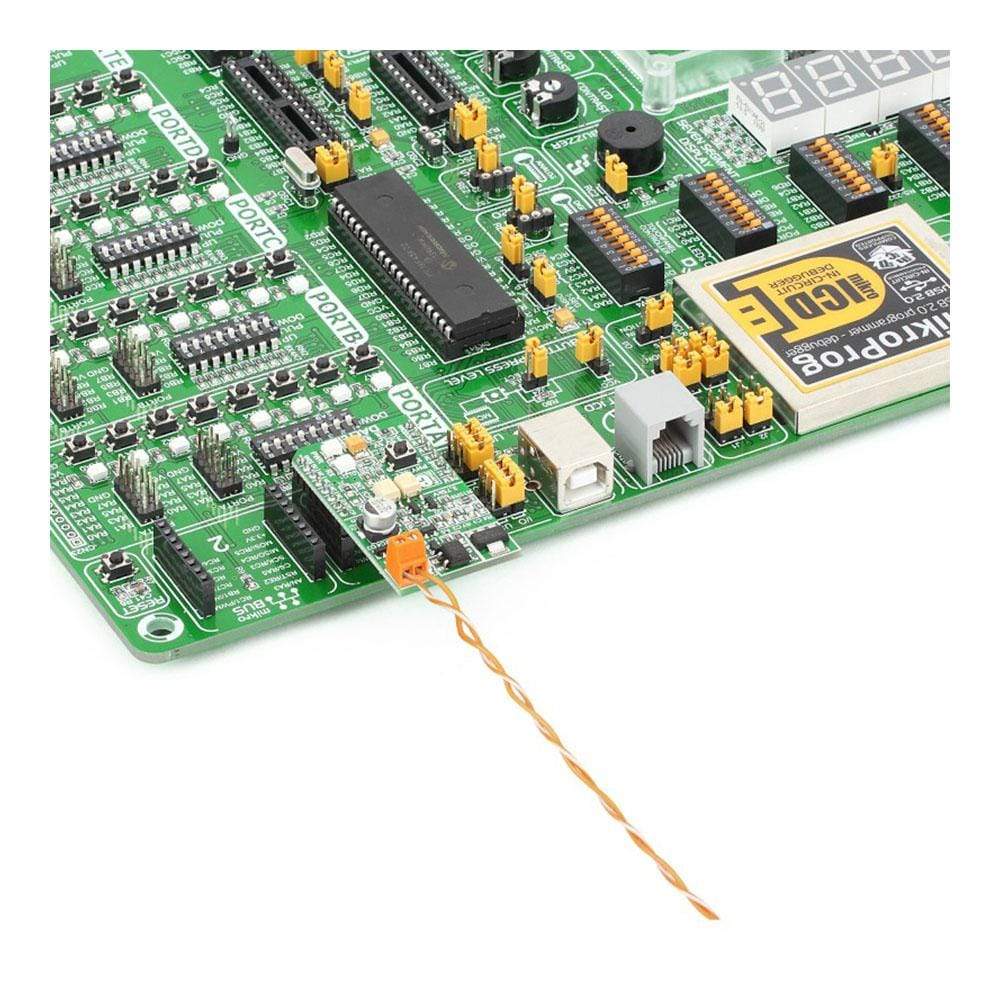

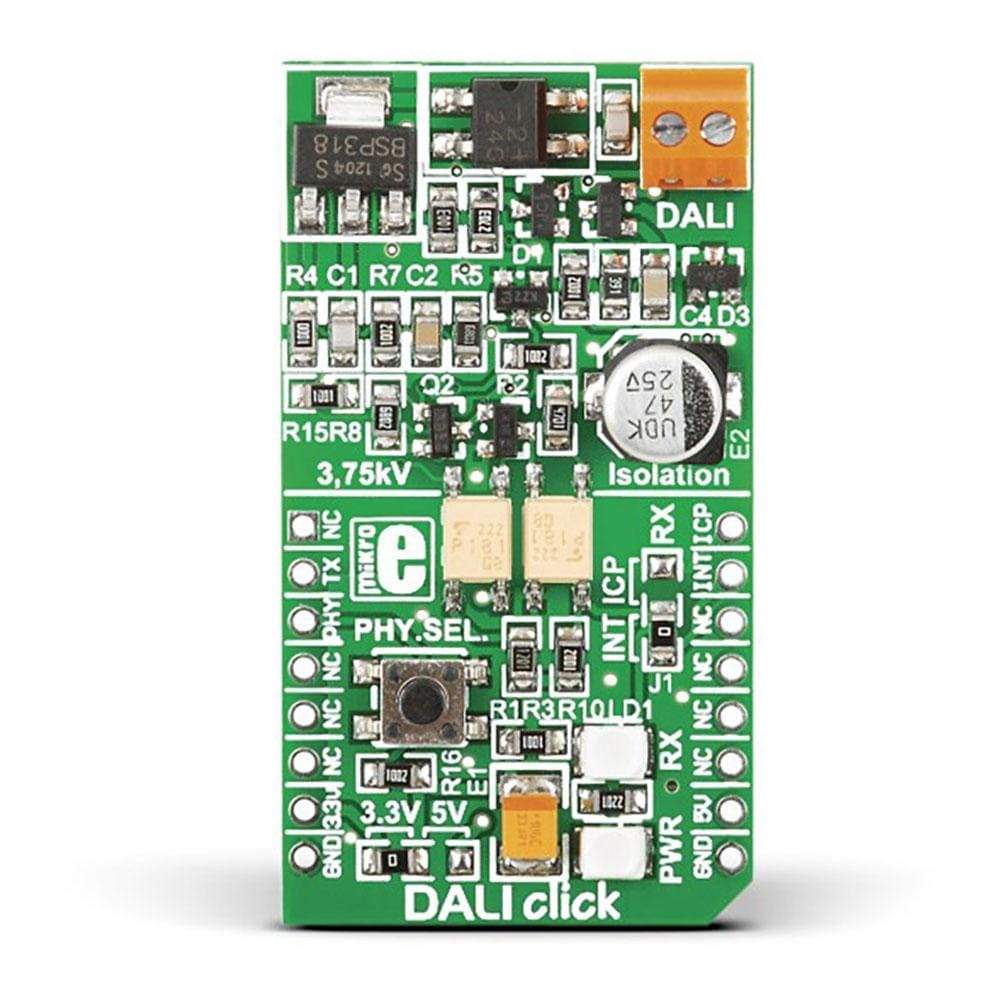

The DALI Click Board™ from MikroE is an accessory board intended to provide Digital Addressable Lighting Interface (DALI) to your design. This board enables the user to control your home/office lighting. DALI Click Board™ is equipped with two optocouplers, push button and screw terminals. For communication with the target board microcontroller, the board uses four mikroBUS lines (RST, CS, PWM and INT). DALI Click Board™ supports the use of either 3.3V or 5V power supply, selectable by an SMD jumper. A green LED indicates the presence of power supply. A yellow LED indicates RX activity.
DALI, a data protocol and transport mechanism, works as a true standard for professional digital lighting and lighting control. It allows easy integration of equipment from different vendors by offering a common platform while reducing installation costs.
DALI Click Board™ requires 2 wires to devices for data transfer between MCU and devices by means of asynchronous, half-duplex, serial protocol. There can be up to 64 DALI devices on a single DALI network. Sites requiring more than 64 devices can be addressed as DALI subsystem (gateways).
| Overview | |
|---|---|
| Category | DALI |
| Applications | Board is ideal for controlling network based systems that controls lighting in buildings |
| Key components | |
| On-board modules | Two optocouplers, push button and screw terminal |
| Features | |
| Key features | The board is designed to use 3.3V or 5V power supply. LED diode indicates the presence of power supply |
| Interfaces | |
| Interface | GPIO |
| Compatibility | mikroBUS™ |
| Electrical | |
| Input voltage | 3.3V or 5V |
| Physical | |
| Click board size | M (42.9 x 25.4 mm) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-1297 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606015074115 |
| Warranty | 12 months |
| Shipping weight | 0.03 kg |
-
