Overview

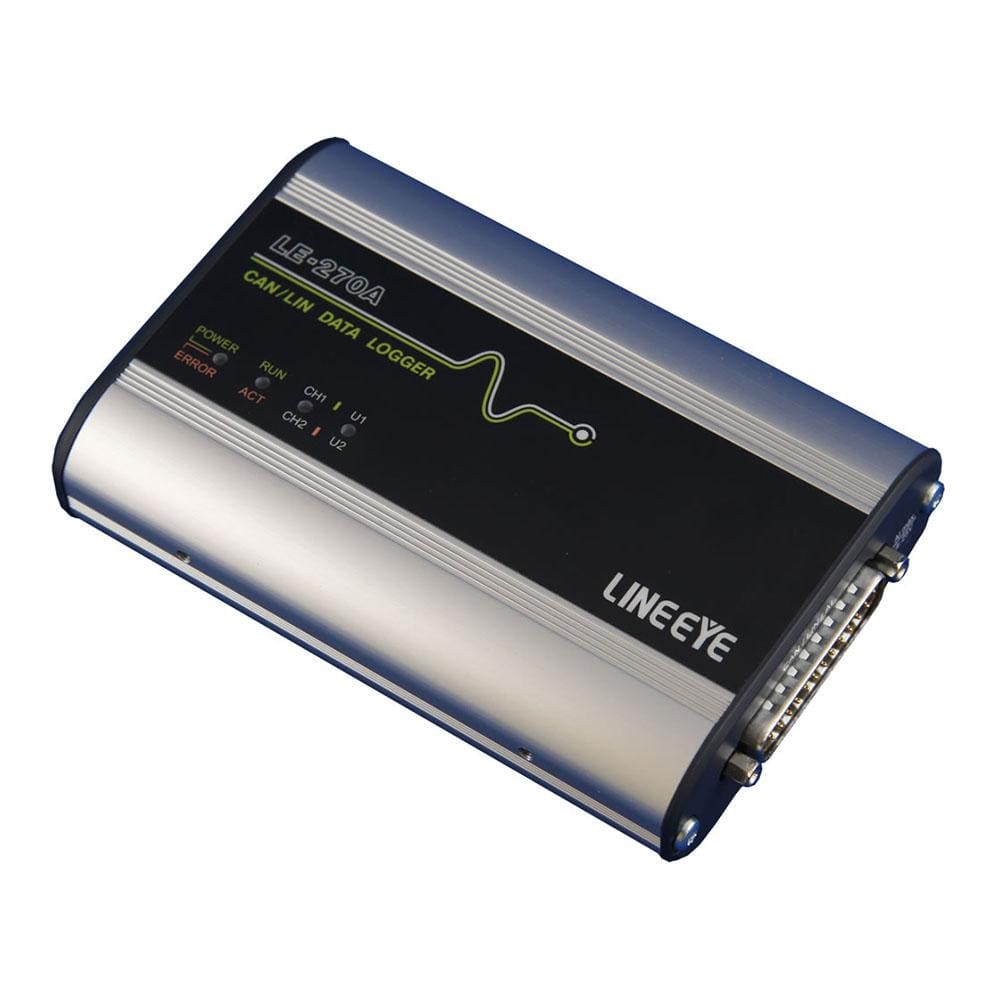

LE-270AR is an Analyzer and Communication Data Logger of CAN/LIN. It has logger mode with which you can records CAN/LIN communication logs in the SD/SDHC card for long hours and remote mode with which you can monitor data in real-time by connecting the analyzer with PC. It also has a simulation mode with which you can repeatedly transmit CAN/LIN data which is registered in advance and selected on the PC. You can measure 2 channels of CAN/LIN communication lines and can simultaneously register voltage data of 4 external signals. Its power failure protection, waterproof, and low power consumption widens the usage of analyzers such as in the automation factories and other production factories.
Downloads
User Manuals
The Lineeye LE-270A is a Communication Data Logger, which records CAN/LIN communication logs in the SD/SDHC card extended periods. When used with a PC, it performs as a CAN/LIN protocol analyser and monitors data on the PC in real time. When used stand-alone it performs as a CAN/LIN data logger, and saves data on a SD/SDHC card. It has two High-speed CAN transceivers, two Low-speed CAN transceivers and two LIN (TJA1020) transceivers. It monitors two channels of CAN or LIN, or one CAN and one LIN transceivers. In addition, four channels of Analog/Digital signals can be recorded. Power failure protection, water-proofing and low-power consumption makes LE-270A ideal for use in automotive, factory automation and other production applications.
| Ordering information | |
|---|---|
| Part number (SKU) | LE-270AF |
| Manufacturer | Lineeye Co Ltd |
| EAN | 5055383620142 |
| Warranty | 12 months |
| Shipping weight | 0.5 kg |
- 1 ×LE-270AF data logger
- 1 ×Utility CD
- 1 ×SDHC card, 8 GB
- 1 ×Mini USB cable
- 1 ×CAN/LIN D-sub cable (LE-25M3A-1)
- 1 ×Power plug cable (SIH-2PG)
- 1 ×Instruction manual
