ICD2 Connector Board

ICD2 Connector Board

for ICD2/ICD3 or Real ICE Programmers/Debuggers

SKU: MIKROE-315

Regular price
£4.80 exc VAT
£5.76 inc VAT
Regular price Sale price
£4.80 exc VAT
£5.76 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

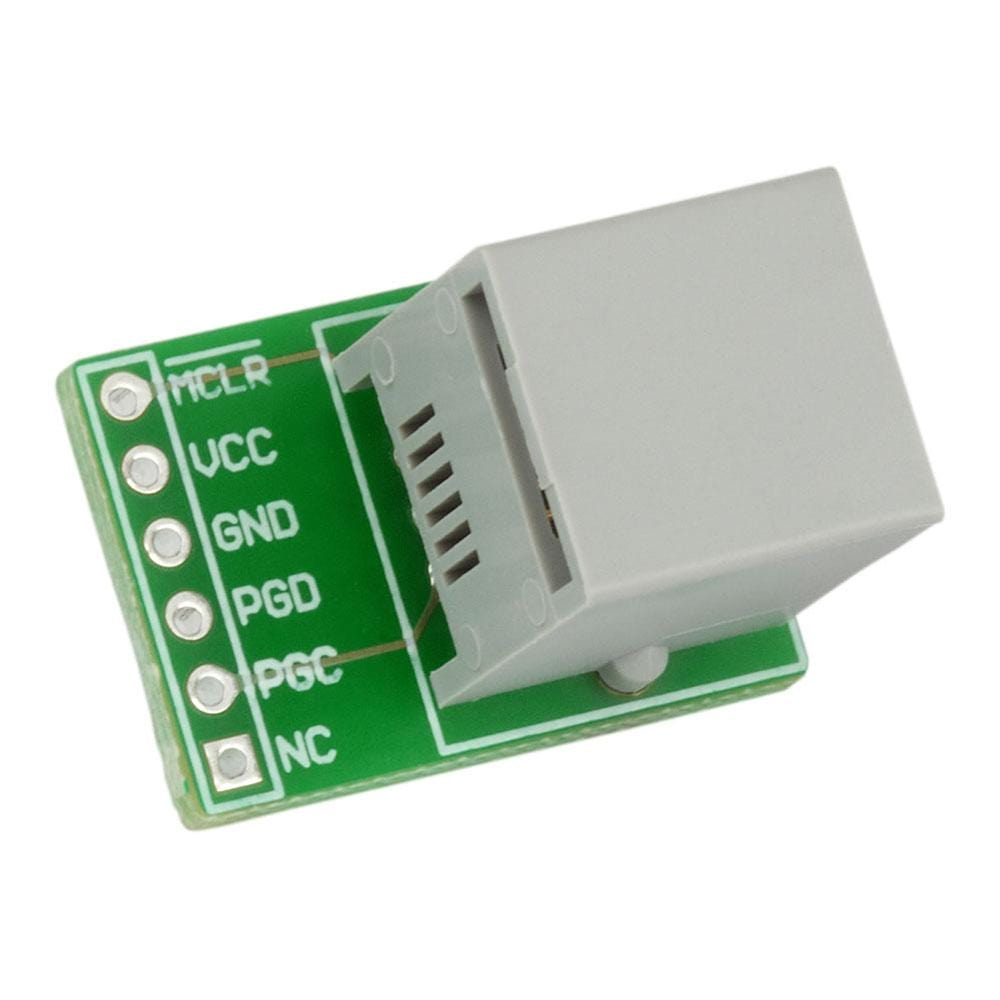

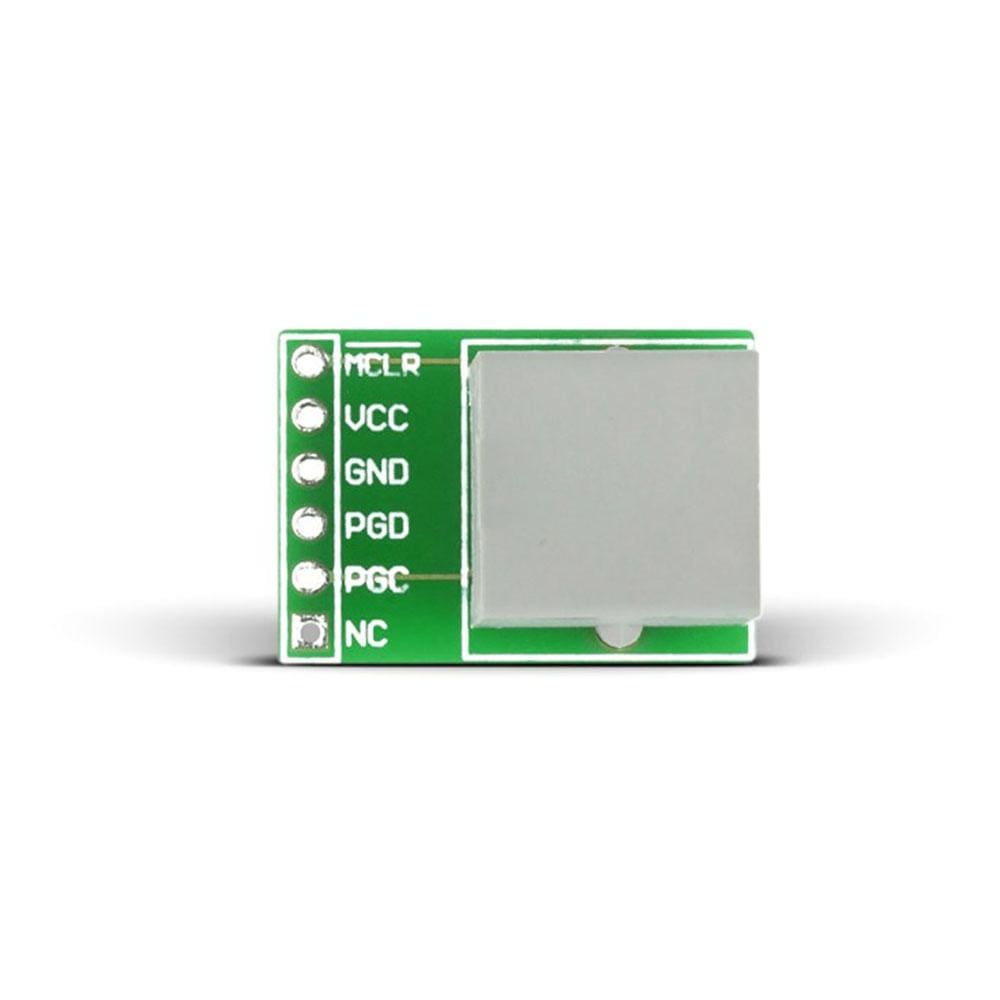

Easily connect the ICD2/ICD3 or Real ICE programmers/debuggers to the prototyping device using the ICD2 Connector Board. It is offered with a loose 1x6 header connector that the user can solder when required. The single-row header and the RJ12 connector are wired one to one. This RJ12-type connector provides easy prototyping and is considered suitable for use with solder-less breadboards. The RJ12 socket is wired to six pins to provide access to PGD, PGC and /MCLR lines along with VCC and GND power connections.

Featuring a compact design, ICD2 Connector Board works as a cost-effective solution to solve your connecting problems. The board is designed to perfectly fit into standard prototyping boards.

Easily connect the ICD2/ICD3 or Real ICE programmers/debuggers to the prototyping device using the ICD2 Connector Board. It is offered with a loose 1x6 header connector that user can solder, when required. The single-row header and the RJ12 connector are wired one to one. This RJ12-type connector provides easy prototyping and considered suitable for use with solder-less breadboards. The RJ12 socket is wired to six pins to provide access to PGD, PGC and /MCLR lines along with VCC and GND power connections.

Featuring a compact design, the ICD2 Connector Board works as a cost-effective solution to solve your connecting problems. The board is designed to perfectly fit into standard prototyping boards.

Overview
ApplicationsICD2 Connector Board is used to connect your prototype to external debugger/programmer
Product typeAdapter
Key components
On-board modulesICD2 connector
Features
Key featuresConnector is out-of-the-box compatibile with several
Key benefitsFits into standard prototyping boards
Interfaces
InterfaceGPIO
CompatibilityBreadboard (PROTO)
Electrical
Power supply3.3V or 5V
Compliance
Country of originSerbia
RoHSCompliant
Additional specifications
Microchip programmersICD2/3 and Real ICE
Ordering information
Part number (SKU)MIKROE-315
ManufacturerMikroelektronika d.o.o.
EAN8606015071039
Warranty12 months
Shipping weight0.005 kg
  • 1 × ICD2 Connector Board

Contact us to confirm the full contents of the box.
