Hantek HSA2030 Portable Spectrum Analyser 9kHz-3.2GHz

Hantek HSA2030 Portable Spectrum Analyser 9kHz-3.2GHz

Professional handheld spectrum analyser with 9kHz-3.2GHz coverage and -161dBm sensitivity for field and laboratory RF testing.

SKU: HSA2030A-KITI

Output

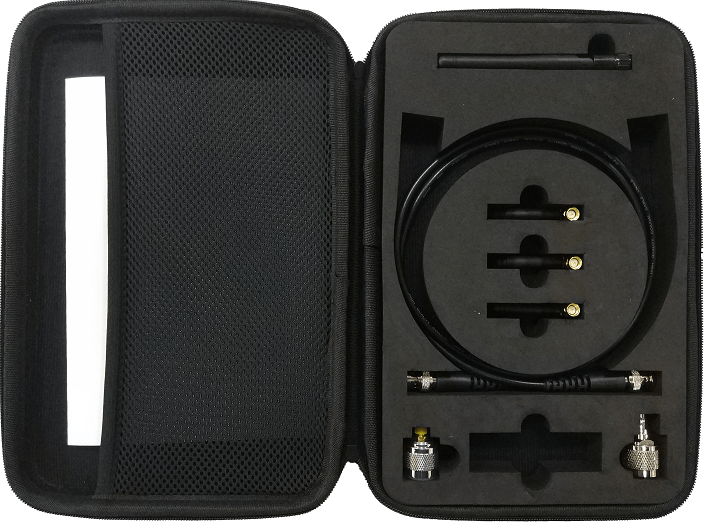

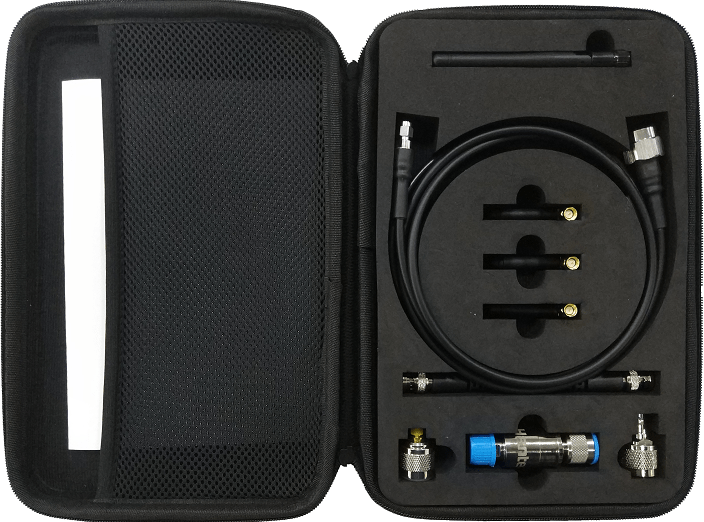

Accessory Kit
Regular price
£3,030.00 inc VAT
£2,525.00 exc VAT
Regular price Sale price
£3,030.00 inc VAT
£2,525.00 exc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock is shown above, order now and we'll ship within 10 working days.
View full details

Key Features

Wide 9kHz-3.2GHz frequency coverage
Ultra-sensitive -161dBm DANL performance
Ultra-low 10Hz resolution bandwidth
5.7-inch high-resolution colour display
Integrated tracking generator (HSA2030B)
IP-51 rugged portable design
Comprehensive connectivity options

Overview

The Hantek HSA2030 represents a breakthrough in portable spectrum analysis, combining professional-grade measurement capabilities with true handheld portability. This sophisticated instrument covers the critical frequency range from 9kHz to 3.2GHz with outstanding sensitivity and precision, making it indispensable for RF engineers, EMC specialists, and field technicians.

Available in two variants, the HSA2030A provides comprehensive spectrum analysis functionality, whilst the HSA2030B adds an integrated tracking generator for network analysis and filter characterisation. Both models feature the same exceptional sensitivity of -161dBm typical and ultra-low phase noise of <-92dBc/Hz, delivering laboratory-quality measurements in challenging field environments.

The HSA2030 series includes advanced demodulation capabilities for AM/FM signals, comprehensive SCPI remote control, and PC software for automated measurements and data logging. Explore our complete range of spectrum analysers and RF test equipment for comprehensive solutions.

Unmatched Portability

Professional spectrum analysis anywhere with 4+ hour battery life and rugged IP-51 rated construction

Laboratory-Grade Sensitivity

Detect signals down to -161dBm with ultra-low 10Hz resolution bandwidth for precise measurements

Complete Frequency Coverage

Single instrument spans 9kHz-3.2GHz covering all major RF bands from audio to microwave

Professional Handheld Spectrum Analysis

The Hantek HSA2030 is a compact yet powerful spectrum analyser designed for professional RF testing in both laboratory and field environments. With its wide frequency coverage from 9kHz to 3.2GHz and exceptional sensitivity of -161dBm, this portable instrument delivers laboratory-grade performance in a rugged, handheld format.

Key Specifications

Parameter HSA2030A HSA2030B
Frequency Range 9kHz - 3.2GHz AC Coupled 9kHz - 3.2GHz AC Coupled + 5MHz-3.2GHz TG
Sensitivity (DANL) -161dBm typical -161dBm typical
Resolution Bandwidth 10Hz - 1MHz 10Hz - 1MHz
Phase Noise <-92dBc/Hz @ 10kHz offset <-92dBc/Hz @ 10kHz offset
Tracking Generator - 5MHz - 3.2GHz

Advanced Measurement Capabilities

The HSA2030 features ultra-low resolution bandwidth down to 10Hz, enabling precise signal analysis and interference detection. The built-in preamplifier enhances sensitivity to -161dBm typical, allowing detection of extremely weak signals buried in noise.

Zero Span Mode: Analyse time-domain characteristics of fixed frequency components with sweep times from 600ns to 200s.

Comprehensive Connectivity

Multiple interface options ensure flexible integration into test setups:

  • USB Host/Device: Connect USB storage devices or control from PC
  • LAN Interface: Remote SCPI control and data transfer
  • External Trigger/10MHz Reference: Synchronise with other test equipment
  • Audio Output: AM/FM demodulation monitoring

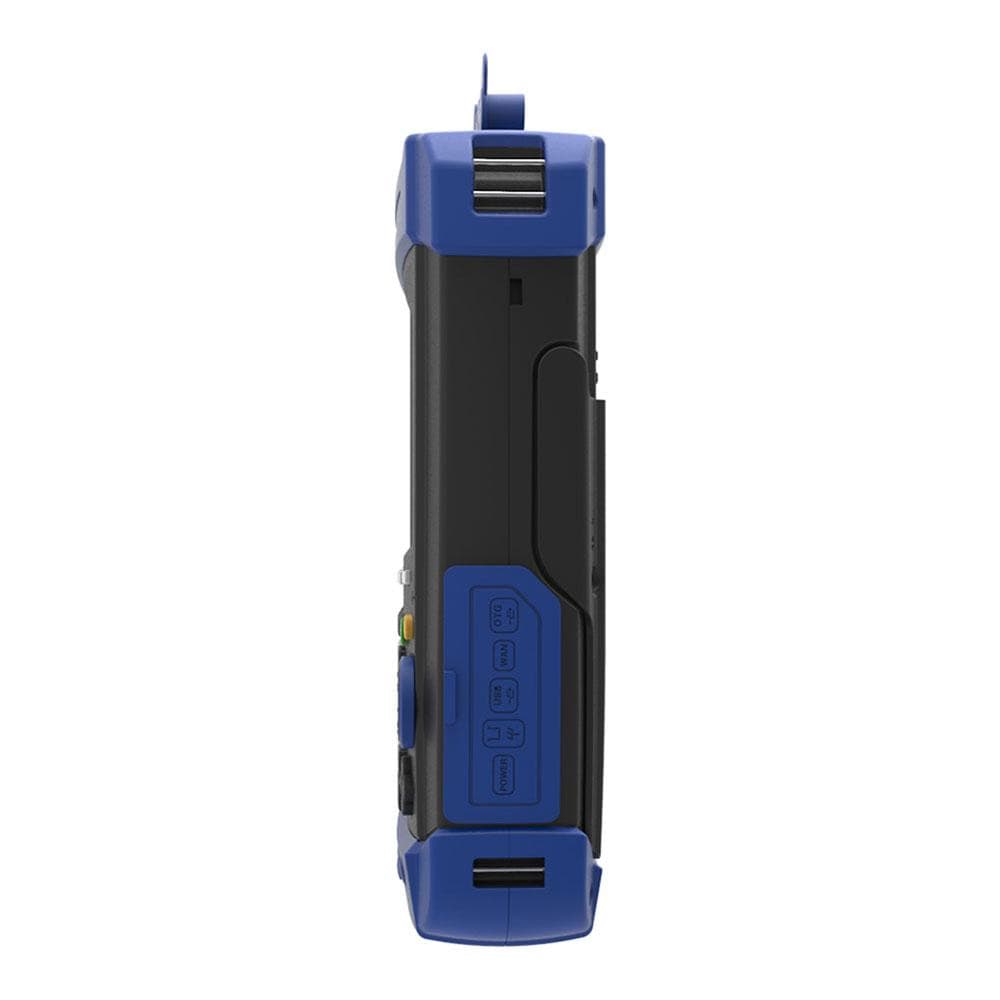

Rugged Portable Design

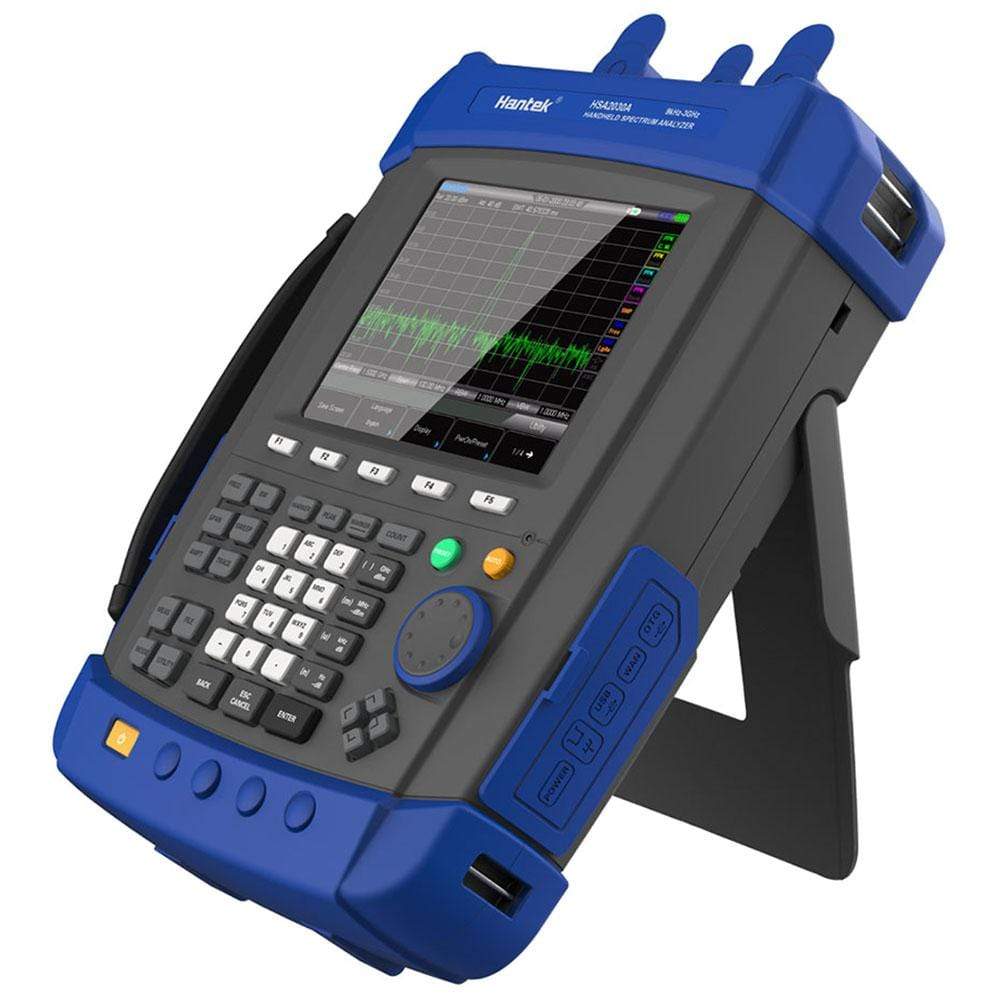

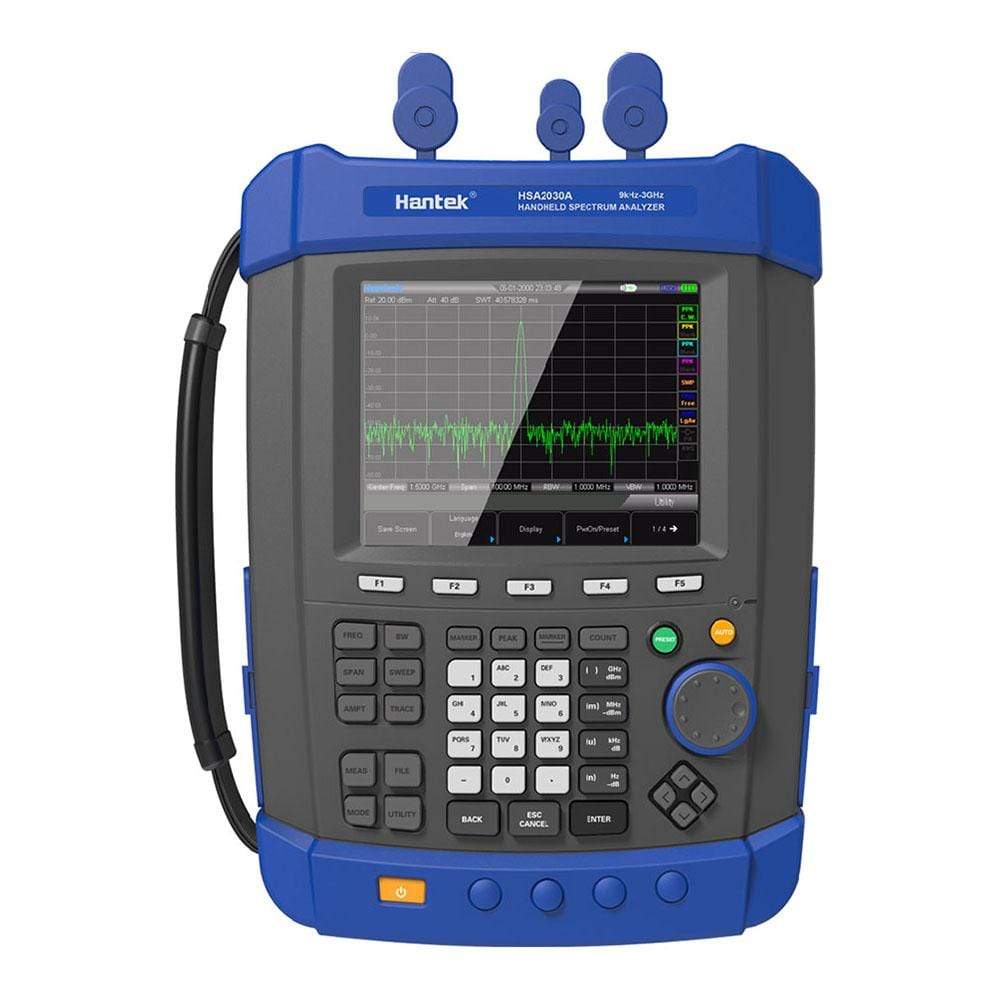

The IP-51 rated enclosure withstands harsh field conditions whilst maintaining precision measurements. The 5.7-inch high-resolution colour display remains clearly visible in bright environments, and the intuitive keypad layout enables rapid operation even when wearing gloves.

Operating temperature: -10°C to +50°C | Storage: -40°C to +70°C | Humidity: <95% RH

Professional Applications

  • EMC pre-compliance testing and troubleshooting
  • Wireless communications site surveying
  • Antenna pattern measurements and VSWR analysis
  • Interference hunting and spectrum monitoring
  • RF circuit design validation
  • Broadcasting equipment maintenance

Power and Portability

The integrated lithium battery provides over 4 hours of continuous operation, making the HSA2030 ideal for extended field work. Multiple power options include AC mains, 12V DC automotive, and USB charging for maximum flexibility.

Professional Grade Performance: Amplitude accuracy <1.5dB with excellent spurious response characteristics ensure reliable, repeatable measurements across the entire frequency range.

Frequently Asked Questions

Have a Question?

Ask a Question
  • How does the HSA2030 compare to benchtop spectrum analysers?

    The HSA2030 delivers comparable sensitivity and accuracy to benchtop instruments whilst offering true portability, making it perfect for field measurements and mobile applications where benchtop units are impractical.

  • What is the phase noise performance of the HSA2030?

    The HSA2030 achieves excellent phase noise performance of <-92dBc/Hz at 10kHz offset, ensuring clean spectral measurements and accurate signal characterisation.

  • Can the HSA2030 perform time-domain analysis?

    Yes, the zero-span mode enables time-domain analysis of fixed frequency components with sweep times from 600ns to 200s, ideal for pulse and transient analysis.

  • What connectivity options does the HSA2030 provide?

    The HSA2030 features USB Host/Device ports, LAN interface for remote control, external trigger/10MHz reference input, headphone output for demodulation, and SD card slot.

  • Is the HSA2030 suitable for EMC testing?

    Yes, the HSA2030 is excellent for EMC pre-compliance testing with its wide frequency coverage, high sensitivity, and comprehensive measurement functions including peak detection and averaging.

  • What resolution bandwidth can the HSA2030 achieve?

    The HSA2030 offers resolution bandwidth from 10Hz to 1MHz in 1-3-10 sequence, with the ultra-low 10Hz RBW enabling analysis of closely-spaced signals.

  • How long does the battery last on the HSA2030?

    The integrated lithium battery provides over 4 hours of continuous operation, with multiple charging options including AC mains, 12V DC automotive, and USB charging.

  • What is the difference between HSA2030A and HSA2030B models?

    The HSA2030A is a spectrum analyser only, whilst the HSA2030B includes an integrated tracking generator covering 5MHz-3.2GHz for network analysis and filter characterisation.

  • What is the sensitivity of the HSA2030 spectrum analyser?

    The HSA2030 achieves exceptional sensitivity with DANL (Displayed Average Noise Level) of -161dBm typical when the preamplifier is enabled, allowing detection of extremely weak signals.

  • What frequency range does the Hantek HSA2030 cover?

    The HSA2030 covers 9kHz to 3.2GHz AC coupled, providing comprehensive analysis from audio frequencies through microwave bands including Wi-Fi, Bluetooth, cellular, and ISM bands.
