SKU: HSA2016A-KITIHantek HSA2016 Spectrum Analyser (1KHz - 1.6GHz)
Hantek HSA2016 Spectrum Analyser (1KHz - 1.6GHz)
Couldn't load pickup availability

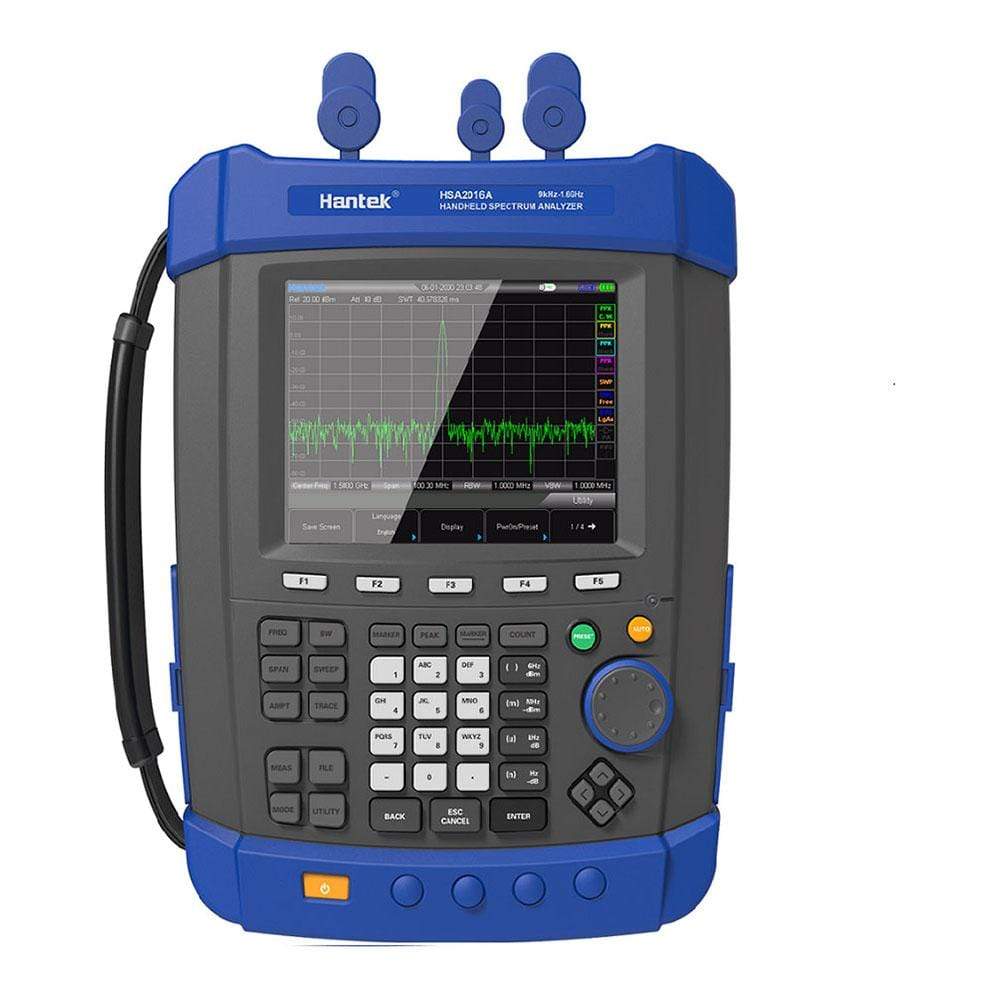

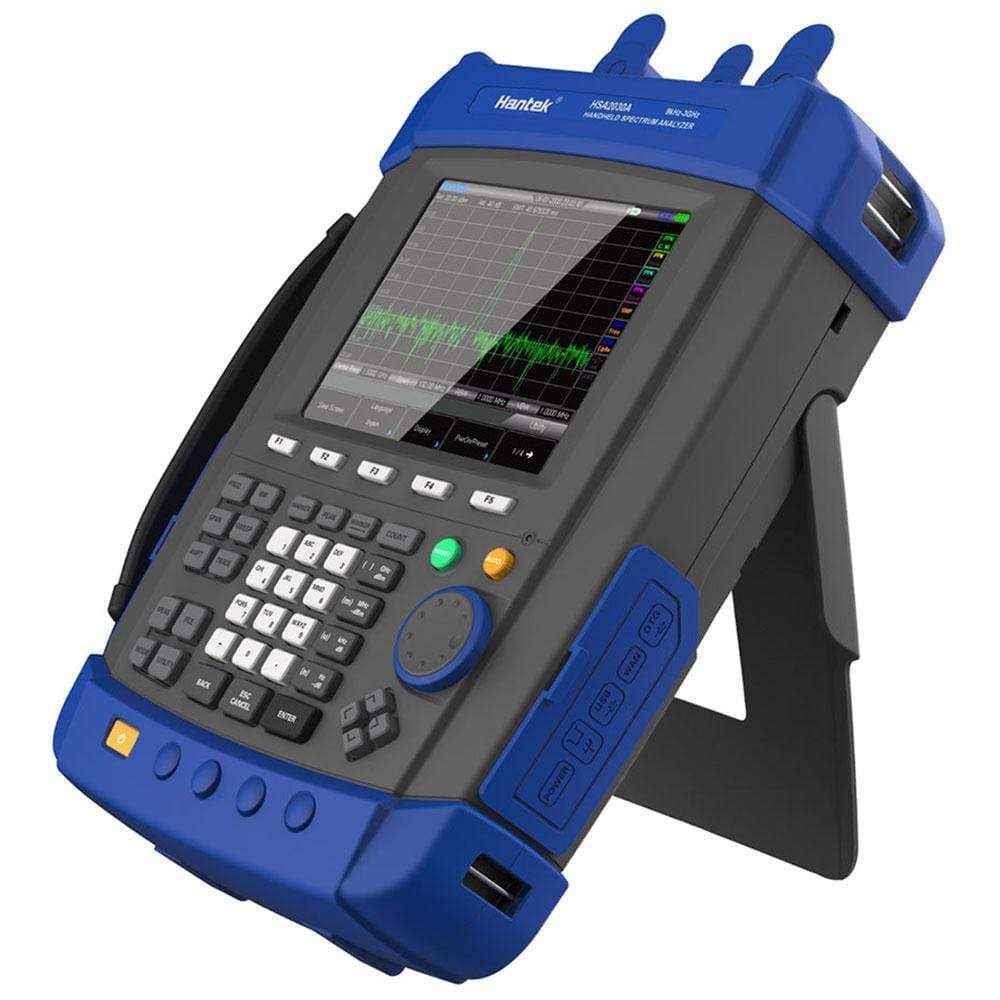

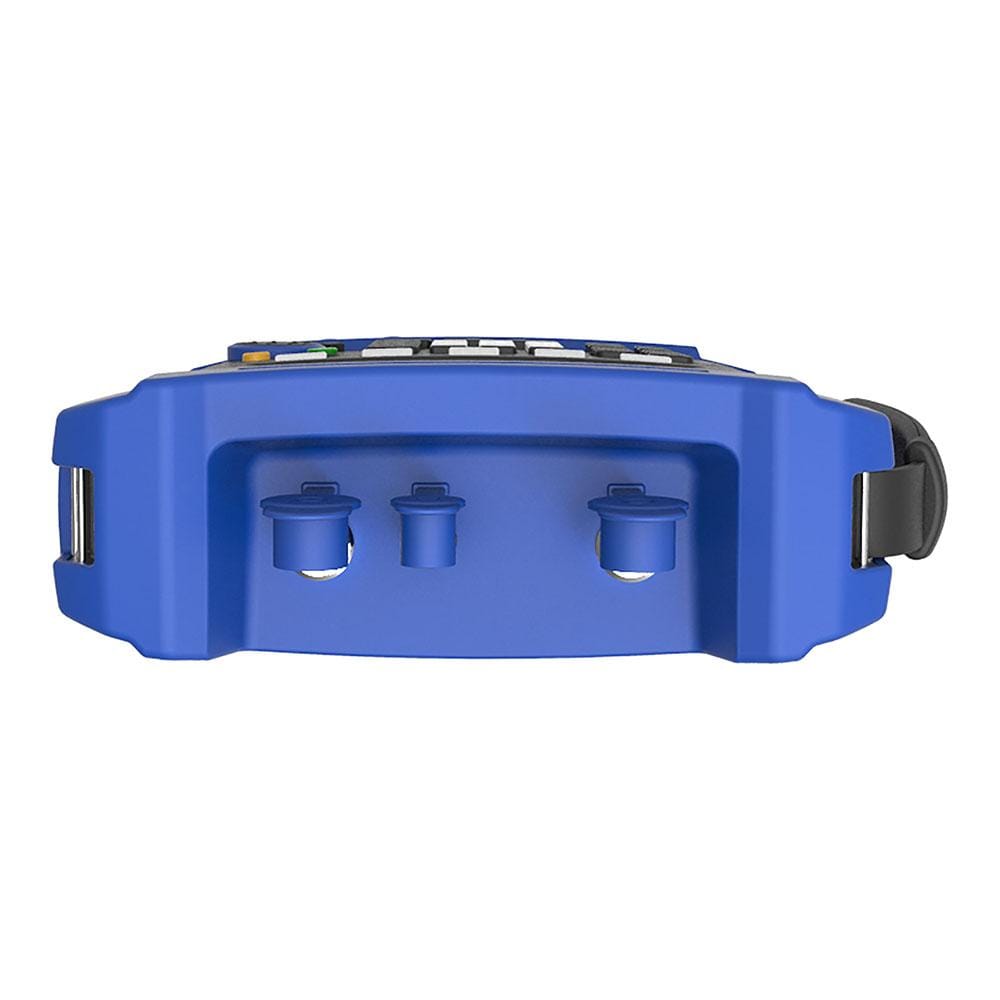

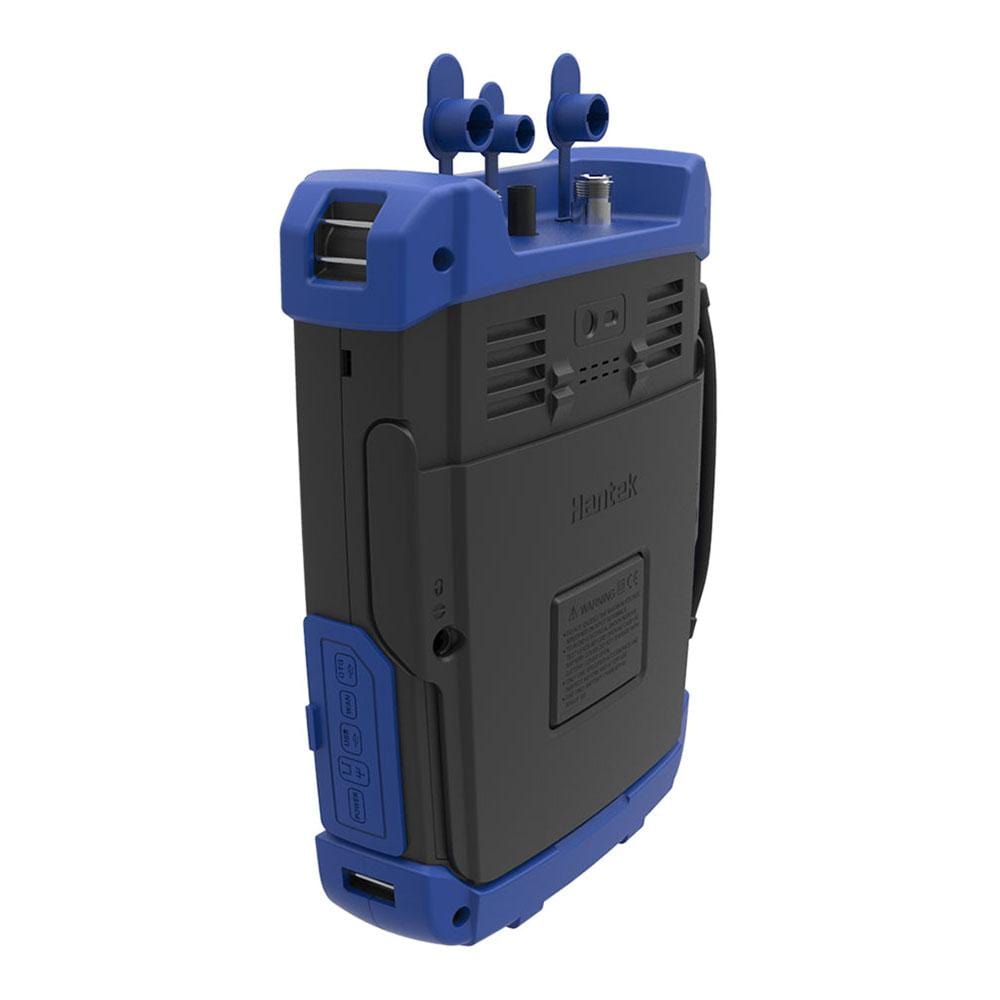

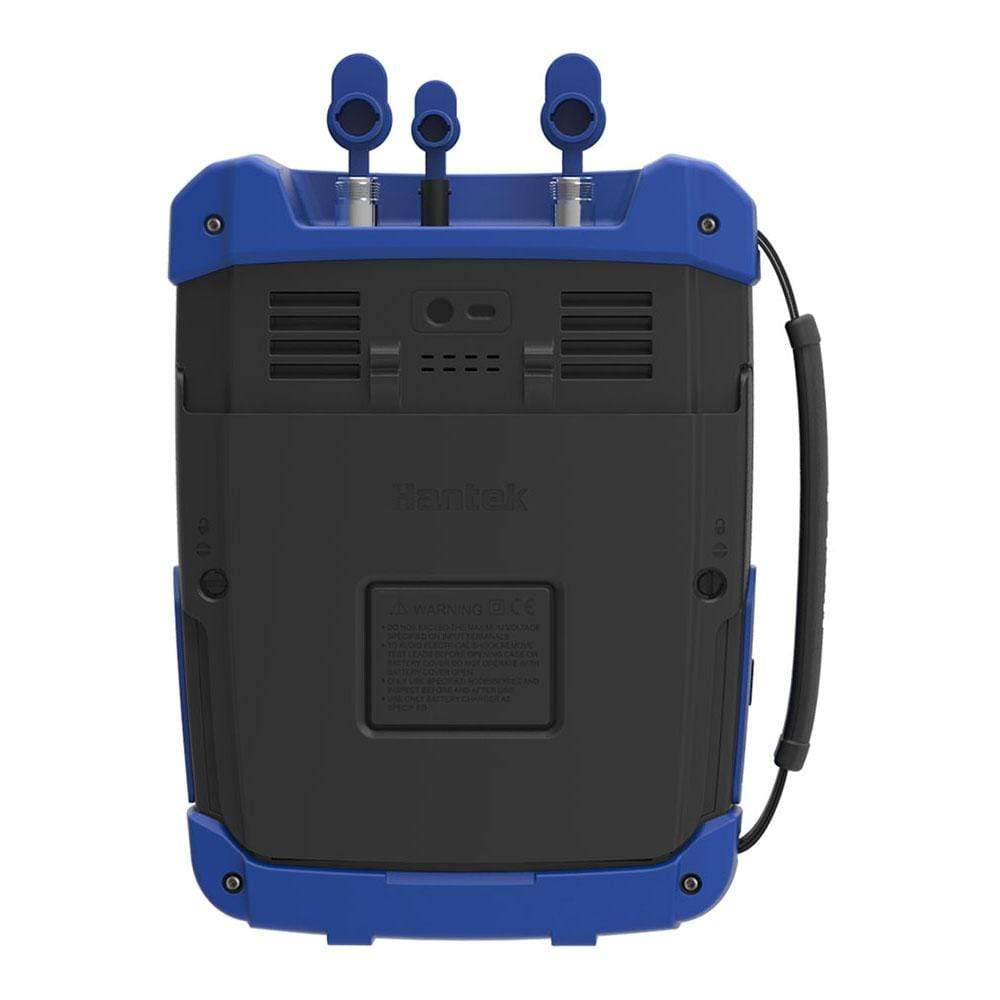

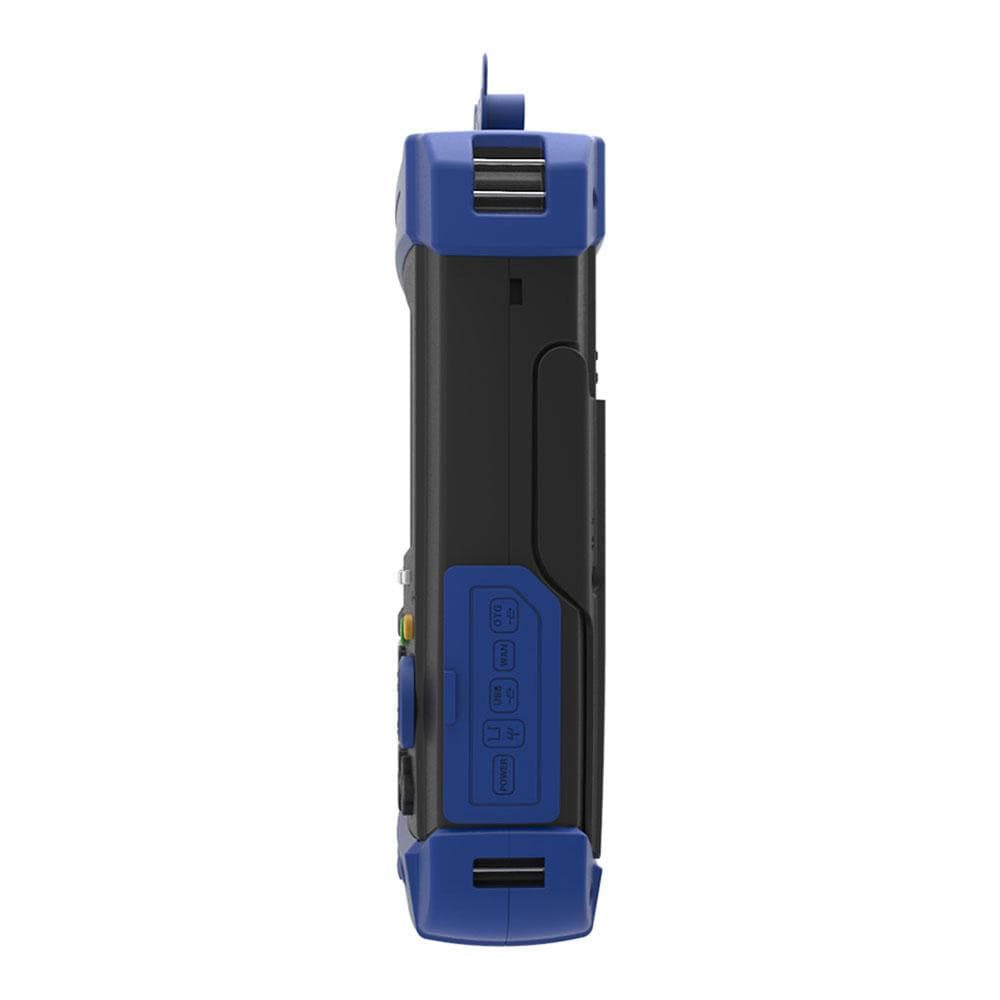

The new portable Hantek HSA2016 Spectrum Analyser is an affordable and convenient solution for testing frequency ranges for research or trouble-shooting. Featuring a lightweight and compact design with a unique "folding structure", it aims to provide users with a portable and high-performance tool. With USB/LAN communication, it can be connected either to your laptop computer or to the network, providing a wide range of remote control options. With a 18650mAh rechargeable battery built-in, an external power supply is not necessary and is great for portability.
Features
- Frequency range: 9KHz-1.6GHz (tunable to 9KHz) AC Coupled
- Optimal sensitivity: -161dBm RBW:10Hz to 1MHz
- IP-51, High protection portable design, sturdy and durable, can be used in laboratory, more suitable for field mobile use.
- built-in large capacity lithium battery can work for more than 4 hours.18650mAh rechargeable battery.
- 5.6-inch highlight colour screen shows waveforms clearly in all conditions.
- HSA2000 Series spectrum analyzer has the lowest DANL and SSB phase noise, and the narrowest RBW. It greatly enhances the recognition ability of the spurious signal and noise signal.
- Optional FM/AM modulation analysis, including carrier power, modulation rate, AM depth/FM deviation, SINAD and carrier frequency offset.
- Standard spectrum feature. It can analyze the signal time stability, and find out lacunar signals in the communication system accurately.
- Strong field strength test function, fit for the test work in transmitter, base station and the antenna coverage site. It can show the density of field strength or power. The user could also calibrate gain or loss by using the amplitude offset function.
- HAS2000 Series has the least RBW in the same level of analyzers, and can easily confirm, distinguish and measure two similar signals.
- The 5.7-inch highlight colour display can provide accurate, bright and clear traces both inside and outside, no need to move into the shade to work.
- Short scanning time. It can fast catch the data and help to locate and recognize the irregular transient disturbance signal and then optimize the testing time and accuracy.
- Firm and tight mechanical structure, close rubber sleeve pack, ideal for harsh work environments.
- Integration USB Host & Device, support USB flash disk memory, optional WIFI/LAN, which is convenient for networking and long-range control.
- Its PC software can achieve the management and storage of testing data.

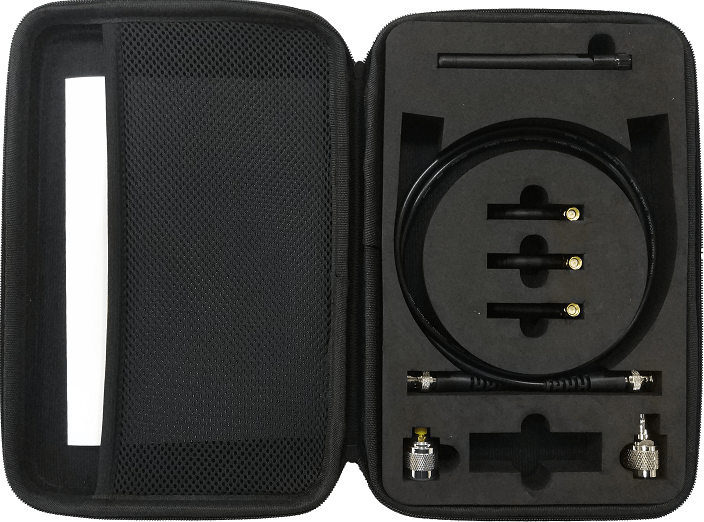

KIT I
- Accessory bag
- N-SMA adapter
- N-BNC adapter
- BNC-BNC cable
- 315MHz antenna
- 433MHz antenna
- 900M/1.8GHz antenna
- 2.4GHz antenna

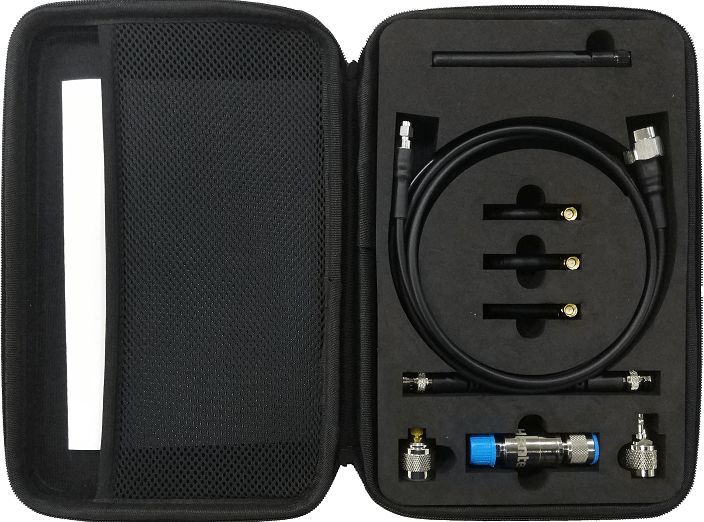

KIT II
- Accessory bag
- N-SMA adapter
- N-BNC adapter
- BNC-BNC cable
- 315MHz antenna
- 433MHz antenna
- 900M/1.8GHz antenna
- 2.4GHz antenna
- 50Ω - 75Ω impedance converter
- N-SMA cable
|
Parameters |
|||
|
Model |
HSA2016A |
HSA2016B |
|
|
Frequency |
|||
|
Frequency Range |
9KHz~1.6GHz AC Coupled |
9KHz~1.6GHz AC Coupled 5M~1.6GHz TG |
|
|
Frequency Resolution |
1Hz |
||
|
Reference Frequency |
10MHz |
||
|
Frequency Readout Accuracy |
±(frequency indication*frequency reference uncertainty+1%*span+20%RBW+marker resolution+1Hz) |
||
|
Internal 10MHz Reference Accuracy |
Ageing rate |
±1ppm/year（0℃~50℃， Reference is 25℃） |
|
|
Temperature stability |
±1ppm/year |
||
|
Marker Resolution |
(Frequency span)/(number of sweep points-1) |
||
|
Resolution Bandwidth（RBW） |
|||
|
-3dB Bandwidth |
10Hz to 1MHz，1-3-10 sequence |
||
|
Accuracy |
±5% RBW=10Hz~1MHz nominal |
||
|
Resolution Filter Shape Factor |
＜5:1 nominal |
||
|
Video Bandwidth（VBW） |
-3dB bandwidth |
1Hz to 1MHz，1-3-10 sequence |
|
|
Accuracy |
±10% VBM=1Hz~1MHz nominal |
||
|
Displayed Average Noise Level (normalized to1Hz) |
|||
|
9K~1MHz |
Preamp off |
-108dBm，typical -127dBm |
|
|
1MHz ~10MHz |
-128dBm，typical -146dBm |
||
|
10MHz ~500MHz |
-142dBm，typical -146dBm |
||
|
500MHz ~2.5GHz |
-141dBm，typical -145dBm |
||
|
2.5GHz ~3GHz |
-140dBm，typical -144dBm |
||
|
9K~1MHz |
Preamp on |
-131dBm，typical -150dBm |
|
|
1MHz ~10MHz |
-148dBm，typical -163dBm |
||
|
10MHz ~500MHz |
-161dBm，typical -164dBm |
||
|
500MHz ~2.5GHz |
-159dBm，typical -162dBm |
||
|
2.5GHz ~3GHz |
-158dBm，typical -161dBm |
||
|
SSB Phase Noise |
|||
|
Carrier Offset(20℃~ 30℃，500MHz Central Frequency） |
10K |
< -92 dBc/Hz, typical -95 dBc/Hz |
|
|
30K |
< -93 dBc/Hz, typical -96 dBc/Hz |
||
|
100K |
< -95 dBc/Hz, typical -97 dBc/Hz |
||
|
1MHz |
< -117 dBc/Hz, typical -119 dBc/Hz |
||
|
Sweep Time |
|||
|
Range |
Span >100Hz |
2ms to 1000s |
|
|
Span=0Hz |
600ns to 200s |
||
|
Sweep Mode |
Continuous, single |
||
|
Trigger Source |
Free run; video; external |
||
|
Trigger slope |
Selectable positive or negative edge |
||
|
Trigger delay |
Span =0Hz |
±12ms to ±12s nominal |
|
|
Frequency Counter |
|||
|
Counter Resolution |
1Hz |
||
|
Accuracy |
± (marker frequency × frequency reference uncertainty + counter resolution) |
||
|
Level Display Range |
|||
|
Log Scale and Units |
1 to 10 dB/divisions in 1, 2, 5, 10 dB steps, 10 divisions displayed |
||
|
Linear Scale and Units |
0 to 100%，10 divisions displayed |
||
|
Scale Unit |
dBm，dBmV,dBuV,Watts，Volts |
||
|
Sweep (Trace) Points |
461 |
||
|
Number of Markers |
4 |
||
|
Detectors |
Normal, positive peak, sample, negative peak, RMS |
||
|
Number of Traces |
4 |
||
|
Trace Functions |
Clear/write, maximum hold, minimum hold, average, check， close |
||
|
Level Measurement Error |
±1.5dB(excluding input VSWR mismatch) 20~30℃， peak detector, preamplifier off, input signal -50dBm to 0dBm |
||
|
Reference Level |
|||
|
Setting Range |
-100dBm to +30dBm, steps of 1dB |
||
|
Setting Resolution |
Log scale |
0.01dB |
|
|
Linear scale |
Almost log（2.236μV to 7.07V） |
||
|
Amplitude |
|||
|
Maximum Safety Input Level |
Average continuous power |
+33dBm |
|
|
DC input voltage |
50Vdc |
||
|
Measurement Range |
9KHz~2MHz |
Displayed average noise level (DANL) to +10dB |
|
|
2MHz~3GHz |
Displayed average noise level (DANL) to +20dB |
||
|
Input attenuator range |
0 to 51dB,1dB steps |
||
|
Spurious Response |
|||
|
Second Harmonic Distortion（SHI） |
<65dBc，50MHz to 3GHz（Mixer level -30dBm，attenuator =0dB，preamp off，20℃~30℃） |
||
|
Third-Order Intermodulation（TOI） |
50~300MHz |
+3dBm，Third-order intermodulation products：2 x -20dBm; frequency separation 100KHz：attenuation = 0dB; preamp off，20℃~30℃ |
|
|
300MHz~1.6GHz |
+3dBm |
||
|
Input Related Spurious |
<-75dBc，(input mixer = -30dBm) |
||
|
Inherent Residual Response |
<-90dBm，typical -98dBm (Input terminated and 0 dB RF attenuation, preamplifier off) |
||
|
RF Input VSWR (at Tuned Frequency) |
10MHz to 1.6GHz |
＜1.5:1, nominal Attenuator setting 10~20dB |
|
|
10MHz Reference/External Trigger Input |
|||
|
Reference Input Frequency |
10MHz |
||
|
Reference Input Amplitude |
0~10dBm |
||
|
Trigger Voltage |
5V TTL level |
||
|
Connector and Output Impendence |
N female；（50Ω） |
||
|
General Feature |
|||
|
Interface Language |
English， Chinese， Chinese Traditional |
||
|
Display Index |
5.7 inch，640*480 resolution，64M colour LCD display |
||
|
Temperature Range |
Working |
-10℃ to +50℃，（battery：0℃ to 50℃） |
|
|
Storage |
-40℃ to +70℃，（battery:-20℃ to 50℃） |
||
|
Relative Humidity |
<95% |
||
|
Weight |
2.9kg（with battery），2.6kg（without battery） |
||
|
Size |
260m X 220m X 75m |
||
|
Power |
Input voltage range |
DC: 12-17V, maximum 2.8A input 220VAC±15% |
|
|
AC frequency range |
40Hz to 60Hz |
||
|
Power consumption |
Maximum 32W |
||
