Mikroelektronika d.o.o.

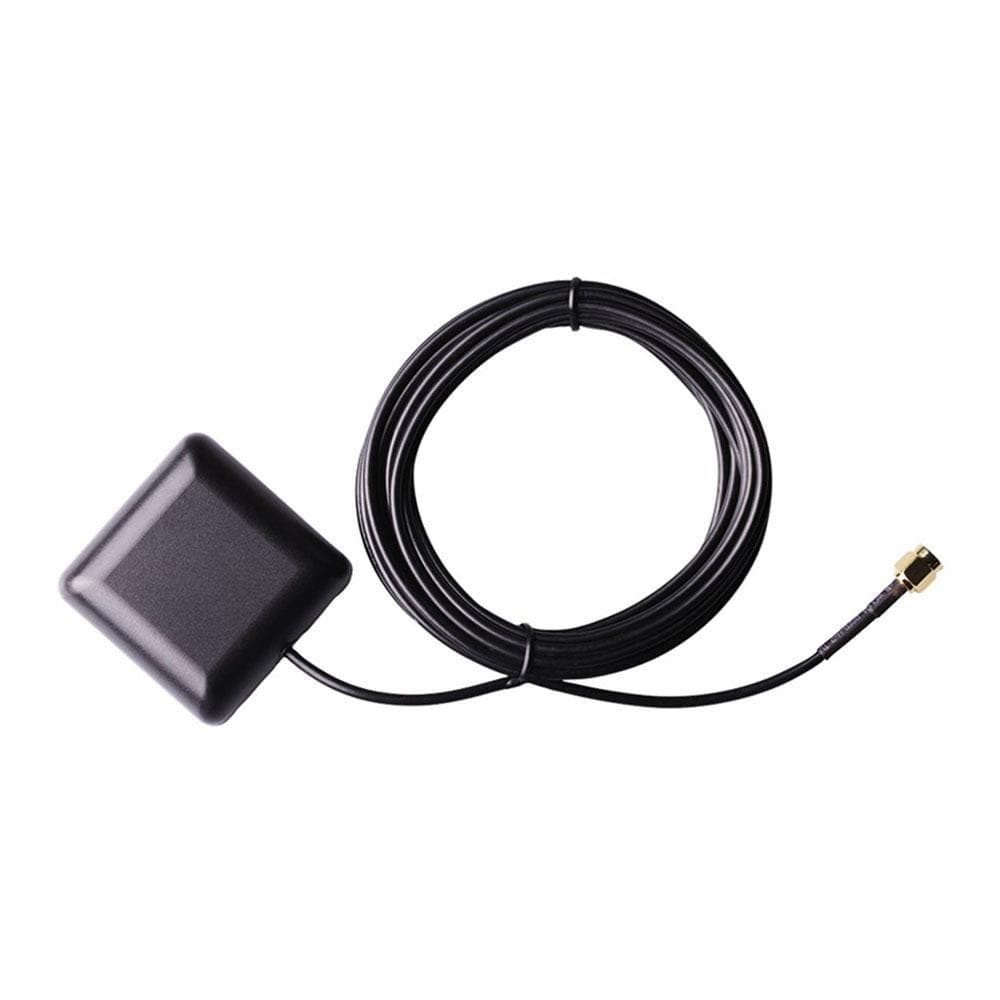

GPS Active External Antenna

GPS Active External Antenna

Compatible with all GPS/GNSS Click Boards

SKU: MIKROE-3373

Regular price
£20.00 exc VAT
£24.00 inc VAT
Regular price £17.88 GBP Sale price
£20.00 exc VAT
£24.00 inc VAT
Sale Sold out
Shipping calculated at checkout.
If no stock shown above, check availability

Payment methods

  • American Express
  • Visa
  • Mastercard
  • Maestro
  • PayPal
  • Apple Pay
  • Google Pay
  • Bank transfer
View full details

Overview

This GPS Active External Antenna is a 100% waterproof external antenna, which represents an excellent choice for all GPS/GNSS Click Boards™ from our offer. With its high gain, active band filtering, and magnetised base for easy installation, it is a perfect choice when reinforced positioning is required.

The GPS Active External Antenna is a 100% waterproof external antenna, which represents an excellent choice for all GPS/GNSS Click Board™s from our offer. With its high gain, active band filtering, and magnetized base for easy installation, it is a perfect choice when reinforced positioning is required.

Specifications

  • Frequency range: 1595.42 ± 25MHz
  • Impedance: 50Ω
  • VSW Ratio: <2:1
  • Gain: 30dB
  • Bandwidth: 5MHz
  • Polarization: RHCP
  • Peak Gain: > 3dBic (7×7cm ground plane)
  • Gain Coverage: > -4dBic (-90⁰ < 0⁰ < +90⁰)
  • LNA Gain: 28 dB (without cable)
  • Noise: 1.5dB
  • DC Voltage: 3 - 5V
  • Current consumption: up to 10mA
  • Cable Length Weight: 3m
  • Antenna Size: 50.5 x 50.5 x 15mm
  • Antenna Base Type: Magnetic
  • Connector Type: SMA male
  • Storage Temperature: -30⁰C to +75⁰C (100% Waterproof)
Overview
CategoryMagnetic
Performance
Frequency range1595.42 ± 25MHz
Compliance
Country of originSerbia
RoHSCompliant
Additional specifications
Impedance50Ω
VSWR3dBic (7×7cm ground plane)
Gain coverage> -4dBic (-90⁰ < 0⁰ < +90⁰); LNA
Gain28 dB (without cable)
Noise1.5dB
DC voltage3 to 5V
Current consumptionup to 10mA
Cable length3 m
Antenna size50.5 x 50.5 x 15mm; Antenna Base
Connector typeSMA male
Storage temperature-30⁰C to +75⁰C (100% Waterproof)
Ordering information
Part number (SKU)MIKROE-3373
ManufacturerMikroelektronika d.o.o.
EAN8606018714575
Warranty12 months
Shipping weight0.075 kg
  • 1 × GPS Active External Antenna

Contact us to confirm the full contents of the box.
