Flip&Click Board™ PIC32MZ (ChipKIT)
Flip&Click Board™ PIC32MZ (ChipKIT)
SKU: MIKROE-2707
Regular price
£99.20
inc VAT
£82.80
exc VAT
Regular price
£82.80 GBP
Sale price
Unit price
per
£99.20
inc VAT
£82.80
exc VAT
Shipping calculated at checkout.
If no stock shown above, check availability
Couldn't load pickup availability
Overview
Flip&Click Board™ PIC32MZ is a two-sided development board with a split personality. It can be used with chipKIT core(Arduino-style development environment), which is included.

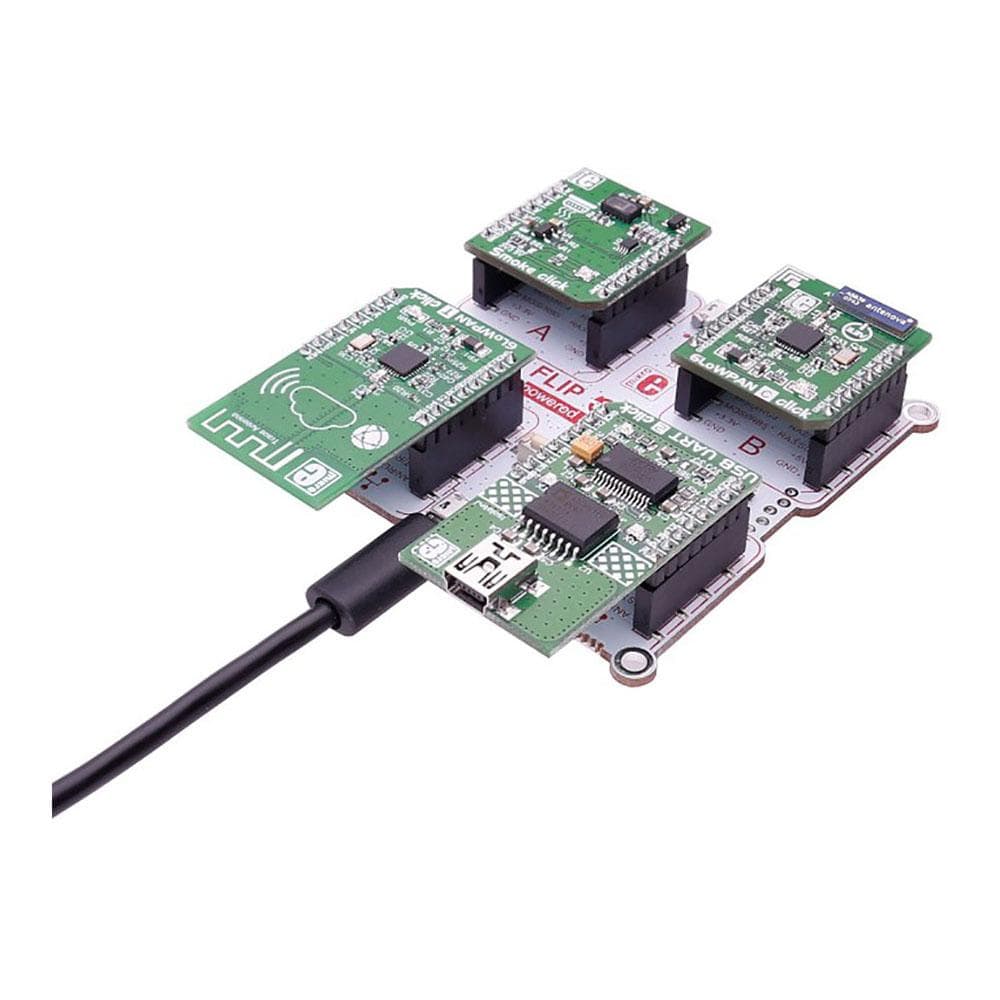

It's a beginner-friendly rapid prototyping tool expandable with up to four Click Boards™.
Using Flip&Click Board™ PIC32MZ with chipKIT Bootloader
- Plug in Flip&Click Board™ (use the USB port between C and D socket).
- Launch Arduino IDE
- Download ChipKIT core (for detailed instruction, see the user manual)
- Start writing Arduino sketches.
| Overview | |
|---|---|
| Applications | Beginner-friendly rapid prototyping tool expandable with up to four click boards |
| Architecture | PIC32 (32-bit) |
| Programming | Via mikroE bootloader and via chipKIT bootloader |
| Key components | |
| Main IC | PIC32MZ2048EFH100-250I/PF (Microchip Technology) |
| Clock | Up to 250 MHz |
| Interfaces | |
| Interface | I2C, UART, SPI, PWM, Analog, GPIO |
| Expandability | 4 x mikroBUS™ sockets, 1 x Arduino socket |
| Electrical | |
| Input voltage | 5V (via USB) |
| Compliance | |
| Country of origin | Serbia |
| RoHS | Compliant |
| Ordering information | |
| Part number (SKU) | MIKROE-2707 |
| Manufacturer | Mikroelektronika d.o.o. |
| EAN | 8606018711093 |
| Warranty | 12 months |
| Shipping weight | 0.04 kg |
-
1 ×
Flip&Click Board™ PIC32MZ (ChipKIT)
Contact us to confirm the full contents of the box.
