Dediprog Technology Co Ltd
Dediprog BBF Testclip Dual Flash (SO16W 300mil)
Dediprog BBF Testclip Dual Flash (SO16W 300mil)
SKU: BBF-2TC-16
Regular price
£80.00
exc VAT
£96.00
inc VAT
Regular price
Sale price
Unit price
per
£80.00
exc VAT
£96.00
inc VAT
Shipping calculated at checkout.
If no stock is shown above, order now and we'll dispatch within 10 working days.
Payment methods
- Bank transfer
Couldn't load pickup availability
Overview

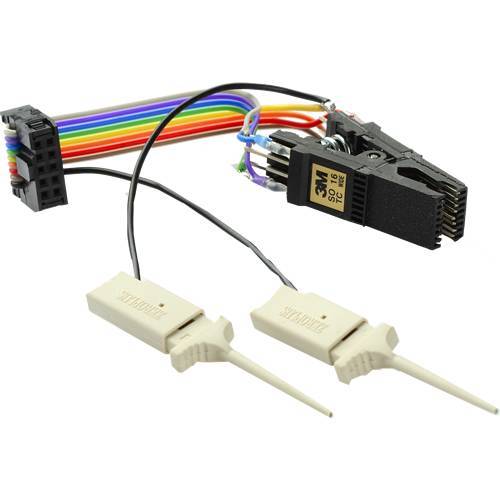

The BBF Dual SO16W Test Clip is used to connect the Dual Backup Boot Flash Tool to the Two Main Serial Flash soldered on board offering the possibility to the application controller to work on the Two Backup Flash automatically without any need of connectors.
- One SO16W Test Clip to be connected on the First Serial Flash package.
- Two individual Test Clips to be connected on the Chip select and Hold pin of the second Serial flash.
- The BBF Dual SO16W Test Clip is frequently used in combination with the Dual Backup Boot Flash Tool to develop Bios code or repair Desktop and notebook using Serial Flash.
- Compatible with most of the applications (no hardware modification needed).
- Compatible with SO16W packages.
| Ordering information | |
|---|---|
| Part number (SKU) | BBF-2TC-16 |
| Manufacturer | Dediprog Technology Co Ltd |
| EAN | 5055383604975 |
| Warranty | 12 months |
| Shipping weight | 0.5 kg |
-
1 ×
Dediprog BBF Testclip Dual Flash (SO16W 300mil)
Contact us to confirm the full contents of the box.
