Acute DG4000 Series Data Generator

Overview

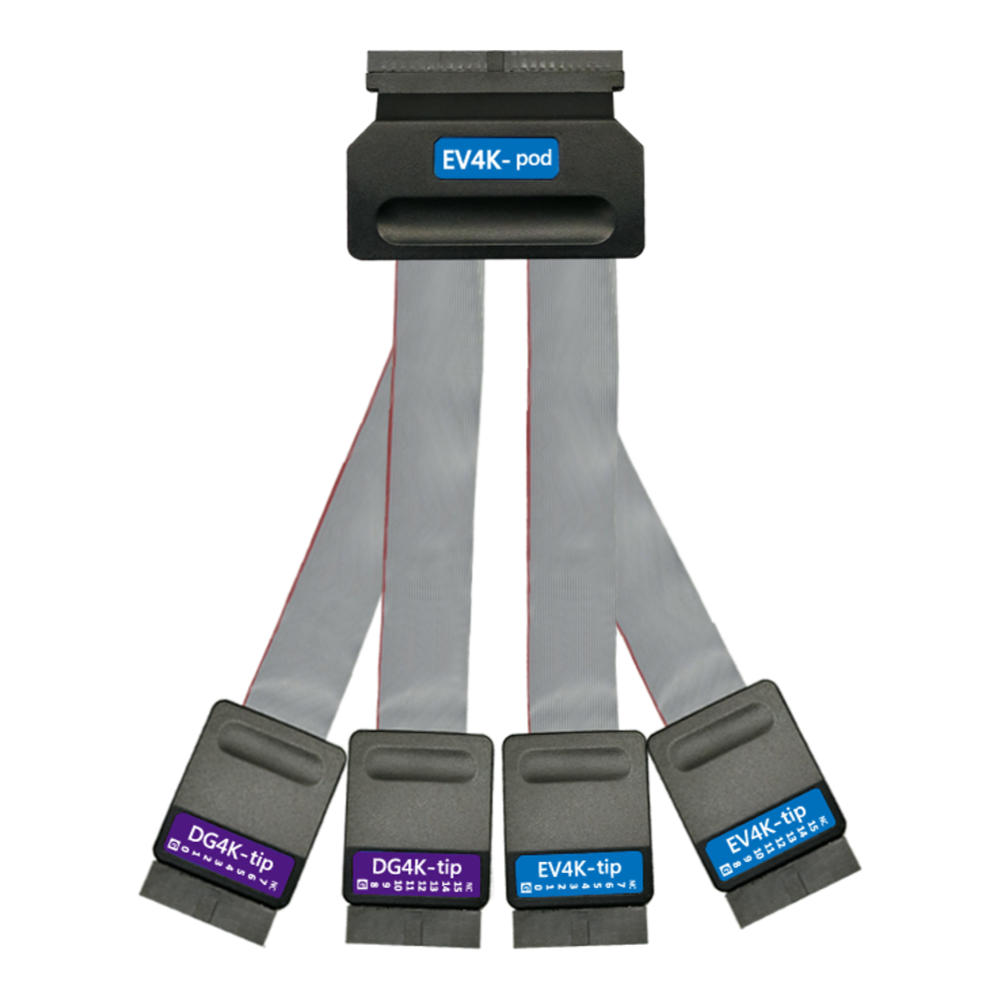

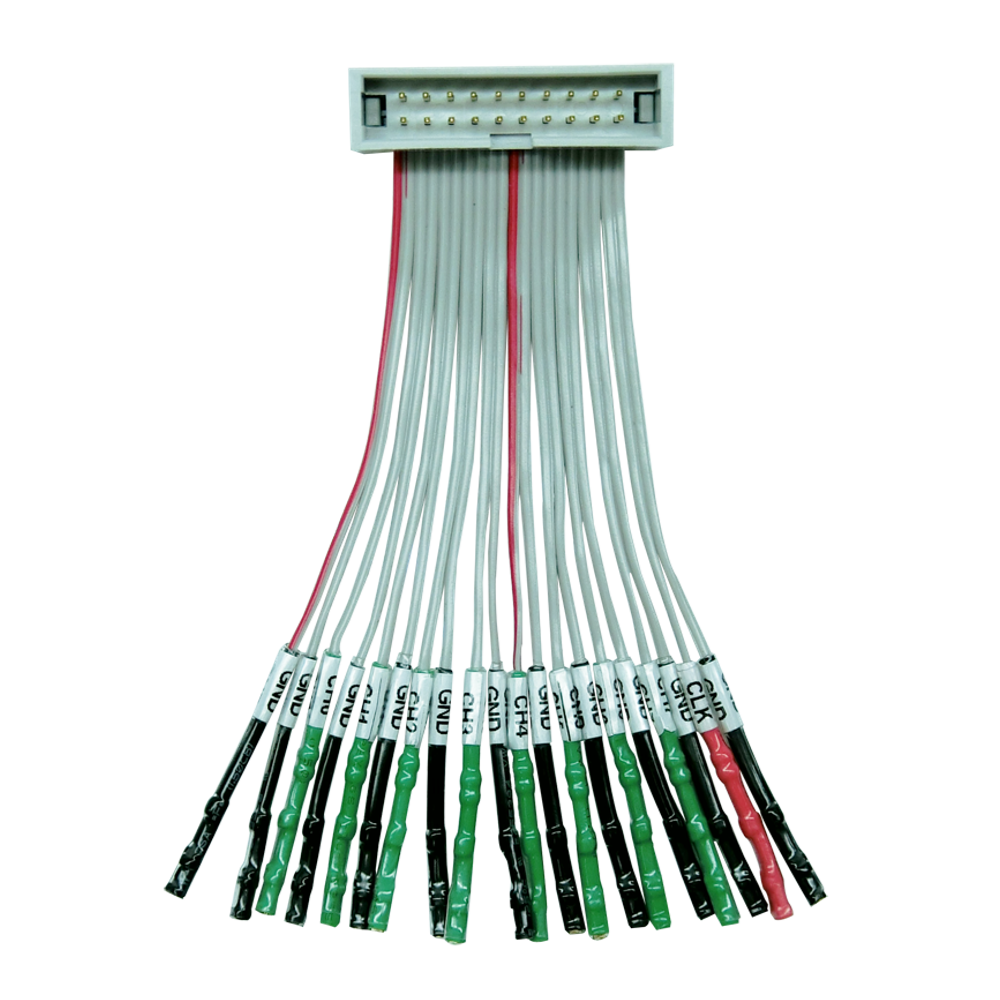

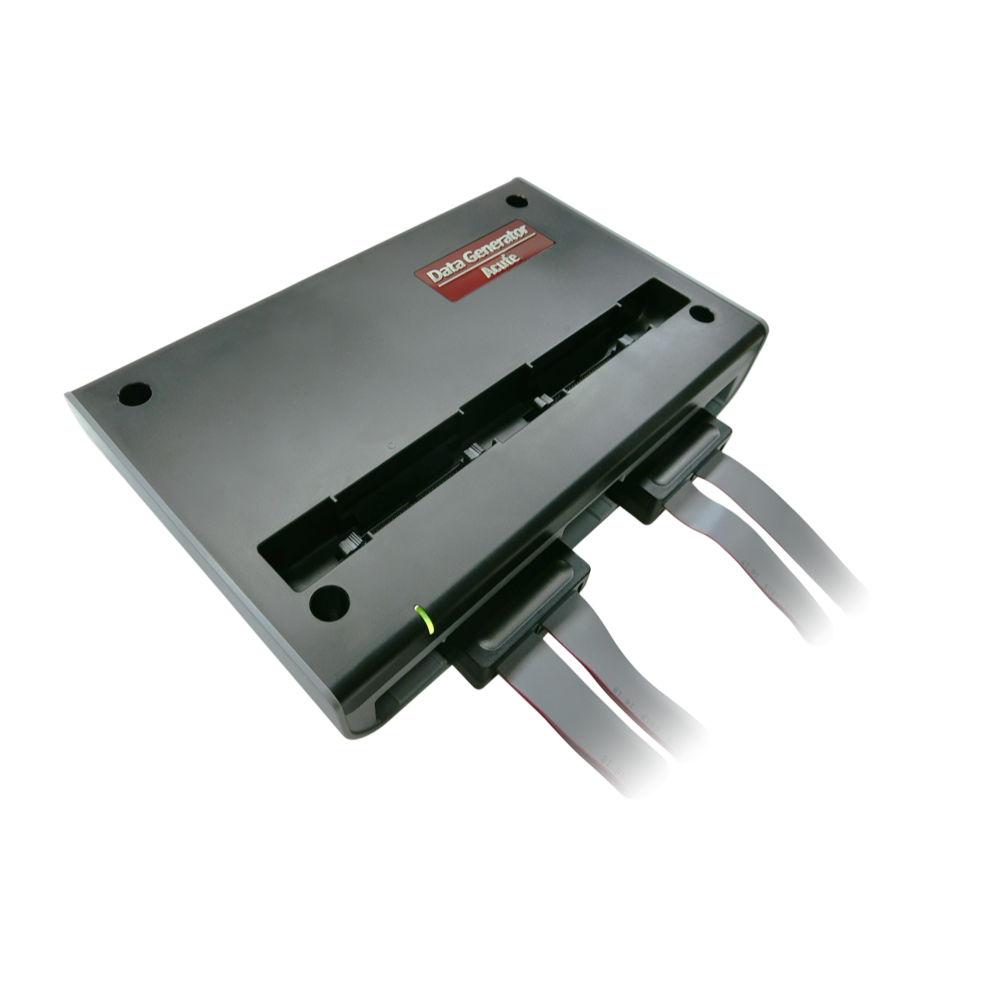

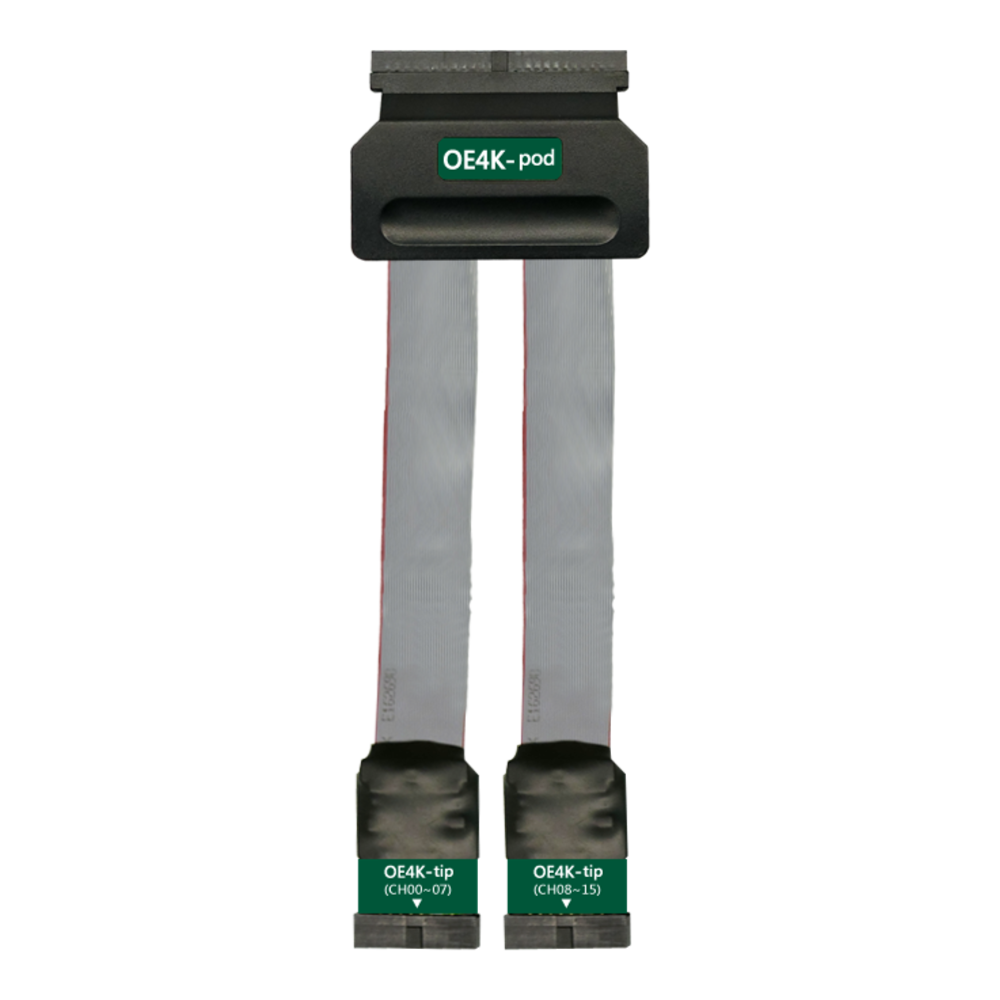

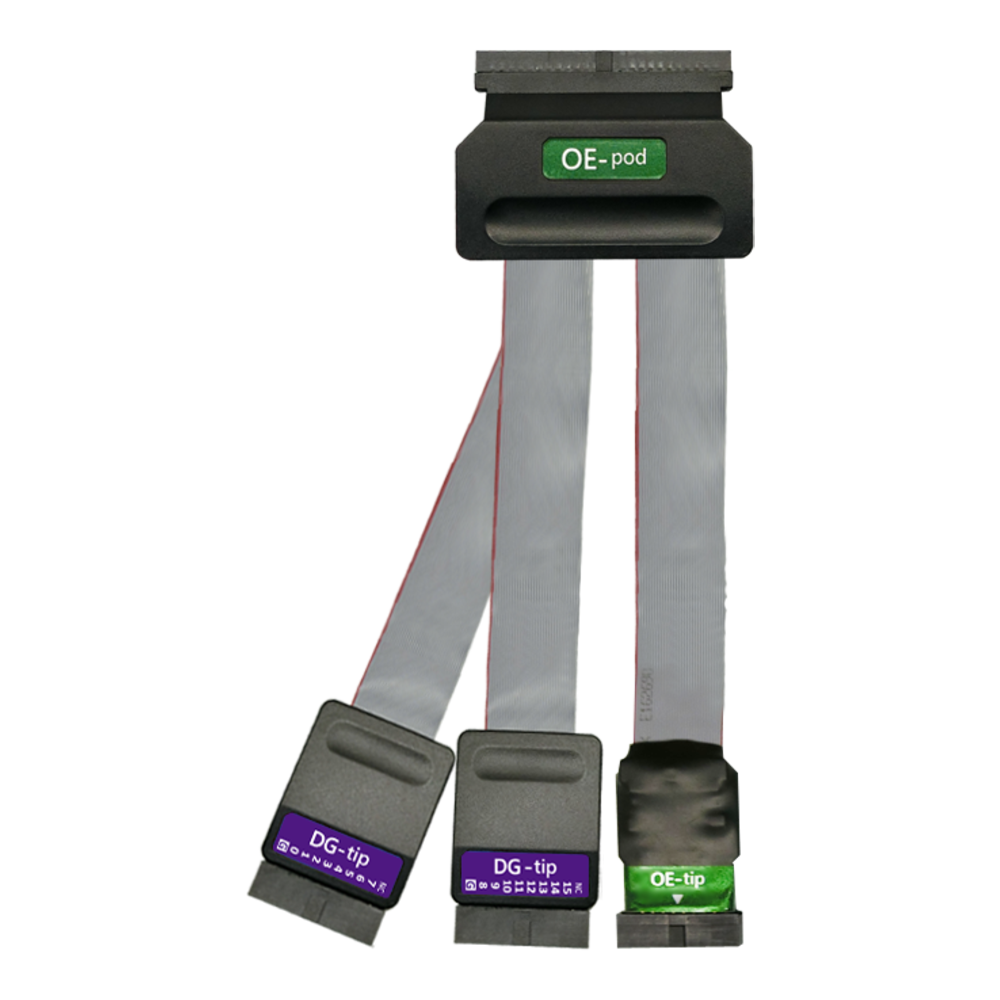

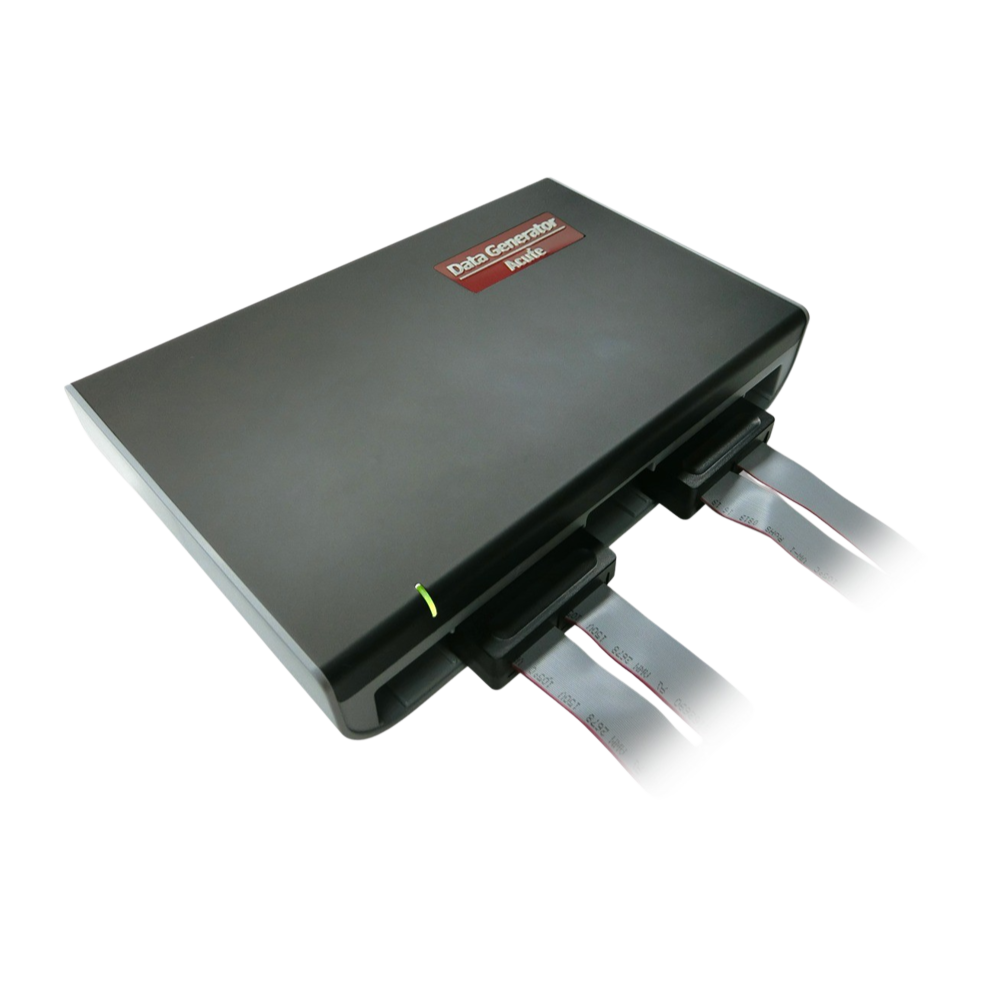

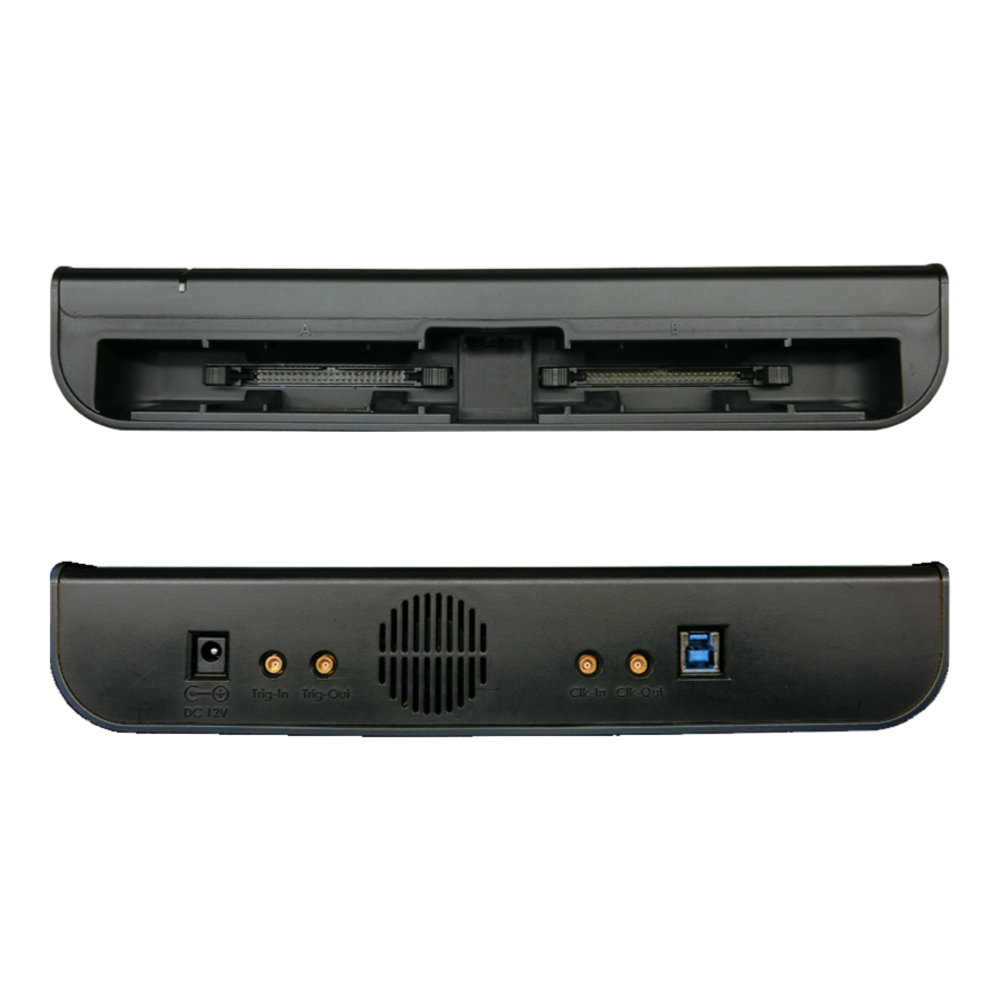

The DG4000 Series of Digital Pattern Generators represent a significant leap in multi-channel system testing technology. These cutting-edge devices offer up to 112 data output channels and 16 event input channels, delivering signals at an impressive 700Mbps per channel. With a robust 256Mb memory per channel and a wide clock range of 1Hz to 2.4GHz, the DG4000 Series provides unparalleled flexibility in signal generation and reproduction.

Supporting a variety of communication protocols including I²C, MIPI I3C, MIPI RFFE, PMBus, SPI, SVI3, and SVID, these versatile tools are perfect for simulating and reproducing complex digital signals. The adjustable probe output voltage (0.8V to 5.0V with 0.1V resolution) and Hi-Z option ensure compatibility with various testing scenarios. Engineers can utilise the devices' phase tuning between channels for precise signal alignment, while the USB 3.0 interface enables seamless connectivity and control.

The DG4000 Series excels in both default and user-defined pattern generation. Its waveform editor allows for manual drawing and conversion of plugin settings, providing engineers with the tools to create custom test scenarios. Whether conducting R&D verification or performing detailed signal analysis, the DG4000 Series Digital Pattern Generators are indispensable tools for modern electronic design and testing processes, offering a substantial improvement over their predecessors in the DG3000 series.
