Tag Connect TC-XILINX6-M Adapter
Tag Connect TC-XILINX6-M Adapter
Couldn't load pickup availability
Overview

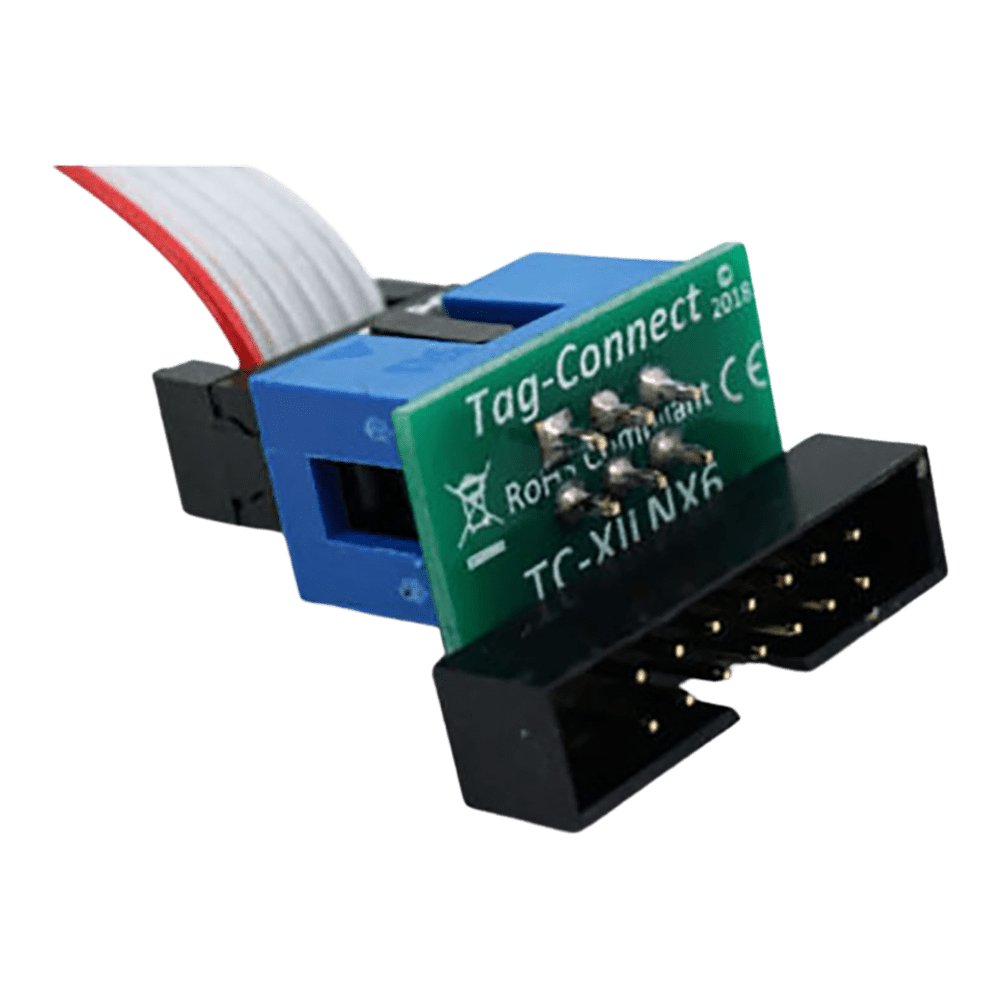

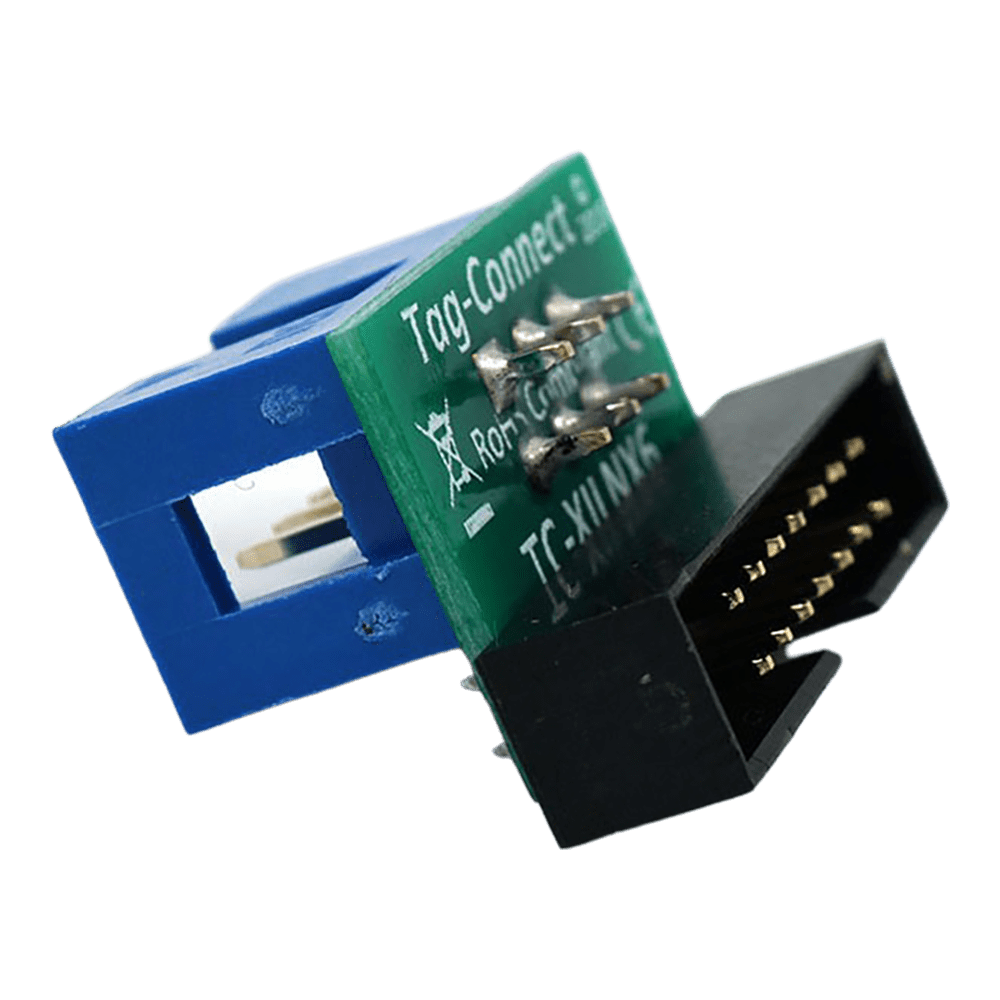

The TC-XILINX6-M is an adapter designed to be plugged into a Female 2mm 14-pin header found on programming cables for Xilinx such as Digilent JTAG-HS2 and Digilent JTAG-HS3. For use with TC2030‐IDC Plug-of-Nails™ cables.
| General Information | |
|---|---|
Part Number (SKU) |
TC-XILINX6-M
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.1 kg
|
| Other | |
Warranty |
|
HS Code Customs Tariff code
|
|
EAN |
5055383665136
|
The TC-XILINX6-M is an adapter designed to be plugged into a Female 2mm 14-pin header found on programming cables for Xilinx such as Digilent JTAG-HS2, Digilent JTAG-HS2 and Digilent JTAG-HS3 and similar programmers.
Although primarily intended for use with our patented TC2030-IDC or TC2030-IDC-NL Plug‐of‐Nails™ Cables, this adapter may be useful to people wishing to use a 6‐pin 0.1" ribbon header on their PCB instead of the native 2mm 14-pin header.
For programmers such as Xilinx Platform Cable USB II DLC10 fitted with a male 14-pin header, see TC-XILINX6
Also see the similar TC2050-XILINX-M adapter solution that adapts to a 10-pin 0.1″ header for TC2050-IDC cables.
Note: Adapter only supplied, cable not included!
| TC2030 Pin Number | Signal |
|---|---|
| 1 | VREF* |
| 2 | TMS/SS/PROG |
| 3 | TDI/MOSI/DIN |
| 4 | TCK/SCLK/CCLK |
| 5 | GND* |
| 6 | TDO/MISO/DONE |
