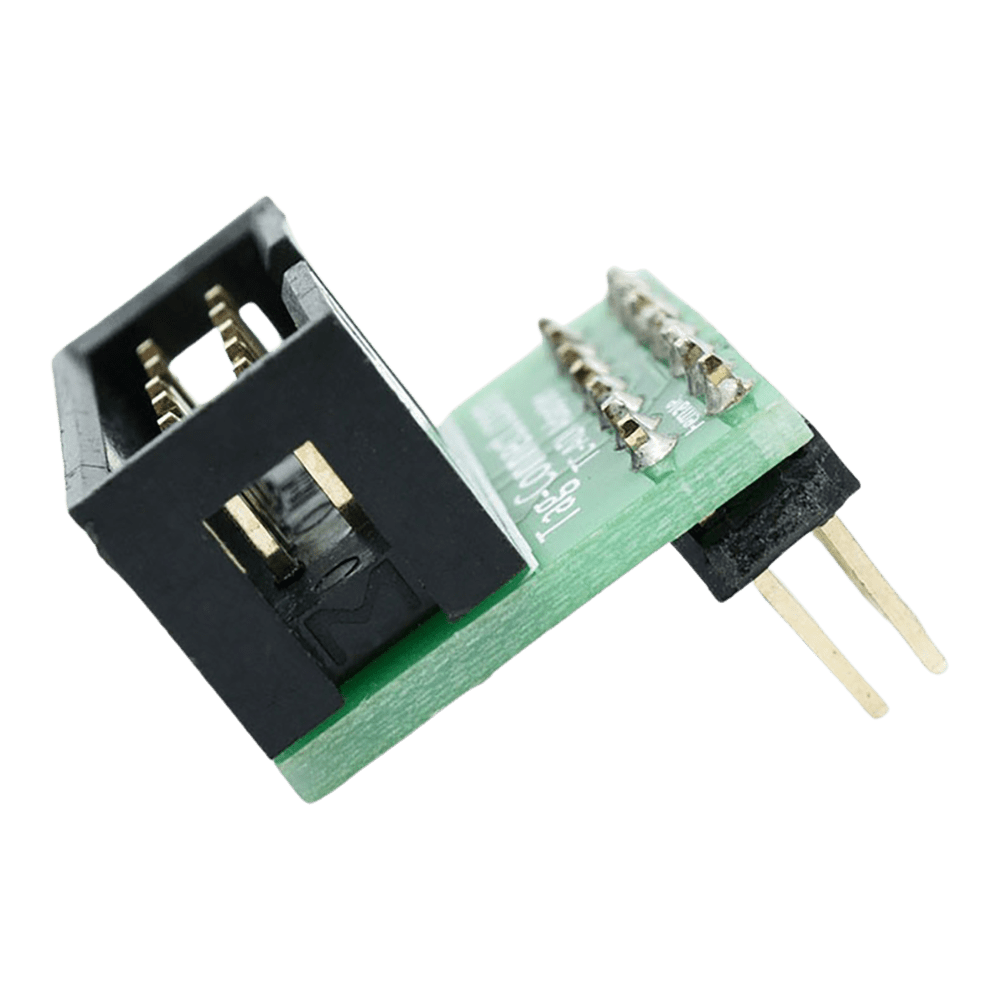

Tag Connect TC-ADI-M Adapter
Tag Connect TC-ADI-M Adapter
for Analog Devices SHARC
SKU: TC-ADI-M
Regular price
£50.40
inc VAT
£42.00
exc VAT
Regular price
Sale price
Unit price
per
£50.40
inc VAT
£42.00
exc VAT
Shipping calculated at checkout.
If no stock is shown above, order now and we'll ship within 10 working days.
Couldn't load pickup availability
Overview
The TC-ADI adapter works with Analog Devices SHARC and other ADI devices. It is designed to work with our 10-pin TC2050-IDC and TC2050-IDC-NL cables and gives the same 10-pin target board footprint for ARM JTAG that we’ve established with our TC2050-ARM2010 adapter.
Connector Pinouts
| 10-Pin Header for TC2050-IDC (-NL) |
14-Pin 90° Female Connector with PCB Locating Tab |
||
|---|---|---|---|
| VDDIO 1 | 2 TMS | GND 1 | 2 EMU |
| GND 3 | 4 TCK | GND 3 | 4 GND |
| GND 5 | 6 TDO | VDDIO 5 | 6 TMS |
| GND 7 | 8 TDI | GND 7 | 8 TCK |
| TRST 9 | 10 EMU | GND 9 | 10 TRST |
| GND 11 | 12 TDI | ||
| GND 13 | 14 TDO | ||
| General Information | |
|---|---|
Part Number (SKU) |
TC-ADI-M
|
Manufacturer |
|
| Physical and Mechanical | |
Weight |
0.1 kg
|
| Other | |
Warranty |
|
HS Code Customs Tariff code
|
|
EAN |
5055383690473
|
